AC adapter output voltage Power - 12 V
Adjustable height (max) Ergonomics - 115 mm
AMD FreeSync Performance - No
Automatic brightness control Other features - No
Backlight type Display - Edge LED
Bezel width (bottom) Weight & dimensions - 18.7 mm
Bezel width (side) Weight & dimensions - 8.17 mm
Bezel width (top) Weight & dimensions - 8.17 mm
Bluetooth Network - No
Brand - Dahua Technology
BrandPartCode - DHI-LM30-E330CW
Built-in camera Multimedia - No
Built-in speaker(s) Multimedia - No
Built-in USB hub Ports & interfaces - No
Cables included Packaging content - DisplayPort
Category - Computer Monitors
Category Code - LC3
Colour gamut standard Display - NTSC/sRGB
Compliance certificates Other features - CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)
Contrast ratio (typical) Display - 3000:1
Data Sheet (Link) Energy Efficiency - https://eprel.ec.europa.eu/api/product/2109285/fiches?language=EN
Depth (without stand) Weight & dimensions - 121.7 mm
Depth (with stand) Weight & dimensions - 269.3 mm
Description - R1500 curved screen makes the vision more shockingThe back of the monitor is equipped with a light effect200Hz high refresh rate and 1ms fast response time to seize the game and improve the odds of winningDCR intelligent processing chip restore the most realistic pictureAdaptive sync technology reduces image quality loss and improves visual fluencyGameplus function optimizes special scenes of popular gamesThe screen aspect ratio is 21:9, bringing an immersive experience
Design - Feet colour - White
Design - Front bezel colour - White
Design - Illuminated stand - No
Design - Market positioning - Gaming
Design - Product colour - White
Display - Backlight type - Edge LED
Display - Colour gamut standard - NTSC, sRGB
Display - Contrast ratio (typical) - 3000:1
Display - Display brightness (typical) - 250 cd/m²
Display - Display diagonal - 76.2 cm (30")
Display - Display diagonal (metric) - 76 cm
Display - Display resolution - 2560 x 1080 pixels
Display - Display technology - LCD
Display - Haze rate - 25%
Display - HD type - WFHD
Display - LED backlight - Yes
Display - Maximum refresh rate - 200 Hz
Display - Native aspect ratio - 21:9
Display - NTSC coverage (typical) - 85%
Display - Panel type - VA
Display - Response time (MPRT) - 1 ms
Display - Screen curvature rating - 1500R
Display - Screen shape - Curved
Display - sRGB coverage (typical) - 99%
Display - Supported graphics resolutions - 2560 x 1080
Display - Supported video modes - 1080p
Display - Surface hardness - 3H
Display - Touchscreen - No
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display brightness (typical) Display - 250 cd/m²
Display diagonal (metric) Display - 76 cm
Display diagonal Display - 30 "
DisplayPorts quantity Ports & interfaces - 2
DisplayPort version Ports & interfaces - 1.4
Display resolution Display - 2560 x 1080 pixels
Display technology Display - LCD
E-manual Other features - Yes
Energy consumption (SDR) per 1000 hours Power - 26 kWh
Energy efficiency class (HDR) Power - Not available
Energy efficiency class (SDR) Power - F
Energy efficiency class Energy Efficiency - F
Energy efficiency scale Power - A to G
EPREL Registration Number Energy Efficiency - 2109285
EPREL Version Number Energy Efficiency - 1
Ergonomics - Adjustable height (max) - 11.5 cm
Ergonomics - Height adjustment - Yes
Ergonomics - Panel mounting interface - 75 x 75 mm
Ergonomics - Plug and Play - Yes
Ergonomics - Swivel angle range - -25 - 25°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -5 - 20°
Ergonomics - VESA mounting - Yes
Ergonomics - Wall mountable - Yes
Feet colour Design - White
Front bezel colour Design - White
Haze rate Display - 25 %
HDMI Ports & interfaces - Yes
HDMI ports quantity Ports & interfaces - 2
HDMI version Ports & interfaces - 2.0
HD type Display - WFHD
Headphone out Ports & interfaces - Yes
Height (without stand) Weight & dimensions - 317.6 mm
Height (with stand) Weight & dimensions - 536.3 mm
Height adjustment Ergonomics - Yes
Illuminated stand Design - No
Input current Power - 4 A
LED backlight Display - Yes
LongDesc -
LongProductName - 30", 2560 x 1080 WFHD, 200 Hz, VA, ELED, 21:9, 250 cd/m², 3000: 1, MPRT 1 ms, 3H, 99% sRGB, 85% NTSC, 2 x DP 1.4, 2 x HDMI 2.0, White
LongSummaryDescription - Dahua Technology LM30-E330CW. Display diagonal: 76.2 cm (30"), Display resolution: 2560 x 1080 pixels, HD type: WFHD, Display technology: LCD, Native aspect ratio: 21:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting, Height adjustment. Product colour: White
Market positioning Design - Gaming
Maximum refresh rate Display - 200 Hz
Multimedia - Built-in camera - No
Multimedia - Built-in speaker(s) - No
Native aspect ratio Display - 21:9
Network - Bluetooth - No
Network - Wi-Fi - No
NTSC coverage (typical) Display - 85 %
NVIDIA G-SYNC Performance - No
Operating relative humidity (H-H) Operational conditions - 10 - 85 %
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - Automatic brightness control - No
Other features - Compliance certificates - CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Other features - E-manual - Yes
Package depth Packaging data - 450 mm
Package height Packaging data - 248 mm
Package weight Packaging data - 8710 g
Package width Packaging data - 817 mm
Packaging content - Cables included - DisplayPort
Packaging content - Power adapter included - Yes
Packaging data - Package depth - 450 mm
Packaging data - Package height - 248 mm
Packaging data - Package weight - 8.71 kg
Packaging data - Package width - 817 mm
Panel mounting interface Ergonomics - 75 x 75 mm
Panel type Display - VA
Performance - AMD FreeSync - No
Performance - NVIDIA G-SYNC - No
Performance - VESA Adaptive Sync support - Yes
Plug and Play Ergonomics - Yes
Ports & interfaces - Built-in USB hub - No
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 1.4
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - Headphone out - Yes
Power - AC adapter output voltage - 12 V
Power - Energy consumption (SDR) per 1000 hours - 26 kWh
Power - Energy efficiency class (HDR) - Not available
Power - Energy efficiency class (SDR) - F
Power - Energy efficiency scale - A to G
Power - Input current - 4 A
Power - Power consumption (max) - 40 W
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 36 W
Power - Power supply type - External
Power adapter included Packaging content - Yes
Power consumption (max) Power - 40 W
Power consumption (off) Power - 0.3 W
Power consumption (standby) Power - 0.5 W
Power consumption (typical) Power - 36 W
Power supply type Power - External
Product colour Design - White
ProductName - LM30-E330CW
Product Net Weight - 5.84 kg
Response time (MPRT) Display - 1 ms
Screen curvature rating Display - 1500R
Screen shape Display - Curved
ShortSummaryDescription - Dahua Technology LM30-E330CW, 76.2 cm (30"), 2560 x 1080 pixels, WFHD, LCD, White
sRGB coverage (typical) Display - 99 %
Storage relative humidity (H-H) Operational conditions - 5 - 90 %
Storage temperature (T-T) Operational conditions - -20 - 60 °C
Summary - Dahua Technology LM30-E330CW. Display diagonal: 76.2 cm (30"), Display resolution: 2560 x 1080 pixels, HD type: WFHD, Display technology: LCD, Native aspect ratio: 21:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting, Height adjustment. Product colour: White
Supported graphics resolutions Display - 2560 x 1080
Supported video modes Display - 1080p
Surface hardness Display - 3H
Swivel angle range Ergonomics - -25 - 25 °
Swivelling Ergonomics - Yes
Tilt adjustment Ergonomics - Yes
Tilt angle range Ergonomics - -5 - 20 °

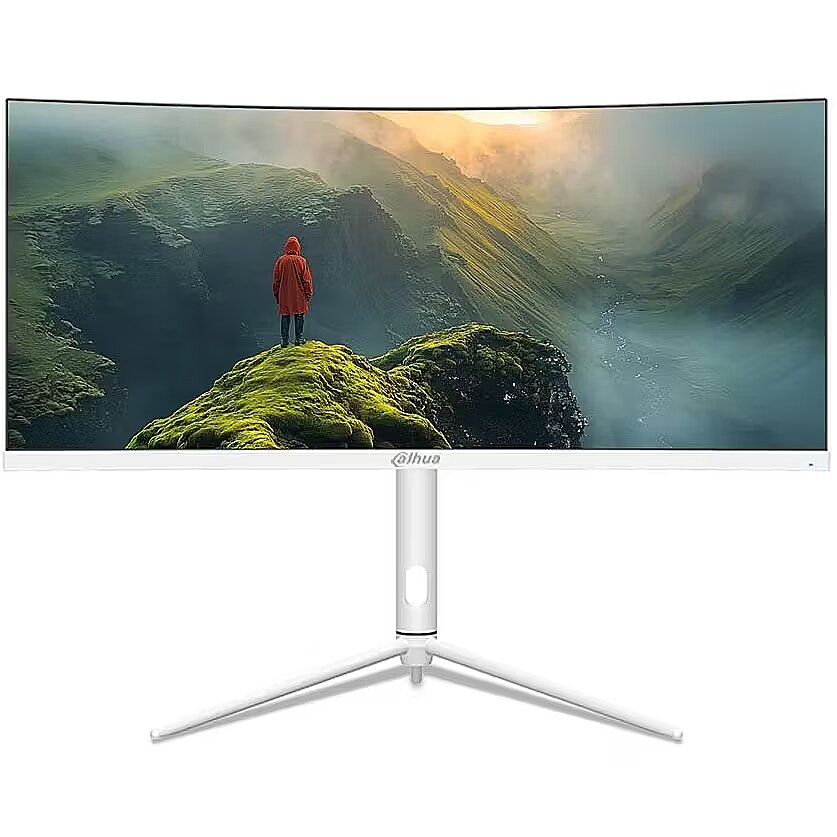

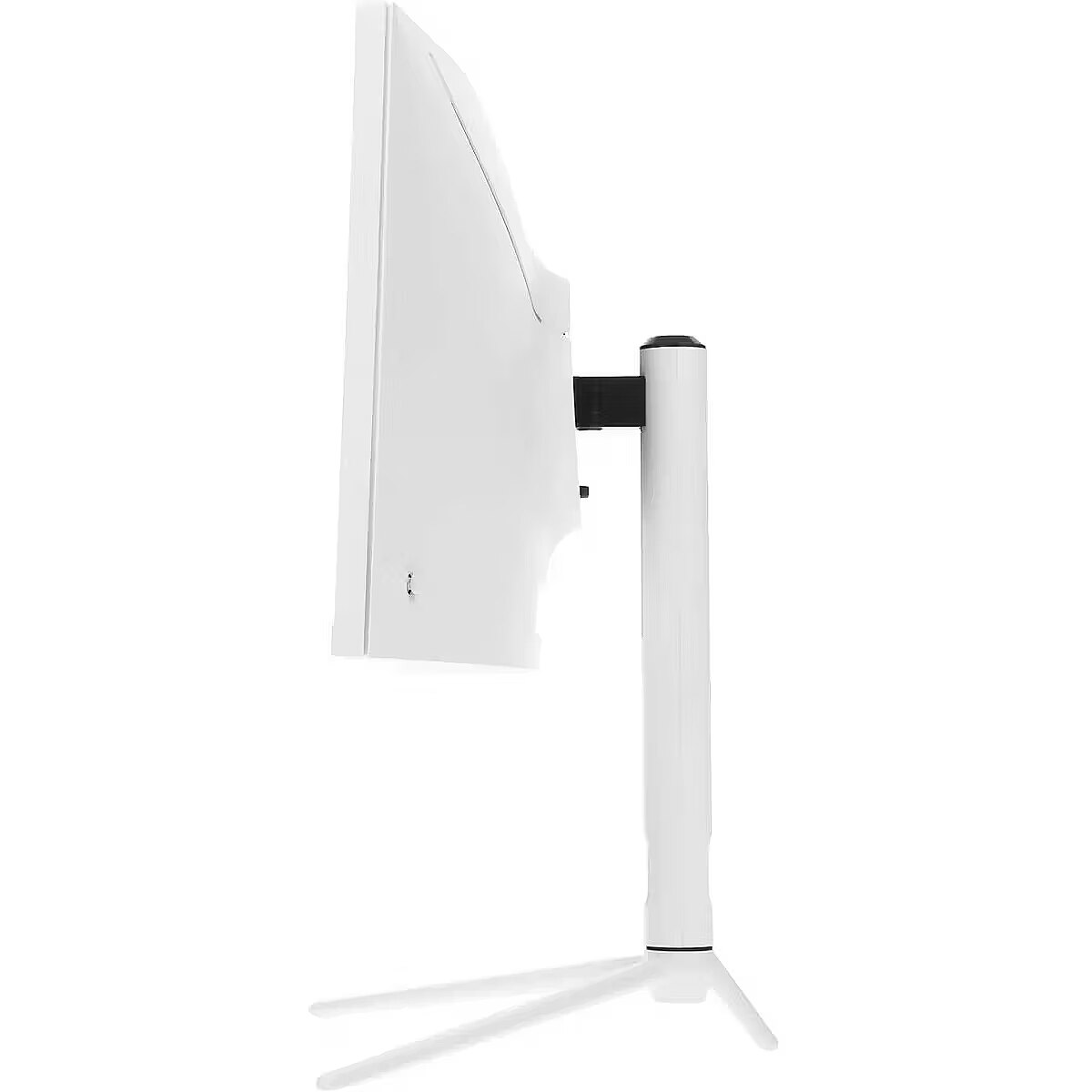

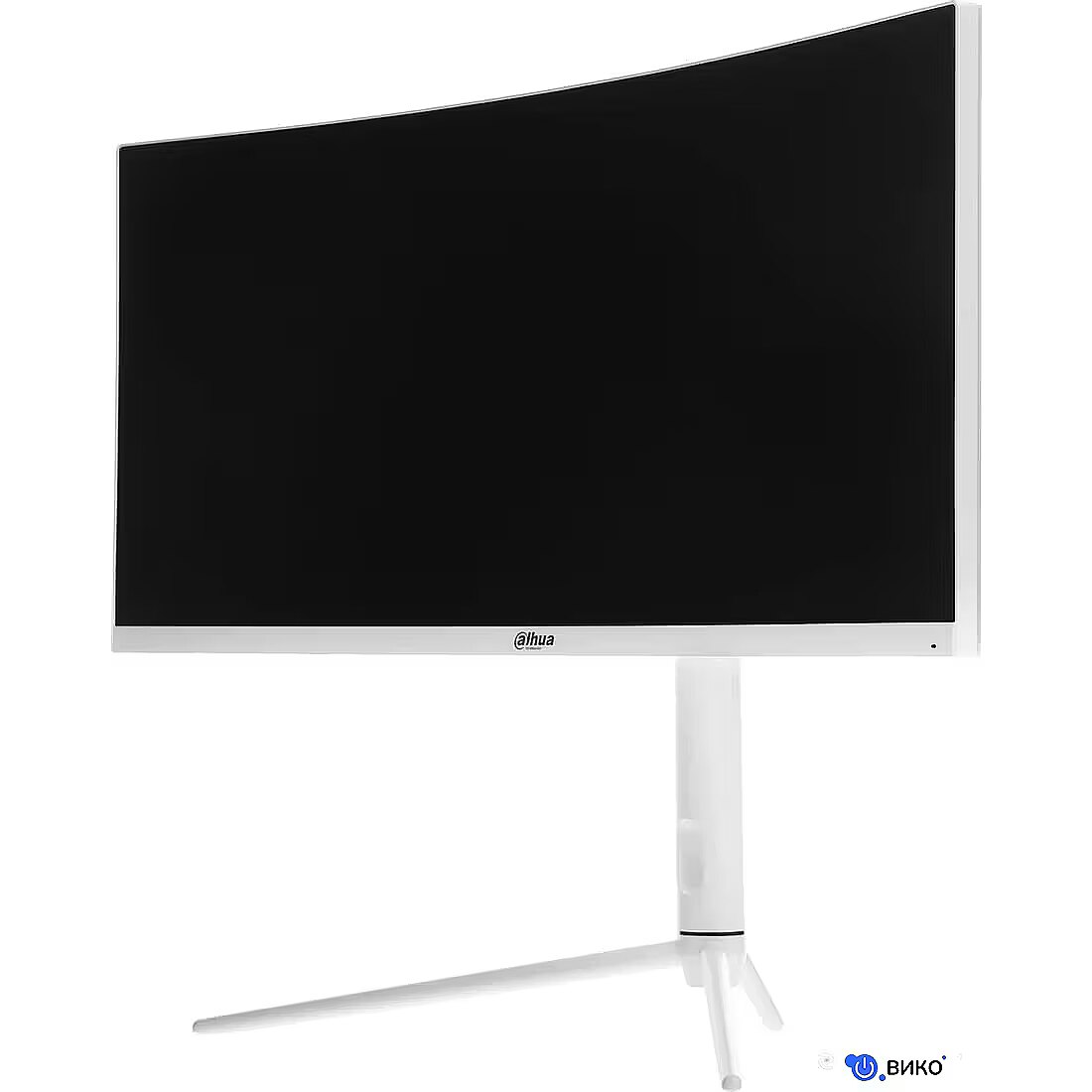

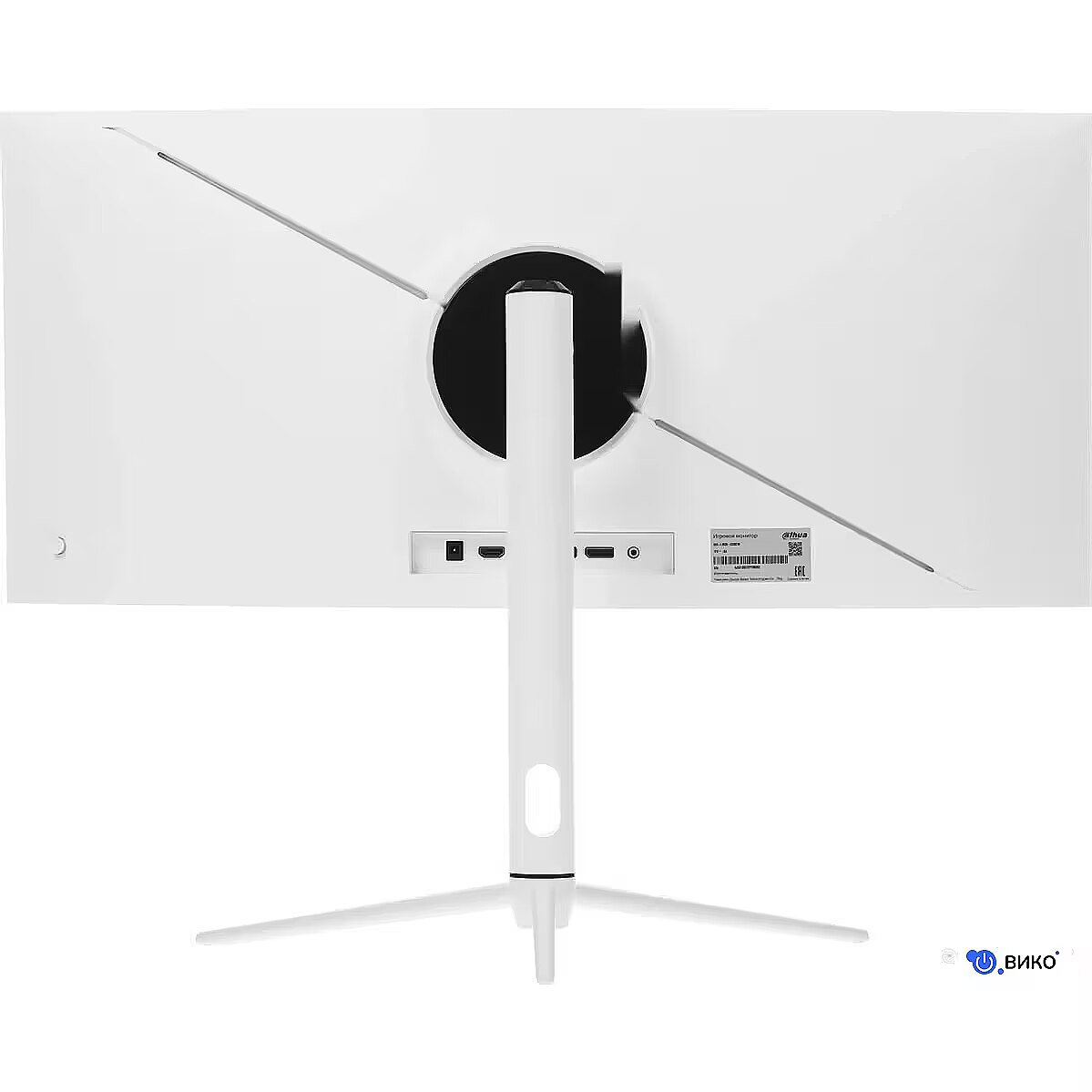

Title - Dahua Technology LM30-E330CW computer monitor 76.2 cm (30") 2560 x 1080 pixels WFHD LCD White
Touchscreen Display - No
Unit Box Height - 0.445
Unit Box Length - 0.815
Unit Box Width - 0.25
Unit Calculated Volume - 0.09067 cubm
Unit Calculated Weight - 8.65 kg
Units per Pallet - 0
URL - https://www.dahuasecurity.com/mena/products/All-Products/Display--Control/Monitors/Gaming-Series/LM30-E330CW=V1
Vendor Homepage - https://www.dahuasecurity.com/mena/products/All-Products/Display--Control/Monitors/Gaming-Series/LM30-E330CW=V1
VESA Adaptive Sync support Performance - Yes
VESA mounting Ergonomics - Yes
Viewing angle, horizontal Display - 178 °
Viewing angle, vertical Display - 178 °
Wall mountable Ergonomics - Yes
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Bezel width (bottom) - 1.87 cm
Weight & dimensions - Bezel width (side) - 8.17 mm
Weight & dimensions - Bezel width (top) - 8.17 mm
Weight & dimensions - Depth (without stand) - 121.7 mm
Weight & dimensions - Depth (with stand) - 269.3 mm
Weight & dimensions - Height (without stand) - 317.6 mm
Weight & dimensions - Height (with stand) - 536.3 mm
Weight & dimensions - Weight (with stand) - 5.84 kg
Weight & dimensions - Width (without stand) - 701.1 mm
Weight & dimensions - Width (with stand) - 701.1 mm
Weight (with stand) Weight & dimensions - 5840 g
Wi-Fi Network - No
Width (without stand) Weight & dimensions - 701.1 mm
Width (with stand) Weight & dimensions - 701.1 mm
