AC adapter output voltage Power - 12 V
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
Adobe RGB coverage Display - 80 %
Backlight type Display - Edge LED
Brand - Dahua Technology
BrandPartCode - DHI-LM24-E230C
Built-in camera Multimedia - No
Built-in speaker(s) Multimedia - No
Built-in USB hub Ports & interfaces - No
Cables included Packaging content - DisplayPort
Category - Computer Monitors
Category - Root/Electronics/PC peripherals/Monitors
Category Code - LC3
CnCode - 85285210
Contrast ratio (typical) Display - 3000:1
Data Sheet (Link) Energy Efficiency - https://eprel.ec.europa.eu/api/product/1536828/fiches?language=EN
DC-in jack Ports & interfaces - Yes
Depth (without stand) Weight & dimensions - 73.96 mm
Description - Comfortable 1500R exquisite curvature, close to the natural look and feel of the human eye, bringing immersive visual enjoymentThe 1920*1080 resolution produces clearer and more vivid picturesVA panel for wide viewing angles with 3-sided frameless designWide color gamut, 99% sRGB, 83% NTSC, 85% DCI-P3, 80% Adobe RGB. It meets the designer's demand of image textureThe 165Hz high refresh rate enables you to aim at the target more quickly, eliminates picture lagging, and helps you to aim at the target fasterAdaptive sync can effectively solve picture lagging and tearing
Design - Detachable stand - Yes
Design - Frameless design - Yes
Design - Market positioning - Gaming
Design - Product colour - Black
Detachable stand Design - Yes
Display - Adobe RGB coverage - 80%
Display - Backlight type - Edge LED
Display - Contrast ratio (typical) - 3000:1
Display - Display brightness (typical) - 250 cd/m²
Display - Display diagonal - 59.9 cm (23.6")
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LED
Display - HD type - Full HD
Display - Maximum refresh rate - 165 Hz
Display - Native aspect ratio - 16:9
Display - NTSC coverage (typical) - 83%
Display - Panel type - VA
Display - Response time - 1 ms
Display - Screen curvature rating - 1500R
Display - Screen shape - Curved
Display - sRGB coverage (typical) - 99%
Display - Touchscreen - No
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display brightness (typical) Display - 250 cd/m²
Display diagonal Display - 23.6 "
DisplayPorts quantity Ports & interfaces - 1
DisplayPort version Ports & interfaces - 1.2
Display resolution Display - 1920 x 1080 pixels
Display technology Display - LED
Eans - 6923172547682
Energy consumption (SDR) per 1000 hours Power - 17 kWh
Energy efficiency class (SDR) Power - E
Energy efficiency class Energy Efficiency - E
Energy efficiency scale Power - A to G
EPREL Registration Number Energy Efficiency - 1536828
EPREL Version Number Energy Efficiency - 1
Ergonomics - Height adjustment - No
Ergonomics - Panel mounting interface - 75 x 75 mm
Ergonomics - Pivot - No
Ergonomics - Swivelling - No
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -5 - 15°
Ergonomics - VESA mounting - Yes
Ergonomics - Wall mountable - Yes
European Product Registry for Energy Labelling (EPREL) code Power - 1536828
Frameless design Design - Yes
GTIN - 6923172547682
HDMI Ports & interfaces - Yes
HDMI ports quantity Ports & interfaces - 2
HDMI version Ports & interfaces - 1.4
HD type Display - Full HD
Headphone out Ports & interfaces - Yes
Headphone outputs Ports & interfaces - 1
Height (without stand) Weight & dimensions - 333.54 mm
Height adjustment Ergonomics - No
LongDesc -
LongProductName - 23.6’’ FHD Monitor 1500R, 1920 x 1080 VA, 165Hz, 250 cd/m2, 3000:1, 1ms, 1 x DP1.2，2 x HDMI 1.4, Audio out
LongSummaryDescription - Dahua Technology DHI-LM24-E230C. Display diagonal: 59.9 cm (23.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 1 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
Market positioning Design - Gaming
Maximum refresh rate Display - 165 Hz
Model - DHI-LM24-E230C
Multimedia - Built-in camera - No
Multimedia - Built-in speaker(s) - No
Name - Dahua LM24- 165Hz | Full HD | 23,6'' | VA | 1ms
Native aspect ratio Display - 16:9
NTSC coverage (typical) Display - 83 %
Operating relative humidity (H-H) Operational conditions - 10 - 85 %
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Package depth Packaging data - 149 mm
Package height Packaging data - 407 mm
Package weight Packaging data - 4900 g
Package width Packaging data - 630 mm
Packaging content - Cables included - DisplayPort
Packaging content - Power adapter included - Yes
Packaging content - Stand included - Yes
Packaging data - Package depth - 149 mm
Packaging data - Package height - 407 mm
Packaging data - Package weight - 4.9 kg
Packaging data - Package width - 630 mm
Panel mounting interface Ergonomics - 75 x 75 mm
Panel type Display - VA
Pivot Ergonomics - No
Ports & interfaces - Built-in USB hub - No
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.2
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - Headphone out - Yes
Ports & interfaces - Headphone outputs - 1
Power - AC adapter output voltage - 12 V
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 17 kWh
Power - Energy efficiency class (SDR) - E
Power - Energy efficiency scale - A to G
Power - European Product Registry for Energy Labelling (EPREL) code - 1536828
Power - Power consumption (max) - 35 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 24 W
Power - Power supply type - External
Power adapter included Packaging content - Yes
Power consumption (max) Power - 35 W
Power consumption (standby) Power - 0.5 W
Power consumption (typical) Power - 24 W
Power supply type Power - External
Producer - Dahua Technology
ProducerCode - LM24-E230C
Product colour Design - Black
ProductName - DHI-LM24-E230C
Product Net Weight - 3.2 kg
Response time Display - 1 ms
Screen curvature rating Display - 1500R
Screen shape Display - Curved
ShortDescription - 23,6'' | VA | Full HD | 1ms
ShortSummaryDescription - Dahua Technology DHI-LM24-E230C, 59.9 cm (23.6"), 1920 x 1080 pixels, Full HD, LED, 1 ms, Black
sRGB coverage (typical) Display - 99 %
Stand included Packaging content - Yes
Summary - Dahua Technology DHI-LM24-E230C. Display diagonal: 59.9 cm (23.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 1 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
Swivelling Ergonomics - No
Tilt adjustment Ergonomics - Yes
Tilt angle range Ergonomics - -5 - 15 °

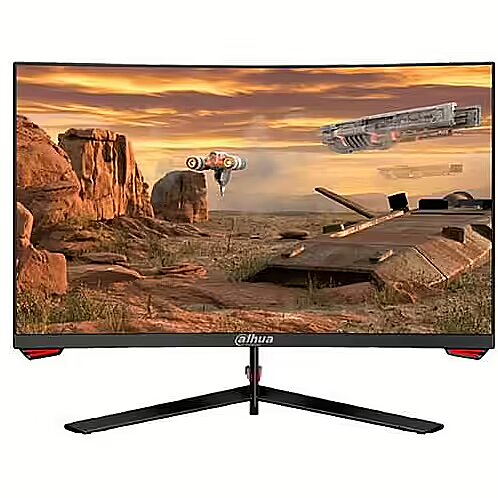

Title - Dahua Technology DHI-LM24-E230C LED display 59.9 cm (23.6") 1920 x 1080 pixels Full HD Black
Touchscreen Display - No
Unit Box Height - 0.42
Unit Box Length - 0.63
Unit Box Width - 0.15
Unit Calculated Volume - 0.03969 cubm
Unit Calculated Weight - 4.7 kg
URL - https://www.dahuasecurity.com/la/products/All-Products/Display--Control/Monitors/Gaming-Series/LM24-E230C
Vendor Homepage - https://www.dahuasecurity.com/la/products/All-Products/Display--Control/Monitors/Gaming-Series/LM24-E230C
VESA mounting Ergonomics - Yes
Viewing angle, horizontal Display - 178 °
Viewing angle, vertical Display - 178 °
Wall mountable Ergonomics - Yes
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth (without stand) - 74 mm
Weight & dimensions - Height (without stand) - 333.5 mm
Weight & dimensions - Weight (with stand) - 3.2 kg
Weight & dimensions - Width (without stand) - 537.9 mm
Weight (with stand) Weight & dimensions - 3200 g
Width (without stand) Weight & dimensions - 537.86 mm
