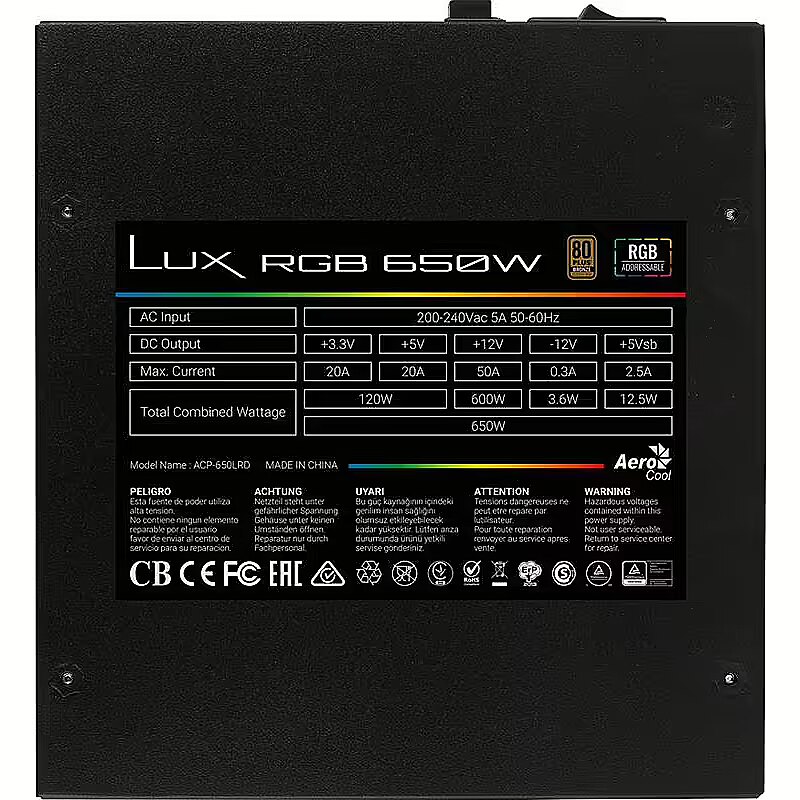

Aerocool LUX RGB, 650W 80PLUS Bronze

8-pin 12V power connectors - 0
Accessories included -
Brand - Aerocool
BrandPartCode - LUXRGB650M
Category - Power Supply Units
Certificates 80+ - 80 PLUS Bronze
Description - Featuring a stylish and elegant RGB LED design, the LUX RGB enhances the look and feel of your gaming setup while efficiently powering your system. Bring your system to life with 13 preset lighting effects that can be controlled via LED control button. Compatible with Addressable RGB motherboards using Addressable +5V RGB connector. Built with 30% increased ventilation area in the body of the PSU, the LUX RGB is designed for increased air flow and circulation. Control up to 13 lighting effects via LED control button Compatible with Addressable RGB using +5V Addressable RGB connector 30% Increased ventilation area in the body of the PSU allows for increased air flow 80Plus 230V EU Bronze Certified for up to 88%+ efficiency OPP/OVP/UVP/SCP electrical protection included Silent 12cm black fan with optimized thermal fan speed control Soft, black, flat cables allow for more convenient cable management
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan speed - 0 - 800 RPM
Design - Illumination - Yes
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 95 mm
dimension height - 200 mm
Dimensions - 85 x 150 x 140 mm
dimension weight - 1740 g
dimension width - 235 mm
ean - 4718009153875
Fan - 12 cm
Floppy power connectors - 0
GTIN - 4718009156210
guarantee - 24
guarantee_type - normal
Logistics data - Master (outer) case height - 215 mm
Logistics data - Master (outer) case length - 495 mm
Logistics data - Master (outer) case width - 250 mm
Logistics data - Products per master (outer) case - 5 pc(s)
LongDesc - he P7-650W Platinum Power Supply Unit was designed by Aerocool in collaboration with TechPowerUp through iterative prototyping and testing.The unit’s superior efficiency, noise reduction, and durability are an attestation to these efforts. High engineering standards by Aerocool and TechPowerUp guarantee your satisfaction.RGB LIGHTINGAccess 16.8 million colors and three LED modes with P7-S1 (Project7-Software1), available with our P7-Hub (P7-H1). RGB functions can also be controlled through motherboards with 4 Pin RGB configuration.RGB SOFTWARE16.8 million colors with three LED lighting modes including solid color, breathing, and pulsating. Set your color by entering RGB color code (HTML code).Learn more about P7-S1 (Project7-Software1)MONITOR FAN RPMMonitors RPM of up to five fans compatible with either 4-pin or 3-pin connectors through the P7-H1 (Project7- Hub1)EFFICIENCY80 PLUS Platinum certified for highest efficiency: Under typical load, efficiency is at 92% when 115VAC and efficiency is around 94% when 230VAC.Certified by Cybenetics with the ETA-A badge.This badge is granted to units with efficiency rates of between 88% to 91%.HIGH-QUALITY JAPANESE CAPACITORSOnly the highest quality Japanese capacitors were used in the manufacturing of P7-650W Platinum. High-quality Japanese capacitors provide uncompromised performance, reliability and durability even under the most demanding conditions.The unit is designed to work efficiently even at 50°C ambient temperature.SOUNDLESS OPERATIONThe PSU fan only spins when your PC is doing some grunt work. The fan kicks in at 60% load ensuring most of the time you won’t even hear it. For the techies, the fan spins at less than 500 RPM before 80% load. Basically, you’re going to experience a soundless operation.Certified by Cybenetics with the badge LAMBDA-A++.This badge is granted to units with average noise measurements of under 20 dB.ETCHED CIRCUIT DESIGNP7-650W PlatinumCable free connections between components, daughter boards and main PCB deliver a cleaner and solid ‘Etched Circuit Design’. This improves reliability, airflow and overall lag free communication leading to better cooling performance and a much more quieter operation.Traditional PCBThe many protruding cables of legacy circuit boards made them prone to failure either due to overheating or human error during assembling. Etched Circuit Design solved all of these issues.MODULAR CABLE OUTLETSThe fully modular and soft black flat cables make cable management convenient and deliver an easier installation experience.14CM FAN WITH FDB (Fluid Dynamic Bearing)The 14cm fan provides excellent airflow and the additional FDB dust-proof design ensures a smooth operation.PEACE OF MINDAerocool has invested heavily in the development of P7-650W Platinum. We guarantee that the unit was built using only the highest quality components. We back this promise with a 7-year warranty policy to ensure your peace of mind.
LongProductName - 650W, 12V v2.3, 140 мм, 50-60Hz, 20A, RGB
LongSummaryDescription - Aerocool LUXRGB650M RGB Modular PC Power Supply 650W 80Plus Bronze 230V Black. Total power: 650 W, AC input voltage: 220 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, SATA power cable length: 500,550 mm. Purpose: PC, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 3
name - Aerocool LUX RGB 650W 8 0+BRONZE N.MODULAR ATX
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features - 1 RGB 4pin connector 3 PATA connectors
Other features - Cable ties included - Yes
Other features - Frequency tolerance - 94%
Other features - Illumination colour - Blue, Green, Red
Packaging content - Cables included - AC
Packaging data - Manual - Yes
Packaging data - Package depth - 195 mm
Packaging data - Package height - 95 mm
Packaging data - Package type - Box
Packaging data - Package width - 230 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Semi-Modular
Ports & interfaces - CPU power cable length - 55 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 50 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 3
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - SATA power cable length - 500,550 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 220 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 600 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 88%
Power - Input current - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 50 A
Power - Max output current (+12V4) - 0.3 A
Power - Total power - 650 W
Power supply - 650 W
producer - AeroCool
ProductName - LUXRGB650M RGB Modular PC Power Supply 650W 80Plus Bronze 230V Black
SATA power connectors - 5
ShortSummaryDescription - Aerocool LUXRGB650M RGB Modular PC Power Supply 650W 80Plus Bronze 230V Black, 650 W, 220 - 240 V, 50 - 60 Hz, 5 A, 120 W, 600 W
Title - Aerocool LUXRGB650M RGB Modular PC Power Supply 650W 80Plus Bronze 230V Black
URL - https://www.aerocool.com.tw/en/psu/lux/lux-rgb-650w
vendpn - AEROPGSLUXRGB-650
WarrantyInfo - 1 - year
