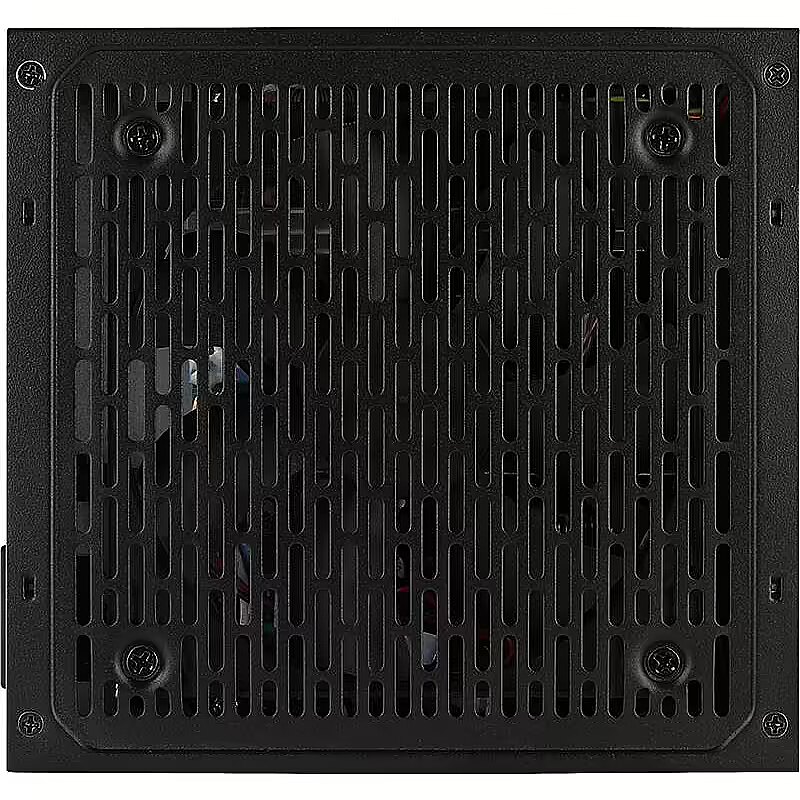

Aerocool LUX RGB, 650W 80PLUS Bronze

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 260513 Product code: AEROPGSLUXRGB-650
In stock 4 units
Warranty: 2 years (Warranty for business entities 1 year)
81.28 €
Ready for dispatch
on Thursday, 19.06.2025
starting from 6.99 €
Delivery options
  • Posti parcel machine
    Within 1-2 working days
    6.99 €
  • Delivery with Posti courier mail
    Within 1-2 working days
    10.99 €
Main product parameters All parameters
  • Producer: Aerocool
  • Power output: 650W
  • 80 PLUS certification: 80 PLUS Bronze
  • Fan size: 120 mm
  • Modular cables: Nav
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 2 X 6+2pin
Description

We offer to purchase a Aerocool power supply unit with a power capacity of 650W, which has received the 80 PLUS Bronze energy efficiency certification.

650W power is sufficient to run Microsoft Office, surf the web, and play budget computer games. With this power supply, you can run a computer with a mid-range processor, a mid-range graphics card (such as the GTX 1650), and one or two hard drives. If you plan to seriously play games, get a power supply with higher wattage.

This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.

The power supply has received the 80 PLUS Bronze energy efficiency certificate, which guarantees at least 85% efficiency at 50% load. This means that for every 100W of power the power supply draws from the electrical grid, at least 85W is delivered to your computer components, while the remaining 15W is lost as heat.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.

This power supply has no removable cables and all cables are attached to the power supply. It has a simple design, but it works just as well as a power supply with modular cables.

The power supply is equipped with RGB lighting.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 650W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Bronze
Total amperage (+12V) : 50A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : RGB
Color : Melna
Modular cables : Nav
Ports and equipment
PCI-E 5.0/5.1 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 2 X 6+2pin
SATA cconnectors : 5
4pin Molex : 3
Case
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Brand - Aerocool
BrandPartCode - LUXRGB650M
Category - Power Supply Units
Certificates 80+ - 80 PLUS Bronze
Description - Featuring a stylish and elegant RGB LED design, the LUX RGB enhances the look and feel of your gaming setup while efficiently powering your system. Bring your system to life with 13 preset lighting effects that can be controlled via LED control button. Compatible with Addressable RGB motherboards using Addressable +5V RGB connector. Built with 30% increased ventilation area in the body of the PSU, the LUX RGB is designed for increased air flow and circulation. Control up to 13 lighting effects via LED control button Compatible with Addressable RGB using +5V Addressable RGB connector 30% Increased ventilation area in the body of the PSU allows for increased air flow 80Plus 230V EU Bronze Certified for up to 88%+ efficiency OPP/OVP/UVP/SCP electrical protection included Silent 12cm black fan with optimized thermal fan speed control Soft, black, flat cables allow for more convenient cable management
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan speed - 0 - 800 RPM
Design - Illumination - Yes
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 95 mm
dimension height - 200 mm
Dimensions - 85 x 150 x 140 mm
dimension weight - 1740 g
dimension width - 235 mm
ean - 4718009153875
Fan - 12 cm
Floppy power connectors - 0
GTIN - 4718009156210
guarantee - 24
guarantee_type - normal
Logistics data - Master (outer) case height - 215 mm
Logistics data - Master (outer) case length - 495 mm
Logistics data - Master (outer) case width - 250 mm
Logistics data - Products per master (outer) case - 5 pc(s)
LongDesc - he P7-650W Platinum Power Supply Unit was designed by Aerocool in collaboration with TechPowerUp through iterative prototyping and testing.The unit’s superior efficiency, noise reduction, and durability are an attestation to these efforts. High engineering standards by Aerocool and TechPowerUp guarantee your satisfaction.RGB LIGHTINGAccess 16.8 million colors and three LED modes with P7-S1 (Project7-Software1), available with our P7-Hub (P7-H1). RGB functions can also be controlled through motherboards with 4 Pin RGB configuration.RGB SOFTWARE16.8 million colors with three LED lighting modes including solid color, breathing, and pulsating. Set your color by entering RGB color code (HTML code).Learn more about P7-S1 (Project7-Software1)MONITOR FAN RPMMonitors RPM of up to five fans compatible with either 4-pin or 3-pin connectors through the P7-H1 (Project7- Hub1)EFFICIENCY80 PLUS Platinum certified for highest efficiency: Under typical load, efficiency is at 92% when 115VAC and efficiency is around 94% when 230VAC.Certified by Cybenetics with the ETA-A badge.This badge is granted to units with efficiency rates of between 88% to 91%.HIGH-QUALITY JAPANESE CAPACITORSOnly the highest quality Japanese capacitors were used in the manufacturing of P7-650W Platinum. High-quality Japanese capacitors provide uncompromised performance, reliability and durability even under the most demanding conditions.The unit is designed to work efficiently even at 50°C ambient temperature.SOUNDLESS OPERATIONThe PSU fan only spins when your PC is doing some grunt work. The fan kicks in at 60% load ensuring most of the time you won’t even hear it. For the techies, the fan spins at less than 500 RPM before 80% load. Basically, you’re going to experience a soundless operation.Certified by Cybenetics with the badge LAMBDA-A++.This badge is granted to units with average noise measurements of under 20 dB.ETCHED CIRCUIT DESIGNP7-650W PlatinumCable free connections between components, daughter boards and main PCB deliver a cleaner and solid ‘Etched Circuit Design’. This improves reliability, airflow and overall lag free communication leading to better cooling performance and a much more quieter operation.Traditional PCBThe many protruding cables of legacy circuit boards made them prone to failure either due to overheating or human error during assembling. Etched Circuit Design solved all of these issues.MODULAR CABLE OUTLETSThe fully modular and soft black flat cables make cable management convenient and deliver an easier installation experience.14CM FAN WITH FDB (Fluid Dynamic Bearing)The 14cm fan provides excellent airflow and the additional FDB dust-proof design ensures a smooth operation.PEACE OF MINDAerocool has invested heavily in the development of P7-650W Platinum. We guarantee that the unit was built using only the highest quality components. We back this promise with a 7-year warranty policy to ensure your peace of mind.
LongProductName - 650W, 12V v2.3, 140 мм, 50-60Hz, 20A, RGB
LongSummaryDescription - Aerocool LUXRGB650M RGB Modular PC Power Supply 650W 80Plus Bronze 230V Black. Total power: 650 W, AC input voltage: 220 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, SATA power cable length: 500,550 mm. Purpose: PC, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 3
name - Aerocool LUX RGB 650W 8 0+BRONZE N.MODULAR ATX
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features - 1 RGB 4pin connector 3 PATA connectors
Other features - Cable ties included - Yes
Other features - Frequency tolerance - 94%
Other features - Illumination colour - Blue, Green, Red
Packaging content - Cables included - AC
Packaging data - Manual - Yes
Packaging data - Package depth - 195 mm
Packaging data - Package height - 95 mm
Packaging data - Package type - Box
Packaging data - Package width - 230 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Semi-Modular
Ports & interfaces - CPU power cable length - 55 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 50 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 3
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - SATA power cable length - 500,550 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 220 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 600 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 88%
Power - Input current - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 50 A
Power - Max output current (+12V4) - 0.3 A
Power - Total power - 650 W
Power supply - 650 W
producer - AeroCool
ProductName - LUXRGB650M RGB Modular PC Power Supply 650W 80Plus Bronze 230V Black
SATA power connectors - 5
ShortSummaryDescription - Aerocool LUXRGB650M RGB Modular PC Power Supply 650W 80Plus Bronze 230V Black, 650 W, 220 - 240 V, 50 - 60 Hz, 5 A, 120 W, 600 W
Title - Aerocool LUXRGB650M RGB Modular PC Power Supply 650W 80Plus Bronze 230V Black
URL - https://www.aerocool.com.tw/en/psu/lux/lux-rgb-650w
vendpn - AEROPGSLUXRGB-650
WarrantyInfo - 1 - year
