ID: 1184376
Product code: 75261557
In stock 50 units
Warranty: 3 years

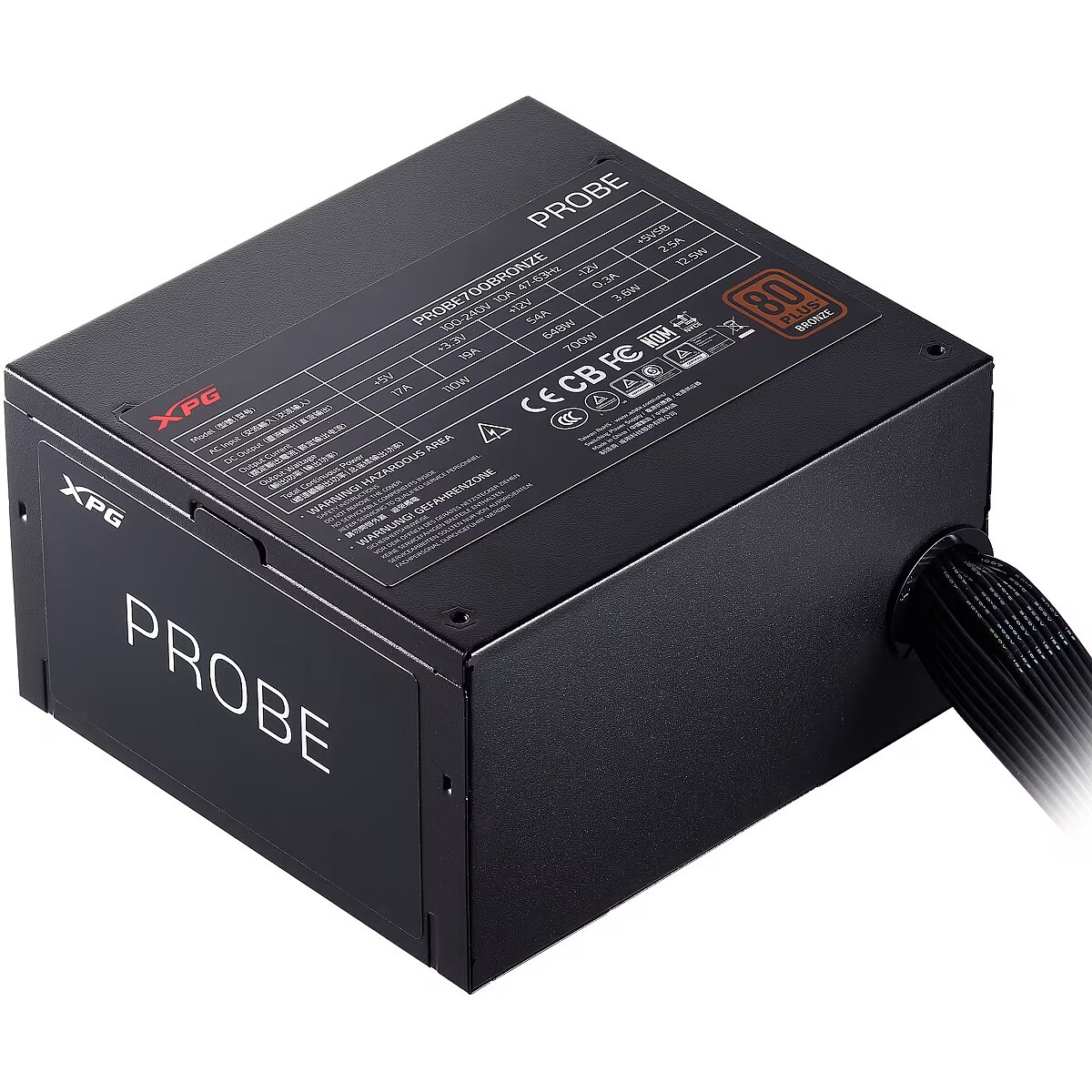

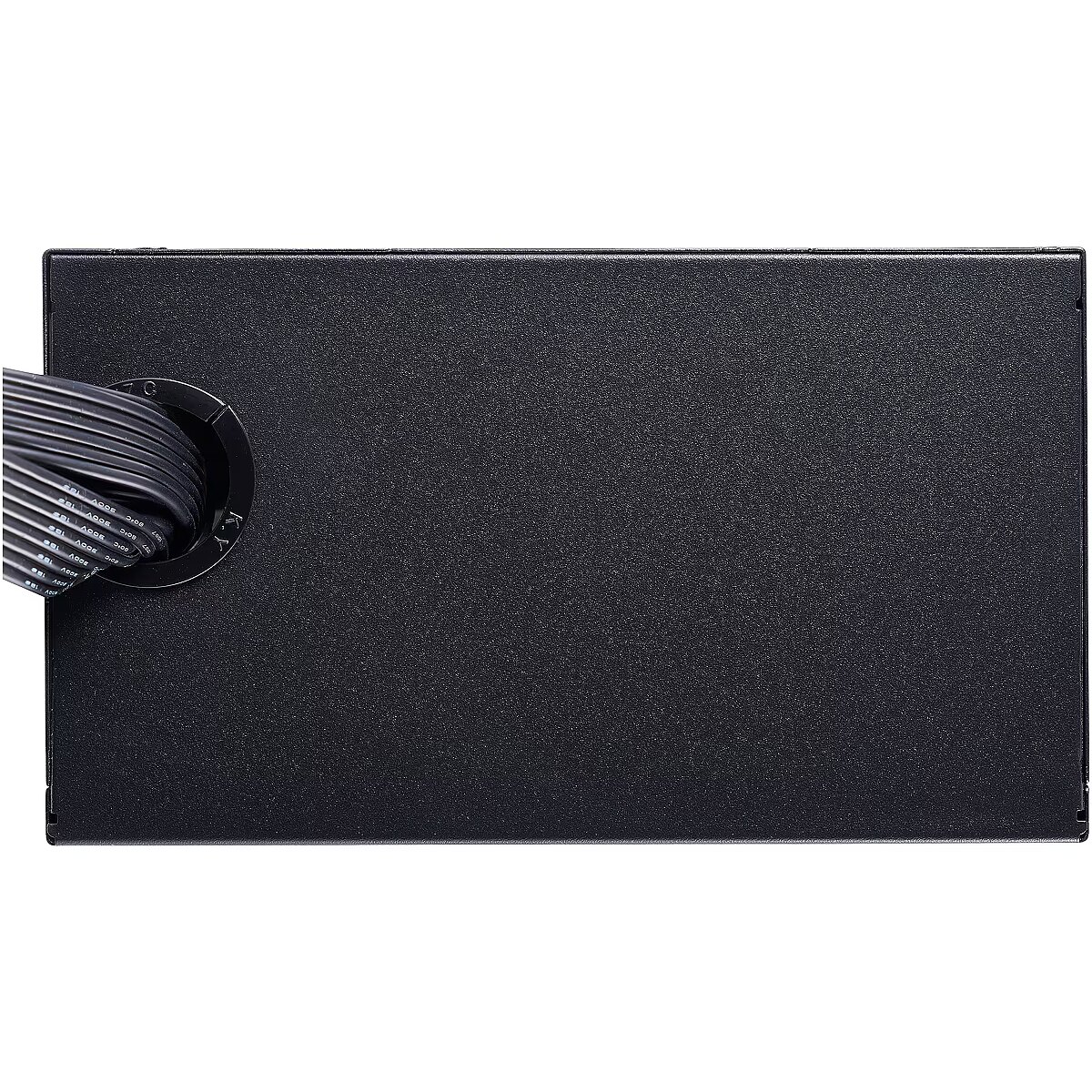

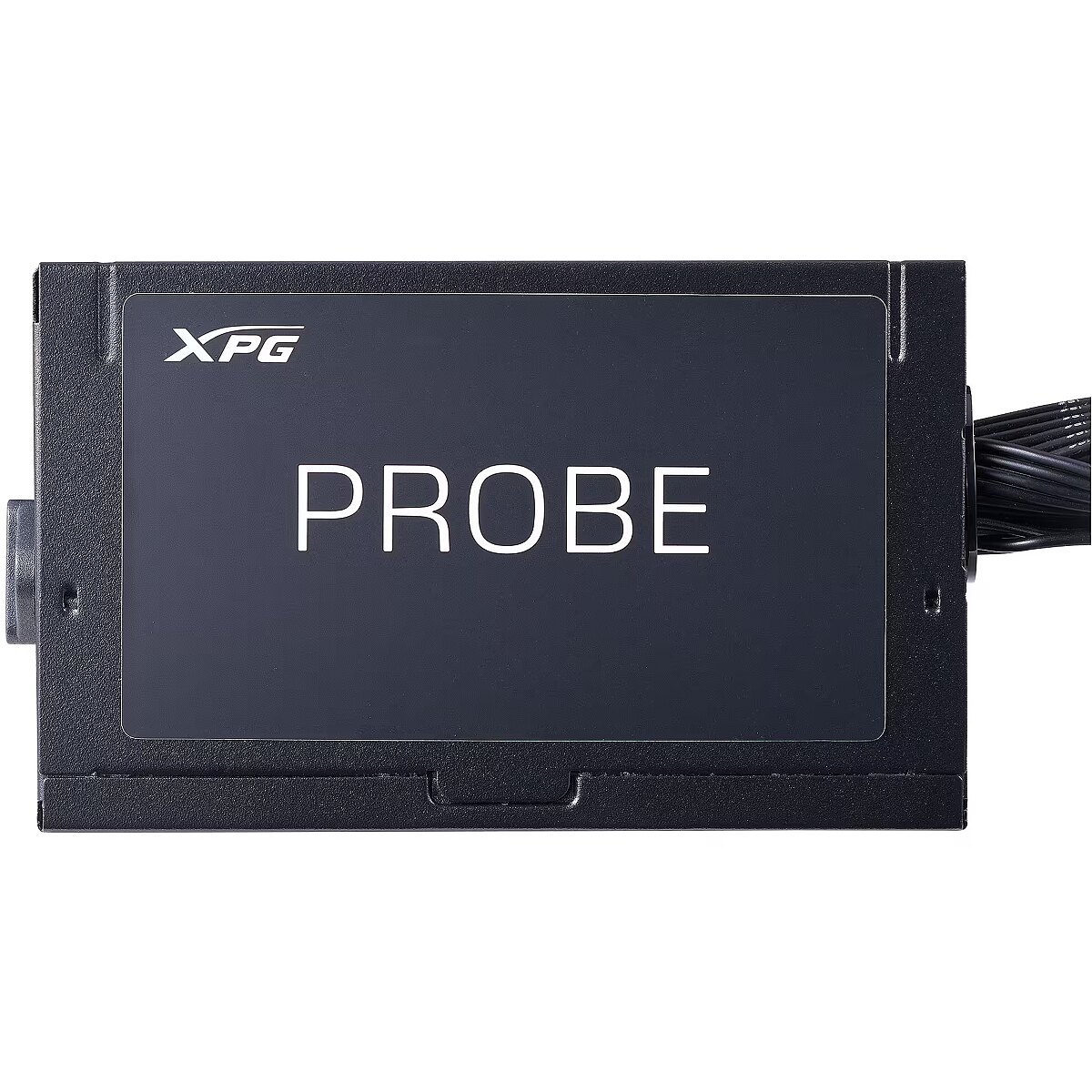

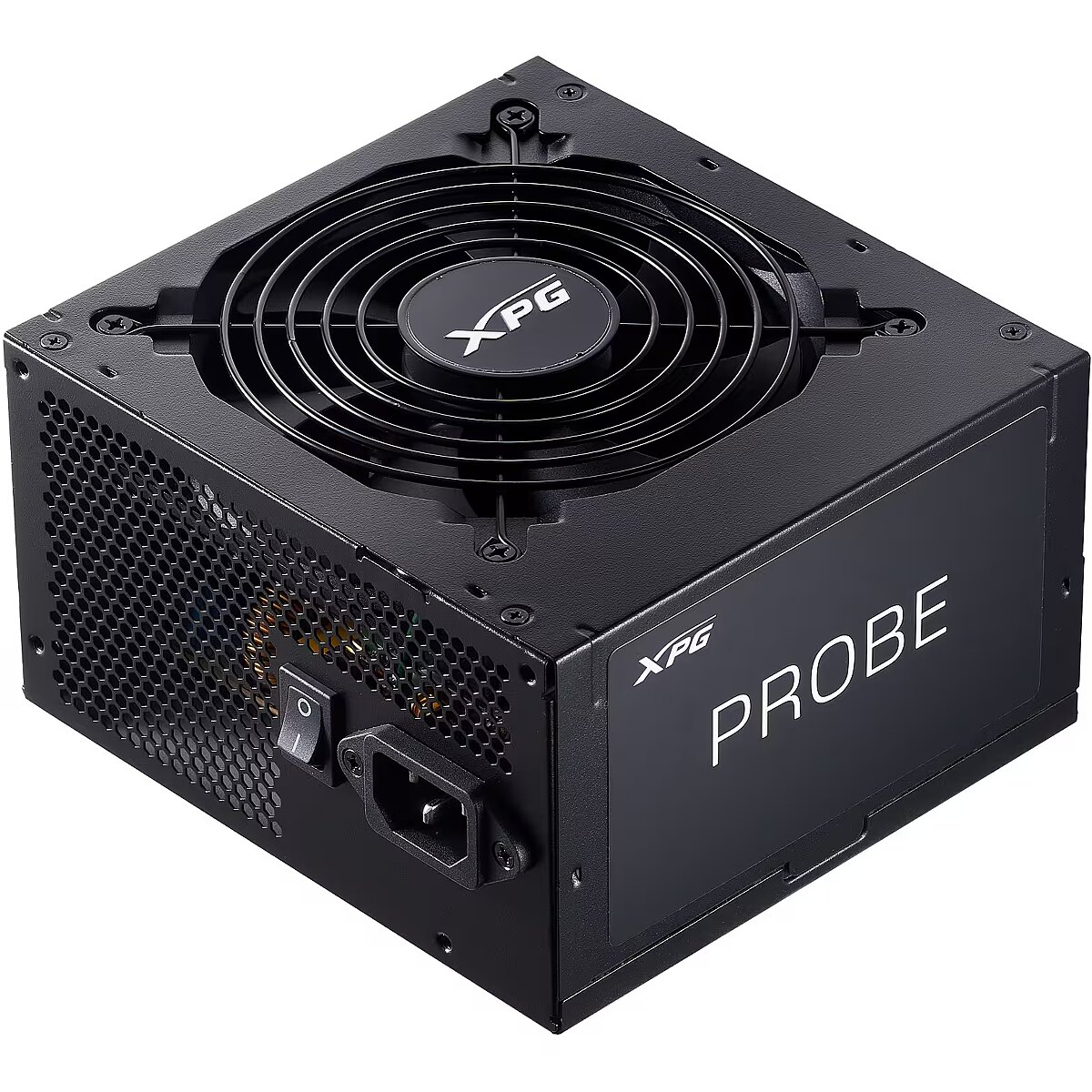

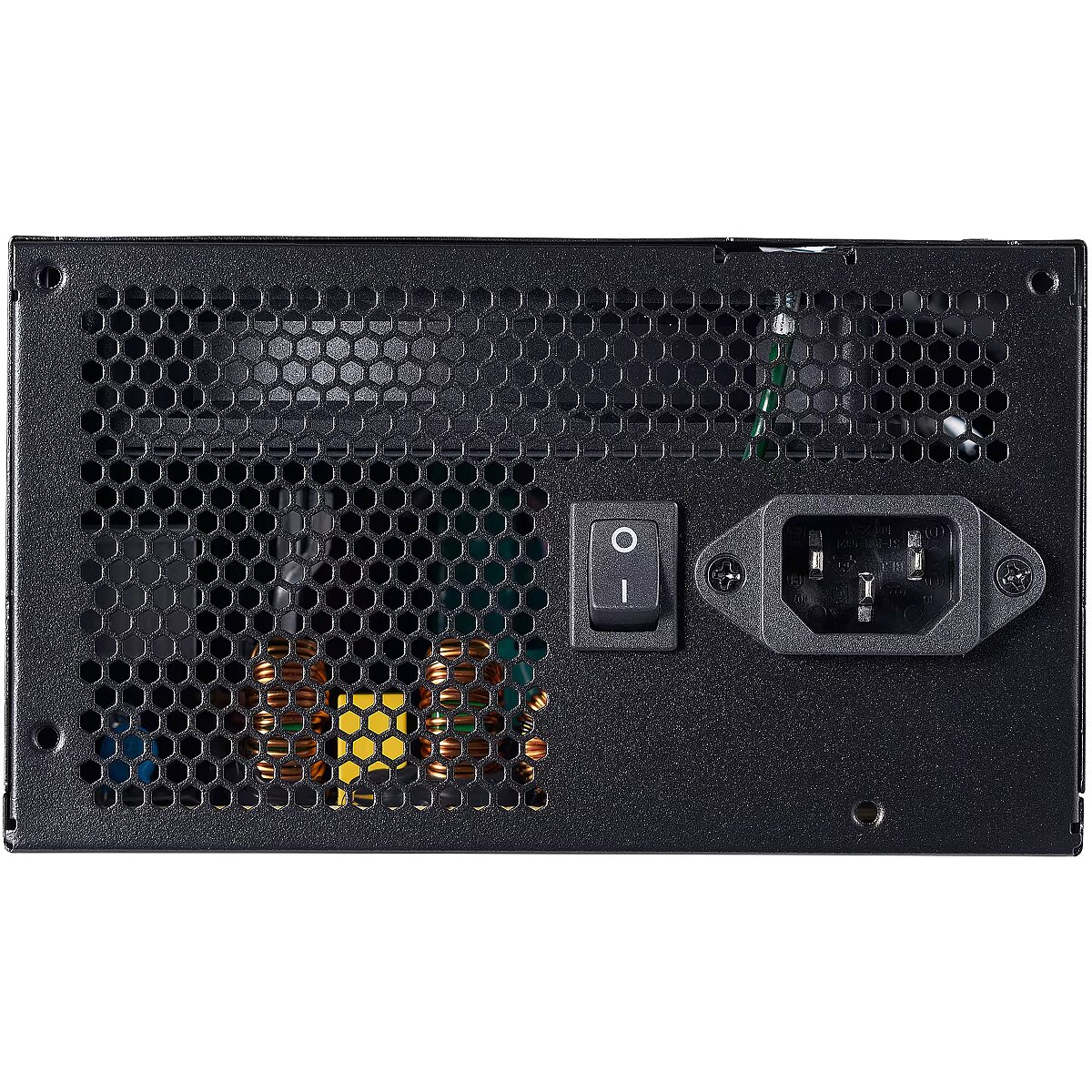

XPG PROBE, 700W, 80PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Post OfficeWithin 1-2 working days6.99 €
-
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Producer: XPG
- Power output: 700W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: None
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Description
We offer to purchase a XPG power supply unit with a power capacity of 700W, which has received the 80 PLUS Bronze energy efficiency certification.
For polite mid-range computer game playing, a power supply with a 700W capacity will be suitable. This unit can power a computer with a powerful mid-range graphics card (for example, RTX 4070), multiple SSDs and hard drives, and a high-end processor.

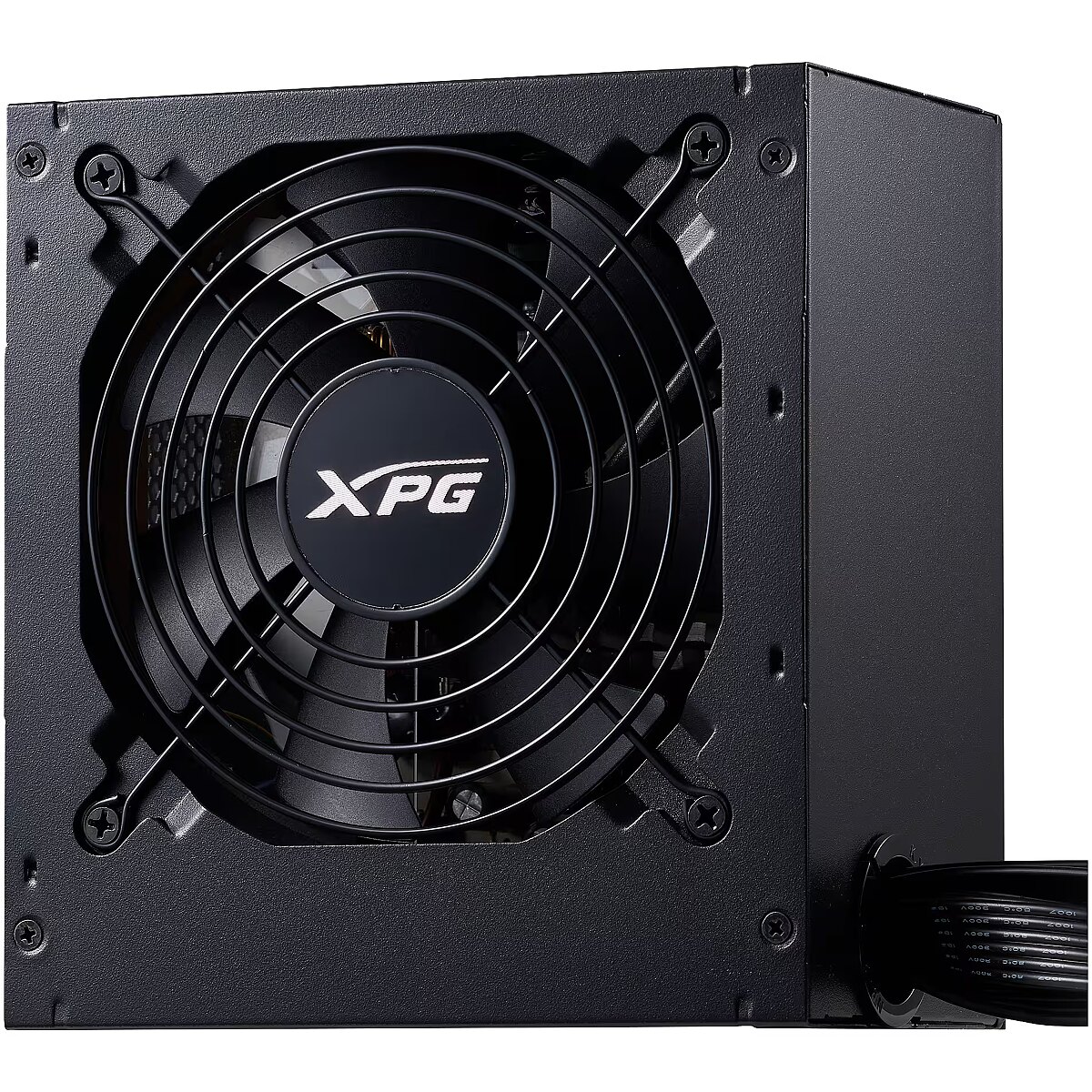

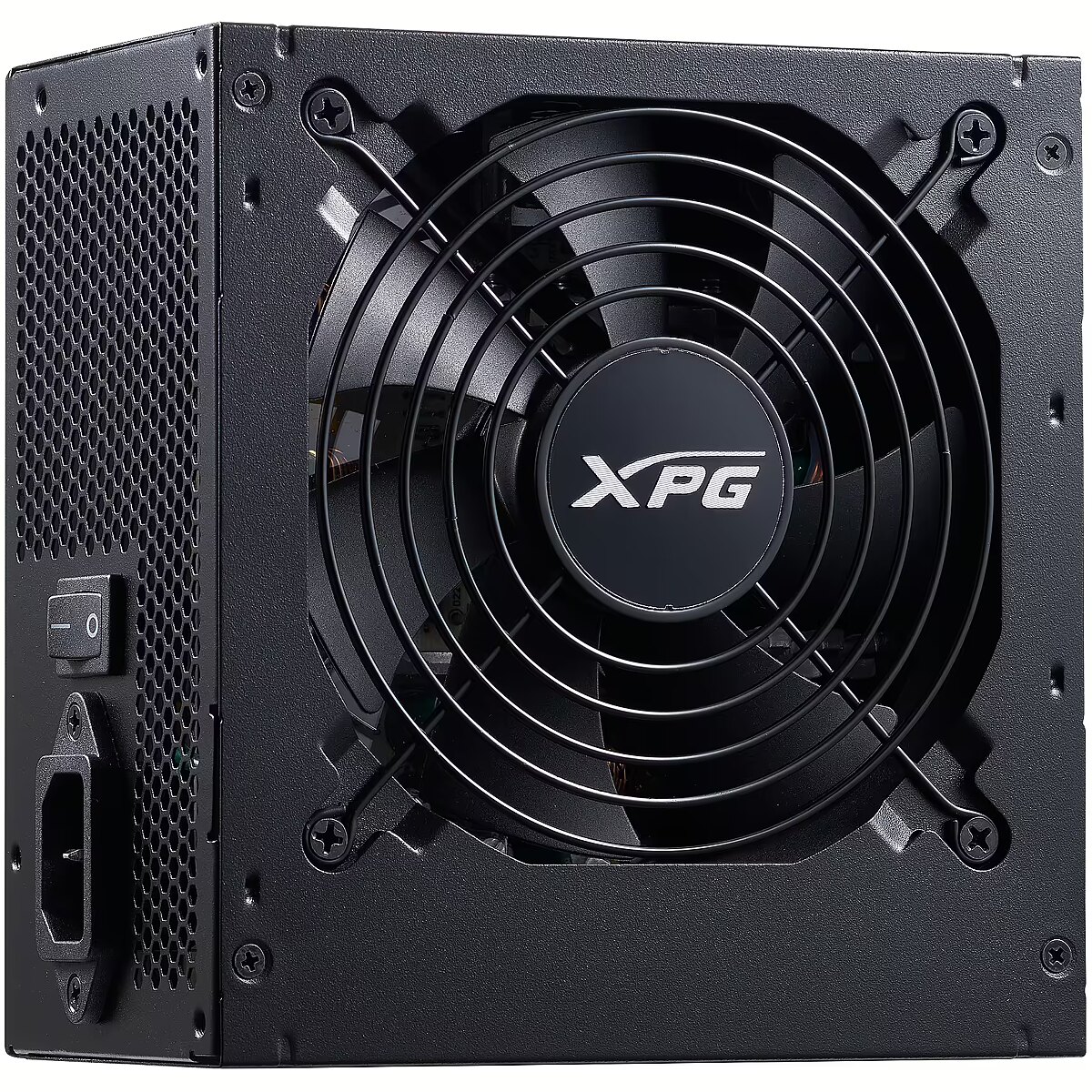

This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
The power supply has been awarded the 80 PLUS Bronze energy efficiency certificate, which ensures at least 85% efficiency at 50% load. This indicates that at least 85 W out of 100 W of power received by the power supply from the electrical grid is delivered to the computer components, with the remaining 15 W being lost as heat.
The color of the block is Melna. The block has flat cables, whose color is Melna.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.
This power supply has no removable cables and all cables are attached to the power supply. It has a simple design, but it works just as well as a power supply with modular cables.
Basic information
Cybenetics Efficiency certification
: There isn't
Cybenetics Noise level certification
: There isn't
Power supply type
: ATX
Power output
700W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 54A
Fan size
: 120 mm
Functionality
Cable colour
: Black
Lighting
: None
Color
: Black
Modular cables
: None
Ports and equipment
PCI-E 5.0/5.1
: There is no
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4-pin
PCI-E
: 2 X 6+2pin
SATA cconnectors
: 5
4pin Molex
: 2
Case
More detailed specification
80 PLUS certification Performance - 80 PLUS Bronze
AC input frequency Power - 47 - 63 Hz
AC input voltage Power - 100 - 240 V
ATX Power connector (24-pin) Ports & interfaces - Yes
ATX version Performance - 2.52
Bearing technology Performance - Sleeve
Brand - XPG
BrandPartCode - 75261557
Cabling type Ports & interfaces - Non-Modular
category - PC Components|Power Supplies|PSUs up to 800 Watts
Category - Power Supply Units
Category Code - PSU
Certificates - Certification - CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA,EAC, RCM
Certification Certificates - CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA,EAC, RCM
code - 75261557
Cooling type Design - Active
Depth Weight & dimensions - 140 mm
Description - VIABLE, APPLIABLE, & RELIABLE
With up to 87% efficiency at 50% load and a 120mm low-noise fan featuring an intelligent curve, XPG PROBE is designed to deliver stable and reliable power to your system! Enhanced Safety in Operation
Unlike most Bronze power supply units, XPG PROBE is ATX v2.52 compliant, enhancing overall reliability and providing safer operation for your current and future hardware. Compact Size for Easy Installation
With a compact 140mm length, XPG PROBE allows for easier installation in mainstream PC cases and reduced cable clutter. Intelligent Fan-Curve Design
The 120mm low-noise sleeve-bearing fan, featuring an intelligent curve design, keeps the power supply cool without excessive noise, thus reducing power consumption for cooling and improving overall energy efficiency. Long, Reliable Lifespan
XPG PROBE comes with premium capacitors with a 105°C rating, offering greater reliability, premium efficiency, and a longer lifespan. Six Industrial Safeguards
XPG PROBE offers 6 industrial-grade protections, shielding your system from over-power, over-voltage, surge and inrush, under-voltage, short circuits, and over temperature. Certified 80 PLUS Bronze efficiencyCompact 140mm length design ensures easier installation with mainstream PC cases6 industrial protectionsIntelligent Fan-Curve design
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan speed - 2160 - 2640 RPM
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
ean - 4711085948618
EPS power connector (4+4 pin) Ports & interfaces - Yes
Fan diameter Design - 12 cm
Fan speed Design - 2160 - 2640 RPM
GTIN - 0842243033977
GTIN - 842243033977
GTIN - 4711085948618
Height Weight & dimensions - 86 mm
Input current Power - 10 A
LongDesc - VIABLE, APPLIABLE, & RELIABLEWith up to 87% efficiency at 50% load and a 120mm low-noise fan featuring an intelligent curve, XPG PROBE is designed to deliver stable and reliable power to your system!Enhanced Safety in OperationUnlike most Bronze power supply units, XPG PROBE is ATX v2.52 compliant, enhancing overall reliability and providing safer operation for your current and future hardware.Compact Size for Easy InstallationWith a compact 140mm length, XPG PROBE allows for easier installation in mainstream PC cases and reduced cable clutter.Intelligent Fan-Curve DesignThe 120mm low-noise sleeve-bearing fan, featuring an intelligent curve design, keeps the power supply cool without excessive noise, thus reducing power consumption for cooling and improving overall energy efficiency.Long, Reliable LifespanXPG PROBE comes with premium capacitors with a 105°C rating, offering greater reliability, premium efficiency, and a longer lifespan.Six Industrial SafeguardsXPG PROBE offers 6 industrial-grade protections, shielding your system from over-power, over-voltage, surge and inrush, under-voltage, short circuits, and over temperature.
LongProductName - 700 W, PFC 0.99, 2400 rpm, 100 - 240 V, 47 - 63 Hz, ATX 2.52, 140 x 150 x 86 mm, 1526.6 g
LongSummaryDescription - XPG PROBE 700 BRONZE Power Supply. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA,EAC, RCM
Max output current (+3.3V) Power - 19 A
Max output current (+5V) Power - 17 A
Max output current (+5Vsb) Power - 2.5 A
Max output current (+12V) Power - 54 A
Max output current (-12V) Power - 0.3 A
Mean time between failures (MTBF) Performance - 100000 h
Model name - PROBE BRONZE Power Supply
Motherboard power connector Ports & interfaces - 20+4 pin ATX
name - ADATA XPG PROBE 80 PLUS Bronze Netzteil, ATX 3.0, teilmodular - 700 Watt, schwarz
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 5
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
PCI Express power connectors (6+2 pin) Ports & interfaces - 2
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.52
Performance - Bearing technology - Sleeve
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 2
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Input current - 10 A
Power - Max output current (+3.3V) - 19 A
Power - Max output current (+5V) - 17 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 54 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.99
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under voltage
Power - Total power - 700 W
Power Factor Correction (PFC) type Power - Active
Power factor Power - 0.99
Power protection features Power - Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under voltage
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black
ProductName - PROBE 700 BRONZE Power Supply
Purpose Performance - PC
ShortSummaryDescription - XPG PROBE 700 BRONZE Power Supply, 700 W, 100 - 240 V, 47 - 63 Hz, 10 A, Active, 19 A
Summary - XPG PROBE 700 BRONZE Power Supply. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA,EAC, RCM
Title - XPG PROBE 700 BRONZE Power Supply
Total power Power - 700 W
Unit Box Height - 0.19
Unit Box Length - 0.26
Unit Box Width - 0.1
Unit Calculated Volume - 0.00494 cubm
Unit Calculated Weight - 1.88 kg
Units per Shipping Box - 1
URL - https://www.xpg.com/en/xpg/pc-components-probe-bronze?tab=desc#
Vendor Homepage - https://www.xpg.com/en/xpg/pc-components-probe-bronze?tab=desc#
Warranty - 60L months
WarrantyInfo - 3 years
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.53 kg
Weight & dimensions - Width - 150 mm
Weight Weight & dimensions - 1.53 kg
Width Weight & dimensions - 150 mm
