ADATA XPG CYBERCORE II, 1000W, 80PLUS Platinum, ATX 3.1, PCIe 5.1

Brand - XPG
BrandPartCode - 15260158
Category - Power Supply Units
Category Code - PSU
category_en - Computers & Components > Computer components > Universal power supplies PSU
category_lv - Datortehnika > Datoru komponentes > Barošanas bloki PSU
category_ru - Datortehnika > Datoru komponentes > Barošanas bloki PSU
Certificates - Certification - CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Zeichen | NOM | BSMI | UKCA | EAC | CCC | RCM
Certificates - Compliance certificates - BSMI, CB, CE, Federal Communications Commission (FCC), cTUVus, UKCA
Colour - Black
Cooling System - 12cm fan
Description - In light of the new Intel ATX 3.0 design guide specifications, the XPG CYBERCORE 80 PLUS Platinum series is getting an upgrade. With stricter voltage and current regulation guidelines changes needed to be implemented in order to safely and efficiently accommodate next-generation hardware. XPG has even upgraded the CYBERCORE cooling solution with a top-of-the-line XPG VENTO PRO 120 PWM Fan by Nidec to deliver optimum performance. As always, XPG is determined to provide gamers with products that meet the latest hardware demands.
description_en - The ADATA CYBERCORE II 1000P is a high-end ATX power supply unit engineered for demanding gaming rigs, professional workstations, and servers. Delivering 1000 Watts of continuous output with 80 PLUS Platinum certification, it achieves up to 92% efficiency under typical loads, minimizing wasted energy and heat generation.
Built with 100% Japanese capacitors, this PSU ensures long-term durability and stable voltage regulation. The fully modular cabling system provides superior airflow and flexibility in system assembly, while the 120 mm fluid dynamic bearing (FDB) fan guarantees quiet, efficient cooling with an extended lifespan.
The CYBERCORE II 1000P is equipped with comprehensive protection mechanisms such as OVP, OCP, OPP, SCP, and UVP, safeguarding both the PSU and connected hardware. With a Mean Time Between Failures (MTBF) of 125,000 hours, it delivers exceptional reliability for continuous operation.
Technical Specifications (EN): Type: ATX Power Supply Unit Model: CYBERCORE II 1000P-BKCEU Power output: 1000W continuous Efficiency: 80 PLUS Platinum (up to 92%) Input Voltage: 100 – 240V AC Cooling: 120 mm FDB fan Cabling: Fully modular Capacitors: 100% Japanese high-quality capacitors MTBF: 125,000 hours Protections: OVP, OCP, OPP, SCP, UVP Dimensions: 150 × 160 × 86 mm Weight: 2.3 kg Color: Black
description_lv - ADATA CYBERCORE II 1000P ir augstas klases ATX barošanas bloks, kas paredzēts jaudīgām spēļu sistēmām, darbstacijām un serveriem. Ar 1000W nepārtrauktu jaudu un 80 PLUS Platinum sertifikāciju, tas nodrošina līdz pat 92% efektivitāti tipiskā slodzē, samazinot enerģijas zudumus un siltuma izdalīšanos.
Izgatavots ar 100% Japānas kondensatoriem, barošanas bloks garantē ilgtspējīgu un stabilu darbību. Pilnībā modulārā kabeļu sistēma nodrošina labāku gaisa plūsmu un elastību sistēmas montāžā, bet 120 mm FDB ventilators sniedz klusu un efektīvu dzesēšanu ar ilgu kalpošanas laiku.
CYBERCORE II 1000P aprīkots ar pilnu aizsardzības funkciju klāstu (OVP, OCP, OPP, SCP, UVP), kas pasargā gan barošanas bloku, gan pieslēgtos komponentus. Ar MTBF 125 000 stundas, tas nodrošina augstu uzticamību nepārtrauktai darbībai.
Tehniskās specifikācijas (LV): Tips: ATX barošanas bloks Modelis: CYBERCORE II 1000P-BKCEU Jauda: 1000W nepārtraukta Efektivitāte: 80 PLUS Platinum (līdz 92%) Ievades spriegums: 100 – 240V AC Dzesēšana: 120 mm FDB ventilators Kabeļi: Pilnībā modulāri Kondensatori: 100% Japānas augstas kvalitātes kondensatori MTBF: 125 000 stundas Aizsardzība: OVP, OCP, OPP, SCP, UVP Izmēri: 150 × 160 × 86 mm Svars: 2.3 kg Krāsa: Melna
description_ru - ADATA CYBERCORE II 1000P это премиальный ATX блок питания, созданный для игровых ПК, рабочих станций и серверов. С мощностью 1000 Вт (непрерывная) и сертификацией 80 PLUS Platinum, он обеспечивает эффективность до 92% при типичной нагрузке, сокращая энергопотери и нагрев.
Использование 100% японских конденсаторов гарантирует долговечность и стабильную подачу напряжения. Полностью модульная кабельная система упрощает сборку и улучшает вентиляцию, а 120 мм вентилятор на FDB-подшипнике обеспечивает тихую и эффективную работу с увеличенным сроком службы.
Модель оснащена полным набором систем защиты (OVP, OCP, OPP, SCP, UVP), что защищает как сам блок питания, так и подключённые устройства. Среднее время наработки на отказ (MTBF) составляет 125 000 часов, что подтверждает его надёжность при длительной эксплуатации.
Технические характеристики (RU): Тип: ATX блок питания Модель: CYBERCORE II 1000P-BKCEU Мощность: 1000 Вт (непрерывная) Энергоэффективность: 80 PLUS Platinum (до 92%) Входное напряжение: 100 – 240V AC Охлаждение: 120 мм вентилятор (FDB) Кабели: Полностью модульные Конденсаторы: 100% японские высококачественные MTBF: 125 000 часов Защита: OVP, OCP, OPP, SCP, UVP Размеры: 150 × 160 × 86 mm Вес: 2.3 кг Цвет: Чёрный
Design - Cooling type - Active

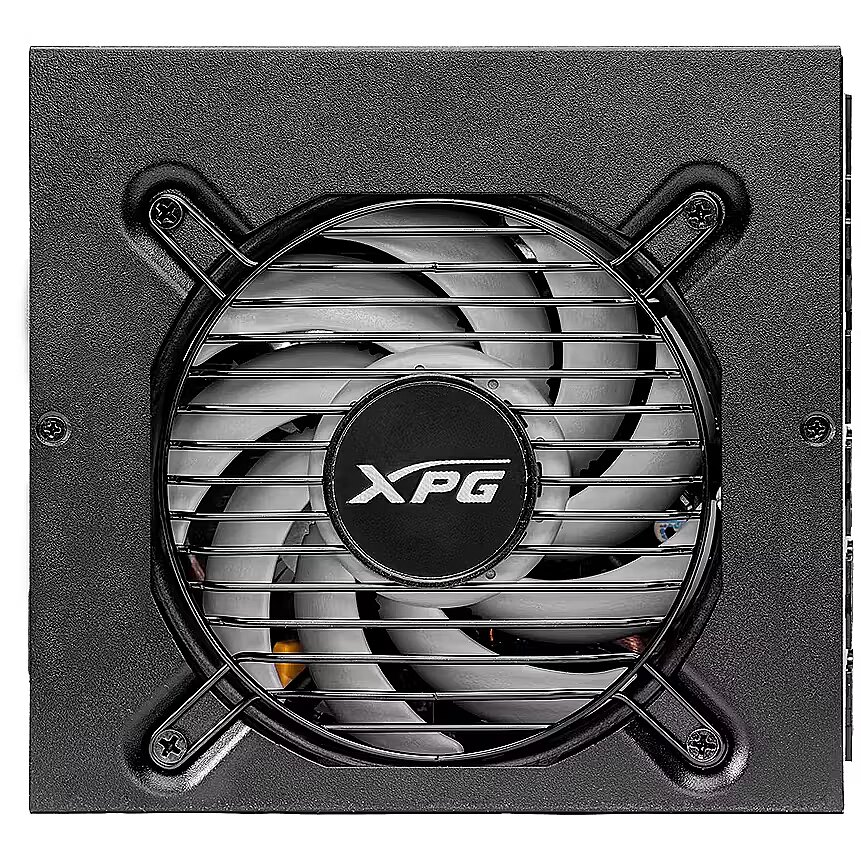

Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)

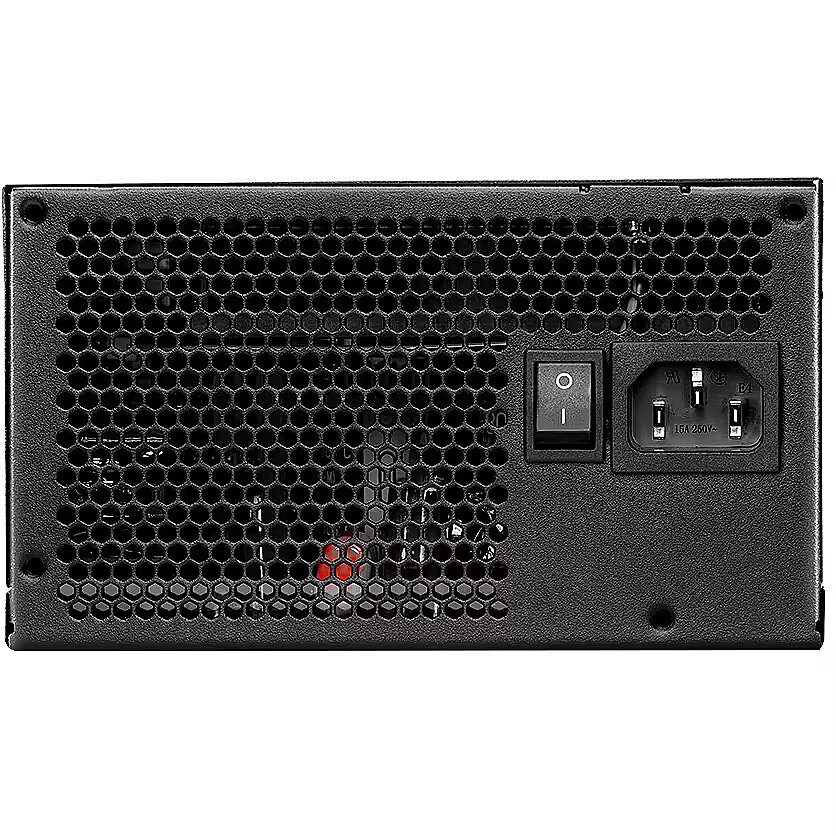

Design - On/off switch - Yes
Design - Product colour - Black
Dimensions - 160 x 150 x 86mm
EAN - 4711085940193
Efficiency - 80 PLUS PLATINIUM
gross_weight - 3 kg
GTIN - 0842243028195
GTIN - 842243028195
GTIN - 4711085940193
Logistics data - Warranty period - 10 year(s)
LongDesc - CYBERCORE IIBETTER THAN ULTIMATEIn light of the new Intel ATX 3.0 & ATX 3.1 design guide specifications, the XPG CYBERCORE 80 PLUS Platinum series is getting an upgrade. With stricter voltage and current regulation guidelines changes needed to be implemented in order to safely and efficiently accommodate next-generation hardware. XPG has even upgraded the CYBERCORE cooling solution with a top-of-the-line XPG VENTO PRO 120 PWM Fan by Nidec to deliver optimum performance. As always, XPG is determined to provide gamers with products that meet the latest hardware demands.Next-Gen ReadyXPG CYBERCORE II series power supply units are compatible with Intel ATX 3.0 & ATX 3.1 design guide specifications. All units come with a 12VHPWR connector as well. Upgrade your system to an ATX 3.0 & ATX 3.1 ready power supply and be fully prepared for the next generation of high-performance components! Whether you're a gamer, creator, or AI developer, an ATX 3.0 & ATX 3.1 PSU is the new standard for future hardware. Don’t get left behind.Supports Next-Gen Graphics CardsXPG CYBERCORE II is compatible with the latest high-end graphics cards, with a 12VHPWR (12+4 pin) connector out of the box with every unit.Cybenetics ETA PLATINUM and LAMBDA A- CertifiedXPG CYBERCORE II series is certified by the highest Cybenetics quality standards.All configurations have achieved ETA PLATINUM grade while still maintaining LAMBDA A- rating for the noise even with our most compact form factor, reaching A- with 230V for the 1300W version. This is a statement of our commitment to deliver the absolute best performance for all of our PC users.XPG CYBERCORE series is certified by the highest Cybenetics quality standards.80 PLUS PLATINUM EfficiencyXPG CYBERCORE II series' efficiency achieves 92.91% 115VAC at 50% load (temperature at 25℃), delivering exemplary performance even by 80 PLUS PLATINUM standards.XPG VENTO PRO 120 PWM FAN by NidecXPG CYBERCORE II is the latest XPG and Nidec collaboration, utilizing our highest tier XPG VENTO PRO 120 PWM Fan for its high cooling efficiency, featuring Dual Bearing and patented technology to maintain an excellent balance between noise and life expectancy (60,000 hours at 60℃).Efficient Fan CurveXPG CYBERCORE II series' fan curve is intelligently designed to prolong fan life expectancy and minimize fan noise.All Japanese 105℃ CapacitorsXPG CYBERCORE II PLATINUM Series utilizes all-Japanese high quality 105℃ capacitors to ensure power delivery is stable, consistent and efficient.Digital Control Panel in a Compact Form FactorXPG CYBERCORE II PLATINUM PSU’s power delivery efficiency is optimized via Digital Control Panel. It controls, commands and optimizes power delivery’s efficiency and stability, ensuring the process is stable but also accurate, helping protects other components as well, all within such a compact form factor (LxWxH) 160x150x86mm, making it an extraordinary creation of a PLATINUM-grade power supply by XPG.DC-to-DC Circuit DesignDC-to-DC Circuit design minimizes ripple noise, avoids unbalanced power load, and acts as a protective safeguard to components’ life expectancy. Ultimately, XPG CYBERCORE can achieve smooth and stable power delivery.Interleaved PFCXPG CYBERCORE II Interleaved PFC (Power Factor Correction) regulates and stabilizes voltage, and distributes power at its optimal efficiency, leveraging 2 chokes that alternate each other, reducing power loss during conversion. XPG CYBERCORE II series' PFC is Active, meaning it provides more efficient power efficiency, automatically correcting AC input voltage (full range).PEAK PERFORMANCE AND RELIABILITYAll XPG ATX 3.0 and ATX 3.1 power supplies are designed to support up to 235% power excursion, enabling the system to handle sudden power spikes, ensuring stability, and preventing crashes during intense workloads like gaming, rendering, and data processing.
LongProductName - 1000W, PLATINUM, 160 x 150 x 86mm, ATX 3.0, 0.99 PFC, 120mm
LongSummaryDescription - XPG CYBERCORE II 1000W Power Supply. Total power: 1000 W, AC input voltage: 110 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 75 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC
Model -
Model - CYBERCOREII1000P-BKCEU
Model name - CYBERCORE II
MTBF - 125000 hours
Packaging content - Cables included - AC
Packaging content - Cable tie(s) included - Yes
Packaging data - Package type - Box
Packaging data - Package width - 4130 mm
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.0
Performance - Bearing technology - DBB
Performance - Mean time between failures (MTBF) - 125000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC

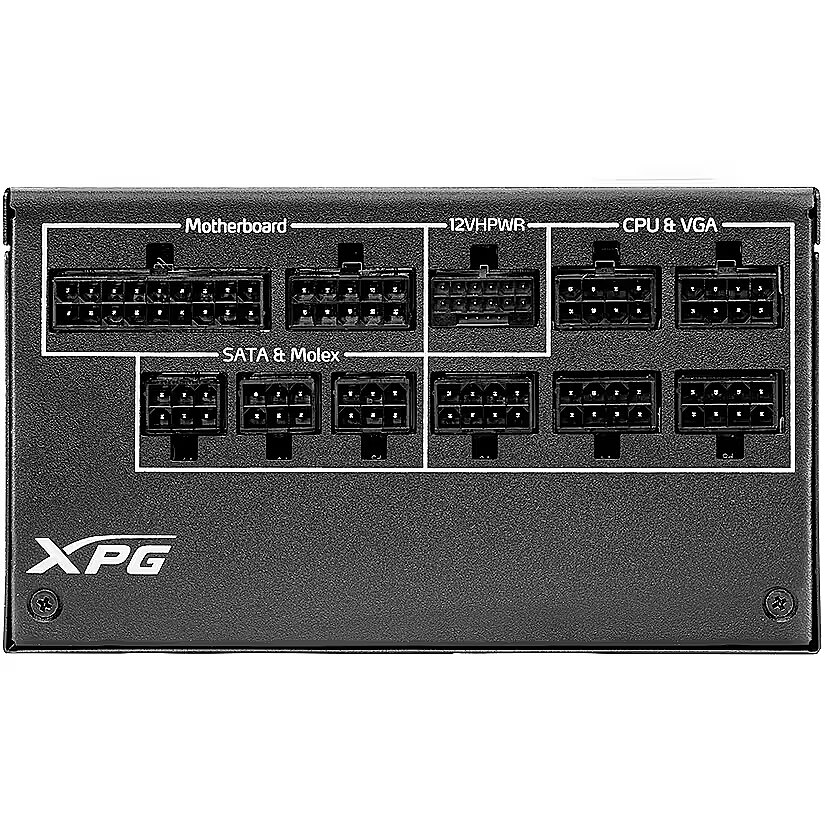

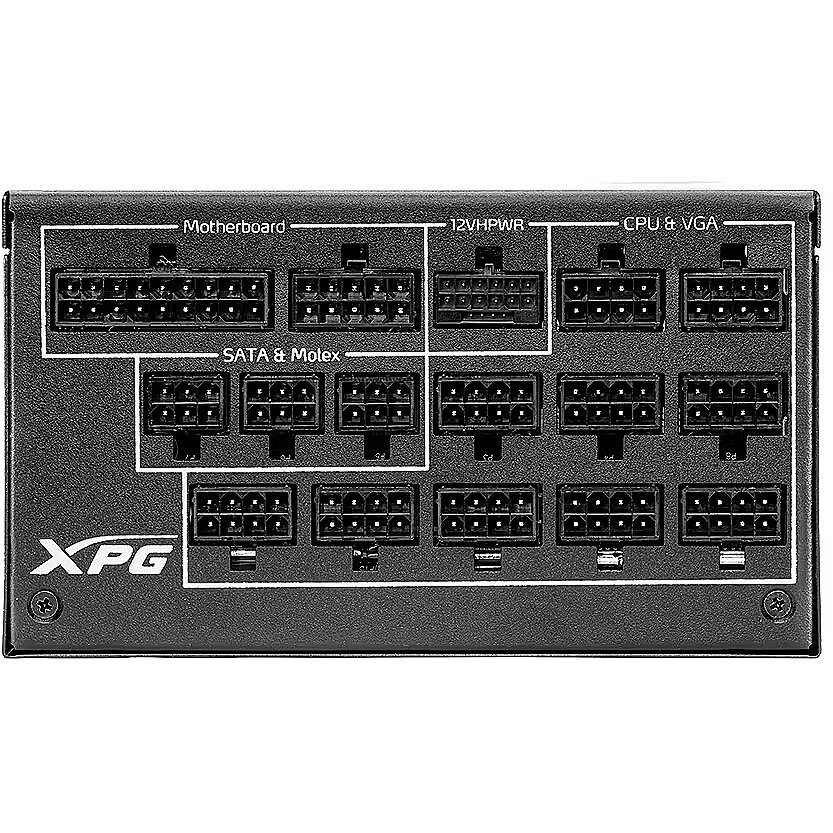

Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 75 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive cable length - 15 cm
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 75 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power cable length - 75 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 6
Ports & interfaces - PCI Express power connectors (12+4 pin) - 1
Ports & interfaces - PCI Express power connectors (12+4 pin) cable length - 650 mm
Ports & interfaces - Peripheral (Molex) power cable length - 150,600 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 150,600 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 110 - 240 V
Power - Input current - 13 A
Power - Power factor - 0.99
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 1000 W
Producer - ADATA
ProductName - CYBERCORE II 1000W Power Supply
Product Net Weight - 3.31 kg
PSU - ATX 3.0
PSU features - For gaming
PSU Output Power - 1000 Watts
ShortSummaryDescription - XPG CYBERCORE II 1000W Power Supply, 1000 W, 110 - 240 V, 50/60 Hz, 13 A, Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage, 20+4 pin ATX
Technical details - Sustainability compliance - Yes
Title - XPG CYBERCORE II 1000W Power Supply
title_en - Adata CYBERCORE II 1000P Power supply unit 1000W / 80 PLUS Platinum
title_lv - Adata CYBERCORE II 1000P Barošanas bloks 1000W / 80 PLUS Platinum
title_ru - Adata CYBERCORE II 1000P Блок питания 1000W / 80 PLUS Platinum
Unit Box Height - 0.21
Unit Box Length - 0.34
Unit Box Width - 0.16
Unit Calculated Volume - 0.01307 cubm
Unit Calculated Weight - 4.28 kg
Units per Pallet - 0
Units per Shipping Box - 4
URL - https://www.xpg.com/en/xpg/pc-components-cybercore-ii
Vendor Homepage - www.xpg.com/en/xpg/pc-components-cybercore-ii
Warranty - 36 months
WarrantyInfo - 10 years
weight - 2.1 kg
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.96 kg
Weight & dimensions - Width - 160 mm
