ASRock Phantom Gaming, 1300W, ATX 3.1, 80PLUS Gold, PCIe 5.1

8-pin 12V power connectors - 0
Accessories included -
Category1 - Power supplies
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Gold
Cybenetics Efficiency (ETA) - Platinum
Cybenetics Noise (LAMBDA) - A
Description -
Description1 - ASRock Phantom Gaming PG-1300G - power supply - 1300 Watt
Description2 - The ASRock Phantom Gaming PG-1300G power supply offers reliable performance with a robust 1300 W of power. Designed with efficiency in mind, this internal power supply is compliant with ATX 3.1 specifications and features an 80 PLUS Titanium certification, ensuring optimal energy use. It boasts a fully modular design, which allows for flexible installation and improved airflow within your system. The sleeved cables enhance aesthetics and contribute to better cable management, further optimizing your build.In addition to its powerful output, the PG-1300G is equipped with multiple protection features, including overcurrent, overvoltage, overpower, undervoltage, and short-circuit protection. These safety mechanisms work together to prevent damage to both the power supply and connected components. The inclusion of Intelligent Fan Control Technology and a 135 mm axial-tech fan helps maintain a quiet and efficient cooling system during operation, making the PG-1300G a dependable choice for gamers and PC enthusiasts alike.
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Number of fans - 1 fan(s)
Design - On/off fan switch - Yes
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1847
dimension depth - 130 mm
dimension height - 315 mm
Dimensions - 86 x 150 x 180 mm
dimension weight - 4410 g
dimension width - 235 mm
ean - 4710483948633
EAN - 4710483948633
EAN_code - 4710483948633
Fan - 13.5 cm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
guarantee - 120
guarantee_type - normal
Manufacturer - Asrock
Manufacturer - AsRock
ManufacturerID - 90-UXP130-GFEAAB
Manufacturer_code - 90-UXP130-GFEAAB
MB power connector - 24 pin
Modular power supply - Yes
MOLEX power connectors - 3
Name - ASRock Phantom Gaming PG-1300G, PC power supply, black, 2x 12-pin high power GPU, 6x PCIe, cable management, 1300 watts
name - Power supply PG-1300G 1300W 80PLUS GOLD full modular
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 2
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 6
Number of USB 10p connectors - 0
Other features -
PackageHeight - 131
PackageLength - 312
PackageWeight - 4787.5
PackageWidth - 235

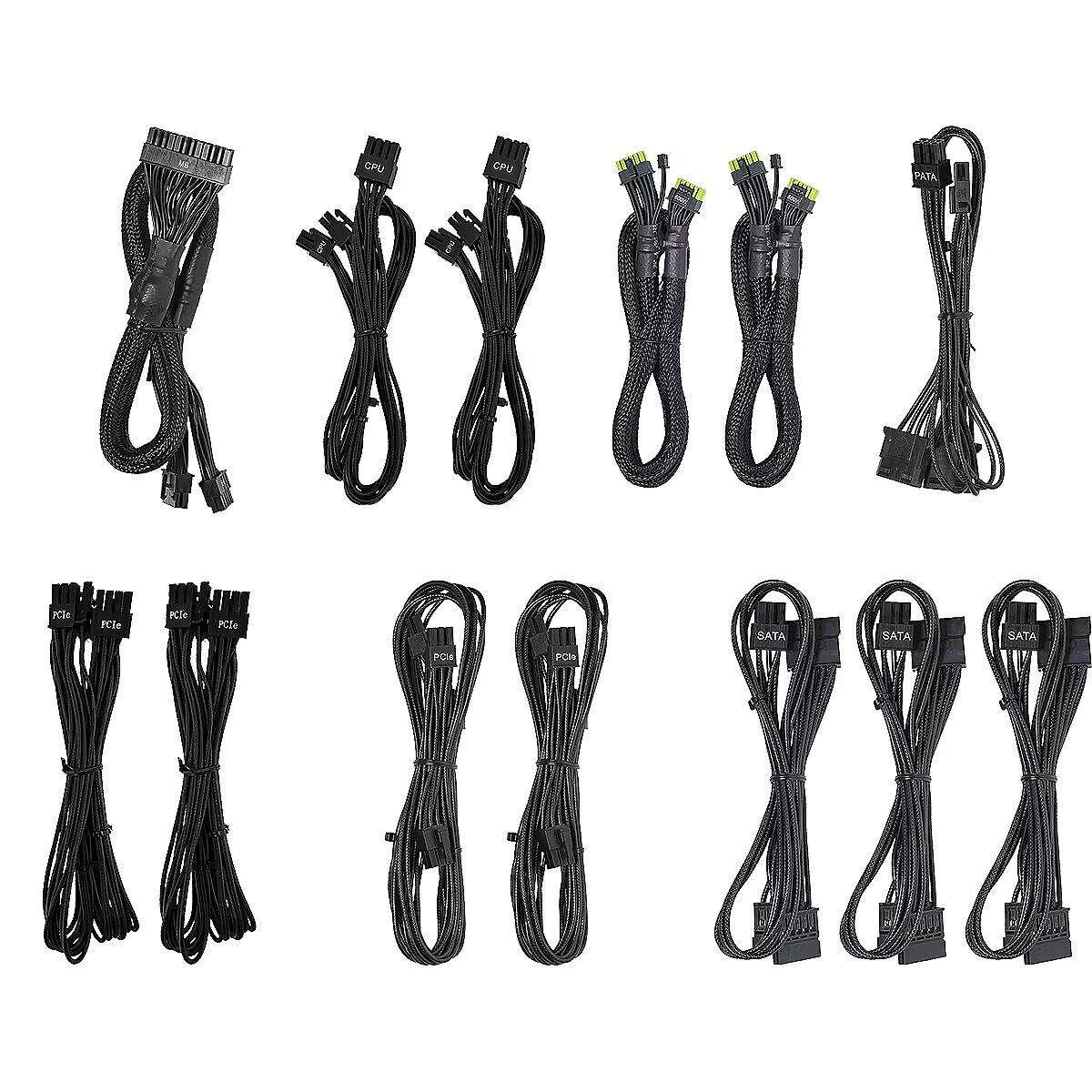

Packaging content - Cables included - CPU, PATA, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - FDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active

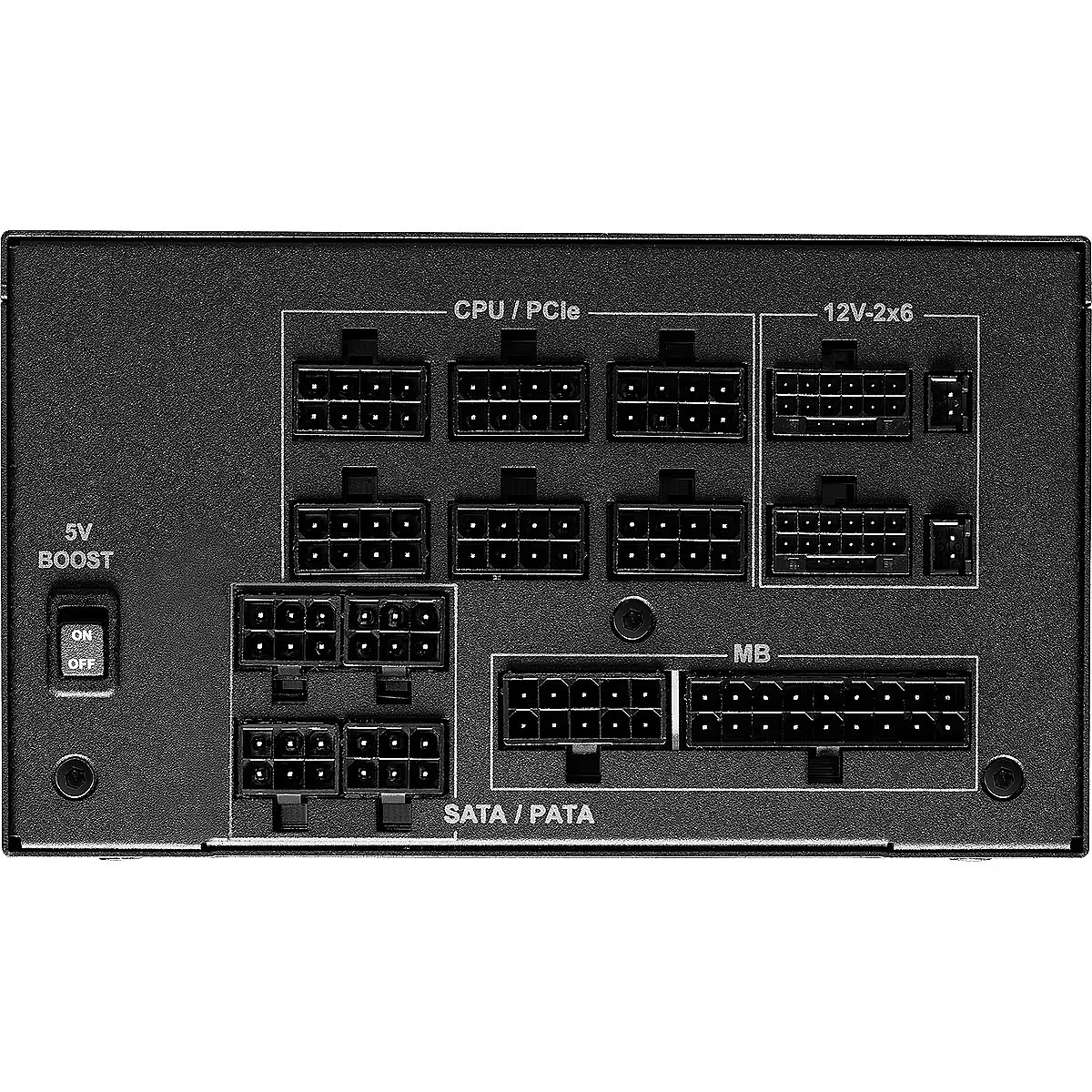

Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of EPS connectors - 2
Ports & interfaces - Number of SATA power connectors - 9
Ports & interfaces - PCI Express power cable length - 67.5 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 6
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 100
Ports & interfaces - SATA power cable length - 450 mm
Power - Power protection features - Over current
Power - Power protection features - Overheating
Power - Power protection features - Overload
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 1300 W
Power supply - 1300 W
producer - ASRock
producerCode - PG-1300G
productName - Asrock Phantom Gaming PG-1300G power supply unit 1300 W 20+4 pin ATX ATX Black
productSize - Normal
Safety warning - Warnings - Avoid contact of the product with water or other liquids.
Safety warning - Warnings - Do not open the case - risk of electric shock.
Safety warning - Warnings - The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
SATA power connectors - 9
sizeX - 312
sizeY - 235
sizeZ - 126
vendpn - PG-1300G
warrantyLength - 120
warrantyType - G
WEEE - DE83654239
Weight - 4,30
weight - 4500
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
