Accessories included - 4 x SATA data cables 1 x ASRock WiFi 2.4/5/6 GHz antenna 1 x ARGB splitter cable 3 x thermistor cables
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Chipset manufacturer - AMD
Chipset type - AMD X870E
code - 90-MXBP90-A0UAYZ
COM connector / port - No
CPU socket - Socket AM5
Description - Exclusive 20K Capacitor with 1000uF Capacity
The enhanced black 20K capacitor not only extends lifespan up to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, offering several advantages: Greater capacity: Larger charge storage for better support under heavy loads. Lower ripple: Reduced output power fluctuations, improving quality. More stable output current: Stable power supply minimizing voltage impact. Improved system performance and stability: Increased reliability and consistent performance. Optimized 5 Gb/s LAN Network (Patent Pending)
ASRocks 5 Gb/s LAN port features a patented design that delivers exceptional resistance to electromagnetic interference, ensuring fast and stable performance and offering users an enhanced networking experience.
High-Speed M.2 Solution
Blazing M.2 supports the latest PCI Express 5.0 standard, offering double the bandwidth compared to the previous generation. With an astonishing data transfer speed of 128 GB/s, it is ready to unlock the full potential of next-generation ultra-fast SSDs.
Server-Grade Low-Loss PCB
The server-grade low-loss PCB enhances signal integrity, allowing the motherboard to support PCIe 5.0 for both graphics cards and M.2 SSDs. It also improves memory overclocking potential to ensure peak memory performance.
8-Layer PCB + 2oz Copper Inner Layers
The 8-layer PCB and 2oz copper inner layers provide improved signal routing and power shapes, resulting in lower temperatures and higher energy efficiency. This guarantees a reliable and durable system while delivering uncompromised high performance.
DDR5 XMP & EXPO Support
Built on the design philosophy of durability and reliability, ASRock makes no compromises in detail. This motherboard is crafted with high-quality materials, allowing enthusiasts to enjoy enhanced DDR5 memory overclocking performance with pre-tested profiles. Just ensure memory modules are compatible with Intel XMP or AMD EXPO, and overclocking becomes affordable, satisfying, and completely hassle-free.
High-Speed M.2 Solution
Blazing M.2 supports the latest PCI Express 5.0 standard, offering double the bandwidth compared to the previous generation. With an astonishing data transfer speed of 128 GB/s, it is ready to unlock the full potential of next-generation ultra-fast SSDs.
Enhanced USB4 Type-C
USB4 technology brings speed and versatility to the most advanced USB Type-C, delivering a fast and simple connection level for work or home. It enables lightning-fast 40 Gb/s data transfer speeds.
802.11be Wi-Fi 7
Wi-Fi 7 offers higher data bandwidth, lower latency, and multi-link operation. These features deliver smooth and interactive real-time experiences, making VR/AR more immersive and connected.
VRM Composite Heatsink
Equipped with a composite VRM heatsink that combines a cooling fan, a larger aluminum heatsink, and a heat pipe, this solution ensures maximum heat dissipation.
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports 2280 PCIe Gen5x4 mode (128 Gb/s)*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports 2280 PCIe Gen4x4 mode (64 Gb/s)*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports 2280 PCIe Gen4x4 mode (64 Gb/s)*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports 2280 PCIe Gen4x4 mode (64 Gb/s)*
- 6 x SATA3 6.0 Gb/s Connectors
* Supports NVMe SSDs as boot drives
M2_1 is the first priority for M.2 installation.
The M2_1 will run on the Gen5x4 platform with 9000 and 7000 series processors and on the Gen4x4 platform with 8000 series processors (Phoenix 1 and Phoenix 2).
dimensionalWeight - 1958
dimension depth - 80 mm
dimension height - 355 mm
Dimensions - 30.5 cm x 26.7 cm
dimension weight - 3545 g
dimension width - 315 mm
ean - 4710483947421
EAN - 4710483947421
Eans - 4710483947421
Expansion slots - 1 x M.2
Expansion slots - 2 x PCIe 5.0 x16
Expansion slots - PCI Express x16 (Gen 5.x) slots - 2
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB BIOS Flashback button
External connectors - 2 x SMA
External connectors - 2 x USB 2.0
External connectors - 2 x USB4 Type-C
External connectors - 3 x USB 3.0
External connectors - 5 x USB 3.1
Features - Audio chip - Realtek ALC4082
Features - Audio output channels - 5.1 channels
Features - Motherboard chipset - AMD X870E
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - Extended ATX
Features - Operating system architecture - 64-bit
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - E-ATX
Graphics - AMD RDNA Integrated Graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, Supports HDR, HDCP 2.3 and Max Resolution up to 4K 120Hz 2 x USB4, Supports HDCP 2.3 and Max Resolution up to 8K 30Hz* *Only CPU built-in graphics can be displayed via USB4 ports. If you want to display on a Type-C monitor, please use AM5 Ryzen 9000, 8000 and 7000 processors with built-in graphics.
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LPT connector / port - No
Manufacturer - ASRock
Max. number of ATA devices - 0
Max. number of SATA devices - 6
Max memory size - 256 GB
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8200+ MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 8200 MHz
Memory type - DDR5

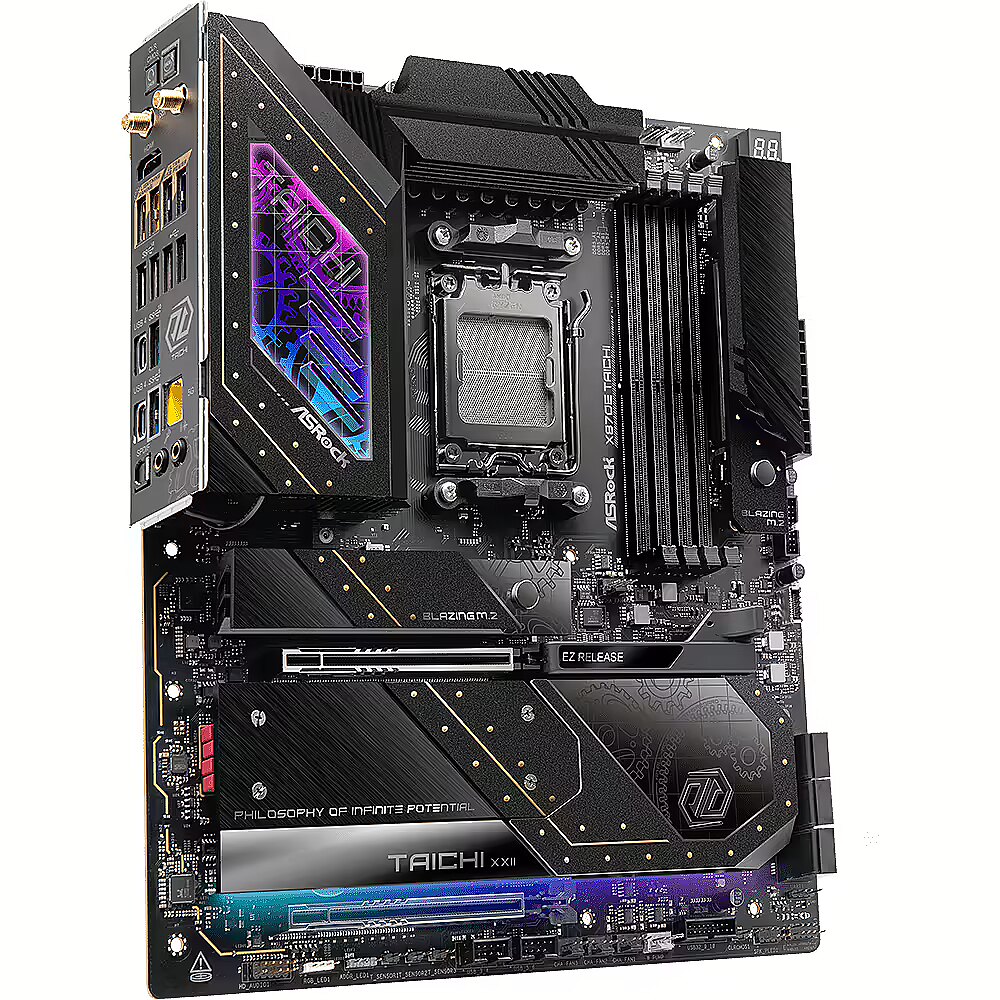

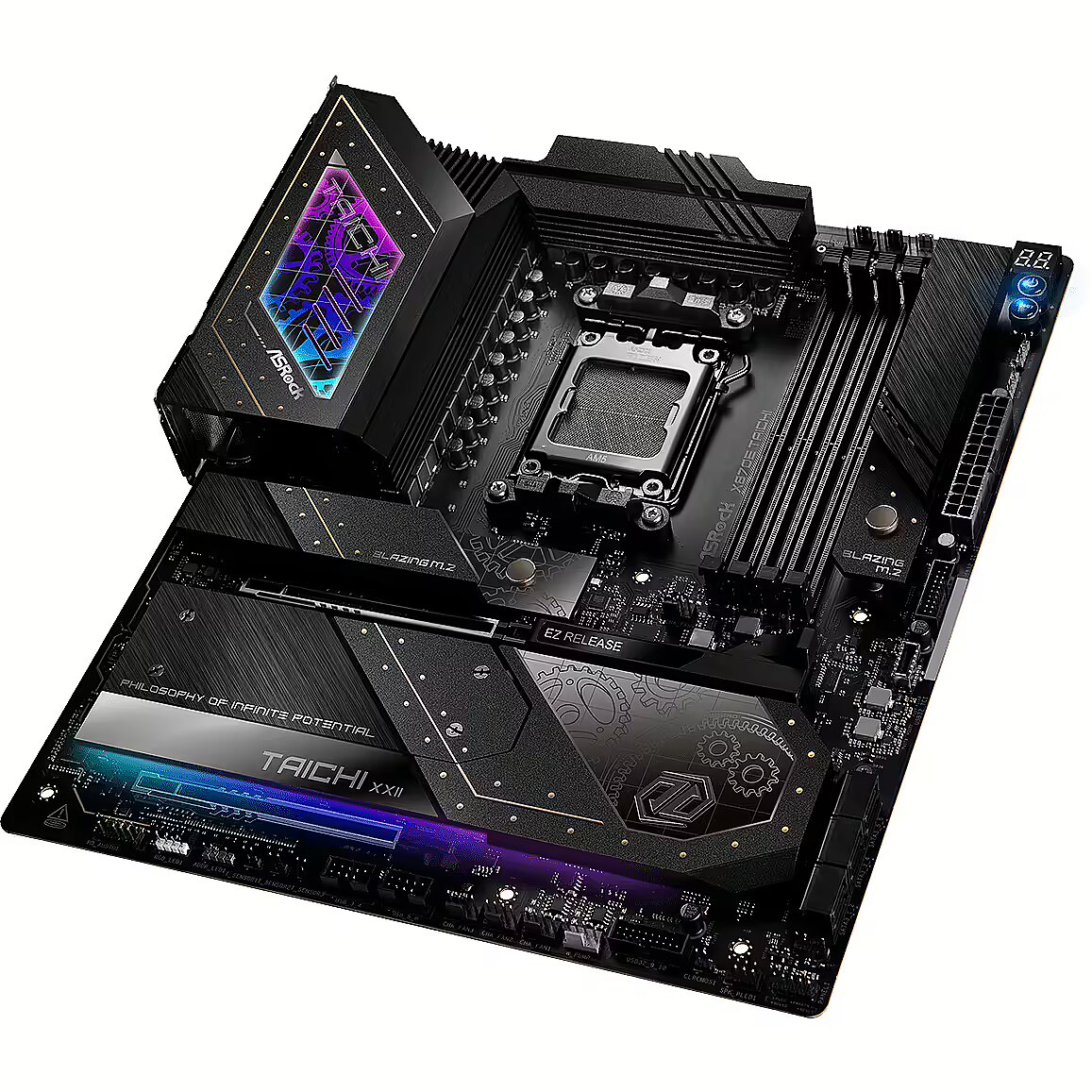

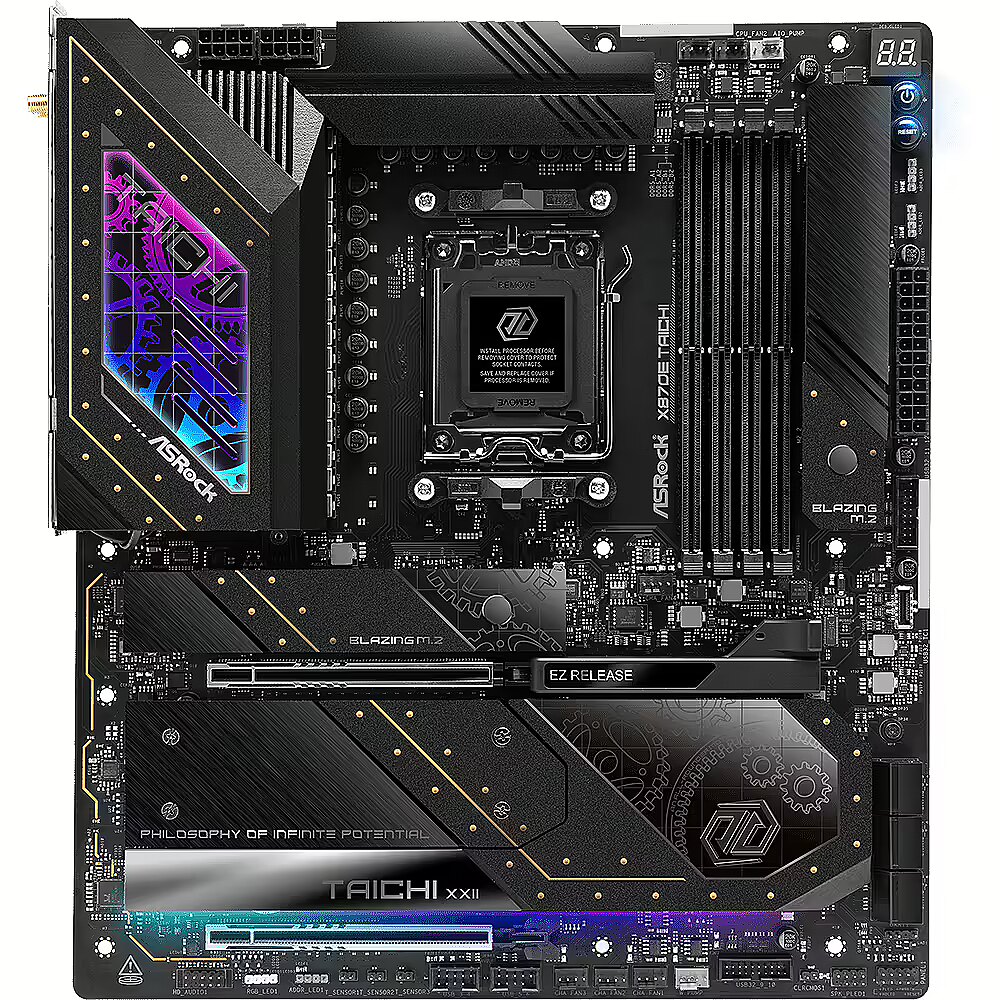

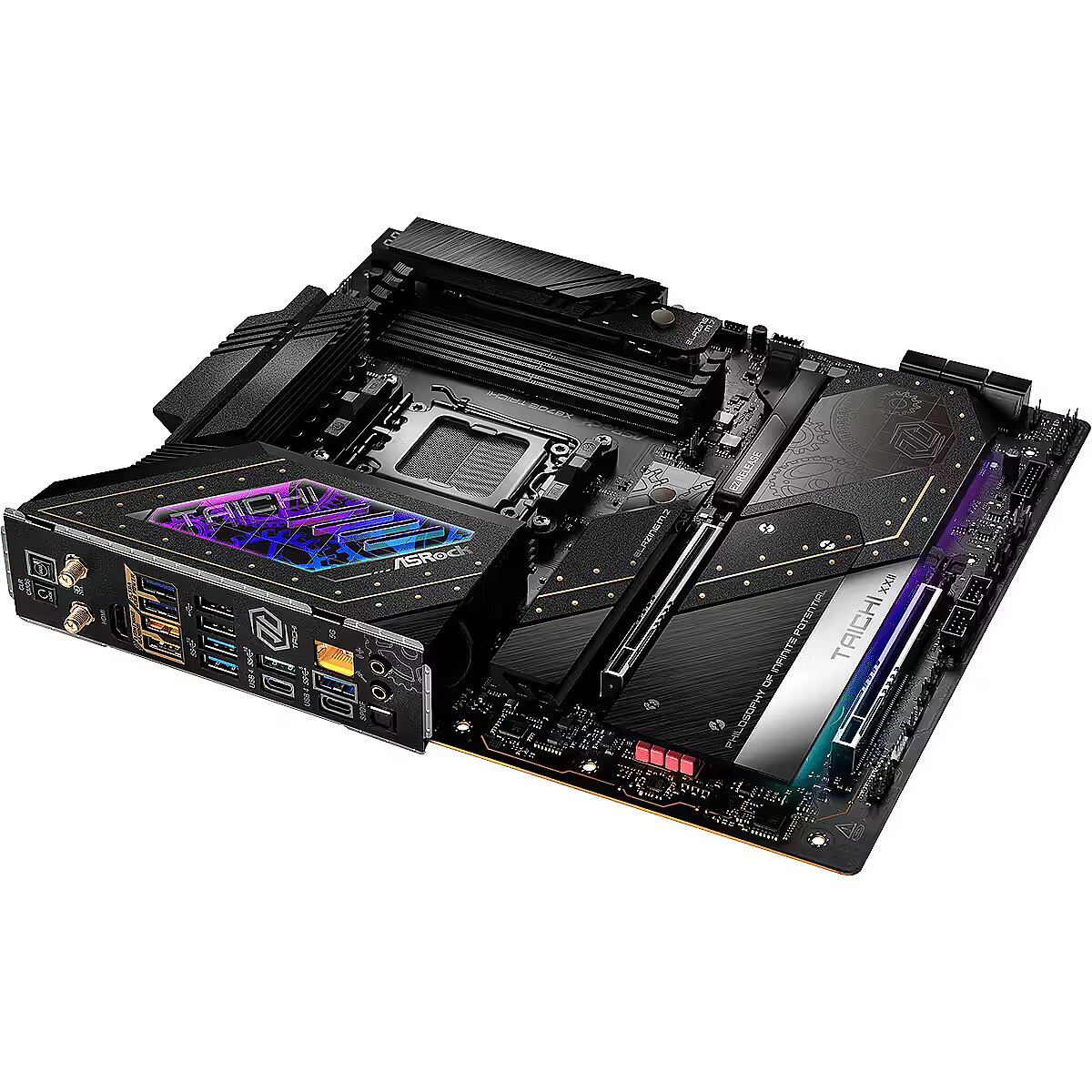

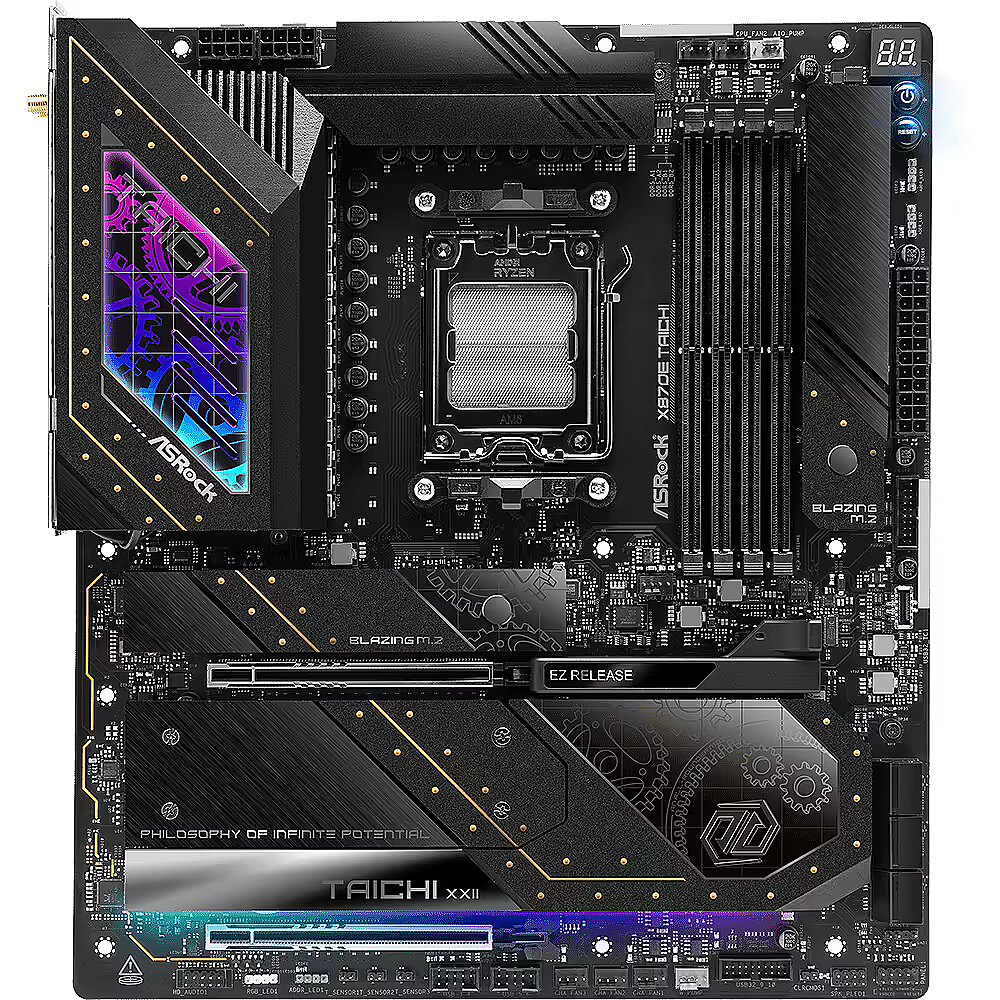

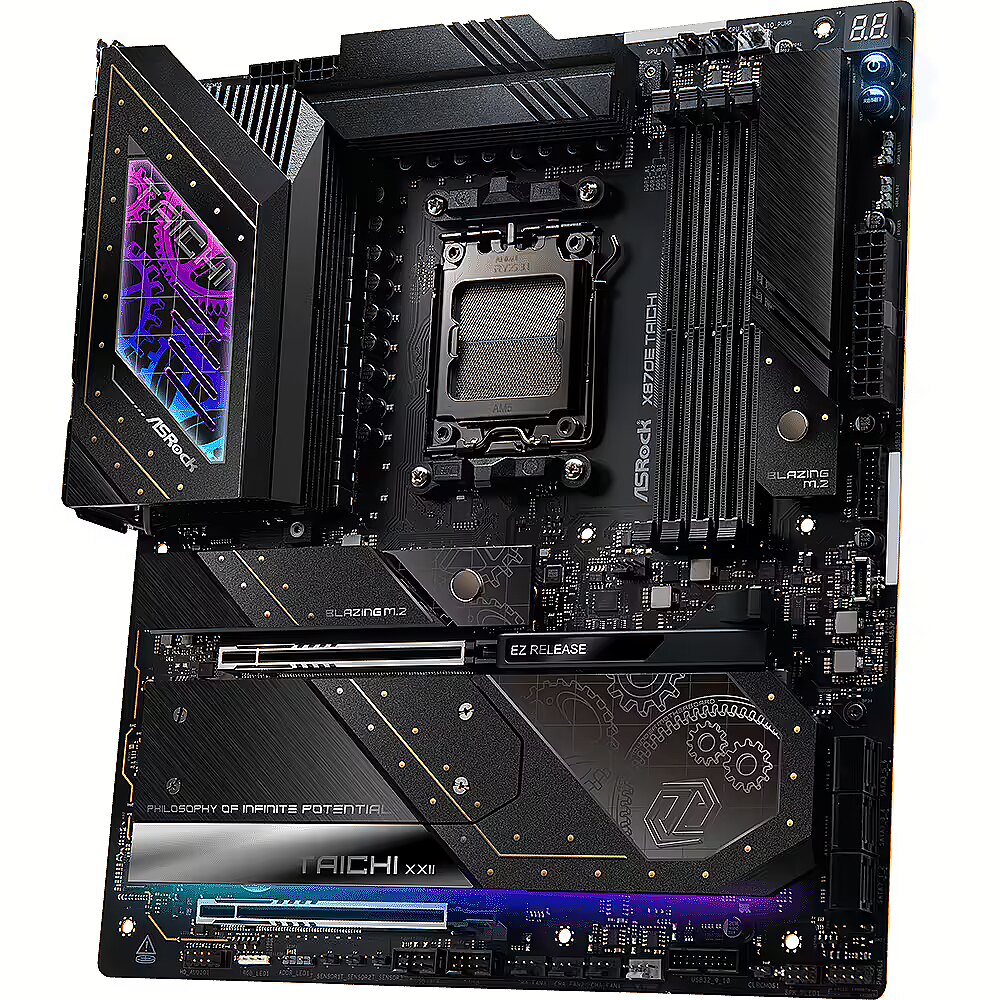

Model - X870E TAICHI
MPN - 90-MXBP90-A0UAYZ
Name - ASRock X870E Taichi
name - ASRock X870E Taichi, AMD X870E Mainboard - Sockel AM5, DDR5
Name - ASRock X870E Taichi AM5 ATX HDMI/USB-C DDR5 retail
name - X870E TAICHI AM5 4DDR5 M.2 EATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8126
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500/5000 Mbit/s
Network interface - Bluetooth
Network interface - LAN 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s Realtek RTL8126 Wireless LAN 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 160MHz channel bandwidth with 6GHz* frequency band 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 8
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Debug card header
Onboard connectors - 1 x Power button
Onboard connectors - 1 x Power LED and Speaker Header
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x Thermistor Cable Header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 4pin wentylator CPU
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x 4pin Chassis fan
Other information - 8-Layer PCB 2oz Copper PCB
Certifications
FCC, CE ErP/EuP ready (ErP/EuP ready power supply required)
Processor - Compatible processor series - AMD Ryzen™ 7000 Series
Processor - Compatible processor series - AMD Ryzen™ 8000 Series
Processor - Compatible processor series - AMD Ryzen™ 9000 Series
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor family - AMD Ryzen 3
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - ASRock
Producer - ASRock
producerCode - X870E Taichi
ProducerCode - X870E Taichi
productName - Motherboard - ASRock X870E Taichi
productSize - Normal
RAID - Yes
Rear panel I/O ports - Clear CMOS button - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-out - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - Number of USB 2.0 Type-A ports - 2
Rear panel I/O ports - Number of Wi-Fi antenna ports - 2
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 5
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 2
ShortDescription - Socket AM5 | Chipset AMD X870E | DDR5
sizeX - 360
sizeY - 320
sizeZ - 85
Software - Software ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash
Sound card - 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) WIMA Audio Capacitors (For Rear Outputs) ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR) Individual PCB Layers for R/L Audio Channel Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) Nahimic Audio
Special functions -
Storage controllers - Supported storage drive interfaces - Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4)
Supported operating systems - Windows 10
Supported operating systems - Windows 11
USB ports at back panel - 12
USB ports on motherboard - 9
vendpn - X870E TAICHI
warrantyLength - 36
warrantyType - G
weight - 3530
Weight & dimensions - Depth - 267 mm
Weight & dimensions - Width - 305 mm
