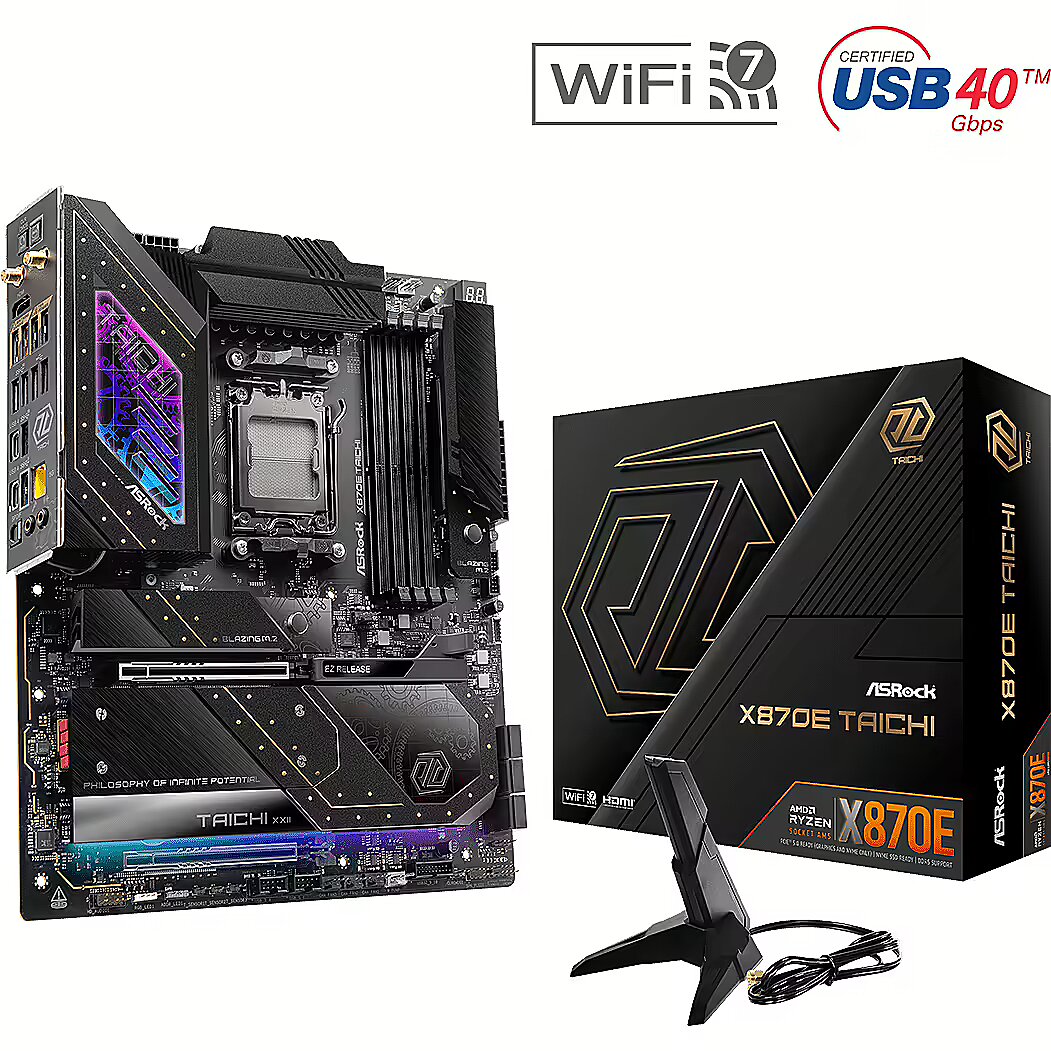

Asrock X870E Taichi

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1147142 Product code: X870E Taichi
In stock 5 units
Warranty: 3 years
495.34 €
Ready for dispatch
on Thursday, 19.06.2025
starting from 6.99 €
Delivery options
  • Posti parcel machine
    Within 1-2 working days
    6.99 €
  • Delivery with Posti courier mail
    Within 1-2 working days
    10.99 €
Main product parameters All parameters
  • Series: ASRock Taichi
  • Plate size: ATX
  • Chipset: AMD X870E
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Ir
  • M.2 ports: 4
Basic information
Series : ASRock Taichi
Plate size ATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD X870E

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5600MT/s (8200MT/s OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 0
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC4082
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir
External ports
External USB 2.0 : 2
External USB Type-C (USB 3.2 Gen2) : 0
External USB Type-C (USB 4.0) : 2
External USB 3.0 (USB 3.2 Gen1) : 3
External USB 3.1 (USB 3.2 Gen2) : 5
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 2
Internal USB Type-C : 1
M.2 ports : 4
SATA3 ports : 6
Power supply units (PSU)
More detailed specification
Accessories included - 4 x SATA data cables 1 x ASRock WiFi 2.4/5/6 GHz antenna 1 x ARGB splitter cable 3 x thermistor cables
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Chipset manufacturer - AMD
Chipset type - AMD X870E
code - 90-MXBP90-A0UAYZ
COM connector / port - No
CPU socket - Socket AM5
Description - Exclusive 20K Capacitor with 1000uF Capacity
The enhanced black 20K capacitor not only extends lifespan up to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, offering several advantages:     Greater capacity: Larger charge storage for better support under heavy loads.     Lower ripple: Reduced output power fluctuations, improving quality.     More stable output current: Stable power supply minimizing voltage impact.     Improved system performance and stability: Increased reliability and consistent performance. Optimized 5 Gb/s LAN Network (Patent Pending)
ASRocks 5 Gb/s LAN port features a patented design that delivers exceptional resistance to electromagnetic interference, ensuring fast and stable performance and offering users an enhanced networking experience.
High-Speed M.2 Solution
Blazing M.2 supports the latest PCI Express 5.0 standard, offering double the bandwidth compared to the previous generation. With an astonishing data transfer speed of 128 GB/s, it is ready to unlock the full potential of next-generation ultra-fast SSDs.
Server-Grade Low-Loss PCB
The server-grade low-loss PCB enhances signal integrity, allowing the motherboard to support PCIe 5.0 for both graphics cards and M.2 SSDs. It also improves memory overclocking potential to ensure peak memory performance.
8-Layer PCB + 2oz Copper Inner Layers
The 8-layer PCB and 2oz copper inner layers provide improved signal routing and power shapes, resulting in lower temperatures and higher energy efficiency. This guarantees a reliable and durable system while delivering uncompromised high performance.
DDR5 XMP & EXPO Support
Built on the design philosophy of durability and reliability, ASRock makes no compromises in detail. This motherboard is crafted with high-quality materials, allowing enthusiasts to enjoy enhanced DDR5 memory overclocking performance with pre-tested profiles. Just ensure memory modules are compatible with Intel XMP or AMD EXPO, and overclocking becomes affordable, satisfying, and completely hassle-free.
High-Speed M.2 Solution
Blazing M.2 supports the latest PCI Express 5.0 standard, offering double the bandwidth compared to the previous generation. With an astonishing data transfer speed of 128 GB/s, it is ready to unlock the full potential of next-generation ultra-fast SSDs.
Enhanced USB4 Type-C
USB4 technology brings speed and versatility to the most advanced USB Type-C, delivering a fast and simple connection level for work or home. It enables lightning-fast 40 Gb/s data transfer speeds.
802.11be Wi-Fi 7
Wi-Fi 7 offers higher data bandwidth, lower latency, and multi-link operation. These features deliver smooth and interactive real-time experiences, making VR/AR more immersive and connected.
VRM Composite Heatsink
Equipped with a composite VRM heatsink that combines a cooling fan, a larger aluminum heatsink, and a heat pipe, this solution ensures maximum heat dissipation.
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports 2280 PCIe Gen5x4 mode (128 Gb/s)*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports 2280 PCIe Gen4x4 mode (64 Gb/s)*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports 2280 PCIe Gen4x4 mode (64 Gb/s)*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports 2280 PCIe Gen4x4 mode (64 Gb/s)*
- 6 x SATA3 6.0 Gb/s Connectors
* Supports NVMe SSDs as boot drives
M2_1 is the first priority for M.2 installation.
The M2_1 will run on the Gen5x4 platform with 9000 and 7000 series processors and on the Gen4x4 platform with 8000 series processors (Phoenix 1 and Phoenix 2).
dimensionalWeight - 1958
dimension depth - 80 mm
dimension height - 355 mm
Dimensions - 30.5 cm x 26.7 cm
dimension weight - 3545 g
dimension width - 315 mm
ean - 4710483947421
EAN - 4710483947421
Eans - 4710483947421
Expansion slots - 1 x M.2
Expansion slots - 2 x PCIe 5.0 x16
Expansion slots - PCI Express x16 (Gen 5.x) slots - 2
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB BIOS Flashback button
External connectors - 2 x SMA
External connectors - 2 x USB 2.0
External connectors - 2 x USB4 Type-C
External connectors - 3 x USB 3.0
External connectors - 5 x USB 3.1
Features - Audio chip - Realtek ALC4082
Features - Audio output channels - 5.1 channels
Features - Motherboard chipset - AMD X870E
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - Extended ATX
Features - Operating system architecture - 64-bit
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - E-ATX
Graphics - AMD RDNA Integrated Graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, Supports HDR, HDCP 2.3 and Max Resolution up to 4K 120Hz 2 x USB4, Supports HDCP 2.3 and Max Resolution up to 8K 30Hz* *Only CPU built-in graphics can be displayed via USB4 ports. If you want to display on a Type-C monitor, please use AM5 Ryzen 9000, 8000 and 7000 processors with built-in graphics.
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LPT connector / port - No
Manufacturer - ASRock
Max. number of ATA devices - 0
Max. number of SATA devices - 6
Max memory size - 256 GB
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8200+ MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 8200 MHz
Memory type - DDR5
Model - X870E TAICHI
MPN - 90-MXBP90-A0UAYZ
Name - ASRock X870E Taichi
name - ASRock X870E Taichi, AMD X870E Mainboard - Sockel AM5, DDR5
Name - ASRock X870E Taichi AM5 ATX HDMI/USB-C DDR5 retail
name - X870E TAICHI AM5 4DDR5 M.2 EATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8126
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500/5000 Mbit/s
Network interface - Bluetooth
Network interface - LAN 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s Realtek RTL8126 Wireless LAN 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 160MHz channel bandwidth with 6GHz* frequency band 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 8
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Debug card header
Onboard connectors - 1 x Power button
Onboard connectors - 1 x Power LED and Speaker Header
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x Thermistor Cable Header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 4pin wentylator CPU
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x 4pin Chassis fan
Other information - 8-Layer PCB 2oz Copper PCB
Certifications
FCC, CE ErP/EuP ready (ErP/EuP ready power supply required)
Processor - Compatible processor series - AMD Ryzen™ 7000 Series
Processor - Compatible processor series - AMD Ryzen™ 8000 Series
Processor - Compatible processor series - AMD Ryzen™ 9000 Series
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor family - AMD Ryzen 3
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - ASRock
Producer - ASRock
producerCode - X870E Taichi
ProducerCode - X870E Taichi
productName - Motherboard - ASRock X870E Taichi
productSize - Normal
RAID - Yes
Rear panel I/O ports - Clear CMOS button - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-out - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - Number of USB 2.0 Type-A ports - 2
Rear panel I/O ports - Number of Wi-Fi antenna ports - 2
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 5
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 2
ShortDescription - Socket AM5 | Chipset AMD X870E | DDR5
sizeX - 360
sizeY - 320
sizeZ - 85
Software - Software ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash
Sound card - 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) WIMA Audio Capacitors (For Rear Outputs) ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR) Individual PCB Layers for R/L Audio Channel Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) Nahimic Audio
Special functions -
Storage controllers - Supported storage drive interfaces - Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4)
Supported operating systems - Windows 10
Supported operating systems - Windows 11
USB ports at back panel - 12
USB ports on motherboard - 9
vendpn - X870E TAICHI
warrantyLength - 36
warrantyType - G
weight - 3530
Weight & dimensions - Depth - 267 mm
Weight & dimensions - Width - 305 mm
