15pin D-sub Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Category Code - NVR
Colour - Black
CPU - Industrial-grade

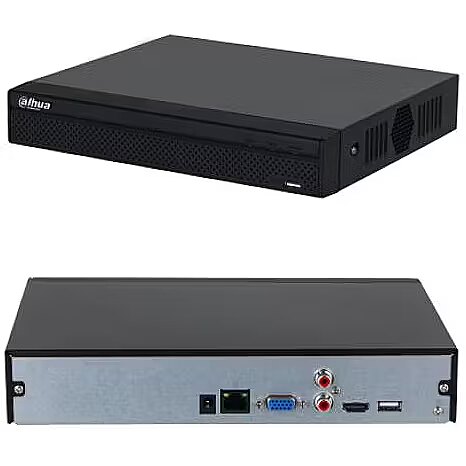

Description - 16CH Compact 1U 1HDD Lite Network Video Recorder > Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats. > Max. decoding capability: 6 × 1080p@30 fps. > Max. 144/144/72 Mbps incoming/recording/outgoing bandwidth. > Supports IP cameras with a resolution up to 12 MP. > AI by Recorder supports 4-channel SMD Plus. > AI by Camera supports perimeter protection and SMD Plus. > Supports one-click arming and disarming.
Desktop/pedestal Mounting Type - Yes
Dimensions - 260.0 × 232.5 × 47.6 mm
Full Description Line - Channels 16|Desktop/pedestal|Rack|CPU Industrial-grade|Integrated LAN Gigabit|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Power supply requirements 12 VDC, 1.5 A|Power consumption 10 Watts|Dim. 260.0 × 232.5 × 47.6 mm|Temp. range –10 °C to +55 °C|Colour Black
HDMI Input/Output connectors - 1
Integrated LAN - Gigabit
Model - DHI-NVR2116HS-4KS3
Number of Channels - 16
Operating temperature range - –10 °C to +55 °C
Power consumption - 10 Watts
Power supply requirements - 12 VDC, 1.5 A
Rack Mounting Type - Yes
RJ45 Input/Output connectors - 1
Shipping Box Depth Shipping/Package Box Dimensions - 33.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 31.3 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.39 kg
Shipping Box Width Shipping/Package Box Dimensions - 9 cm
Unit Box Height - 0.313
Unit Box Length - 0.335
Unit Box Width - 0.09
Unit Brutto Volume - 0.009437 cubm
Unit Gross Weight - 1.39 kg
Unit Net Weight - 0.85 kg
USB 2.0 Input/Output connectors - 2
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR2-4KS3-Series/1HDD/NVR2116HS-4KS3
Warranty - 36 months
