15pin D-sub Input/Output connectors - 2
Alarm In Input/Output connectors - 16
Alarm Out Input/Output connectors - 8
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 2
Brand - Dahua Technology
BrandPartCode - DHI-NVR5864-EI
Category - Network Video Recorders (NVR)
Category Code - NVR
CPU - Embedded Linux
Description - 64 IP channel max, up to 32MP resolution Max: 384Mbps recording bandwidth, Smart H.265+; H.265; Smart H.264+; H.264; MJPEG 2x VGA/HDMI up to 4K output, decoding up to 2-channel 32 MP @ 20 fps 8 SATA III ports, up to 16 TB for a single HDD, RAID 0/1/5/6/10 No front panel control, 16/8 alarm I/O, 2 USB, Audio I/O: 1/2, eSATA, RS-232, RS-485 Rack/desktop mounted chassis AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus. AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting. Free IP monitoring software available Other brands IP cameras supported
Desktop/pedestal Mounting Type - Yes
Dimensions - 439.9 × 457.9 x 89.0 mm
eSATA Input/Output connectors - 1
Features - Product colour - Black
Features - Rack mounting - Yes
GTIN - 6923172586063
Hard drive - HDD capacity - 0 GB
Hard drive - HDD interface - SATA
Hard drive - Maximum storage capacity - 128 TB
Hard drive - Number of HDDs supported - 8
Hard drive - RAID levels - 0, 1, 5, 6, 10
Hard drive - RAID support - Yes
HDMI Input/Output connectors - 2
Integrated LAN - Gigabit
LongDesc -
LongProductName - 64 Channels 2U 8HDDs WizSense Network Video Recorder
LongSummaryDescription - Dahua Technology DHI-NVR5864-EI. Video input channels: 64 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 1080p. Maximum storage capacity: 128 TB, HDD interface: SATA, RAID levels: 0, 1, 5, 6, 10. Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4/IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP;.... Product colour: Black. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz
Model - NVR5864-EI
Number of Channels - 64
Operational conditions - Operating relative humidity (H-H) - 10 - 93%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Performance - Alarm input channels - 16
Performance - Alarm output channels - 8
Performance - Backup function - Yes
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Operating system installed - Embedded LINUX
Performance - Supported resolutions - 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x
720
Performance - Video input channels - 64 channels
Performance - Video recording modes - 1080p
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Ethernet LAN data rates - 10,100,1000 Mbit/s
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - RS-485 ports - 2
Ports & interfaces - Supported network protocols - HTTP; HTTPS; TCP/IP; IPv4/IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power supply requirements - 100–240 VAC, 50-60 Hz
Processor - Built-in processor - Yes
ProductName - DHI-NVR5864-EI
Product Net Weight - 6.4 kg
Rack Mounting Type - Yes
RJ45 Input/Output connectors - 2
RS-485 Input/Output connectors - 1
RS232 Input/Output connectors - 1
ShortSummaryDescription - Dahua Technology DHI-NVR5864-EI, 64 channels, 3840 x 2160 pixels, 1080p, 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, Embedded LINUX, 128 TB
System requirements - Browser supported - Chrome;IE;Safari;Edge;Firefox
System requirements - Mobile operating systems supported - Android, iOS

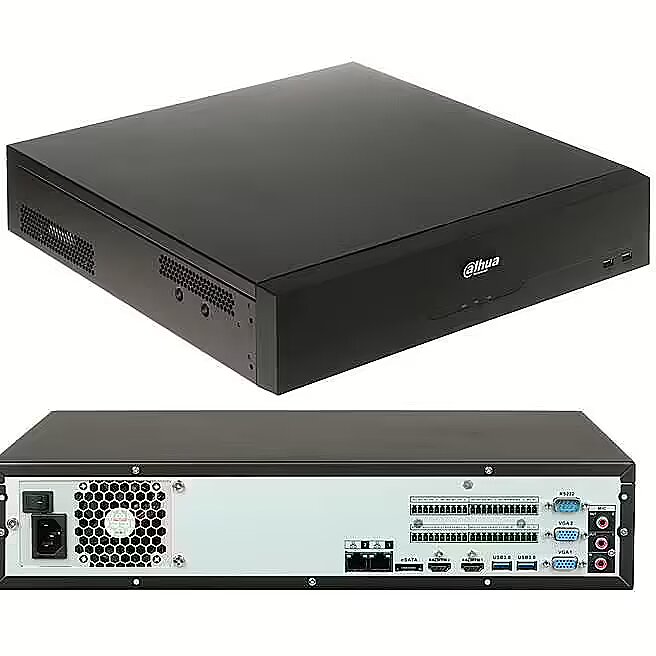

Title - Dahua Technology DHI-NVR5864-EI network video recorder Black
Unit Box Height - 0.22
Unit Box Length - 0.56
Unit Box Width - 0.57
Unit Calculated Volume - 0.07022 cubm
Unit Calculated Weight - 8.9 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/All-Products/Network-Recorders/WizSense-Series/NVR-5-EI-Series/8HDD/NVR5864-EI
USB 2.0 Input/Output connectors - 2
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/WizSense-Series/NVR-5-EI-Series/8HDD/NVR5864-EI
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 457.9 mm
Weight & dimensions - Height - 89 mm
Weight & dimensions - Package depth - 570 mm
Weight & dimensions - Package height - 226 mm
Weight & dimensions - Package weight - 9.01 kg
Weight & dimensions - Package width - 570 mm
Weight & dimensions - Weight - 6.4 kg
Weight & dimensions - Width - 439.9 mm
Wireless LAN features - Wi-Fi - No
