15pin D-sub Input/Output connectors - 1
Alarm In Input/Output connectors - 8
Alarm Out Input/Output connectors - 3
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Brand - Dahua Technology
BrandPartCode - DHI-NVR5208-8P-EI0
Category - Network Video Recorders (NVR)
Category Code - NVR
Colour - Black
CPU - Dual-core embedded processor
Description - NVR5208-8P-EI NET VIDEO RECORDER 8CH 8POE/ NVR5208-8P-EI DAHUA 8 Channels 1U 8PoE 2HDDs WizSense Network Video Recorder > Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format. > Max. decoding capability: 32 × 1080p@30 fps or 8 × 8MP@30 fps. > Max. 384 Mbps incoming/recording/outgoing bandwidth. > Support AcuPick with Max. 16-Channel. > Support N+M cluster. > AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus. > AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting. > Security baseline 2.3.
Dimensions - 375.0 × 329.4 x 53.0 mm
Features - Product colour - Black
Features - Rack capacity - 1U
Features - Rack mounting - Yes
GTIN - 6923172589804
Hard drive - HDD capacity - 0 GB
Hard drive - HDD interface - SATA
Hard drive - Maximum storage capacity - 32 TB
Hard drive - Number of HDDs supported - 2
HDMI Input/Output connectors - 1
Integrated LAN - 10/100
LongDesc -
LongProductName - 8 Channels 1U 8PoE 2HDDs WizSense Network Video Recorder
LongSummaryDescription - Dahua Technology WizSense DHI-NVR5208-8P-EI. Video input channels: 8 channels, Maximum resolution: 3840 x 2160 pixels, Supported resolutions: 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720. Maximum storage capacity: 32 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4/IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP;.... Rack capacity: 1U, Product colour: Black. AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz
Number of Channels - 8
Number of drives/bays - 2
Operating temperature range - –10 °C to +55 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 93%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Performance - Alarm input channels - 4
Performance - Alarm output channels - 2
Performance - Backup function - Yes
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Operating system installed - Embedded LINUX
Performance - Supported resolutions - 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x
720
Performance - Video input channels - 8 channels
Ports & interfaces - Audio RCA inputs - 1
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10,100,1000 Mbit/s
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Power over Ethernet (PoE) - Yes
Ports & interfaces - Power over Ethernet (PoE) ports quantity - 8
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - RS-485 ports - 1
Ports & interfaces - Supported network protocols - HTTP; HTTPS; TCP/IP; IPv4/IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power consumption - 20 Watts
Power supply requirements - DC 12V/5A
ProductName - DHI-NVR5208-8P-EI
Product Net Weight - 2.57 kg
Rack 1U Mounting Type - Yes
RJ45 Input/Output connectors - 9
RS-485 Input/Output connectors - 1
SATA Interface - Yes
ShortSummaryDescription - Dahua Technology WizSense DHI-NVR5208-8P-EI, 8 channels, 3840 x 2160 pixels, 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, Embedded LINUX, 32 TB, SATA
System requirements - Browser supported - Chrome;IE;Safari;Edge;Firefox
System requirements - Mobile operating systems supported - Android, iOS

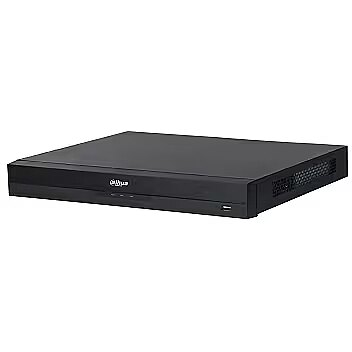

Title - Dahua Technology WizSense DHI-NVR5208-8P-EI 1U Black
TV-Out Input/Output connectors - 1
Unit Box Height - 0.42
Unit Box Length - 0.45
Unit Box Width - 0.14
Unit Calculated Volume - 0.02646 cubm
Unit Calculated Weight - 3.8 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/la/products/All-Products/Network-Recorders/WizSense-Series/NVR-5-EI-Series/2HDD/NVR5208-8P-EI
USB 2.0 Input/Output connectors - 2
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Recorders/WizSense-Series/NVR-5-EI-Series/2HDD/NVR5208-8P-EI
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 329.4 mm
Weight & dimensions - Height - 53 mm
Weight & dimensions - Package depth - 425 mm
Weight & dimensions - Package height - 147 mm
Weight & dimensions - Package weight - 3.8 kg
Weight & dimensions - Package width - 451 mm
Weight & dimensions - Weight - 2.57 kg
Weight & dimensions - Width - 375 mm
Wireless LAN features - Wi-Fi - No
