Audio - Built-in microphone - Yes
Audio - Signal-to-Noise Ratio (SNR) - 65 dB
Brand - Dahua Technology
BrandPartCode - HAC-HFW1500TL-A-0360B
Camera - Angle of rotation - 360°
Camera - Camera pan control - Yes
Camera - Camera shutter speed - 1/30 - 1/100000 s
Camera - Camera shutter type - Electronic
Camera - Camera tilt control - Yes
Camera - Lens viewing angle, horizontal - 77.5°
Camera - Minimum illumination - 0 lx
Camera - Pan range - 0 - 360°
Camera - Tilt angle range - 0 - 90°
Camera - White balance - Auto, Manual
Camera design - Bullet
Category - Security Cameras
Category Code - HSC
CnCode - 85258900
Description - 1/2.7" 5 Megapixel CMOS, 2592×1944 @ 20FPS max 1-channel BNC high definition video output / CVBS video output (Can switch) 3.6mm fixed lens, viewing angle: 92° Sensitivity: 0.005 Lux/F1.6, 30IRE, 0 Lux IR on 2D DNR, True Day / Night with ICR Filter, BLC / HLC / DWDR Smart IR LED up to 80 m Built-in Mic Bullet design (metal/plastic), IP67, outdoor/indoor use, -40°C~+60°C Power 12 VDC, 5.2W max
Design - Form factor - Bullet
Design - Housing material - Aluminium
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling/wall
Design - Product colour - White
Design - Protection features - Dust resistant, Water resistant
Electronic Shutter Speed - PAL: 1/25s–1/100000s ;NTSC: 1/30s–1/100000s
Focal length - 3.6 - 4mm
Focal Length - 3.6 mm
Image sensor - Number of effective pixels (H x V) - 2592 x 1944 pixels
Image sensor - Number of sensors - 1
Image sensor - Optical sensor size - 25.4 / 2.7 mm (1 / 2.7")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
IR Illumination - Yes
Lens Mount - M12
Lens system - Closest focusing distance - 1.4 m
Lens system - Fixed focal length - 3.6 mm
Lens system - Fixed focus - Yes
Lens system - Maximum aperture number - 1.85
Lens system - Number of lenses - 1
LongDesc - Experience superior 5MP video and the simplicity of reusing existing coaxial infrastructure with HDCVI. The Lite series 5MP HDCVI camera features a compact design and offers a high quality image with rich details at a friendly price. It offers various vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions.

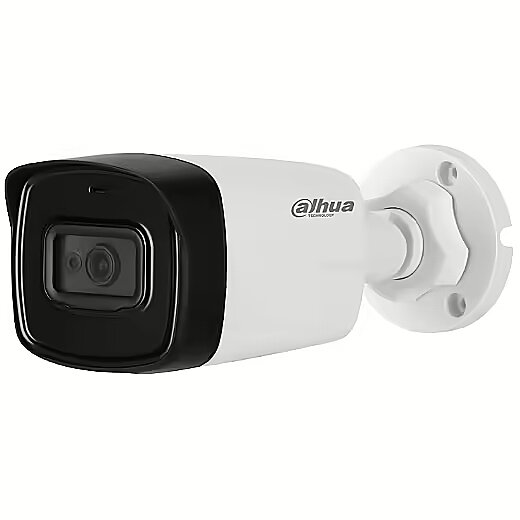

LongProductName - 5MP HDCVI IR Bullet Camera
LongSummaryDescription - Dahua Technology Lite HAC-HFW1500TL-A. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 77.5°, Tilt angle range: 0 - 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Number of effective pixels (H x V): 2592 x 1944 pixels. Fixed focal length: 3.6 mm, Closest focusing distance: 1.4 m
Microphone - Built-in
Min. Illumination - 0.005 Lux
Net camera resolution - 5 - 7MP
Network - Bluetooth - No
Network - Ethernet LAN - No
Network - Wi-Fi - No
Network Camera Type - Fixed/HDTV/Megapixel/Outdoor
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 80 m
Night vision - Number of illumination LEDs - 2
Operational conditions - Operating temperature (T-T) - -40 - 60 °C
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Packaging content - Number of cameras - 1
Packaging data - Package weight - 420 g
Performance - Certification - CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Infrared (IR) cut-off filter - Yes
Performance - Languages support - Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
Performance - Number of languages - 11
Performance - Placement supported - Indoor & outdoor
Performance - Type - CCTV security camera
Performance - Wide Dynamic Range (WDR) - Yes
Ports & interfaces - BNC output ports - 1
Power - DC output voltage - 12
Power - Power consumption (max) - 4.9 W
Power - Power source type - DC
Power consumption - 5.2 Watts
Power options - 12V
Power supply requirements - 12 VDC
ProductName - HAC-HFW1500TL-A
Product Net Weight - 0.27 kg
Resolution - 5 Mega Pixel
ShortSummaryDescription - Dahua Technology Lite HAC-HFW1500TL-A, CCTV security camera, Indoor & outdoor, Wired, Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish,..., CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL..., Ceiling/wall
Storage - Built-in HDD - No
Title - Dahua Technology Lite HAC-HFW1500TL-A Bullet CCTV security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/wall
Unit Box Height - 0.12
Unit Box Length - 0.24
Unit Box Width - 0.11
Unit Calculated Volume - 0.003168 cubm
Unit Calculated Weight - 0.482 kg
Units per Shipping Box - 1
URL - https://www.dahuatech.com/
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/HDCVI-Cameras/Lite-Series/5MP/Starlight/HAC-HFW1500TL-A
Video - Back Light Compensation (BLC) - Yes
Video - Digital Wide Dynamic Range (DWDR) - Yes
Video - Gain control type - Auto
Video - Highlight Compensation (HLC) - Yes
Video - Maximum resolution - 2592 x 1944 pixels
Video - Noise reduction - Yes
Video - Smart IR - Yes
Video - Supported video modes - 1080p
Video - Total megapixels - 5 MP
Video interface - HDCVI
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 198.9 mm
Weight & dimensions - Height - 76.2 mm
Weight & dimensions - Weight - 280 g
Weight & dimensions - Width - 80.2 mm
