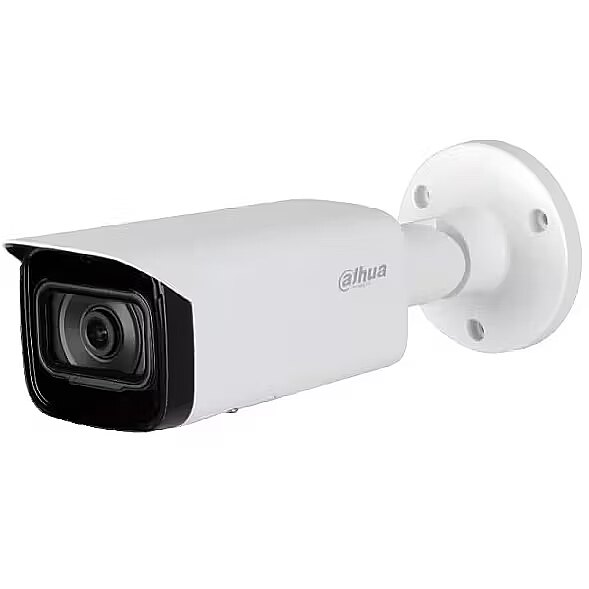

Dahua Bullet, 1668p, 5MP, White

Alarm input/output Performance - Yes
Angle of rotation Camera - 360°
Audio compression - AAC-LC
Audio compression - G.711a
Audio compression - G.711Mu
Audio compression - G.723
Audio compression - G.726
Audio formats supported Audio - AAC
Audio input channels Audio - 1.0 channels
Audio output channels Audio - 1.0 channels
Back Light Compensation (BLC) Video - Yes
Bit rate control Video - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate Video - 32- 8192Kbps, 19- 8192Kbps
Bluetooth Network - No
Built-in HDD Storage - No
Camera pan control Camera - Yes
Camera shutter speed Camera - 1/3 - 1/100000 s
Camera shutter type Camera - Electronic, Mechanical
Camera tilt control Camera - Yes
Card reader integrated Storage - Yes
Category Code - FNC
Certificates - CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Certification Performance - CE-LVD:EN60950-1
CE-EMC
2014/30/EU
FCC:47 CFR FCC 15, B
UL/CUL:
UL60950-1
CAN/CSA C22.2 No.60950-1-07
Closest focusing distance Lens system - 1.6 m
Color - White
Compatible memory cards Storage - MicroSD (TransFlash)
Connectivity technology Performance - Wired
Connectors - RJ-45
Day/night mode Performance - Yes
DC output voltage Power - 12
Depth Weight & dimensions - 75.9 mm
Description - Dahua AI series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the Dahua AI series to offer various advanced applications such as Face Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc.The complete lineup of Dahua AI includes network (PTZ) cameras, network video recorders, servers, and platform management products. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way1/2.7” 5Megapixel progressive scan CMOSH.265&H.264 triple-stream encoding20fps@2592×1944WDR(120dB), Day/Night(ICR), 3D DNR, AWB, AGC, BLCMultiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS2.8mm fixed lens (3.6mm, 6mm, 8mm, 12mm optional)1/1 Alarm in/out, 1/1 audio in/outMax. IR LEDs Length 78mMicro SD memory, IP67
Description - Face Detection
Dahua Face Detection technology enables face recognition in the video stream. Using deep learning algorithms, it supports detecting, tracking, capturing, and selecting the best face images, then generating a face snapshot. Perimeter Protection
With deep learning algorithms, Dahua Perimeter Protection technology accurately identifies people and vehicles. In restricted areas (such as pedestrian or vehicle zones), the number of false alarms in object-type-based intelligent detection (e.g., line crossing, intrusion, fast movement, parking detection, loitering, or crowding) is significantly reduced. People Counting
Dahua People Counting technology, powered by deep learning algorithms, tracks and analyzes human silhouettes to provide accurate statistics, including the number of entries, exits, and people in a specific area. When integrated with a management platform, it generates daily, monthly, and yearly reports tailored to user requirements. ePoE
Dahua ePoE technology offers a new method for transmitting data over long distances between IP cameras and network switches. This allows more flexible surveillance system design, improves reliability, and reduces installation and cabling costs. Protection (IP67, IK10, Wide Voltage Range) IP67: The camera undergoes rigorous dust and water resistance tests. It is dustproof and operates correctly after immersion in water up to 1 m for 30 minutes. IK10: The housing withstands at least 5 strikes from a 5 kg hammer dropped from 40 cm (impact energy: 20 J).
Designation - CE+WEEE
Detect distance Lens system - 80 m
dimension depth - 110 mm
dimension height - 295 mm
Dimensions - 244.1 × 79.0 × 75.9 mm
dimension weight - 205 g
dimension width - 120 mm
ean - 6923172584335
Environment requirements - Operating Conditions: -40°C to +70°C / Humidity below 95% (non-condensing) Storage Conditions: -40°C to +70°C
Ethernet interface type Network - Fast Ethernet
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN Network - Yes
Fixed focal length Lens system - 3.6 mm
Flip & mirror Video - Yes
Form factor Design - Bullet
Frame rate Video - 30 fps
Frames per second - 20
Gain control type Video - Auto/Manual
guarantee - 36
guarantee_type - normal
Highlight Compensation (HLC) Video - Yes
Housing material Design - Metal
Identify distance Lens system - 8 m
Impact protection - IK10
Infrared (IR) cut-off filter Performance - Yes
Intelligent Video Surveillance (IVS) system features Security - Intrusion, People counting, Scene change, Tripwire
Internal memory Storage - 512 MB
International Protection (IP) code Design - IP67
LED type Night vision - IR
Length Weight & dimensions - 244.1 mm
Lens - Lens Type: Fixed Mount Type: Built-in (Board-in) Focal Length: 2.8 mm, 3.6 mm, 6.0 mm, 8.0 mm, 12.0 mm Maximum Aperture: F1.6 (for focal lengths 2.8 mm to 8.0 mm); F2.0 (for 12.0 mm focal length)
Lens viewing angle, horizontal Camera - 84°
Lens viewing angle, vertical Camera - 58°
Management, monitoring, configuration - Face Detection Face Detection Face Tracking Optimization Capture Face Snapshots Face Image Enhancement Face Exposure Face Cropping Settings: Face, ID Photo (Passport-style Photo) Three Snapshot Modes: Real-Time Snapshot, Post-Optimization, Quality Priority Face Angle Filter Optimization Time Setting
Maximum aperture number Lens system - 1.6
Maximum memory card size Storage - 256 GB
Maximum resolution Video - 2592 x 1944 pixels
Memory card reader - Yes
Memory standard - SD
Memory standard - SDHC
Memory standard - SDXC
Microphone - No
Minimum illuminance - 0.005 lx
Minimum illumination Camera - 0 lx
Mirror Security - Yes
Mobile operating systems supported System requirements - Android, iOS
Mobile support - Android
Mobile support - iOS
Model - IPC-HFW5541T-ASE-0280B-S3
Motion detection - Yes
Mounting type Design - Ceiling/wall
name - IP Camera IPC-HFW5541T-ASE-0280B-S3
Networking standards Network - IEEE 802.3af
Network protocols - IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP ;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP; NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Night mode - Yes
Night vision distance Night vision - 78 m
Night vision Night vision - Yes
Noise reduction technology Video - 3D noise reduction
Noise reduction Video - Yes
Number of cameras Packaging content - 1
Number of illumination LEDs Night vision - 4
Number of lenses Lens system - 1
Number of sensors Image sensor - 1
Number of users Network - 20 user(s)
Observe distance Lens system - 32 m
Operating relative humidity (H-H) Operational conditions - 10 - 95%
Operating temperature (T-T) Operational conditions - -30 - 60 °C
Optical sensor size Image sensor - 25.4 / 2.7 mm (1 / 2.7")
Package weight Packaging data - 1.08 kg
Pan range Camera - 0 - 360°
Placement supported Performance - Outdoor
Power consumption (max) Power - 7.1 W
Power consumption (Power over Ethernet (PoE)) Power - 8.4 W
Power source type Power - DC, PoE
Power supply - DC 12V,  PoE (802.3af)
Privacy masking Video - Yes
producer - Dahua
Product colour Design - White
Progressive scan Image sensor - Yes
Protection class - IP67
Quality of Service (QoS) support Network - Yes
Recognize distance Lens system - 16 m
Resolution - 2592 x 1944
ROM capacity Storage - 128 MB
Sensor - 1/2.7 5 Megapixel progressive scan CMOS
Sensor type Image sensor - CMOS
Speakers built-in - No
Standards - IPv4
Standards - IPv6
Storage relative humidity (H-H) Operational conditions - 10 - 95%
Storage temperature (T-T) Operational conditions - 5 - 40 °C
Streaming method Network - Multicast, Unicast
Summary - Dahua Technology Pro DH-IPC-HFW5541T-ASE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 84°, Lens viewing angle, vertical: 58°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 80 m, Observe distance: 32 m, Recognize distance: 16 m
Supported graphics resolutions Video - 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2592 x 1944, 2688 x 1520
Supported network protocols Network - HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP;SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP;QoS; UPnP;NTP
Supported video modes Video - 720p, 1080p
Tilt angle range Camera - 0 - 90°
Total megapixels Video - 5 MP
Two-way transmission - No
type - Fixed bullet type camera
Type Performance - IP security camera
Unit Box Height - 0.11
Unit Box Length - 0.3
Unit Box Width - 0.12
Unit Calculated Volume - 0.004742 cubm
Unit Calculated Weight - 1.33 kg
Units per Shipping Box - 10
Vendor Homepage - https://www.dahuasecurity.com/
vendpn - 6923172584335
Video compression - H.264
Video compression - H.264B
Video compression - H.264H
Video compression - H.265
Video compression - MJPEG
Video compression formats Video - H.264, H.264+, H.265, H.265+, M-JPEG
Video motion detection Security - Yes
Video streaming Video - Yes
Viewing angle, horizontal - 102 °
Viewing angle, vertical - 71 °
Voice codecs Audio - G.711Mu, G.711a, G.723, G.726
Warranty - 36 months
Web-based management Management features - Yes
Weight - 0.815 kg
Weight Weight & dimensions - 815 g
White balance Camera - Auto, Manual, Natural, Outdoor
Wi-Fi Network - No
Wide Dynamic Range (WDR) Performance - Yes
Width Weight & dimensions - 79 mm
Wireless communication - No
