ARTIKEL1 - VIGI 4MP DOME NETWORK CAMERA
ARTIKEL2 - FULL-COLOR 4MM
Audio - Audio formats supported - G.711 A-law
Audio - Audio input channels - 1.0 channels
Audio - Audio output channels - 1.0 channels
Audio - Audio system - 2-way
Audio - Bit rate range - 0 - 64 Kbit/s
Audio - Built-in microphone - Yes
Audio - Built-in speaker(s) - Yes
Audio - Number of microphones - 1
Audio - Sample rate - 8 kHz
Brand - TP-Link
BrandPartCode - INSIGHT S245(4MM)
Breite - 0
Camera - Camera pan control - Yes
Camera - Camera shutter speed - 1/3 to 1/10000
Camera - Camera tilt control - Yes
Camera - Lens viewing angle, diagonal - 105.4°
Camera - Lens viewing angle, horizontal - 88°
Camera - Lens viewing angle, vertical - 46°
Camera - Minimum illumination - 0 lx
Camera - Tilt angle range - 0 - 75°
Category - Security Cameras
Category 1 - Netzwerk
Category 2 - Netzwerkkameras
Design - Form factor - Dome
Design - Housing material - Metal
Design - IK code - IK10
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling
Design - Product colour - White
Design - Protection features - Waterproof
Design - Weatherproof - Yes
EAN - 8885020624656
EANCode - 8885020624656
Gewicht - 0
GRUPPE1 - Security
GRUPPE2 - Network Cameras
GTIN - 8885020624656
HERSTELLER - TP-LINK
Hoehe - 0
HSTNUMMER - INSIGHT S245(4MM)
Image sensor - Optical sensor size - 25.4 / 2.7 mm (1 / 2.7")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Laenge - 0
Lens system - Detect distance - 80 m
Lens system - Fixed focal length - 4 mm
Lens system - Identify distance - 8 m
Lens system - Maximum aperture number - 1.6
Lens system - Observe distance - 33 m
Lens system - Recognize distance - 16 m
LongDesc - People & Vehicle AnalyticsSearch and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.Human & Vehicle ClassificationDistinguish humans and vehicles from other objects and receive more accurate event notifications.Smart Video Enhancement TechnologyTrue WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.Efficient H.265+ Compression TechnologyH.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

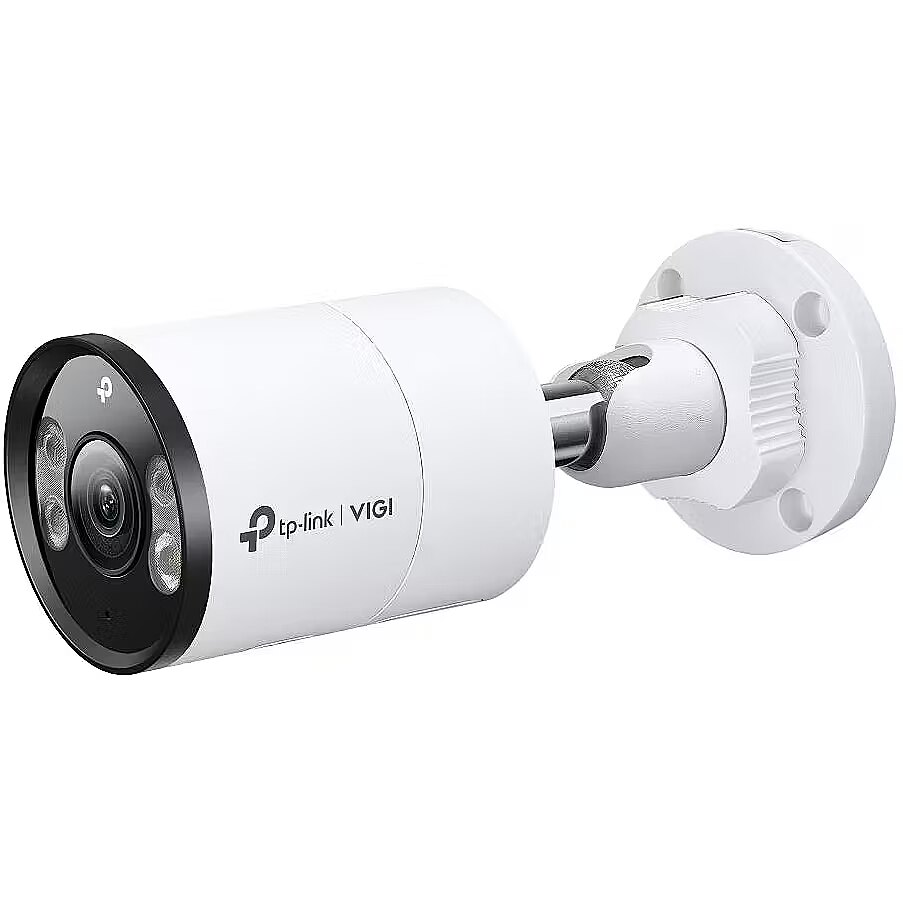

LongProductName - VIGI 4MP Outdoor Full-Color Bullet Network Camera, 4 mm, 1/2.7”, 1/3 to 1/10000 s, F1.6, 2688 x 1520, CBR, VBR, BLC/3D DNR/HLC/SmartIR, 120 dB, 12V DC ± 5%, Max. 10.54 W, 5.5 mm Coaxial Power Plug, PoE: 802.3af/at, class 0, Max. 12.52 W, IP67, 122 x 122 x 89 mm, 0.620 kg, White
LongSummaryDescription - TP-Link InSight S245. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 88°, Lens viewing angle, vertical: 46°, Lens viewing angle, diagonal: 105.4°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m
Management features - Cloud-managed - Yes
Management features - Reset button - Yes
Management features - Web-based management - Yes
Management features - Web browser - Yes
Manufacturer - TP-Link
MPN - INSIGHT S245(4MM)
Name - TP-Link Omada InSight S245(4mm) 4MP Full-Color Netzwerkkamera
Network - Bluetooth - No
Network - Ethernet LAN - Yes
Network - Live view - Yes
Network - Networking standards - IEEE 802.3af, IEEE 802.3at
Network - Supported network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Network - Wi-Fi - No
Night vision - LED type - IR/White
Night vision - Night vision - Yes
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Packaging content - Manual - Yes
Packaging content - Number of cameras - 1
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Dynamic range - 120 dB
Performance - Infrared (IR) cut-off filter - Yes
Performance - Maximum operating distance - 80 m
Performance - Placement supported - Outdoor
Performance - Remote viewing - Yes
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output voltage - 12
Power - Power consumption (Power over Ethernet (PoE)) - 12.52 W
Power - Power source type - DC, PoE
ProductName - InSight S245
Security - Alert notification type - Push notification
Security - Built-in siren - Yes
Security - Detection distance - 80 m
Security - Digest authentication - Yes
Security - HTTPS encryption - Yes
Security - Human and vehicle targets classification - Yes
Security - Intelligent Video Surveillance (IVS) system features - Abnormal sound detection, Crossing line, Human detection, Intrusion, Line crossing detection, Moving object, Region entrance detection, Region exiting detection, Scene change, Vehicle detection
Security - IP address filtering - Yes
Security - Mirror - Yes
Security - Motion sensor - Yes
Security - Password protection - Yes
Security - Video motion detection - Yes
ShortSummaryDescription - TP-Link InSight S245, IP security camera, Outdoor, Wired, 80 m, 120 dB, Ceiling
Stck_Kart - 6
Stck_Pal - 0
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 512 GB
Storno - Y
Title - TP-Link InSight S245 Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling
URL - https://www.tp-link.com/ae/business-networking/vigi-network-camera/insight-s245/v1%20(4mm%20lens)/
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate - Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264
Video - Bit rate control - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video - Digital Wide Dynamic Range (DWDR) - Yes
Video - Highlight Compensation (HLC) - Yes
Video - Image quality adjustment - Brightness, Contrast, Mirror, Saturation, Sharpness
Video - Maximum resolution - 2688 x 1520 pixels
Video - Supported graphics resolutions - 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264, H.264+, H.265, H.265+
Video - Video recording - Yes
WarrantyInfo -
Weight & dimensions - Depth - 122 mm
Weight & dimensions - Height - 89 mm
Weight & dimensions - Weight - 620 g
Weight & dimensions - Width - 122 mm
