10/100/1000/2500 Mbps ports - None
Accessories included -
Application - Medium and large companies
Certificates - Safety: EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 3rd. Ed. EN/IEC 60825- 1:2014 Class 1 Emissions: EN 55032:2015/ CISPR 32, Class A FCC CFR 47 Part 15: 2018, Class A ICES-003, Class A VCCI-32, Class A CNS 13438, Class A KS C 9832, Class A AS/NZS CISPR 32, Class A Immunity BS/EN 55035, CISPR 35, KS C 9835 Generic EN 55035, CISPR 35 EN EN/IEC 61000-4-2 ESD EN/IEC 61000-4-3 Radiated EN/IEC 61000-4-4 EFT/Burst EN/IEC 61000-4-5 Surge EN/IEC 61000-4-6 Conducted EN/IEC 61000-4-8 Power frequency magnetic field EN/IEC 61000-4-11 Voltage dips and interruptions EN/IEC 61000-3-2 Harmonics EN /IEC 61000-3-3
Chassis type - Rack
Console port - No

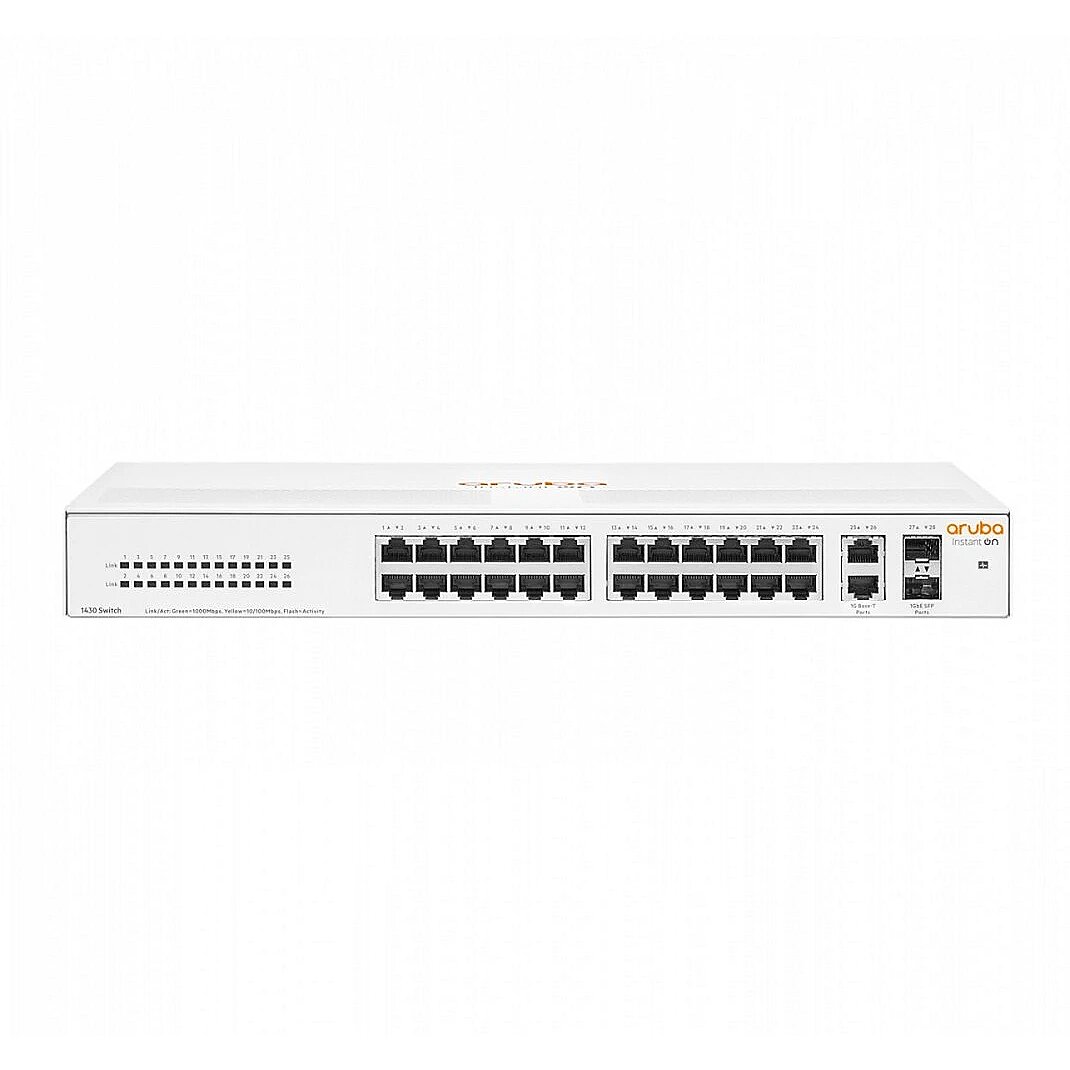

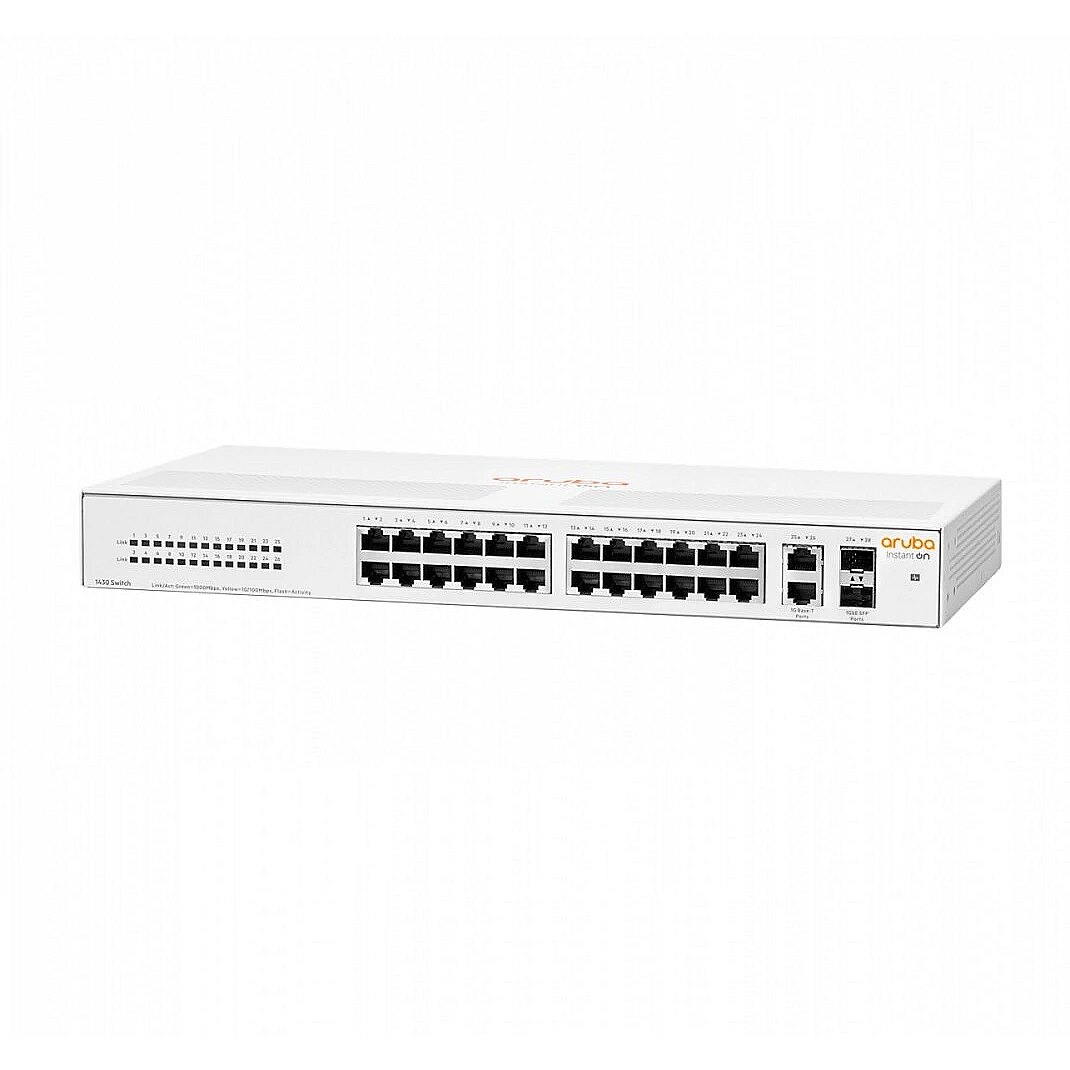

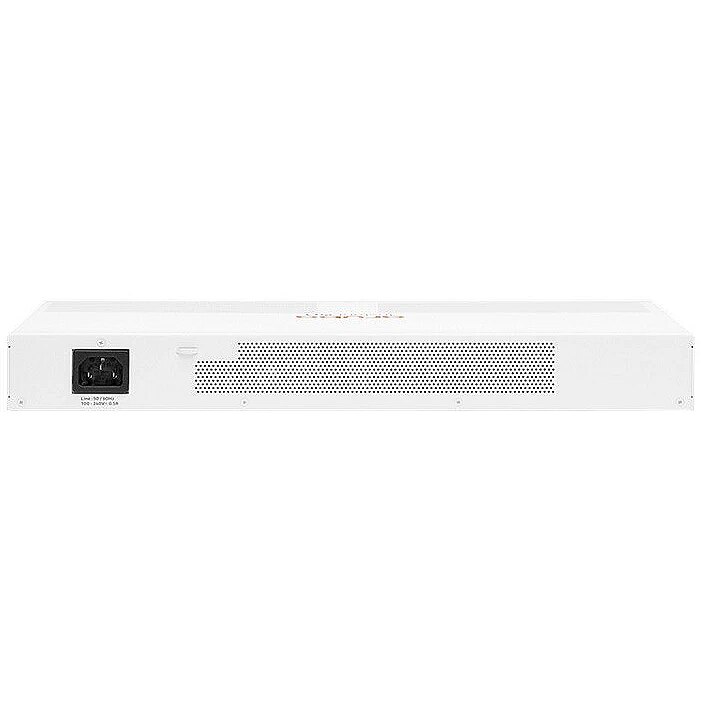

Description - Aruba Instant On 1430 26G 2SFP Switch (R8R50A)
Designation - CE+WEEE
dimension depth - 333 mm
dimension height - 522 mm
Dimensions - 225 x 388 x 44 mm
dimension weight - 3164 g
dimension width - 110 mm
ean - 190017602646
EAN - 0190017602646
Environment requirements - Operating temperature: 0 °C to 40 °C Relative humidity during operation: 15% to 95% (40 °C) non-condensing Rest/storage temperature: -40°C to 70°C Relative humidity at rest/storage: 15% to 90% (65°C) non-condensing
Fan - No
Forwarding rate - 41.68 MB/s
Gross Weight Kg - 3
guarantee - -1
guarantee_type - external
Jumbo frame size - 9.216 KB
L2 features -
L3 features -
MAC address table size - 16384
Management, monitoring, configuration -
Manufacturer Code - R8R50A
Manufacturer Name - Hewlett Packard
name - HPE ARUBA Instant On 1430 26x1GbE 2SFP R8R50A
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 28
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP ports - 2
Other features - Processor and Memory: 32Mb Flash Packet buffer size: 12.0 Mb
Other functions -
Power consumption - 16.4 W
Power supply - Frequency: 50Hz/60Hz AC voltage: 100-127VAC / 200-240VAC Current: 0.4A / 0.3A Maximum rated power: 16.4W Idle power: 8 W
Power supply - Internal
producer - Hewlett Packard Enterprise
QoS - RFC 2474 QoS diffserv (DSCP) mapping
Security -
Short description - HPE Aruba Switch 1430 26G 2SFP R8R50A Aruba Instant On
Stackability - No
Supported protocols and standards - IEEE 802.3i 10 Mbps Ethernet IEEE 802.3u 100Base-T Ethernet IEEE 802.3z 1000 Mbps Ethernet IEEE 802.3ab 1000Base-T IEEE 802.3af PoE1 (PoE models only) IEEE 802.3at PoE1 (PoE models only) IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet
Support for Jumbo frames - Yes
Switch class - Unmanaged
Switch layer - L2
Throughput - 56 Gb/s
vendpn - R8R50A
VLAN -
Weight - 2.27 kg
