10/100/1000/2500 Mbps ports - None
Accessories included -
Application - Home and small office
ARTIKEL1 - ION 1430 8G 64W SW STOCK
ARTIKEL2 - .
Breite - 0.31
Category 1 - Netzwerk
Category 2 - Switching Hubs
Certificates - Safety: EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 3rd. Ed. EN/IEC 60825- 1:2014 Class 1 Emissions: EN 55032:2015/ CISPR 32, Class B FCC CFR 47 Part 15: 2018, Class B ICES-003, Class B VCCI-32, Class B CNS 13438, Class B KS C 9832, Class B AS/NZS CISPR 32, Class B Immunity BS/EN 55035, CISPR 35, KS C 9835 Generic EN 55035, CISPR 35 EN EN/IEC 61000-4-2 ESD EN/IEC 61000-4-3 Radiated EN/IEC 61000-4-4 EFT/Burst EN/IEC 61000-4-5 Surge EN/IEC 61000-4-6 Conducted EN/IEC 61000-4-8 Power frequency magnetic field EN/IEC 61000-4-11 Voltage dips and interruptions EN/IEC 61000-3-2 Harmonics EN /IEC 61000-3-3
Chassis type - Rack
Console port - No

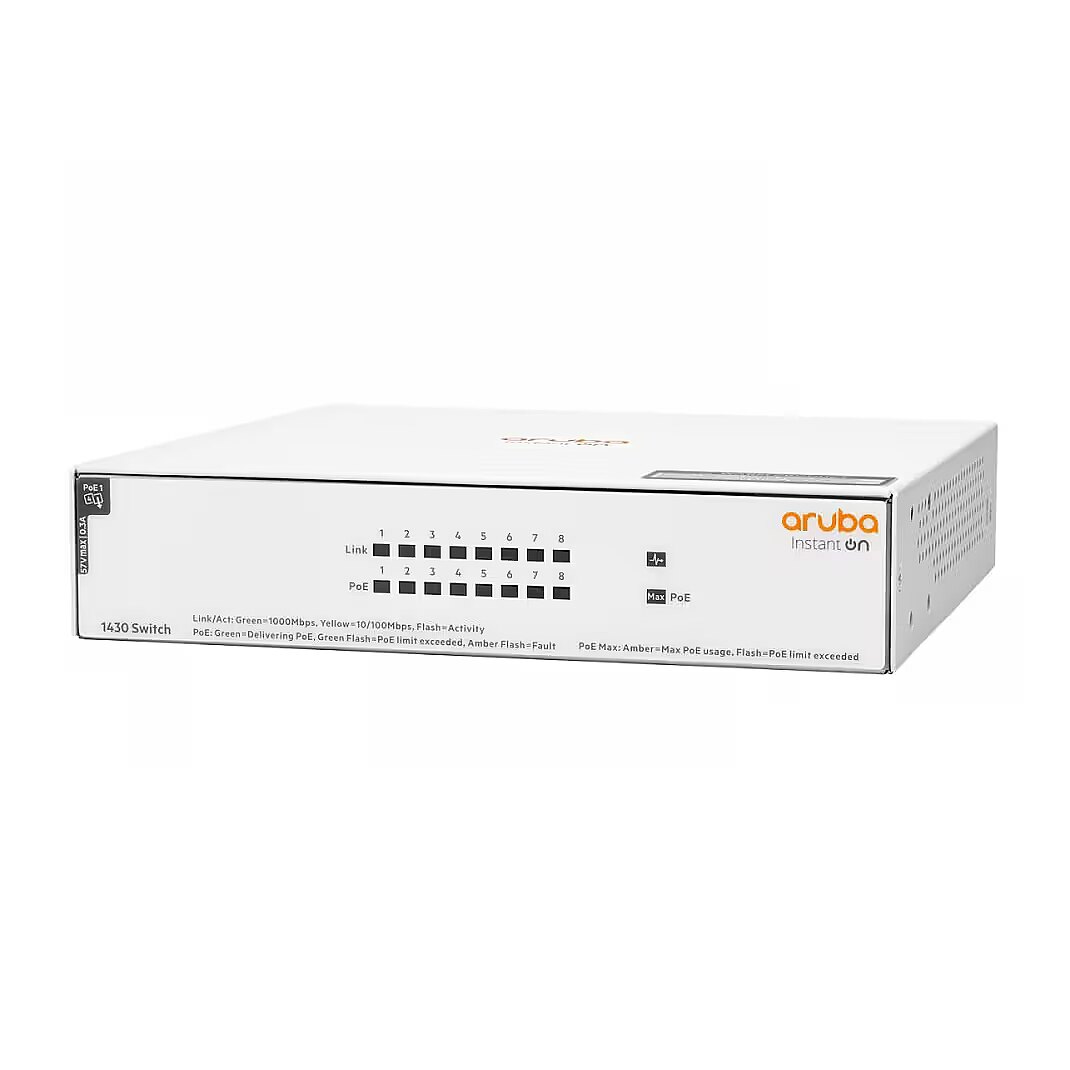

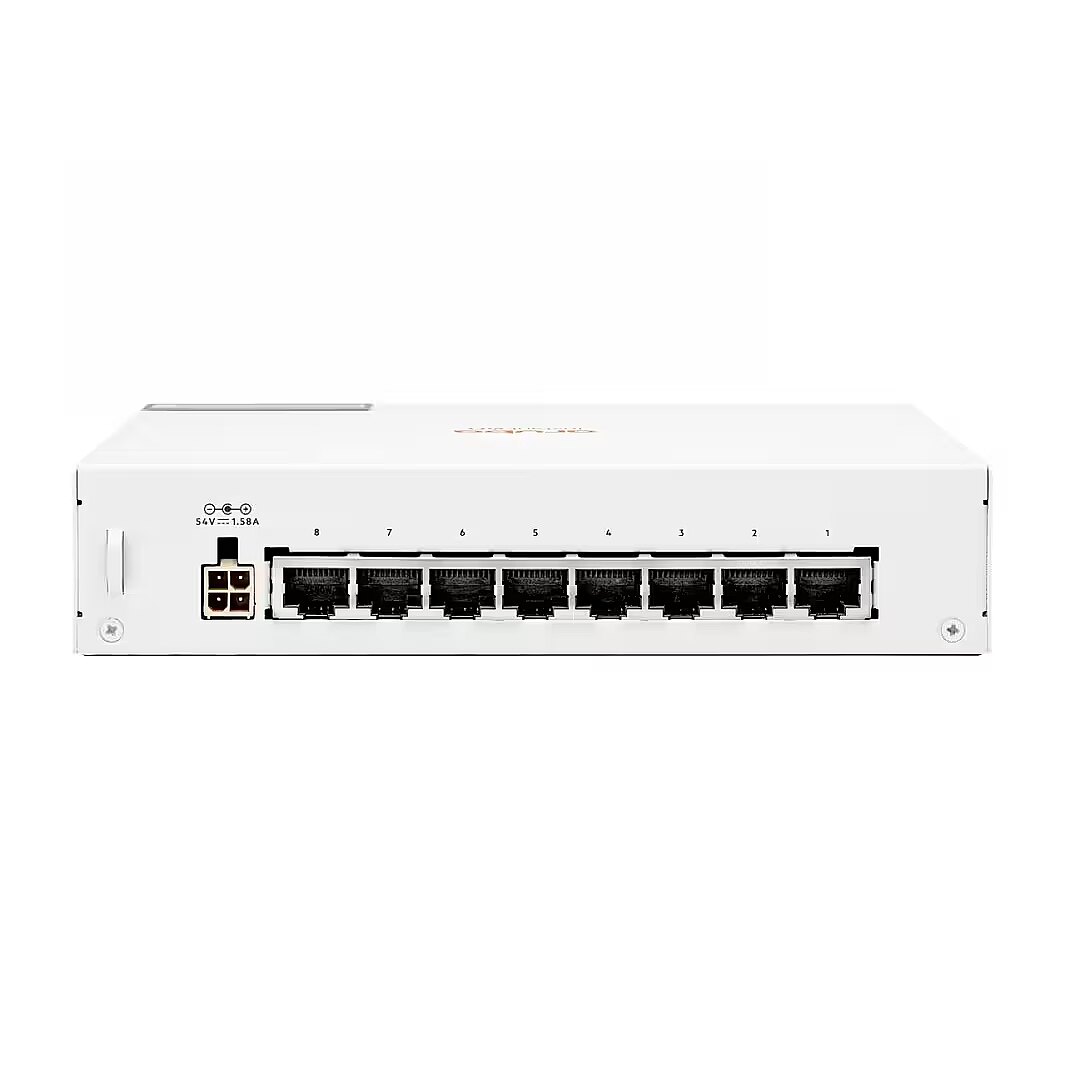

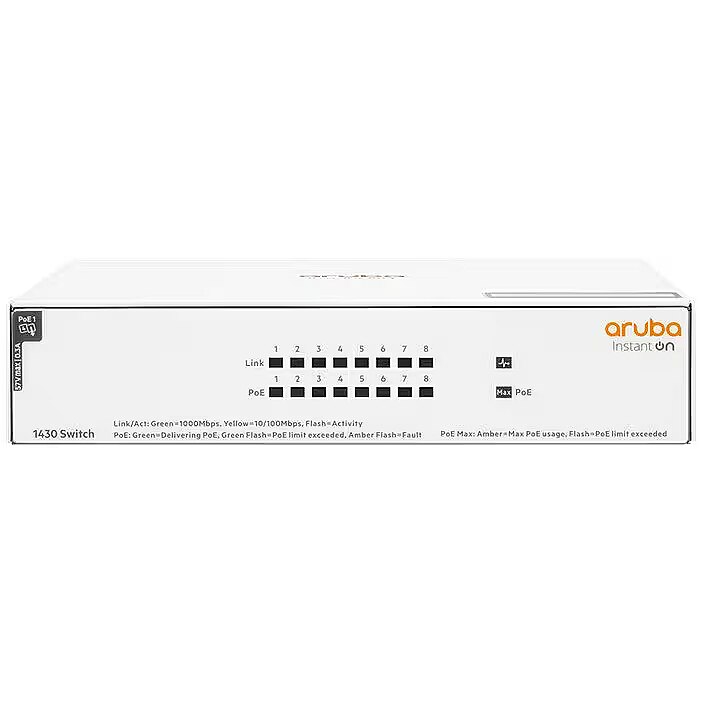

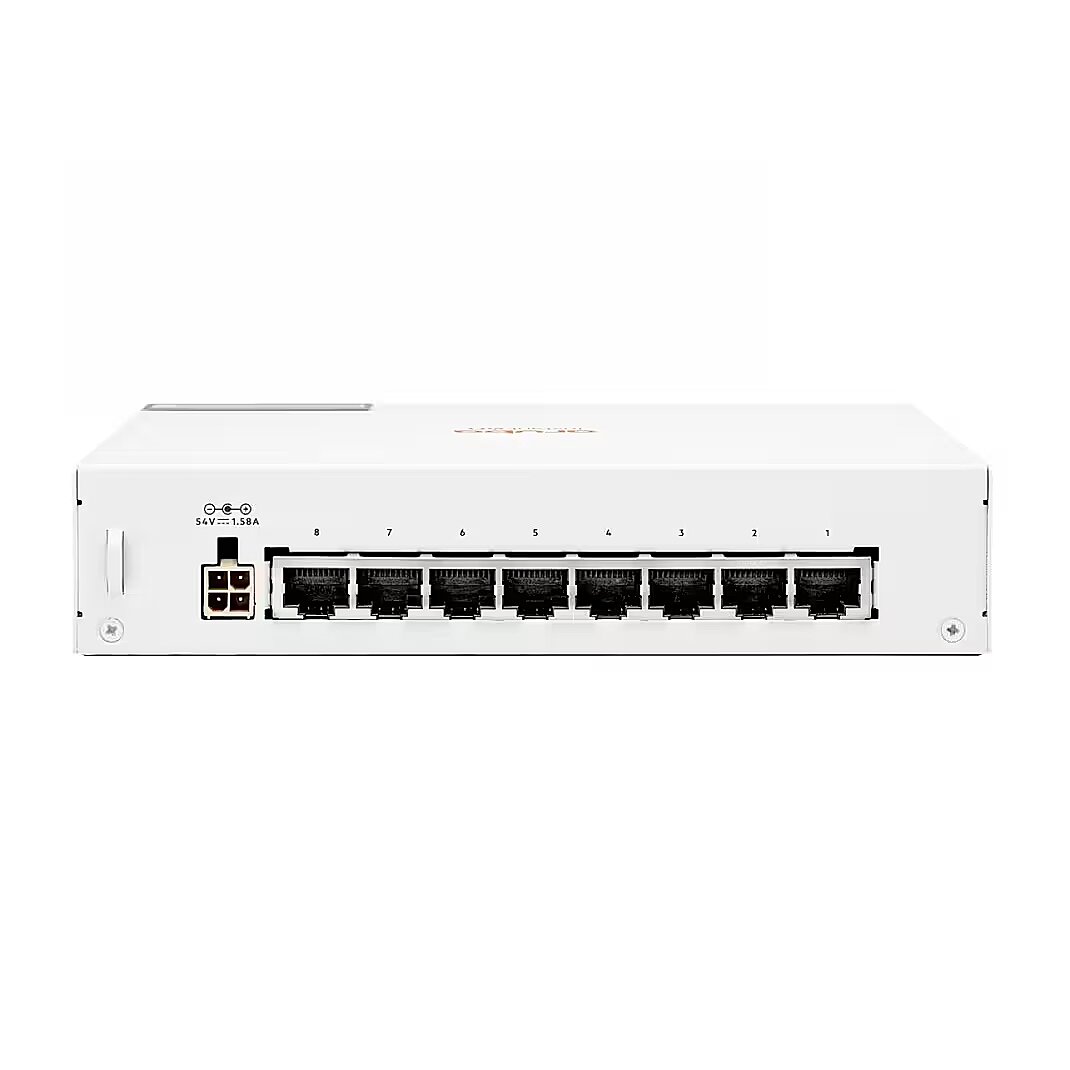

Description - Aruba Instant On 1430 8G Class4 PoE 64W Switch
Designation - CE+WEEE
dimension depth - 73 mm
dimension height - 310 mm
Dimensions - 150 x 177 x 37 mm
dimension weight - 2191 g
dimension width - 310 mm
ean - 190017601762
EAN - 0190017601762
EANCode - 0190017537931
Environment requirements - Operating temperature: 0 °C to 40 °C Relative humidity during operation: 15% to 95% (40 °C) non-condensing Rest/storage temperature: -40°C to 70°C Relative humidity at rest/storage: 15% to 90% (65°C) non-condensing
Fan - No
Forwarding rate - 11.9 Mpps
Gewicht - 2.32
Gross Weight Kg - 1
GRUPPE1 - Network
GRUPPE2 - Lan Switch Unmanaged
guarantee - -1
guarantee_type - external
HERSTELLER - HPE
Hoehe - 0.08
HSTNUMMER - R8R46A
Jumbo frame size - 9.216 KB
L2 features -
L3 features -
Laenge - 0.31
MAC address table size - 8192
Management, monitoring, configuration -
Manufacturer - HP Enterprise
Manufacturer Code - R8R46A
Manufacturer Name - Hewlett Packard
MPN - R8R46A#ABB
Name - 8P HP Enterprise Aruba Instant ON 1430 8G PoE+ (64W) Switch RM
name - Switch ARUBA Instant On 1430 8x1GbE PoE R8R46A
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 8
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - 8
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP ports - None
Other features - Processor and Memory: 128Kb EEPROM Packet buffer size: 2.0 Mb
Other functions -
Power consumption - 90 W
Power supply - Frequency: 50Hz/60Hz AC voltage: 100-240VAC Current: 2A (54VDC - 1.58A) Maximum rated power: 90W Idle power: 4,1 W PoE power: 64W PoE class 4
Power supply - External
producer - Hewlett Packard Enterprise
QoS - RFC 2474 QoS diffserv (DSCP) mapping
Security -
Short description - HPE Aruba Switch 1430 8G PoE 64W (4xPoE) R8R46A Aruba Instant On
Stackability - No
Stck_Kart - 6
Stck_Pal - 60
Storno - Y
Supported protocols and standards - IEEE 802.3i 10 Mbps Ethernet IEEE 802.3u 100Base-T Ethernet IEEE 802.3z 1000 Mbps Ethernet IEEE 802.3ab 1000Base-T IEEE 802.3af PoE1 (PoE models only) IEEE 802.3at PoE1 (PoE models only) IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet
Support for Jumbo frames - Yes
Switch class - Unmanaged
Switch layer - L2
Throughput - 16 Gb/s
vendpn - R8R46A
VLAN -
Weight - 0.77 kg
Weight - 2.18
