ARTIKEL1 - APC SMART-UPS RT 20 KVA RM 230V
ARTIKEL2 - IN
Battery - Automatic battery test - Yes
Battery - Battery capacity - 3840 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 2.5 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes

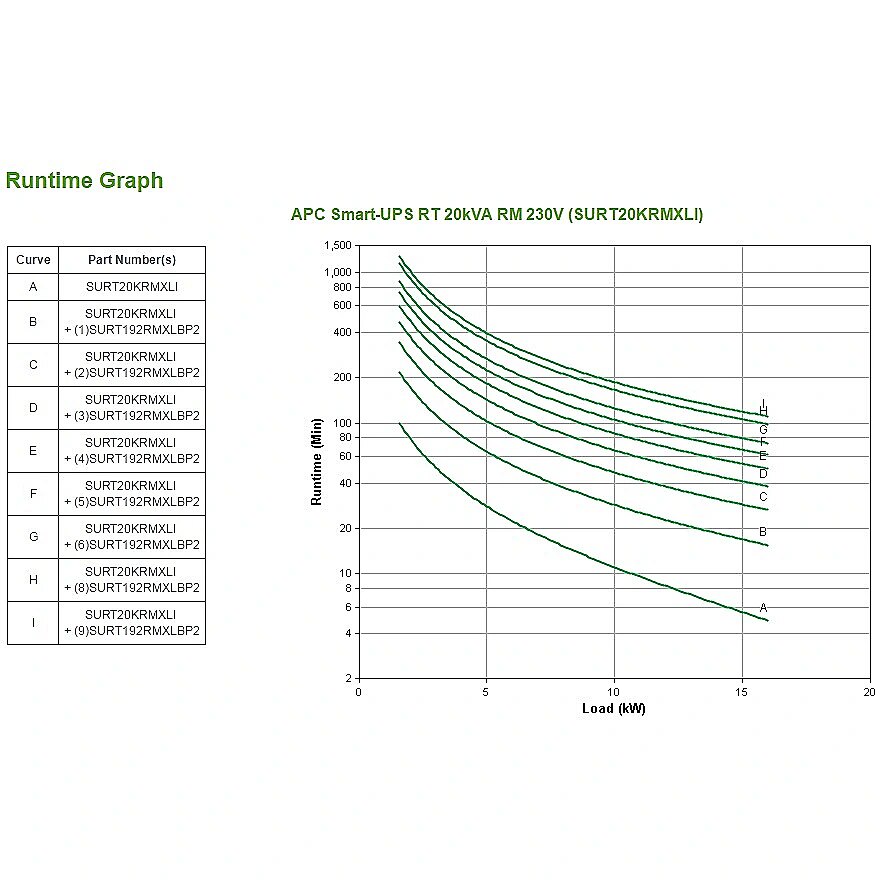

Battery - Typical backup time at full load - 4.9 min
Battery - Typical backup time at half load - 15.2 min
Brand - APC
BrandPartCode - SURT20KRMXLI
Breite - 0.97
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Certificates - Certification - BSMI, EN/IEC 62040-2, EN/IEC 62040-1-1, VDE, PEP, EOLI
Certificates - Compliance certificates - RoHS
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 12U
EAN - 0731304255710
EANCode - 0731304255710
Features - Audible alarm(s) - Yes
Features - Auto-restart - Yes
Features - Crest factor - 3:1
Features - Efficiency - 93.7%
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 40 - 70 Hz
Features - Maximum current - 115 A
Features - Noise level - 59 dB
Features - Number of output phases - 1
Features - Output frequency regulation - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 16000 W
Features - Output power capacity - 20 kVA
Features - Surge protection - Yes
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Gewicht - 257
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 0731304255710
GTIN - 731304255710
HERSTELLER - APC
Hoehe - 0.6
HSTNUMMER - SURT20KRMXLI
Laenge - 1
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 1 pc(s)
Logistics data - Total carbon footprint (kg of CO2e) - 37662.44
LongDesc - High density, double-conversion on-line power protection with scalable runtime.
LongProductName - Smart-UPS RT 20kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets
LongSummaryDescription - APC Smart-UPS RT 20kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets. UPS topology: Double-conversion (Online), Output power capacity: 20 kVA, Output power: 16000 W. AC outlet types: C19 coupler, Power plug: Terminal, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 3840 VAh, Typical backup time at full load: 4.9 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 12U. Compliance certificates: RoHS, Certification: BSMI, EN/IEC 62040-2, EN/IEC 62040-1-1, VDE, PEP, EOLI
Manufacturer - APC
MPN - SURT20KRMXLI
Name - APC Smart-UPS SURT20KRMXLI ( Rack-montierbar ) - Wechselstrom 220/230/240 V
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V
Other features - Packaging content - Web/SNMP Management Card
Packaging content - Cables included - RS-232
Packaging content - Manual - Yes
Packaging content - Rack mount kit - Yes
Packaging data - Package depth - 1003 mm
Packaging data - Package height - 990 mm
Packaging data - Package weight - 314.1 kg
Packaging data - Package width - 610 mm
Packaging data - Software CD - Yes
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - C19 coupler
Ports & interfaces - Cabling technology - 10/100Base-T
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Number of output IEC jumpers - 2
Ports & interfaces - Power plug - Terminal
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - SmartSlot - Yes
ProductName - Smart-UPS RT 20kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets
ShortSummaryDescription - APC Smart-UPS RT 20kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets, Double-conversion (Online), 20 kVA, 16000 W, Sine, 40 - 70 Hz, 220 V
Stck_Kart - 1
Stck_Pal - 1
Storno - N
Title - APC Smart-UPS RT 20kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets
URL - https://www.apc.com/
WarrantyInfo - 2 years repair or replace
Weight - 314.1
Weight & dimensions - Depth - 773 mm
Weight & dimensions - Height - 533 mm
Weight & dimensions - Weight - 247.7 kg
Weight & dimensions - Width - 432 mm
