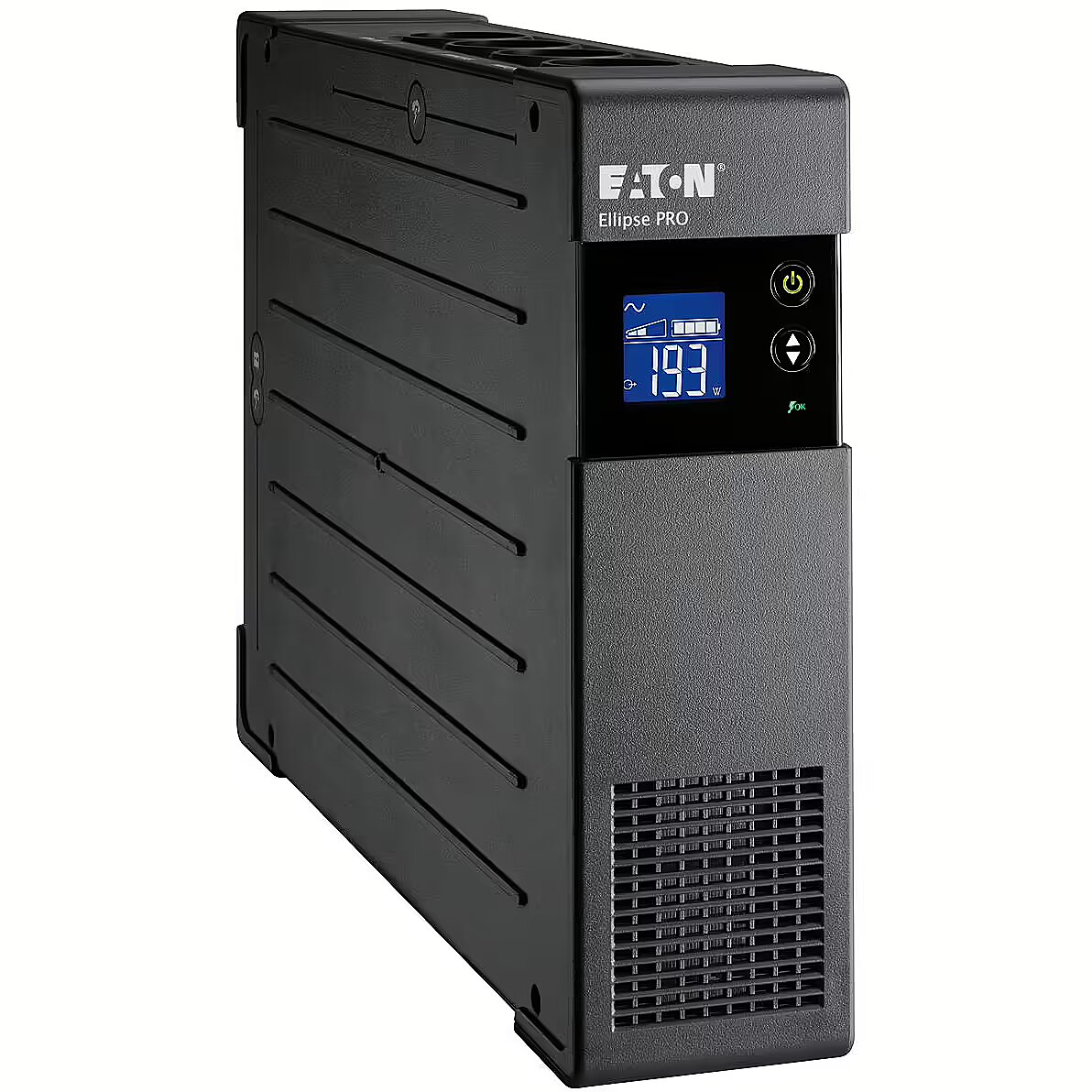

Eaton ELP1600DIN, 1600W 1000W

Accessories included - UPS Input cable USB cable User manual Safety instructions
ACoutletsquantity - 8 AC outlet(s)
ACoutlettypes - Type F
Active power - 1000 W
Apparent power - 1600 VA
ARTIKEL1 - EATON ELLIPSE PRO 1600 DIN
ARTIKEL2 - IN
AutomaticVoltageRegulationAVR -
Battery -
Batterycapacity -
Battery capacity - 9 Ah
Batterytechnology - Sealed Lead Acid (VRLA)
Batteryvoltage -
Cablesincluded -
Chassis type - Tower
Code - ELP1600DIN
Color - Black
Depth - 390 mm
Description - Eaton ELP1600DIN Uninterruptible Power Supply Energy-efficient power protection for workstation environments The LCD screen on the Eaton Ellipse PRO UPS provides clear information about its status and measurements. It also enables easy configuration of UPS settings. The EcoControl function, which automatically switches off peripheral devices when the main device is turned off, can reduce energy consumption by up to 20%. Automatic Voltage Regulation (AVR) instantly corrects voltage fluctuations, allowing you to continue working during voltage drops and surges without using battery power. The Ellipse PRO includes a high-performance surge protection device compliant with IEC 61643-1. It also protects data connections such as Ethernet, internet, and telephone lines. Easy integration and installation The Ellipse PRO is equipped with eight (1200/1600 models) Schuko (DIN) or French (FR) sockets for easy connection to most typical computer setups with peripherals. IEC models are also available. The ultra-flat design of the Ellipse PRO allows easy installation in any office environment. Installation options include vertical tower format, under-desk placement, horizontal positioning under a monitor, 19" rack mounting (optional 2U kit), and wall mounting (optional kit). The Ellipse PRO is equipped with a USB port and is supplied with a USB cable and Eaton UPS Companion software, which enables safe system shutdown, energy consumption monitoring, and easy UPS configuration.
Design -
Designation - CE+WEEE
dimension depth - 490 mm
dimension height - 325 mm
Dimensions - 275 x 82 x 390 mm
dimension weight - 12500 g
dimension width - 145 mm
Displaytype - LCD
EAN - 743172438188
ean - 743172438188
EANCode - 0743172438188
Efficiency -
Environment requirements - Operating temperature range: 0°C to 35°C (32°F to 95°F) Relative humidity: 0-85%, non-condensing
Features -
Filters / protection - Overdischarge
Filters / protection - Surge
Formfactor - Tower
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 36
guarantee_type - normal
Heatdissipation -
Height - 275 mm
HERSTELLER - EATON
HighLights -
Hotswapbattery - No
HSTNUMMER - ELP1600DIN
I/O connectors - 1 x USB (Type B)
I/O connectors - 2 x RJ-11/RJ-45
Inputfrequency - 50/60 Hz
Inputoperationvoltagemax - 285 V
Inputoperationvoltagemin - 150 V
Input power ports - IEC-C14
Link - https://www.eaton.com/lt/lt-lt/skuPage.ELP1600DIN.html
LongDesc - The Eaton Ellipse PRO 650–1600VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements. It also features EcoControl power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard.
ManufDatasheet -
Name - Eaton | Ellipse PRO UPS DIN | ELP1600DIN | 1600 VA | 1000 W
name - UPS Ellipse PRO 1600 DIN ELP1600DIN
Networkcardslot -
No. of batteries - 2
Noiselevel -
Numberofbatterycells -
Numberofinputphases -
Numberofoutputphases -
Number of phases input - 1 (230V)
Operatingaltitude -
OperatingrelativehumidityHH -
OperatingtemperatureTT -
Operationalconditions -
Other features - Output sockets: 4 × Schuko sockets with surge protection and battery backup 4 × Schuko sockets with surge protection only
Outputfrequency - 50 Hz
Outputoperationvoltagemax - 240 V
Outputoperationvoltagemin - 220 V
Outputpower - 1000 W
Outputpowercapacity - 1.6 kVA
Output power ports - 8 x C/F type (Schuko)
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:PB:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 280.00 mm
Package features > Gross height (mm) - 400.00 mm
Package features > Gross width (mm) - 90.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 85 pc(s)
Package features > Paper/Pasteboard - 400.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > TI weight (kg) - 6 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packagingcontent -
Performance > Capacity - 1600 VA
Performance > UPS topology - Line-Interactive
Portsinterfaces -
Powerfactor -
Powerplug - C14 coupler
ProdDesc - 1600VA/1000W UPS, line-interactive, DIN 4+4
producer - Eaton
Productcolour - Black
Productcondition - Original
ProductHighLights -

• Line-Interactive
• 1.6 kVA 1000 W
• 8 AC outlet(s)
• Sealed Lead Acid (VRLA)
• Tower Black

ProductPicture - https://www.tdbaltic.ee/images/products/EATON/ELP1600DIN_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/EATON/ELP1600DIN_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/EATON/ELP1600DIN_3.jpg
ProductPicture3 -
ProductPicture4 -
ProductPicture5 -
Quickinstallationguide -
Rackmountkit -
RS232ports -
Serialinterface -
Serialinterfacetype -
Serialportsquantity -
Software - Eaton UPS Companion
Stck_Kart - 1
Stck_Pal - 10
Storno - Y
Technical details > Capacity - 1000 W
Technical details > Gross weight - 11.80 kg
Technical details > Net weight - 11.30 kg
Technical details > Producer - Eaton
Technical details > Producer product family - Ellipse PRO UPS DIN
Technical details > Producer product name - ELP1600DIN
Typicalbackuptimeathalfload - 9 min
UPS Architecture - line-interactive
UPStopology - Line-Interactive
USBport -
USBporttype -
vendpn - ELP1600DIN
Voltage - 12 V
Warranty - 24 months
Warranty - 36
Warranty - 36 month(s)
Warrantyandmisc -
Waveform -
Weight - 11.3 kg
Weight - 11.3 kg
Weightdimensions -
Width - 82 mm
