ARTIKEL1 - TF2238MSC-B1 21.5IN BONDED PCAP
ARTIKEL2 - 10P TOUCH WITH ANTI-FINGERPRINT
Brand - iiyama
BrandPartCode - TF2238MSC-B1
Breite - 0
Category - Computer Monitors
Category 1 - Displays
Category 2 - Monitore
Design - Front bezel colour - Black
Design - Glass thickness - 3.6 mm
Design - Product colour - Black
Display - Contrast ratio (typical) - 1000:1
Display - Display brightness - 525 cd/m²
Display - Display brightness (typical) - 600 cd/m²
Display - Display diagonal - 53.3 cm (21")
Display - Display diagonal (metric) - 54.5 cm
Display - Display number of colours - 16.7 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LED
Display - HD type - Full HD
Display - Horizontal scan range - 30 - 83 kHz
Display - Native aspect ratio - 16:9
Display - Number of simultaneous touchpoints - 10
Display - Panel type - IPS
Display - Pixel pitch - 0.249 x 0.249 mm
Display - Response time - 5 ms
Display - Response time measurement type - GTG (Gray to Gray)
Display - Surface hardness - 7H
Display - Touchscreen - Yes
Display - Touchscreen technology - Projected capacitive system
Display - Viewable size, horizontal - 47.9 cm
Display - Viewable size, vertical - 26 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EAN - 4948570121618
EANCode - 4948570121618
Ergonomics - On Screen Display (OSD) - Yes
Ergonomics - On Screen Display (OSD) languages - Traditional Chinese, German, English, French, Japanese, Dutch, Polish, Russian
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - VESA mounting - Yes
Gewicht - 6.49
GRUPPE1 - Displays
GRUPPE2 - Lcd Touchscreen
GTIN - 4948570121618
HERSTELLER - IIYAMA CONSIGNMENT
Hoehe - 0
HSTNUMMER - TF2238MSC-B1
Laenge - 0

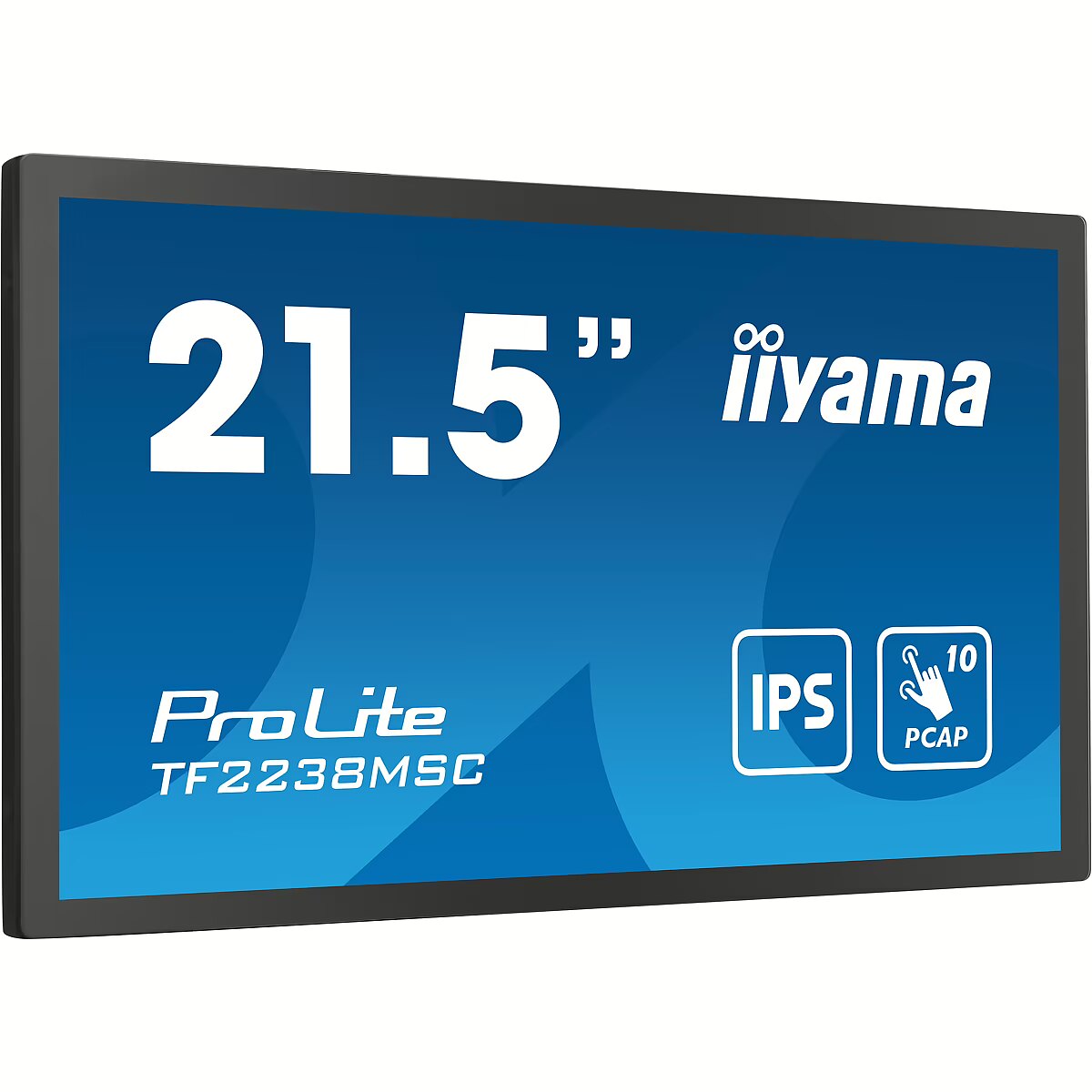

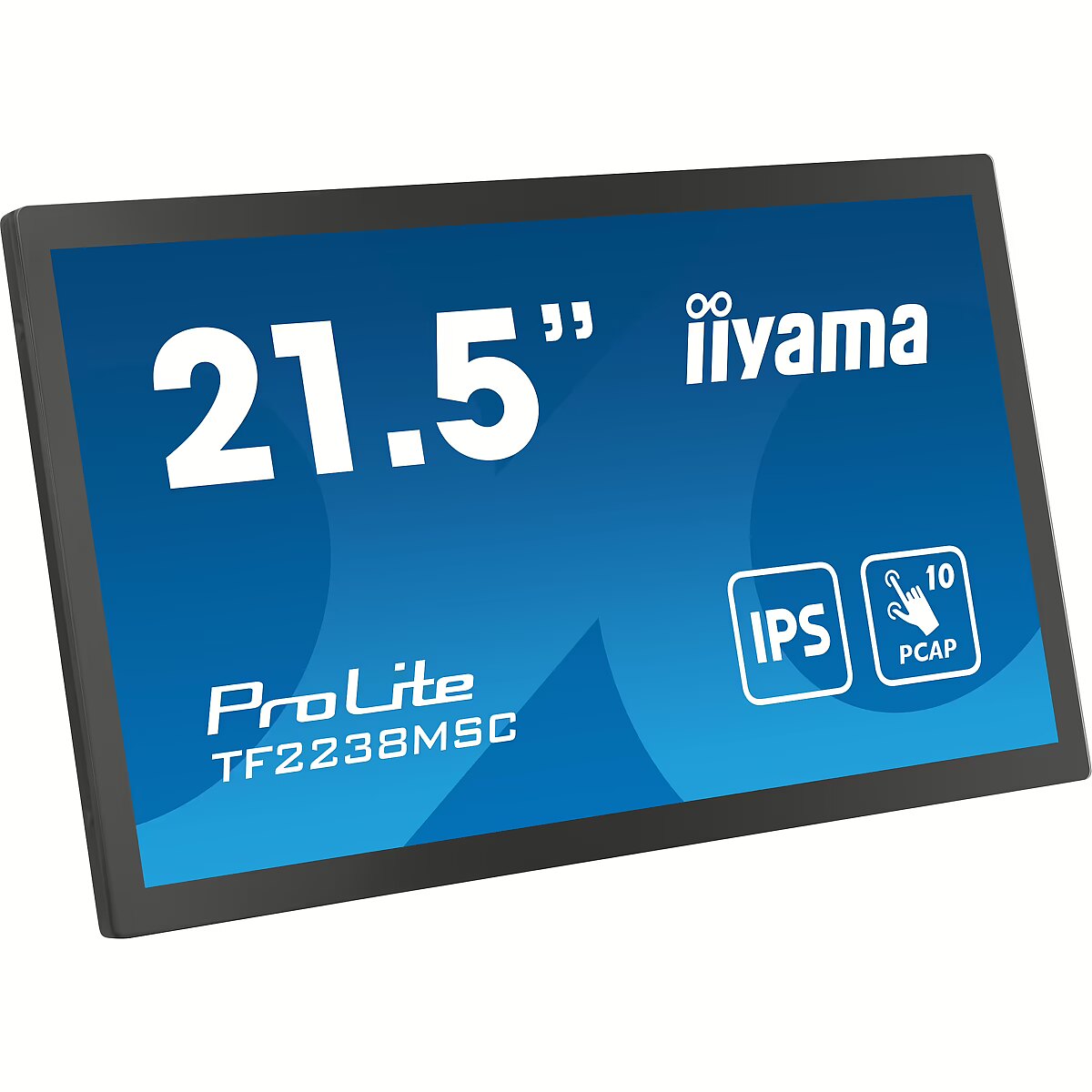

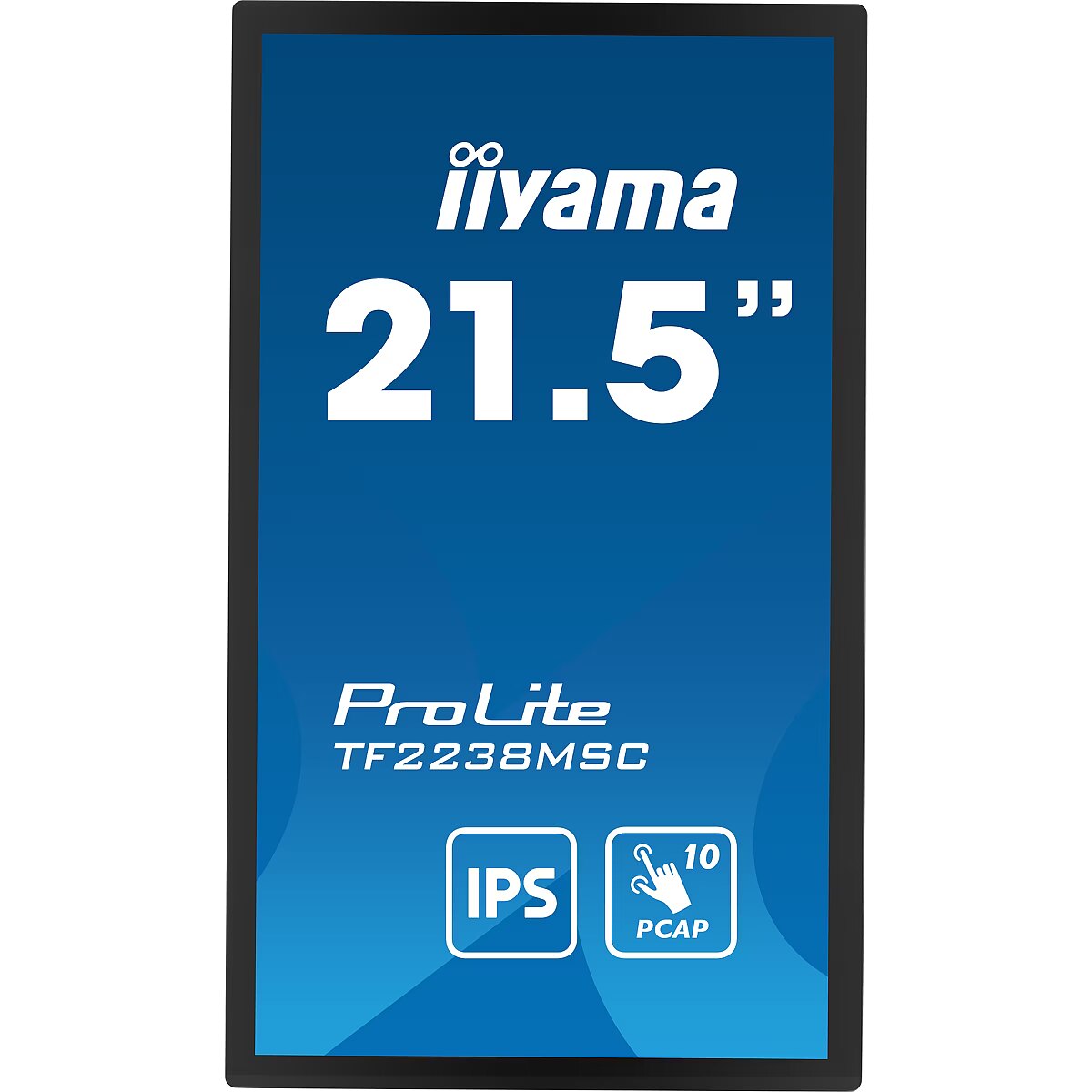

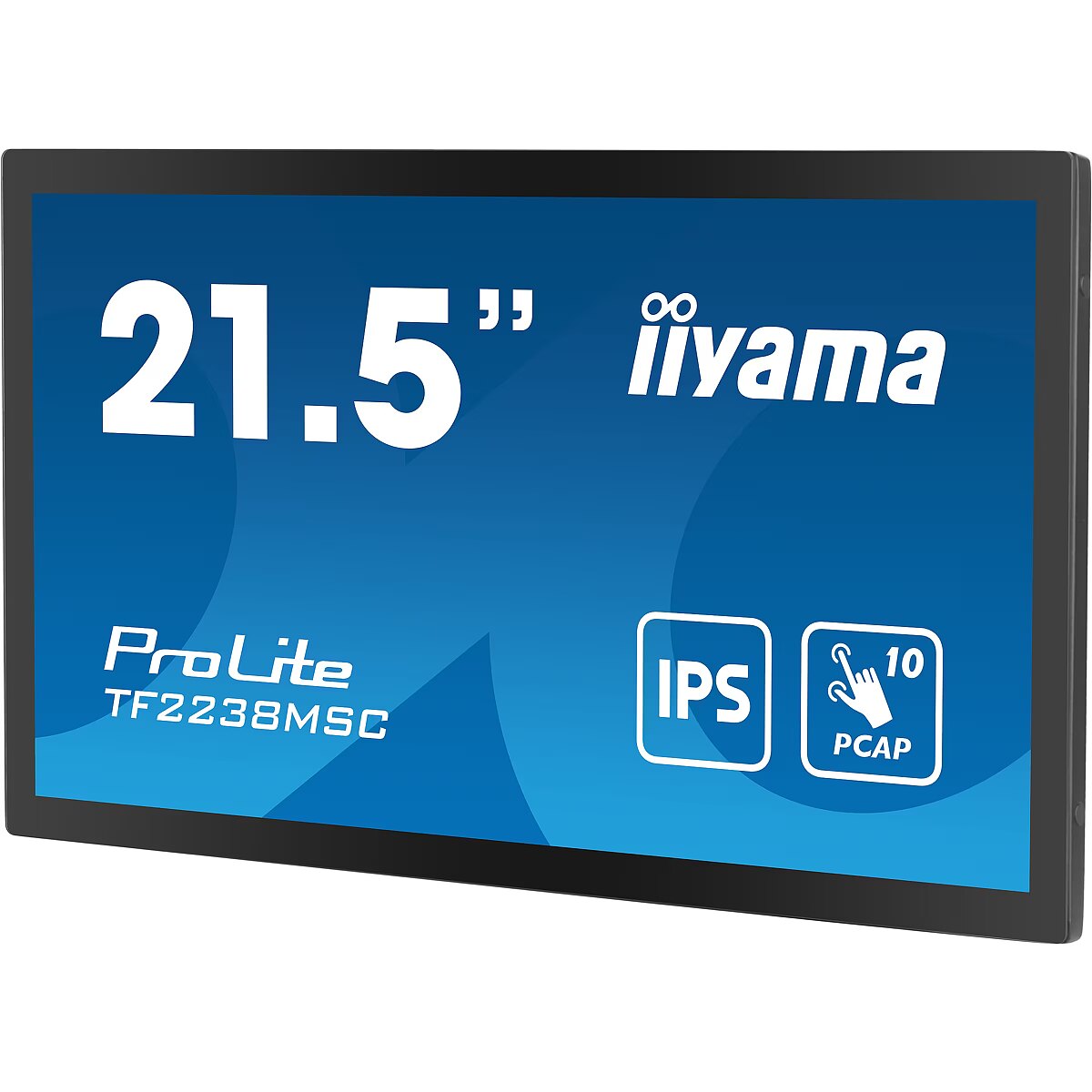

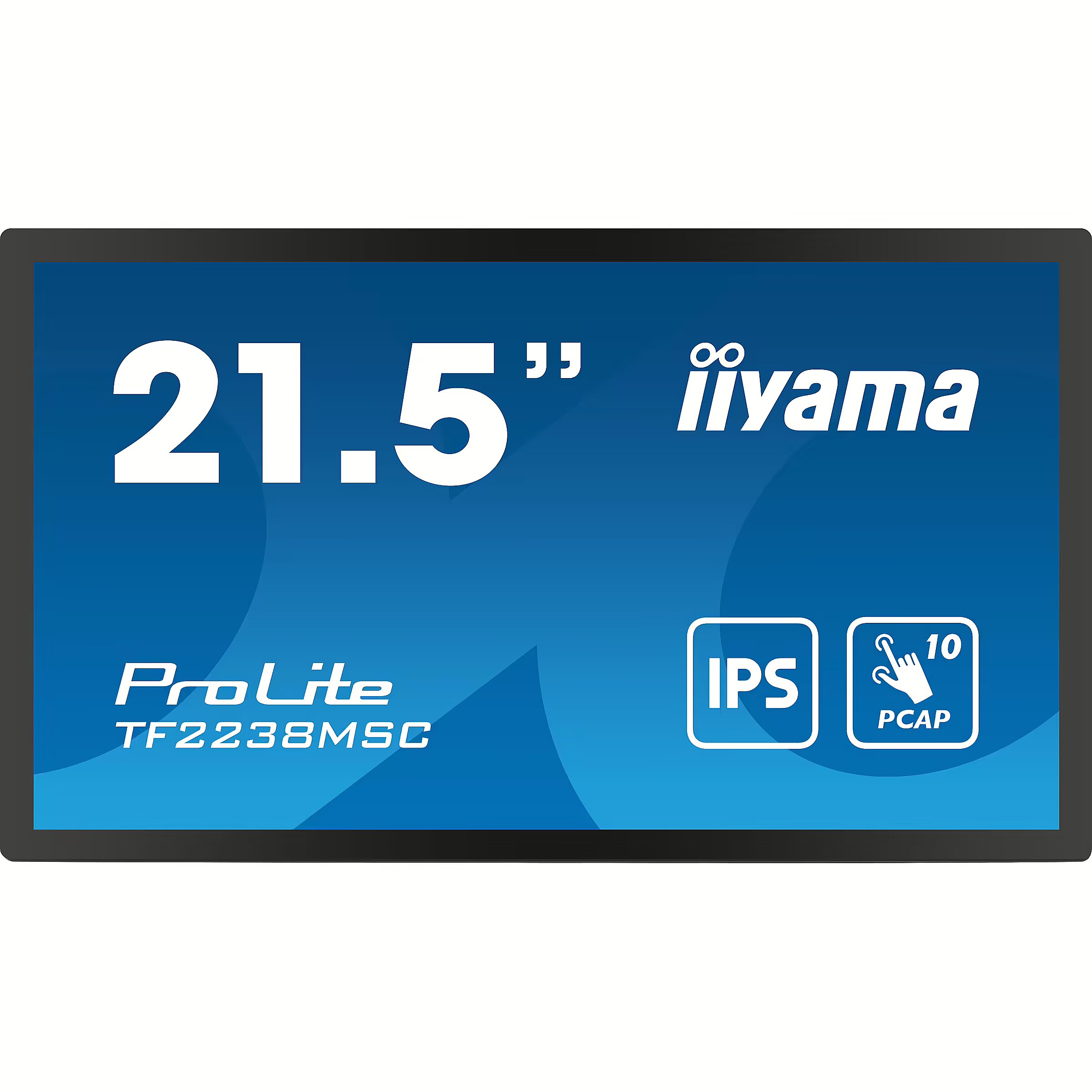

LongDesc - The Full HD (1920x1080) Open Frame monitor ProLite TF2238MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The ProLite TF2238MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for kiosk systems, retail and interactive digital signage installations.
LongProductName - 21.5” 10pt Optical Bonded PCAP Open Frame Touch monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing
LongSummaryDescription - iiyama TF2238MSC-B1. Display diagonal: 53.3 cm (21"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting. Product colour: Black
Manufacturer - iiyama
MPN - TF2238MSC-B1
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of speakers - 2
Multimedia - RMS rated power - 4 W
Name - IIYAMA 54.5cm (21.5") TF2238MSC-B1 16:9 M-Touch HDMI+DP+USB retail
Network - Ethernet LAN - No
Network - Wi-Fi - No
Other features - Active display area (W x H) - 479 x 260 mm
Other features - Brightness - 525 cd/m²
Other features - Built-in processor - No
Other features - Certification - CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Other features - Compatible operating systems - All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Other features - Compliance certificates - CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE

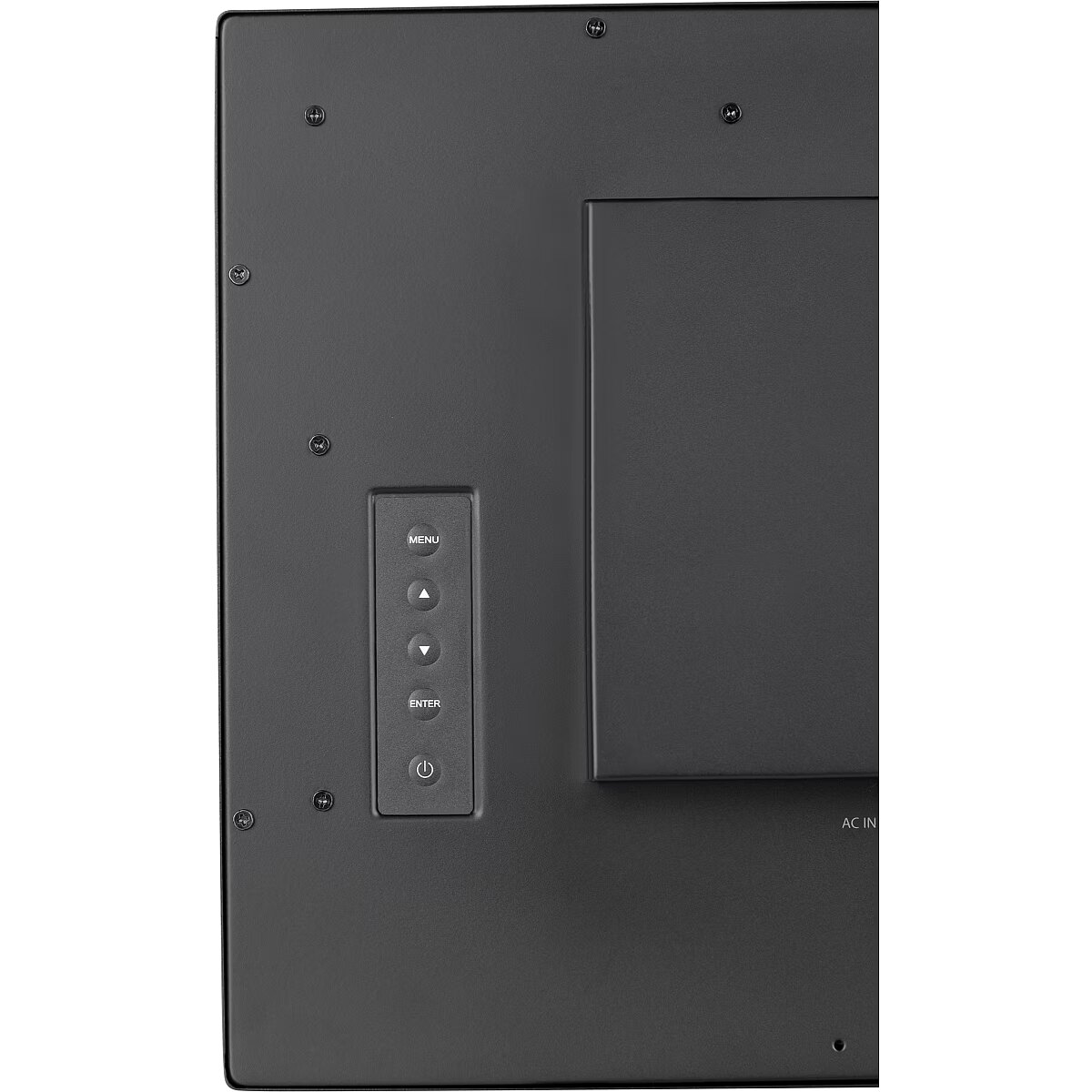

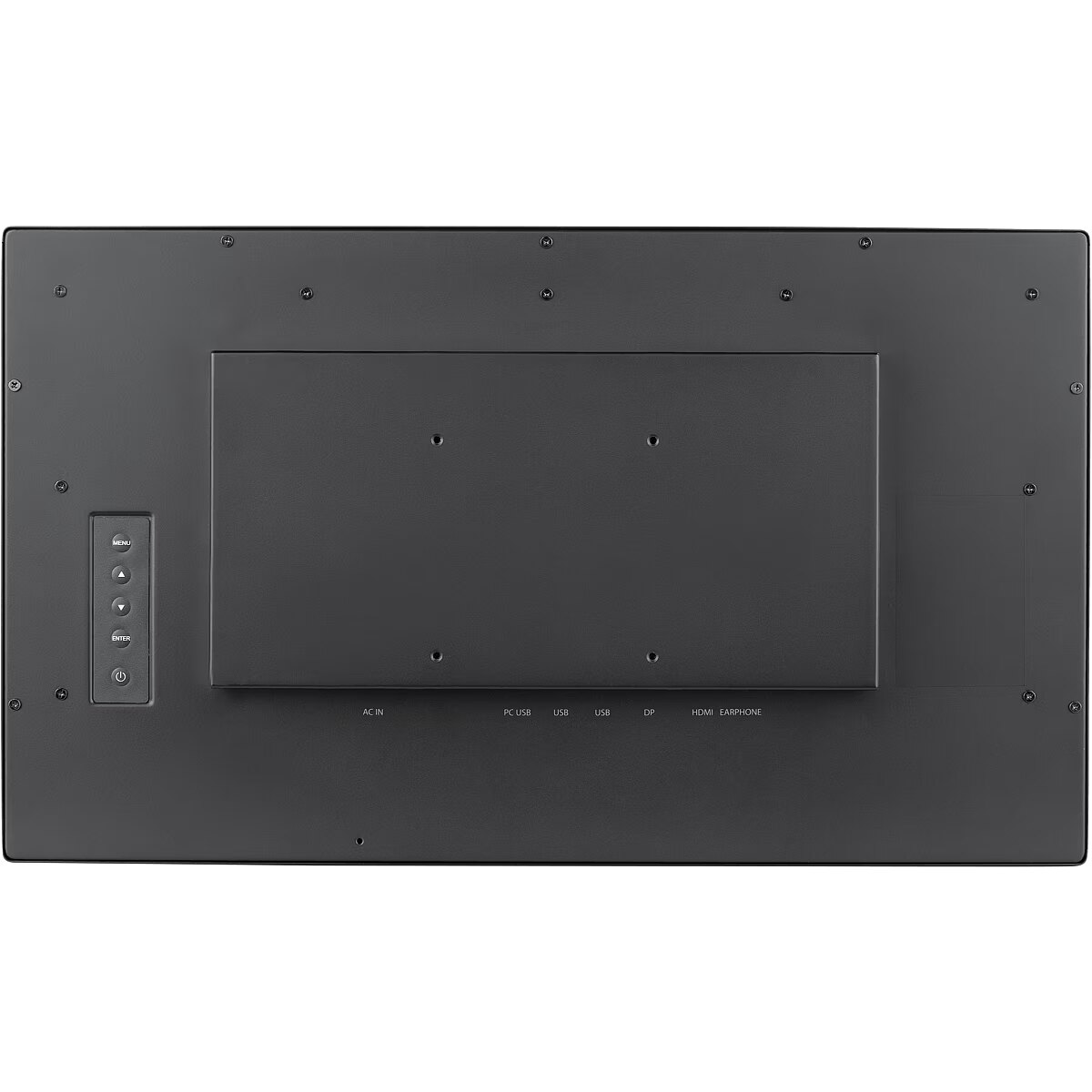

Other features - Control panel - Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power
Other features - Depth - 47 mm
Other features - Height - 300 mm
Other features - International Protection (IP) code - IP1X
Other features - Mean time between failures (MTBF) - 50000 h
Other features - Placement supported - Indoor
Other features - Touch method - stylus, finger, glove
Other features - USB ports quantity - 2
Other features - User controls - Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch)
Other features - Weight - 5.1 kg
Other features - Width - 512.5 mm

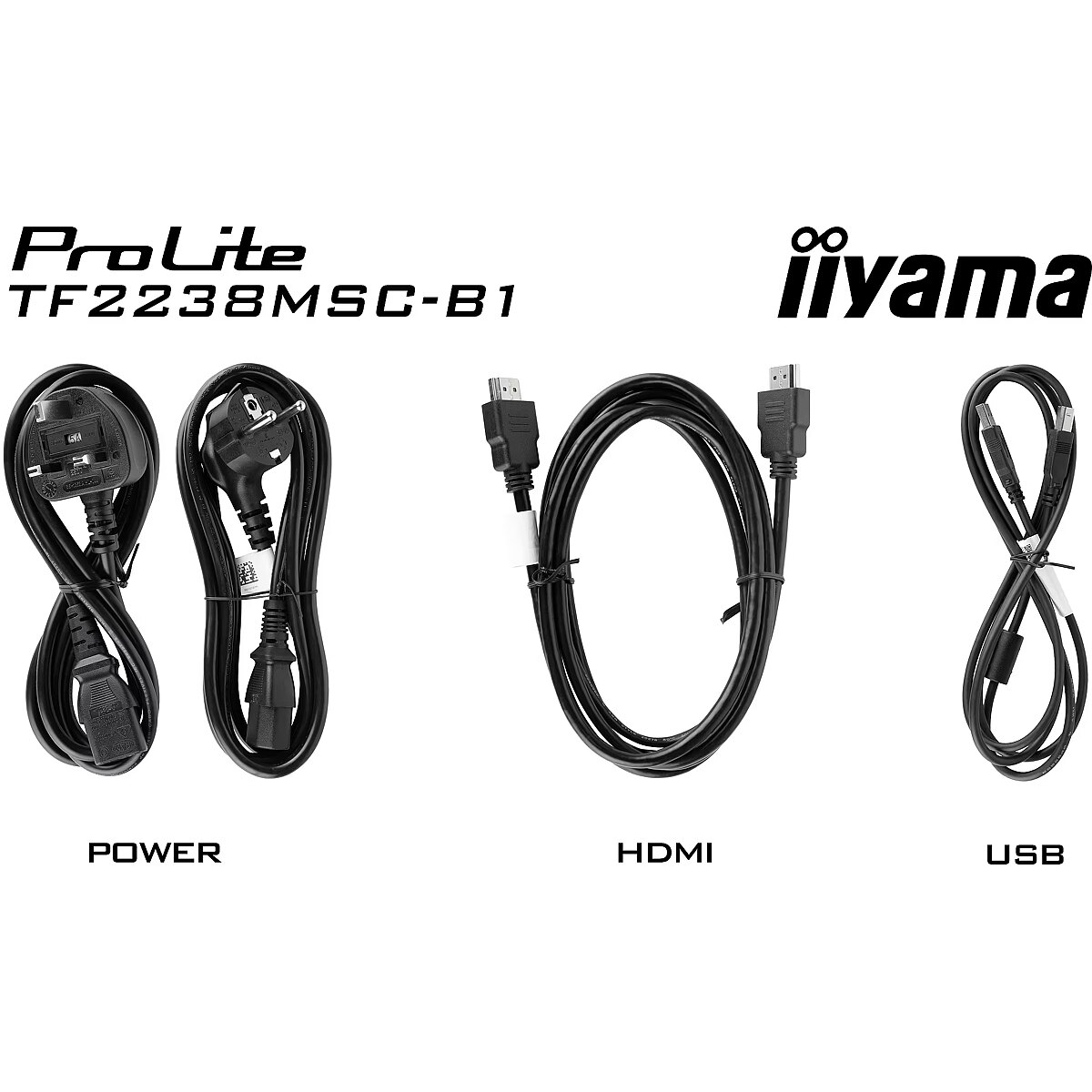

Packaging content - Cables included - AC, USB, HDMI
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 112 mm
Packaging data - Package height - 364 mm
Packaging data - Package weight - 6.4 kg
Packaging data - Package width - 572 mm
Performance - Low Blue Light technology - Yes
Ports & interfaces - Built-in USB hub - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DVI port - No
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Number of downstream ports - 2
Ports & interfaces - USB hub version - 3.2 Gen 1 (3.1 Gen 1)
Ports & interfaces - USB Touch port - Yes
Ports & interfaces - USB version - 3.2 Gen 1 (3.1 Gen 1)
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy efficiency class (HDR) - Not available
Power - Energy efficiency class (SDR) - D
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.4 W
Power - Power consumption (typical) - 17 W
Power - Power supply type - Internal
ProductName - TF2238MSC-B1
ShortSummaryDescription - iiyama TF2238MSC-B1, 53.3 cm (21"), 1920 x 1080 pixels, Full HD, LED, 5 ms, Black
Stck_Kart - 1
Stck_Pal - 4
Storno - Y
Sustainability - Sustainability certificates - ErP
Title - iiyama TF2238MSC-B1 computer monitor 53.3 cm (21") 1920 x 1080 pixels Full HD LED Touchscreen Black
URL - https://iiyama.com/
WarrantyInfo -
Weight & dimensions - Bezel width (bottom) - 1.98 cm
Weight & dimensions - Bezel width (side) - 1.7 cm
Weight & dimensions - Bezel width (top) - 1.98 cm
Weight & dimensions - Depth (with stand) - 47 mm
Weight & dimensions - Height (with stand) - 300 mm
Weight & dimensions - Weight (with stand) - 5.1 kg
Weight & dimensions - Width (with stand) - 512.5 mm
