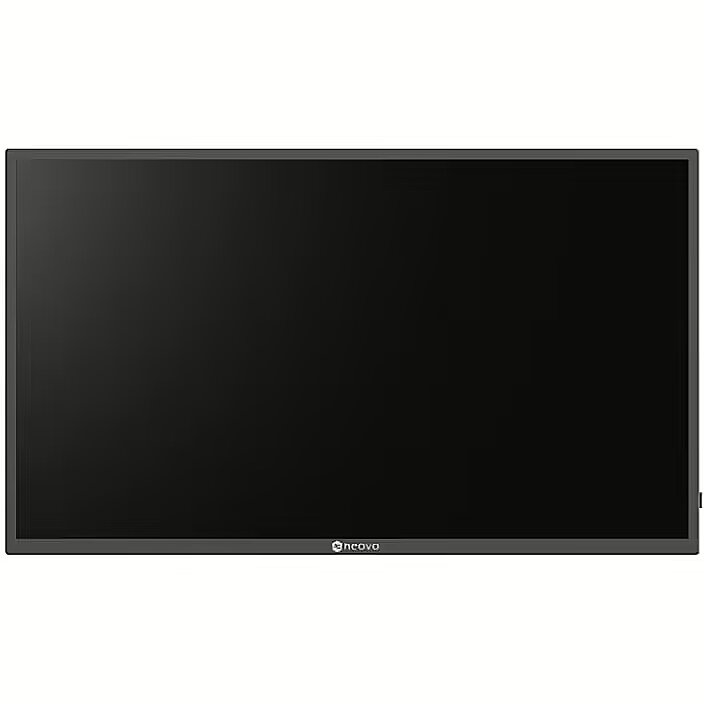

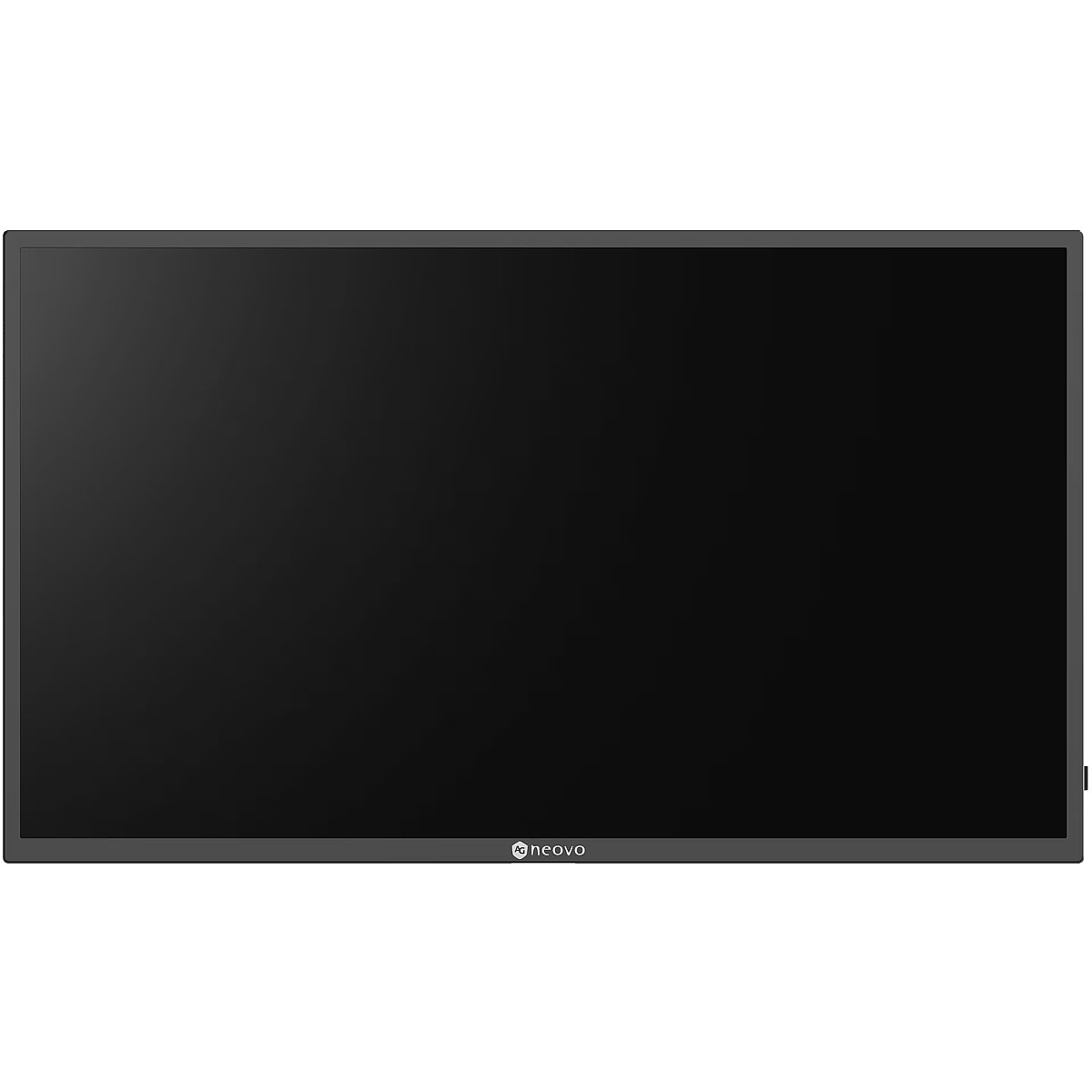

AG NEOVO PM-3202, 32"

Accessories included - Batteries HDMI cable Power cable Quick start guide Remote control
ARTIKEL1 - PM-3202 32IN FHD 350CD/QM
ARTIKEL2 - 4000:1 5MS VGA HDMI
Audio - Built-in speaker(s) - Yes
Audio - Number of built-in speakers - 2
Audio - RMS rated power - 20 W
Auto Pivot - No
Bluetooth - No
Brand - AG Neovo
BrandPartCode - PM322011M0000
Breite - 0
Brightness - 350 cd/m²
Category - Signage Displays
Certificates - CE
Certificates - EAC
Certificates - FCC Class A
Certificates - FCC Class B
Certificates - REACH
Certificates - RoHS
Certificates - UKCA
Certificates - WEEE
Certificates - Certification - FCC, CE, LVD, UKCA, WEEE, RoHS, REACH, EAC, ICES-003 (Issue 7)
Color - Black
Computer system - Built-in processor - No
Computer system - Computer system - No

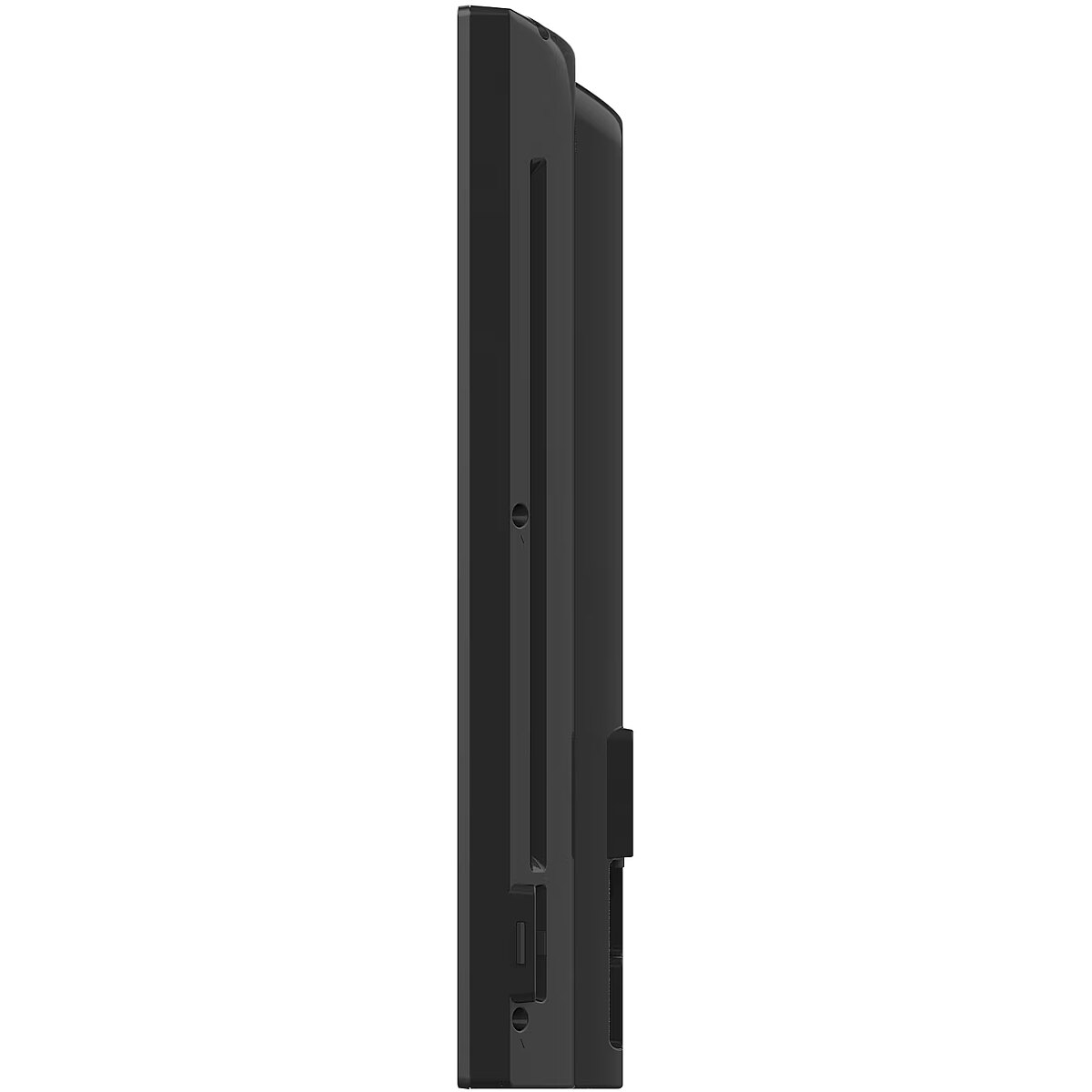

Depth - 65.1 mm

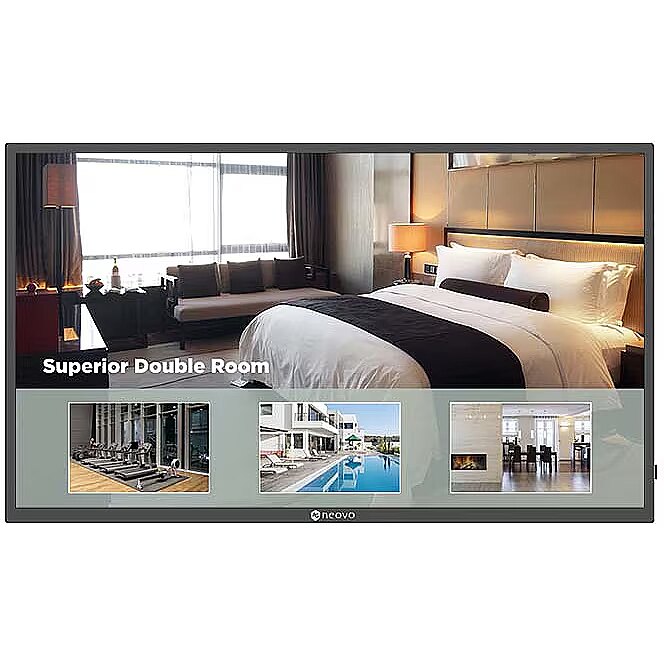

Description - The new PM-3202 32-inch 1080P narrow bezel digital monitor features an easy-to-use USB content playback schedule, Full HD 1920×1080 resolution with Anti-Burn-in technology, 350 nits brightness and 24 / 7 continuous mode. The PM-3202 narrow bezel monitor is ideal for digital signage applications in any commercial setting, including restaurants, retail shops, medical offices, corporate meeting spaces or hotels.
Design - Anti-glare screen - Yes
Design - Orientation - Vertical
Design - Panel mounting interface - 100 x 100 mm
Design - Panel mounting interface - 100 x 100,200 x 200 mm
Design - Panel mounting interface - 200 x 200 mm
Design - Placement supported - Indoor
Design - Product colour - Black
Design - Product design - Digital signage flat panel
Design - VESA mounting - Yes
Designation - CE+WEEE
dimensionalWeight - 12247
dimension depth - 133 mm
dimension height - 534 mm
dimension weight - 7700 g
dimension width - 808 mm
Display - Contrast ratio (typical) - 4000:1
Display - Display brightness - 350 cd/m²
Display - Display diagonal - 80 cm (31.5")
Display - Display diagonal - 81.3 cm (32")
Display - Display number of colours - 16.7 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LCD
Display - Display technology - TFT
Display - Haze rate - 2%
Display - HD type - Full HD
Display - Horizontal scan range - 28 - 92 kHz
Display - LED backlight - Yes
Display - LED backlighting type - LED
Display - Panel type - VA
Display - Pixel pitch - 0.364 x 0.364 mm
Display - Response time - 5 ms
Display - Surface hardness - 3H
Display - Touchscreen - No
Display - Vertical scan range - 48 - 85 Hz
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display surface - Matt
Dot pitch - 0.364 mm
ean - 4710739597028
EANCode - 4710739597028
Energy class - G
Energy label - Pobierz
Frequency, horizontal max. - 92 kHz
Frequency, horizontal min. - 28 kHz
Frequency, vertical max. - 85 Hz
Frequency, vertical min. - 48 Hz
Gewicht - 5
GRUPPE1 - Displays
GRUPPE2 - Lcd Monitor
GTIN - 4710739597028
guarantee - 36
guarantee_type - external
Height - 425.4 mm
HERSTELLER - AG NEOVO TECHNOLOGY
Hoehe - 0
HSTNUMMER - PM322011M0000

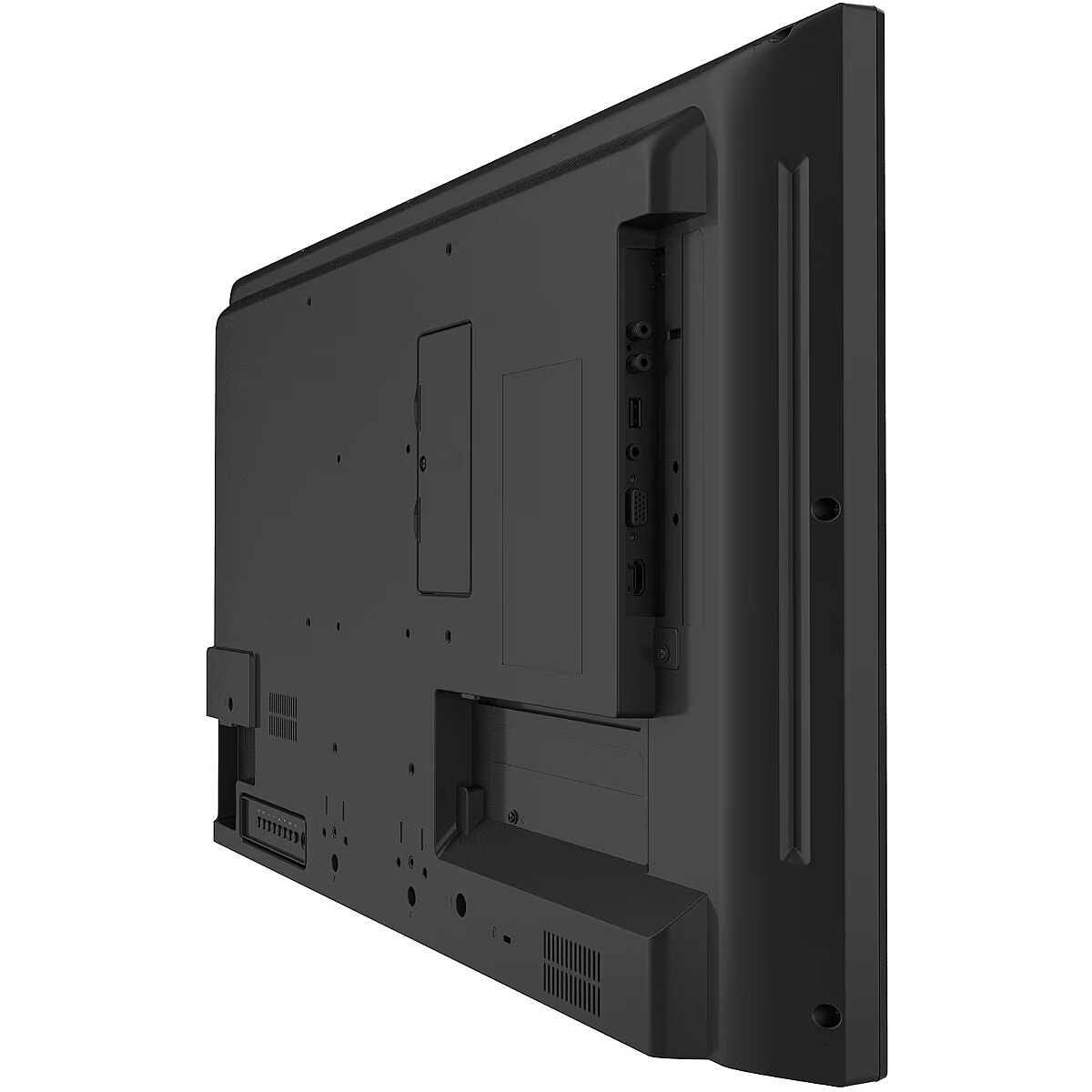

I/O connectors - 1 x 3,5 mm minijack
I/O connectors - 1 x 15-pin D-Sub
I/O connectors - 1 x Audio in
I/O connectors - 1 x Audio out
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB 2.0
I/O connectors - 3 x HDMI
Laenge - 0
LongDesc - The new PM-3202 32-inch 1080P slim bezel digital signage display is given the easy-to-use content scheduler with USB playback, 1920×1080 Full HD resolution with an Anti-Burn-in™ Technology, 350 nits brightness, and 16/7 operation. The PM-3202 slim bezel display is ideal for digital signage applications in any commercial setting, including restaurants, retail stores, medical offices, corporate meeting areas or hotels.FULL HD VISIBILITY FOR COMMERCIAL USEThe PM-3202 slim bezel display combines Full HD 1920×1080 resolution, 350 nits of brightness, and 16/7 commercial operation times to easily deliver business messaging and boost customer engagement.INTEGRATED CONTENT SCHEDULERThe built-in integrated scheduler in the OSD menu allows you to easily broadcast content based on different input sources, time, and day by IR remote control.EMBEDDED IMAGE ENHANCERThe embedded image enhancer features a 3D Deinterlace and Noise Reduction to solve image issues – offering crystal clarity to the most demanding environments.BLACK-LEVEL ALIGNMENTBlack-level setting – easily adjust the level of brightness from the dark area of the images by remote control.PATENTED ANTI-BURN-IN TECHNOLOGYTo combat the effects of traditional LCD burn-in or ghosting, AG Neovo utilises its patented Anti-Burn-in™ Technology to prevent image burn-in and assure the extended life span for displays.VERSATILE CONNECTIVITY FOR MULTIMEDIA PLAYBACKThis 32-inch slim bezel digital signage display integrates diverse connectivity, including HDMI, VGA, RS232, RJ45 to connect external devices. In addition, the display supports USB playback functionality and users can directly playback multimedia content via a LAN connection.FREE PID COMMAND & CTRL SOFTWAREPID Command & Ctrl provides intuitive user interfaces for remote management via laptops and mobile devices and offers easy creation on video wall displays. The software also has simple colour calibration, temperature check, IR/key locking options, and time on usage monitoring for daily maintenance.
LongProductName - 32", Full HD 1920 x 1080, 350 cd/m2, 5 ms, 4000:1, VGA, HDMI, USB 2.0, RJ-45, 2 x 10W, 726.5 x 425.4 x 65.1 mm
LongSummaryDescription - AG Neovo 32-Inch 1080P Slim Bezel Digital Signage Display. Product design: Digital signage flat panel. Display diagonal: 80 cm (31.5"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 350 cd/m², HD type: Full HD. Operating hours (hours/days): 16/7. Product colour: Black
Matrix type - VA
Model - PM-3202
name - Monitor PM-3202 32cale BLACK 3xHDMI VGA 350cd/m2 4000:1 WORK 24/7 ANTI-BURN-IN SPEAKERS
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Wi-Fi - No
Number of colors - 16,7 mln
Operational conditions - Operating relative humidity (H-H) - -20 - 60%
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 90%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Operational conditions - Storage temperature (T-T) - 20 - 80 °C
Optional accessory - Ceiling mounting (horizontal orientation only) CMP-01 + LMK-02 CMP-01 + WMK-03 Wall bracket (Horizontal orientation only) LMA-01 LMA-02 LMK-02 WMA-01 WMK-03 Desk mount (landscape orientation only) DMC-01 ES-02
Other features - Operating conditions: Temperature: 0°C-40°C (32°F-104°F) Humidity: 20%-80% (non-condensing)
Other features - Noise reduction - Yes
Other features - Quick start guide - Yes
Other features - RS-232 input ports - 1
Packaging content - Batteries included - Yes
Packaging content - Cables included - AC, HDMI
Packaging content - Cables included - HDMI
Packaging content - Power adapter included - Yes
Packaging content - Remote control included - Yes
Packaging data - Package depth - 139 mm
Packaging data - Package height - 547 mm
Packaging data - Package weight - 7.8 kg
Packaging data - Package width - 818 mm
Performance - On Screen Display (OSD) - Yes
Performance - Operating hours (hours/days) - 16/7
Performance - Purpose - Universal
Ports & interfaces - Audio (L/R) out - 1
Ports & interfaces - DVI port - No
Ports & interfaces - Ethernet LAN - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10
Ports & interfaces - Ethernet LAN data rates - 100
Ports & interfaces - Ethernet LAN data rates - 1000
Ports & interfaces - HDMI input ports quantity - 3
Ports & interfaces - HDMI ports quantity - 3
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - Microphone in - Yes
Ports & interfaces - PC Audio in - Yes
Ports & interfaces - Remote (IR) input - 1
Ports & interfaces - Remote (IR) output - 1
Ports & interfaces - RS-232 interface - Yes
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 1
Ports & interfaces - USB version - 2.0
Ports & interfaces - VGA (D-Sub) input ports - 1
Ports & interfaces - Wi-Fi - No
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 42 kWh
Power - Energy efficiency class (SDR) - G
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 42 W
Power consumption - 42 W
producer - AG NEOVO
producerCode - PM-3202
ProductName - 32-Inch 1080P Slim Bezel Digital Signage Display
productName - AG Neovo PM-3202 Signage Display Digital signage flat panel 81.3 cm (32") TFT 350 cd/m² Full HD Black 16/7
productSize - Normal
Resolution - 1920 x 1080 (FHD 1080)
Response time - 5 ms
Safety warning - Warnings - Do not disassemble the monitor casing to avoid risk of electric shock.
Safety warning - Warnings - Place the monitor on a flat and stable surface to avoid tipping and damage.
Safety warning - Warnings - Unplug the monitor from the power source before cleaning.
Screen size (diag.) - 31.5''
ShortSummaryDescription - AG Neovo 32-Inch 1080P Slim Bezel Digital Signage Display, Digital signage flat panel, 80 cm (31.5"), LCD, 1920 x 1080 pixels, 16/7
sizeX - 810
sizeY - 540
sizeZ - 140
Speakers built-in - Yes
Static contrast - 4 000:1
Stck_Kart - 1
Stck_Pal - 7
Storno - Y
Title - AG Neovo 32-Inch 1080P Slim Bezel Digital Signage Display
Touch screen - No
Transreflective technology - LED
TV tuner built-in - No
URL - https://www.agneovo.com/global/digital-signage/digital-signage-displays/pm-series/pm-3202
vendpn - PM-3202
VESA - 100 x 100
VESA - 200 x 200
Viewing angle, horizontal - 178 °
Viewing angle, vertical - 178 °
Warranty -
WarrantyInfo -
warrantyLength - 36
warrantyType - F
Web camera - None
Weight - 5.7 kg
weight - 7610
Weight & dimensions - Display depth - 65.1 mm
Weight & dimensions - Display height - 425.4 mm
Weight & dimensions - Display weight - 5.7 kg
Weight & dimensions - Display width - 726.5 mm
Width - 726.5 mm
WiFi - No
