Accessories included -
AC input frequency Power - 50 - 60 Hz
AC input voltage Power - 100 - 240 V
Aspect ratio - 16:9
Audio (L/R) in Ports & interfaces - 1
Audio - Built-in speaker(s) - Yes
Audio - Number of built-in speakers - 2
Audio - RMS rated power - 2 W
Audio > Built-in speaker(s) - Yes
Auto Pivot - No
Batteries included Packaging content - Yes
Bezel width, mm - 16.3
Bluetooth - No
Brand - LG
BrandPartCode - 22SM3G-B
Brightness - 250 cd/m²
Built-in processor Computer system - Yes
Built-in speaker(s) Audio - Yes
Built-in speakers - Yes
Cables included Packaging content - AC
Category - Signage Displays
Category Code - LCD
Certificates - CB
Certificates - CE
Certificates - ErP
Certificates - FCC Class A
Certificates - Certification - CB, NRTL, EMC, FCC Class "A", CE, ErP
Certification Certificates - CB, NRTL, EMC, FCC Class "A", CE, ErP
Code - 22SM3G-B.AEU
Color - Black
Computer system - Built-in processor - Yes
Computer system - Computer system - No
Computer system - Internal memory - 4 GB
Computer system - Processor cores - 4
Computer system Computer system - No

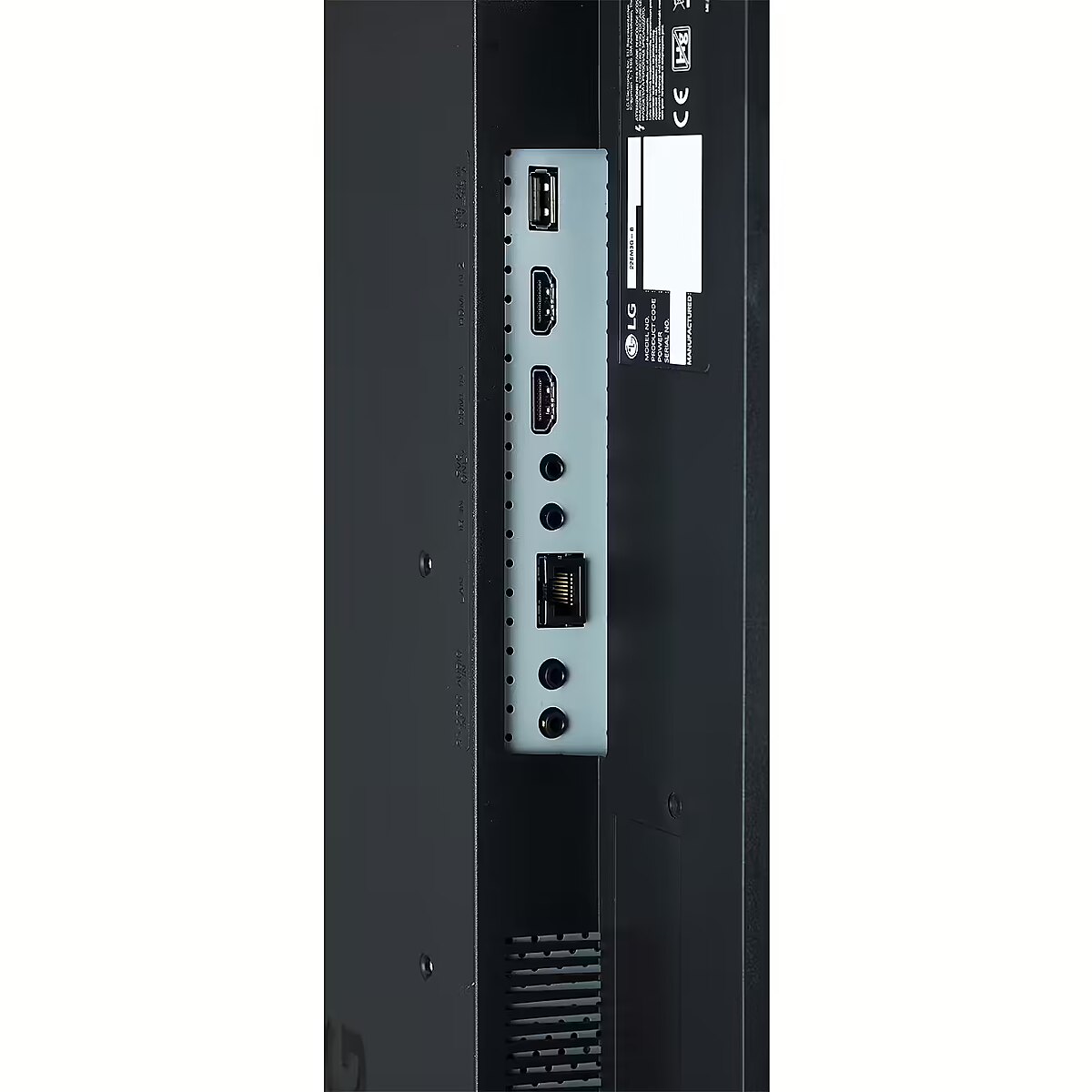

Connections - Audio (3.5mm)
Connections - Ethernet (RJ-45)
Connections - HDMI
Connections - IR
Connections - RS-232C
Connections - USB-A (USB 2.0)
Contrast ratio (dynamic) Display - 400000:1
Contrast ratio (typical) - 1000:1
Contrast ratio (typical) Display - 1000:1
Data Act - Link
Depth - 53.8 mm
Depth Weight & dimensions - 53.8 mm
Description - 22" Signage with More Utility for Commercial Space
22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform. High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools. Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players. A Wide Range of Interfaces
Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs. USB Plug & Play
22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB. Remote Monitoring and Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere. Real-time Care Service with LG Signage365Care
The maintenance gets easier and faster with the optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring stable operation of the client’s business.Brightness(Typ.) : 250 cd/m²Bezel : 16.3mmDepth : 53.8mmInterface : HDMI(2) / USB 2.0 / RS232C / RJ45 / IR / AudioUSB Plug & Play, Built-in Wi-Fi
Description - LG 22SM3G-B 22" FHD IPS 250NITS 16/7 WEBOS
Description - Wysoka wydajność SoC z webOS
Wbudowany czterordzeniowy układ SoC może wykonywać kilka zadań jednocześnie, zapewniając płynne odtwarzanie treści bez potrzeby korzystania z odtwarzacza multimedialnego. Ponadto platforma inteligentnego oznakowania LG webOS zwiększa wygodę użytkownika dzięki intuicyjnemu interfejsowi graficznemu i prostym narzędziom do tworzenia aplikacji.
Design - Orientation - Horizontal
Design - Panel mounting interface - 100 x 100 mm
Design - Product colour - Black
Design - Product design - Digital signage flat panel
Design - VESA mounting - Yes
Design > Colour of product - Black
Design > VESA mounting - Yes
Design > VESA mounting interfaces - 100 x 100 mm
Designation - CE+WEEE
dimension depth - 130 mm
dimension height - 580 mm
Dimensions W x D x H, mm - 510.3 x 53.8 x 302.1
dimension weight - 4500 g
dimension width - 365 mm
Display - Contrast ratio (dynamic) - 400000:1
Display - Contrast ratio (typical) - 1000:1
Display - Display brightness - 250 cd/m²
Display - Display diagonal - 54.6 cm (21.5")
Display - Display diagonal (metric) - 55.88 cm
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - IPS
Display - HD type - Full HD
Display - Native aspect ratio - 16:9
Display - Touchscreen - No
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display > Contrast ratio (typical) - 1000:1
Display > Display - 1920 x 1080 pixels
Display > Placement (L/P) - Landscape
Display > Response time - 14 ms
Display > Viewing angle, horizontal - 178 °
Display > Viewing angle, vertical - 178 °
Display brightness, cd/m² - 250
Display brightness Display - 250 cd/m²
Display diagonal (metric) Display - 55.88 cm
Display diagonal, " - 21.5
Display diagonal Display - 54.6 cm (21.5")
Display resolution, pixels - 1920 x 1080
Display resolution Display - 1920 x 1080 pixels
Display surface - Matt
Display technology Display - IPS
DVI port Ports & interfaces - No
EAN - 8806098661039
ean - 8806098661039
Energy class - B
Energy label - Pobierz
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN Network - Yes
GTIN - 0719192636200
GTIN - 719192636200
GTIN - 8806098661039
GTIN - 8806098661060
guarantee - 36
guarantee_type - external
Harmonized System (HS) code Logistics data - 85285210
HDMI ports quantity Ports & interfaces - 2
HD type Display - Full HD
Heat dissipation Power - 7.89 BTU/h
Height - 120.000000
Height - 302.1 mm
Height Weight & dimensions - 302.1 mm
I/O connectors - 1 x Audio in
I/O connectors - 1 x RJ-45 LAN
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB 2.0
I/O connectors - 2 x HDMI
Internal memory Computer system - 4 GB
Internal player - Yes
Length - 577.000000
Logistics data - Harmonized System (HS) code - 85285210
LongDesc - 22" Signage with More Utility for Commercial Space22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.High Performance SoC with webOSBuilt-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.Various Sensor ApplicationsLG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players.A Wide Range of InterfacesThrough its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.USB Plug & Play22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.Remote Monitoring and ControlThrough the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.Real-time Care Service with LG Signage365CareThe maintenance gets easier and faster with the optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring stable operation of the client’s business.
LongProductName - 22SM3G-B, 21.5", IPS, 1920 x 1080 (FHD), 250 cd/m², USB Plug & Play, Built-in Wi-Fi
LongSummaryDescription - LG 22SM3G-B Digital signage display 54.6 cm (21.5') IPS Wi-Fi 250 cd/m² Full HD Black Built-in processor 16/7. Product design: Digital signage flat panel. Display diagonal: 54.6 cm (21.5"), Display technology: IPS, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD. Wi-Fi. Operating hours (hours/days): 16/7. Product colour: Black
Manufacturer - LG Electronics
ManufacturerPartNumber - 22SM3G-B
Matrix type - TFT IPS
Model - 22SM3G
Model - 22SM3G-B
Model name - 22SM3G-B
Mounting kit Packaging content - Yes
Name - LG 22SM3G-B 21.5“ 1920x1080/250cd/m2/14ms/ HDMI USB | LG | 22SM3G | 21.5 " | Landscape | 16/7 | WebOS | 250 cd/m² | 14 ms | 178 ° | 178 °
name - Monitor 22 inches 22SM3G 250cd/m2 16/7
Native aspect ratio Display - 16:9
Network - Ethernet LAN - Yes
Network - Wi-Fi - Yes
Number of built-in speakers Audio - 2
Number of colors - 16,7 mln
Operating hours (hours/days) Performance - 16/7
Operating relative humidity (H-H) Operational conditions - 10 - 80%
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 85%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Operation time - 16/7
Optional accessory -
Orientation Design - Horizontal
Other features -
Other features > Signage product family - Information Display
Package depth Packaging data - 103 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 570 mm
Package features > Gross height (mm) - 120 mm
Package features > Gross weight - 4.6 kg
Package features > Gross width (mm) - 365 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 69 pc(s)
Package features > Paper/Pasteboard - 1100.00 g
Package features > Plastic (No PET) - 300.00 g
Package features > Tare weight (kg) - 1.40 kg
Package features > Volume (m3) - 0.024966 m³
Package features > WEE classification - CL109:2:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 357 mm
Package weight Packaging data - 3.5 kg
Package width Packaging data - 565 mm
Packaging content - Batteries included - Yes
Packaging content - Cables included - AC
Packaging content - Mounting kit - Yes
Packaging content - Remote control included - Yes
Packaging data - Package depth - 103 mm
Packaging data - Package height - 357 mm
Packaging data - Package weight - 3.5 kg
Packaging data - Package width - 565 mm
Panel mounting interface Design - 100 x 100 mm
Panel type - IPS
Performance - Operating hours (hours/days) - 16/7
Performance - Purpose - Universal
PeriodofWarranty -
Pivot - No
Ports & interfaces - Audio (L/R) in - 1
Ports & interfaces - DVI port - No
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - RS-232 interface - Yes
Ports & interfaces - RS-232C - Yes
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 1
Ports & interfaces - USB version - 2.0
Ports & interfaces > HDMI ports quantity - 2
Ports & interfaces > USB port - 1
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Heat dissipation - 7.89 BTU/h
Power - Power consumption (off) - 0.5 W
Power - Power consumption (sleep) - 1 W
Power - Power consumption (standby) - 30 W
Power - Power consumption (typical) - 33 W
Power consumption - 29 W
Power consumption (off) Power - 0.5 W
Power consumption (sleep) Power - 1 W
Power consumption (standby) Power - 30 W
Power consumption (typical) Power - 33 W
Power consumption, W - 30
Processor cores Computer system - 4
producer - LG Electronics
Producer product name - 22SM3G
Product colour Design - Black
Product design Design - Digital signage flat panel
ProductName - 22SM3G-B Digital signage display 54.6 cm (21.5') IPS Wi-Fi 250 cd/m² Full HD Black Built-in processor 16/7
Purpose Performance - Universal
Remote control included Packaging content - Yes
Resolution - 1920 x 1080 (FHD 1080)
Response time - 14 ms
Response time, ms - 14
RMS rated power Audio - 2 W
RS-232 interface Ports & interfaces - Yes
RS-232C Ports & interfaces - Yes
Screen size (diag.) - 21.5"
ShortSummaryDescription - LG 22SM3G-B Digital signage display 54.6 cm (21.5') IPS Wi-Fi 250 cd/m² Full HD Black Built-in processor 16/7, Digital signage flat panel, 54.6 cm (21.5"), IPS, 1920 x 1080 pixels, Wi-Fi, 16/7
Software > Operating system - WebOS
Speakers built-in - Yes
Static contrast - 1 000:1
Storage relative humidity (H-H) Operational conditions - 5 - 85%
Storage temperature (T-T) Operational conditions - -20 - 60 °C
Summary - LG 22SM3G-B Digital signage display 54.6 cm (21.5') IPS Wi-Fi 250 cd/m² Full HD Black Built-in processor 16/7. Product design: Digital signage flat panel. Display diagonal: 54.6 cm (21.5"), Display technology: IPS, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD. Wi-Fi. Operating hours (hours/days): 16/7. Product colour: Black
Technical details > Bezel width - 16.3 mm
Technical details > Brightness - 250 cd/m²
Technical details > Diagonal - 21.5 "
Technical details > Net weight - 3.2 kg
Technical details > Operating hours/days - 16/7
Technical details > Panel type - IPS
Technical details > Producer - LG
Title - LG 22SM3G-B Digital signage display 54.6 cm (21.5') IPS Wi-Fi 250 cd/m² Full HD Black Built-in processor 16/7
Touch screen - No
Touchscreen Display - No
Touch sensitive screen - No
Transreflective technology - LED
TV tuner built-in - No
Unit Box Height - 0.37
Unit Box Length - 0.575
Unit Box Width - 0.115
Unit Calculated Volume - 0.02447 cubm
Unit Calculated Weight - 4.65 kg
URL - https://www.lg.com/ae/business/information-display/digital-signage/lg-22SM3G-B
USB port Ports & interfaces - Yes
USB ports quantity Ports & interfaces - 1
USB version Ports & interfaces - 2.0
Vendor Homepage - https://www.lg.com/ae/business/information-display/digital-signage/lg-22SM3G-B
vendpn - 22SM3G

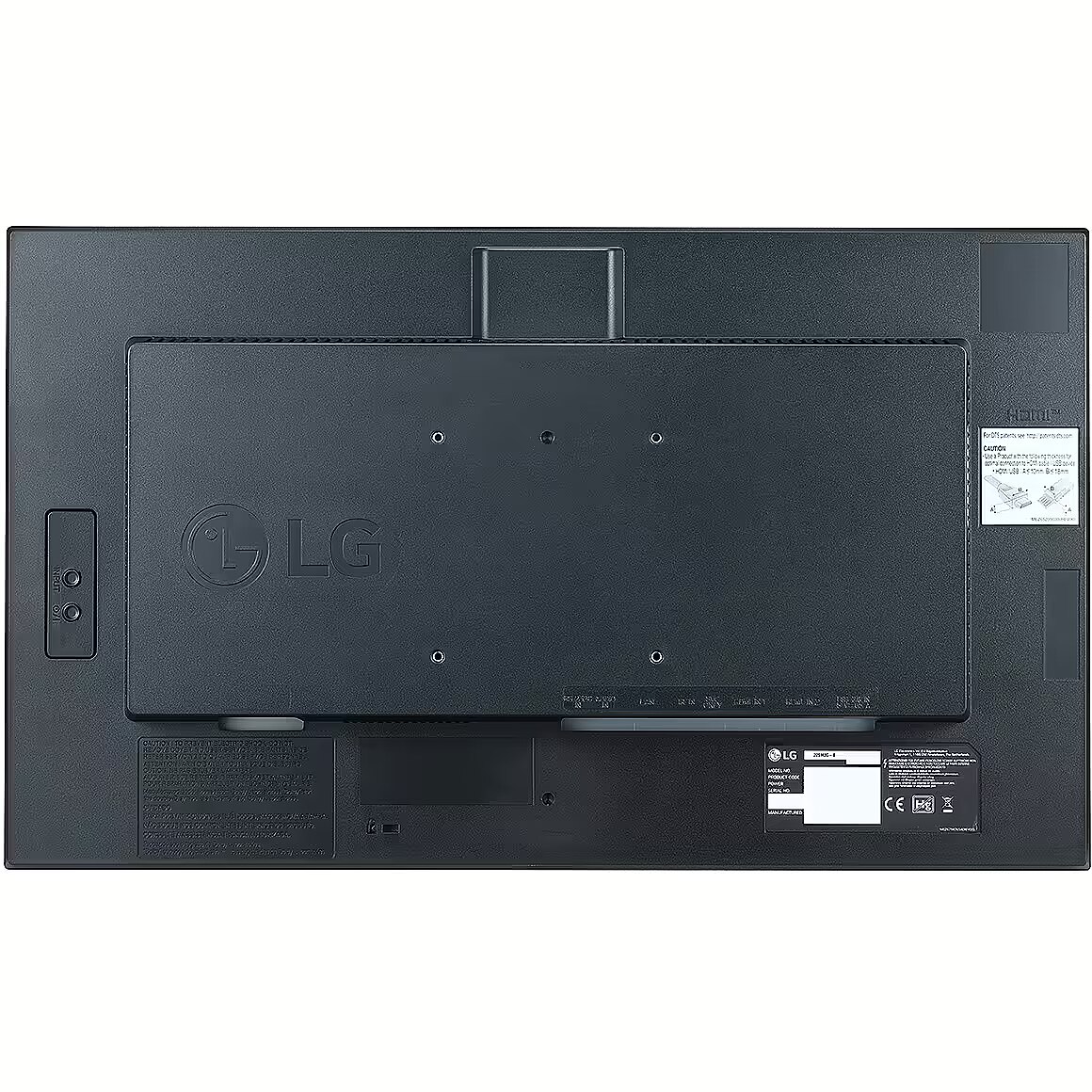

VESA - 100 x 100
VESA-standard, mm - 100 x 100
VESA mounting Design - Yes
Viewing angle, horizontal - 178 °
Viewing angle, horizontal, ° - 178
Viewing angle, horizontal Display - 178°
Viewing angle, vertical - 178 °
Viewing angle, vertical, ° - 178
Viewing angle, vertical Display - 178°
Warranty -
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 2 year
Web camera - None
Weight - 3.34 kg
Weight - 4.640000
Weight & dimensions - Depth - 53.8 mm
Weight & dimensions - Height - 302.1 mm
Weight & dimensions - Weight - 3.34 kg
Weight & dimensions - Width - 510.3 mm
Weight, g - 3340
Weight Weight & dimensions - 3.34 kg
Wi-Fi - Yes
Wi-Fi Network - Yes
Width - 365.000000
Width - 510.3 mm
Width Weight & dimensions - 510.3 mm
WiFi - Yes
