ACinputfrequency -
ACinputvoltage -
Adjustableheightmax -
AMDFreeSync - No
Antiglarescreen -

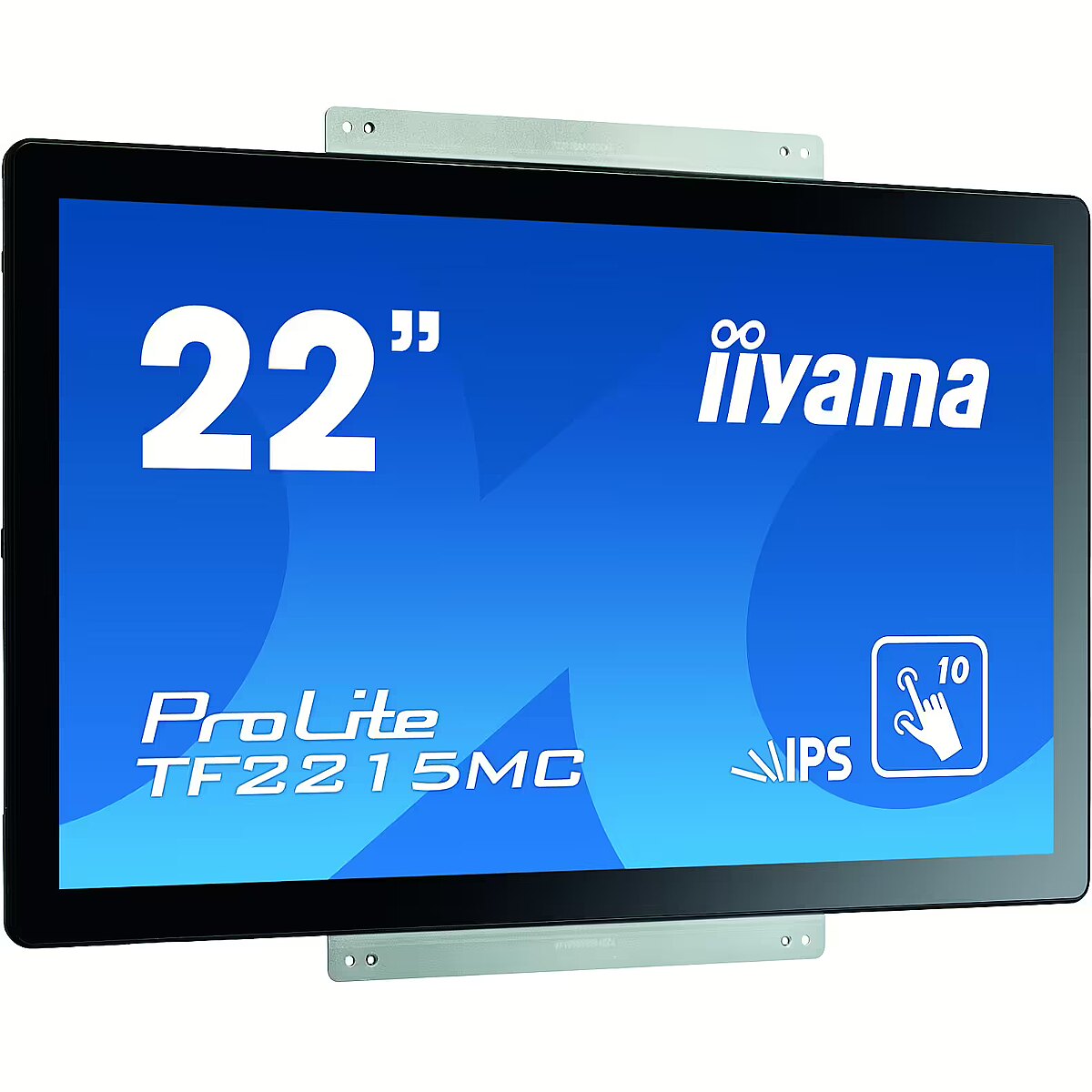

ARTIKEL1 - TF2215MC-B2 55.9CM 22IN IPS
ARTIKEL2 - 1920X1080 350CD 10TP PCAP-TOUCH
Aspectratio - 16:9
Audioinput -
Audiooutput -
Backlighttype -
Brand - iiyama
BrandPartCode - TF2215MC-B2
Builtincamera - No
BuiltinKVMswitch -
Builtinmicrophone - No
Builtinspeakers -
BuiltinUSBhub -
Bundledsoftware -
Cablelockslot -
Cablesincluded - AC, USB, HDMI, DisplayPort
Category - Computer Monitors
Category 1 - Displays
Category 2 - Monitore
Category_1 - Monitors and TV
Category_2 - Touchscreen
Colourdepth -
Colourgamut -
Colourgamutstandard -
Contrastratiodynamic -
Contrastratiotypical - 1000:1
Depthwithoutstand - 42.5 mm
Depthwithstand - 42.5 mm
Design -
Design - Front bezel colour - Black
Design - Product colour - Black
Detachablestand -
Display -
Display - Aspect ratio - 16:9
Display - Contrast ratio (typical) - 1000:1
Display - Display brightness - 315 cd/m²
Display - Display brightness (typical) - 350 cd/m²
Display - Display diagonal - 54.6 cm (21.5")
Display - Display diagonal (metric) - 54.6 cm
Display - Display number of colours - 16.78 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LED
Display - HD type - Full HD
Display - Horizontal scan range - 31.4 - 82 kHz
Display - Native aspect ratio - 16:9
Display - Number of simultaneous touchpoints - 10
Display - Panel type - IPS
Display - Pixel pitch - 0.24795 x 0.24795 mm
Display - Response time - 14 ms
Display - Screen shape - Flat
Display - Separate H/V sync - Yes
Display - Surface hardness - 7H
Display - Touchscreen - Yes
Display - Touchscreen technology - Projected capacitive system
Display - Touchscreen type - Multi-user
Display - Touch technology - Multi-touch
Display - Vertical scan range - 56 - 75 Hz
Display - Viewable size, horizontal - 47.6 cm
Display - Viewable size, vertical - 26.8 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Displaybezeltechnology -
Displaybrightnesstypical - 350 cd/m²
Displaydiagonal - 54.6 cm (21.5")
Displaydiagonalmetric - 54.6 cm
Displaynumberofcolours - 16.78 million colours
DisplayPortoutquantity -
DisplayPortoutversion -
DisplayPortsquantity - 1
DisplayPortversion -
Displayresolution - 1920 x 1080 pixels
Displaysurface -
Displaytechnology - LED
EAN - 4948570116768
EANCode - 4948570116768
EAN_code - 4948570116768
EnergyconsumptionSDRper1000hou - 19 kWh
EnergyefficiencyclassHDR -
EnergyefficiencyclassSDR - F
Energyefficiencyscale - A to G
Ergonomics -
Ergonomics - Number of OSD languages - 6
Ergonomics - On Screen Display (OSD) - Yes
Ergonomics - On Screen Display (OSD) languages - Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - Plug and Play - Yes
Ergonomics - VESA mounting - Yes
Ergonomics - Wall mountable - Yes
EthernetLAN -
Fastcharging -
Feetcolour -
Flickerfreetechnology -
Gewicht - 6.73
GRUPPE1 - Displays
GRUPPE2 - Lcd Touchscreen
GTIN - 4948570116768
Hazerate -
HDCP - Yes
HDMI - Yes
HDMIportsquantity - 1
HDMIversion -
HDtype - Full HD
Headphoneconnectivity -
Headphoneout -
Headphoneoutputs - 1
Heightadjustment -
Heightwithoutstand - 315 mm
Heightwithstand - 315 mm
HERSTELLER - IIYAMA CONSIGNMENT
HighLights -
Horizontalscanrange - 31.4 - 82 kHz
HSTNUMMER - TF2215MC-B2
InfraredIRsensor -
LEDbacklight -
Logistics data - Harmonized System (HS) code - 85285210
LongDesc -
LongDesc - The ProLite TF2215MC-B2 (21.5 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2215MC-B2 can be equipped with optional external mounting brackets ( OMK3-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
LongProductName - 10pt touch Open Frame monitor with IPS panel and touch through glass function
LongSummaryDescription - iiyama ProLite TF2215MC-B2. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 14 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
LowBlueLighttechnology -
Manufacturer - Iiyama
Manufacturer - iiyama
Manufacturer_code - TF2215MC-B2
ManufDatasheet - https://www.tdbaltic.ee/leaflets/IIYAMA/TF2215MC-B2.pdf
Marketpositioning -
Maximumrefreshrate -
Megapixelapprox -
MPN - TF2215MC-B2
Multimedia -
Multimedia - Built-in camera - No
Multimedia - Built-in microphone - No
Name - IIYAMA 54.6cm (21.5") TF2215MC-B2 16:9 M-Touch HDMI+DP
Name - Iiyama TF2215MC-B2 - 21.5 - LED (Black, Full HD, touch screen, IPS)
Nativeaspectratio - 16:9
Network -
Numberofspeakers -
NumberofUSBTypeBupstreamportsq -
NVIDIAGSYNC - No
OnScreenDisplayOSD - Yes
OperatingrelativehumidityHH - 20 - 80%
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 90%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - AC adapter included - Yes
Other features - Active display area (W x H) - 476.064 x 267.786 mm
Other features - Brightness - 315 cd/m²
Other features - Certification - CB, CE, TÜV-Bauart, CU, cULus, REACH
Other features - Compatible operating systems - All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Other features - Compliance certificates - CB, CE, cULus, REACH, RoHS, WEEE
Other features - Control panel - Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Other features - Depth - 42.5 mm
Other features - Display viewable area (HxV) - 476.064 x 267.786 mm
Other features - Full HD - Yes
Other features - Height - 315 mm
Other features - International Protection (IP) code - IP65
Other features - Packaging content - AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad
Other features - Placement supported - Horizontal/Vertical
Other features - Touch method - stylus, finger, glove (latex)
Other features - User controls - picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp, sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)
Other features - Weight - 4.4 kg
Other features - Width - 520 mm
Packagedepth -
Packageheight -
Packagetype -
Packageweight -
Packagewidth -
Packagingcontent -
Packaging content - Cables included - AC, USB, HDMI, DisplayPort
Packaging content - Quick start guide - Yes
Packagingdata -
Panelmountinginterface - 100 x 100 mm
Paneltype - IPS
Performance -
Performance - AMD FreeSync - No
Performance - NVIDIA G-SYNC - No
Performance - OmniTapps Multitouch compatibility - No
Pivot -
Pivotangle -
Pixeldensity -
Pixelpitch - 0.24795 x 0.24795 mm
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - USB Touch port - Yes
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Portsinterfaces -
Power -
Power - AC adapter output voltage - 12 V
Power - Energy consumption (SDR) per 1000 hours - 19 kWh
Power - Energy efficiency class (SDR) - F
Power - Energy efficiency scale - A to G
Power - Power consumption (off) - 0.32 W
Power - Power consumption (standby) - 1.05 W
Power - Power consumption (typical) - 20.8 W
Power - Power supply type - External
Powerconsumptionmax -
Powerconsumptionoff - 0.32 W
Powerconsumptionstandby - 1.05 W
Powerconsumptiontypical - 20.8 W
Powersupplytype - External
ProdDesc - 22" PCAP, Bezel Free 10P Touch Screen, 1920 x 1080, Anti-Fingerprint coating, 350cd/m², 1000:1, 14ms, Thru Glass, External Power Adapter, VESA 100, MultiTouch only with supported OS, IP65, 7H glass
Productcolour - Black
Productcondition - Original
ProductHighLights -
- Touchscreen 54.6 cm (21.5") LED IPS
- Full HD 1920 x 1080 pixels 16:9
- 14 ms 350 cd/m² 1000:1
- F 19 kWh 20.8 W
ProductName - TF2215MC-B2
ProductPicture - https://www.tdbaltic.ee/images/products/IIYAMA/TF2215MC-B2_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/IIYAMA/TF2215MC-B2_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/IIYAMA/TF2215MC-B2_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/IIYAMA/TF2215MC-B2_4.jpg
ProductPicture4 - https://www.tdbaltic.ee/images/products/IIYAMA/TF2215MC-B2_5.jpg
ProductPicture5 - https://www.tdbaltic.ee/images/products/IIYAMA/TF2215MC-B2_6.jpg
ProductPicture6 - https://www.tdbaltic.ee/images/products/IIYAMA/TF2215MC-B2_7.jpg
ProductPicture7 - https://www.tdbaltic.ee/images/products/IIYAMA/TF2215MC-B2_8.jpg
ProductPicture8 - https://www.tdbaltic.ee/images/products/IIYAMA/TF2215MC-B2_9.jpg
Quickstartguide - Yes
Remotelyoperated -
Responsetime - 14 ms
Responsetimefast -
Responsetimemeasurementtype -
RMSratedpower -
Screenshape - Flat
ShortSummaryDescription - iiyama ProLite TF2215MC-B2, 54.6 cm (21.5"), 1920 x 1080 pixels, Full HD, LED, 14 ms, Black
SRGBcoveragetypical -
Stck_Kart - 1
Stck_Pal - 7
StoragerelativehumidityHH - 10 - 90%
Storno - Y
Supportedgraphicsresolutions -
Surfacehardness - 7H
Sustainability - Sustainability certificates - ErP
Swivelanglerange -
Swivelling -
Tiltadjustment -
Tiltanglerange -
Title - iiyama ProLite TF2215MC-B2 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
Touchscreen - Yes
URL - https://iiyama.com/
USBhubversion -
USBPowerDeliveryUSBPD -
USBTypeAdownstreamportsquantit -
USBTypeCDisplayPortAlternateMo -
Verticalscanrange - 56 - 75 Hz
VESAmounting - Yes
Viewablesizediagonal -
Viewablesizehorizontal - 47.6 cm
Viewablesizevertical - 26.8 cm
Viewinganglehorizontal - 178°
Viewinganglevertical - 178°
Warranty - 36 months
Warrantyandmisc -
WarrantyInfo -
Weight - 7
Weight - 7,25
Weight & dimensions - Depth (without stand) - 42.5 mm
Weight & dimensions - Depth (with stand) - 42.5 mm
Weight & dimensions - Height (without stand) - 315 mm
Weight & dimensions - Height (with stand) - 315 mm
Weight & dimensions - Weight (without stand) - 4.4 kg
Weight & dimensions - Weight (with stand) - 4.4 kg
Weight & dimensions - Width (without stand) - 520 mm
Weight & dimensions - Width (with stand) - 520 mm
Weightdimensions -
Weightwithoutstand - 4.4 kg
Weightwithstand - 4.4 kg
Widthwithoutstand - 520 mm
Widthwithstand - 520 mm
