ARTIKEL1 - 15IN PCAP BEZEL FREE 10P TOUCH
ARTIKEL2 - 1024X768 ANTI-FINGERPRINT VGA DI
Brand - iiyama
BrandPartCode - TF1534MC-B8X
Breite - 0
Category - Computer Monitors
Design - Front bezel colour - Black
Design - Market positioning - Business
Design - Product colour - Black
Display - Contrast ratio (typical) - 800:1
Display - Display brightness - 300 cd/m²
Display - Display brightness (peak) - 350 cd/m²
Display - Display brightness (typical) - 300 cd/m²
Display - Display diagonal - 38.1 cm (15")
Display - Display diagonal (metric) - 38 cm
Display - Display number of colours - 16.2 million colours
Display - Display resolution - 1024 x 768 pixels
Display - Display technology - LED
Display - HD type - XGA
Display - Horizontal scan range - 31 - 60 kHz
Display - Maximum refresh rate - 75 Hz
Display - Native aspect ratio - 4:3
Display - Number of simultaneous touchpoints - 10
Display - Panel type - TN
Display - Pixel pitch - 0.297 x 0.297 mm
Display - Response time - 8 ms
Display - Screen shape - Flat
Display - Surface hardness - 7H
Display - Touchscreen - Yes
Display - Touchscreen technology - Projected capacitive system
Display - Viewable size, horizontal - 30.4 cm
Display - Viewable size, vertical - 22.8 cm
Display - Viewing angle, horizontal - 170°
Display - Viewing angle, vertical - 160°
EANCode - 4948570127801
Ergonomics - Cable lock slot - Yes
Ergonomics - Cable lock slot type - Kensington
Ergonomics - Height adjustment - No
Ergonomics - On Screen Display (OSD) - Yes
Ergonomics - On Screen Display (OSD) languages - Traditional Chinese, German, English, Spanish, French, Italian, Japanese

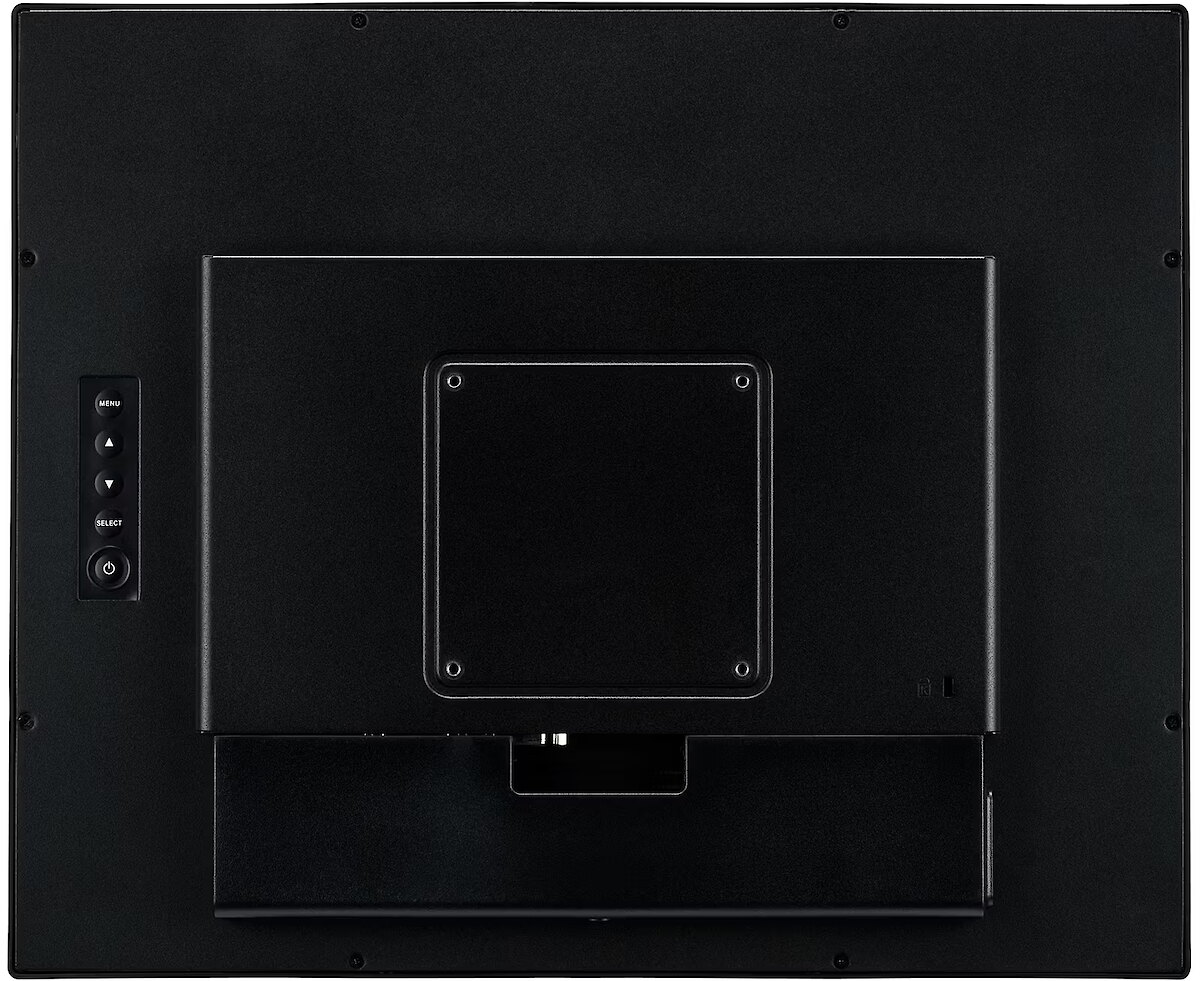

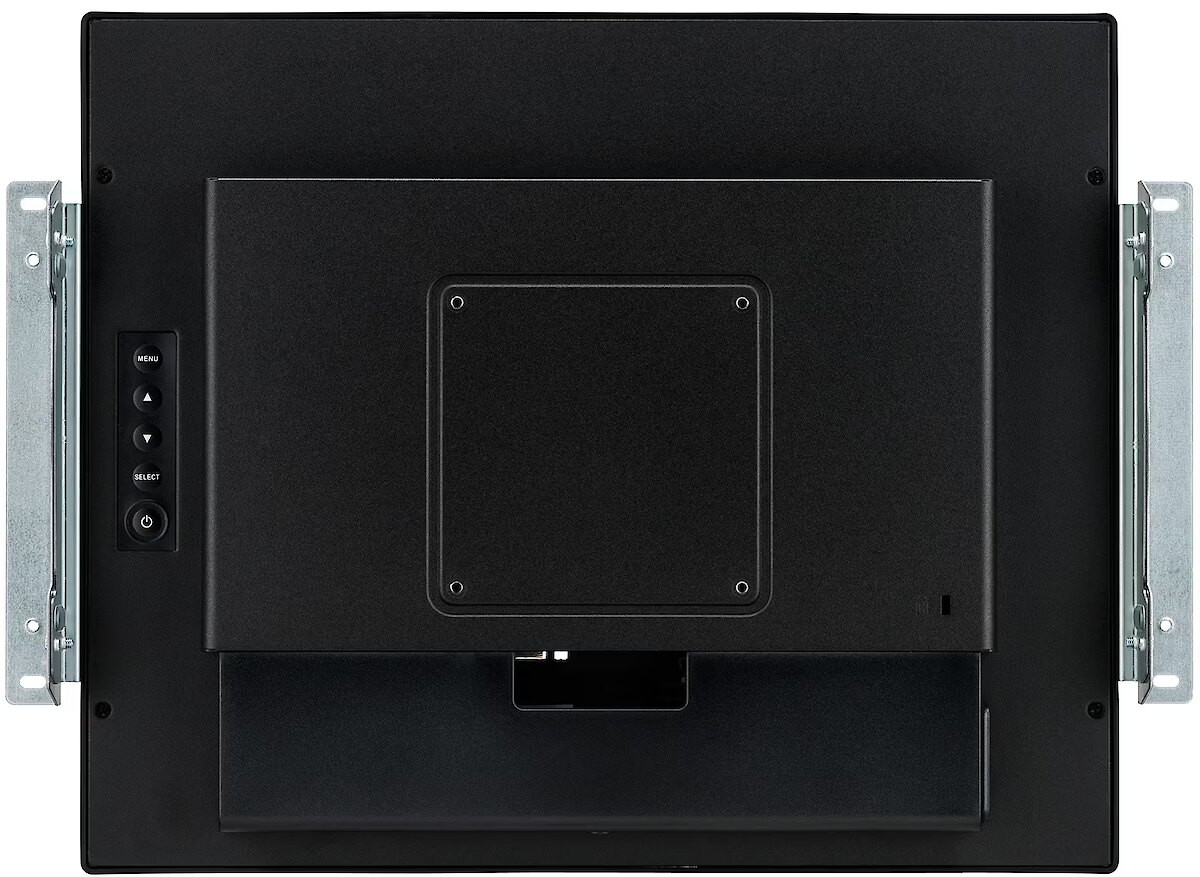

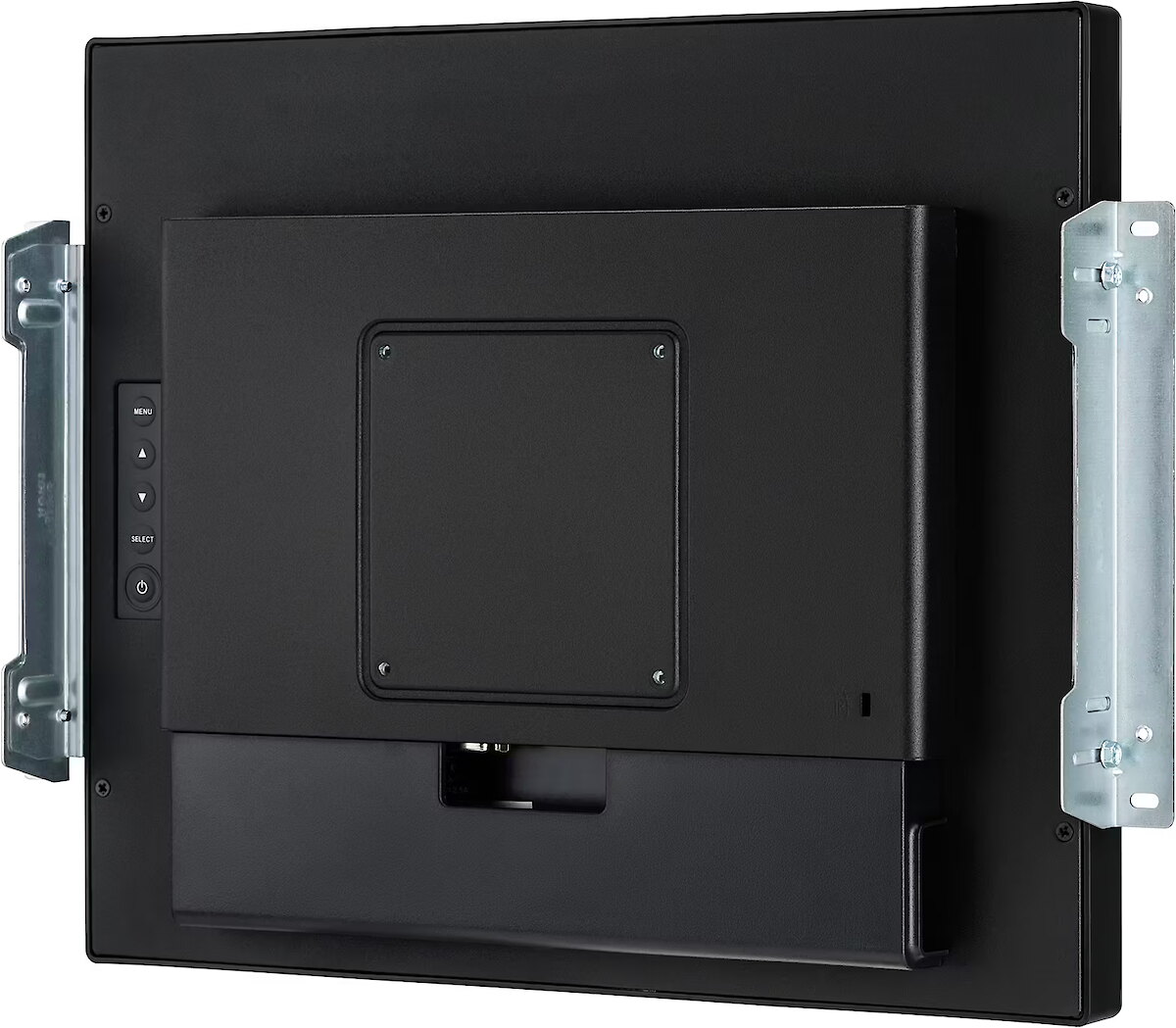

Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - VESA mounting - Yes
GRUPPE1 - Displays
GRUPPE2 - Lcd Monitor
GTIN - 4948570127801
HERSTELLER - IIYAMA CONSIGNMENT
Hoehe - 0
HSTNUMMER - TF1534MC-B8X
Laenge - 0
Logistics data - Pallet net height - 2.43 m
Logistics data - Pallet net length - 114 cm
Logistics data - Pallet net width - 91 cm

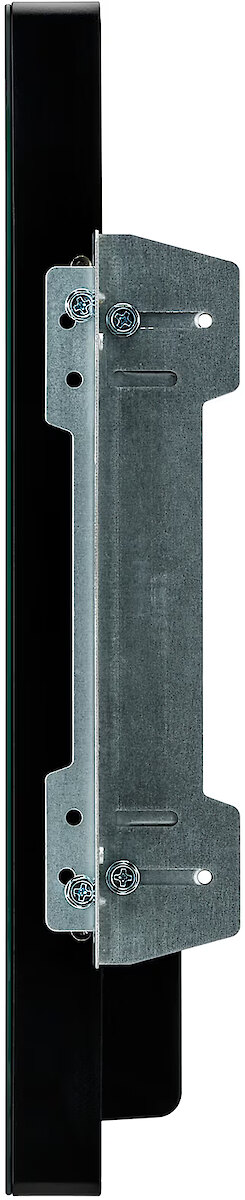

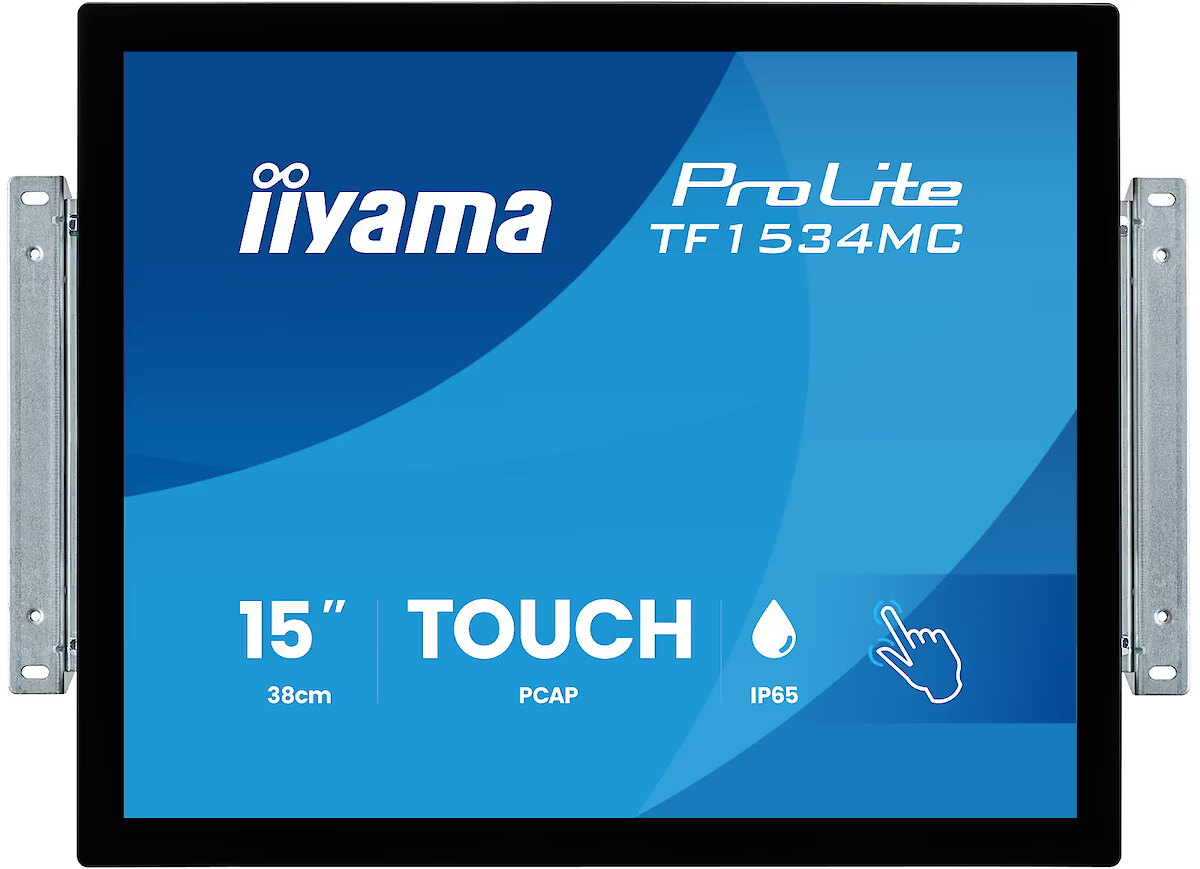

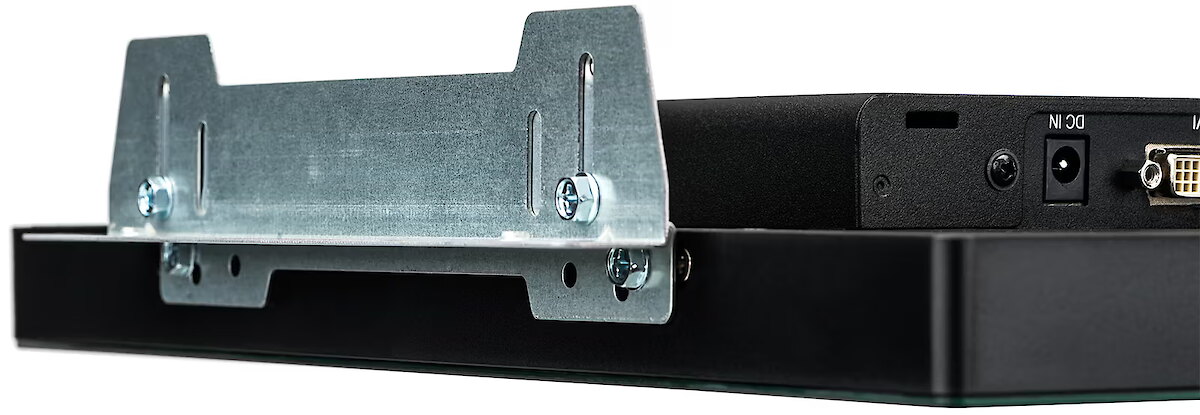

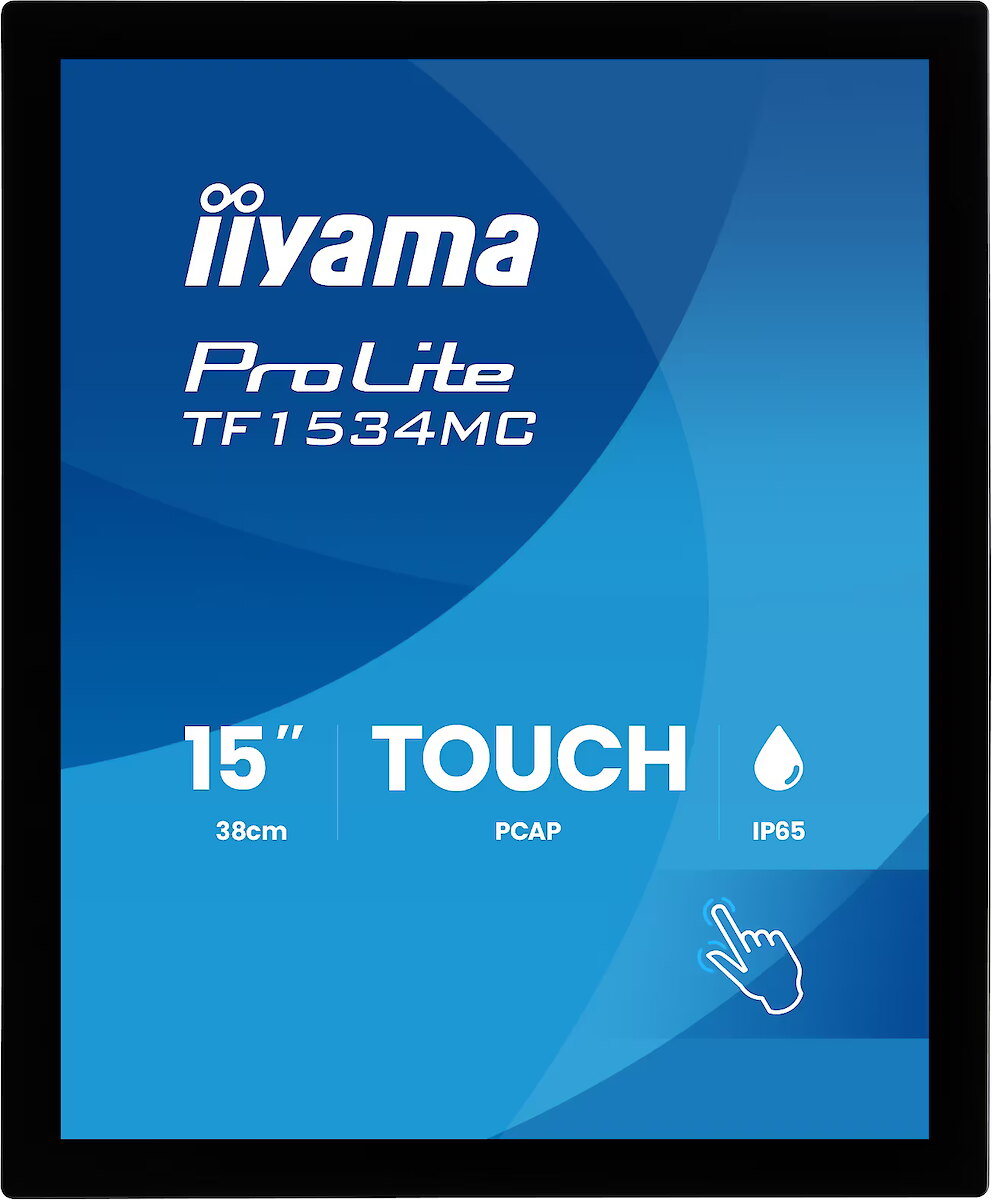

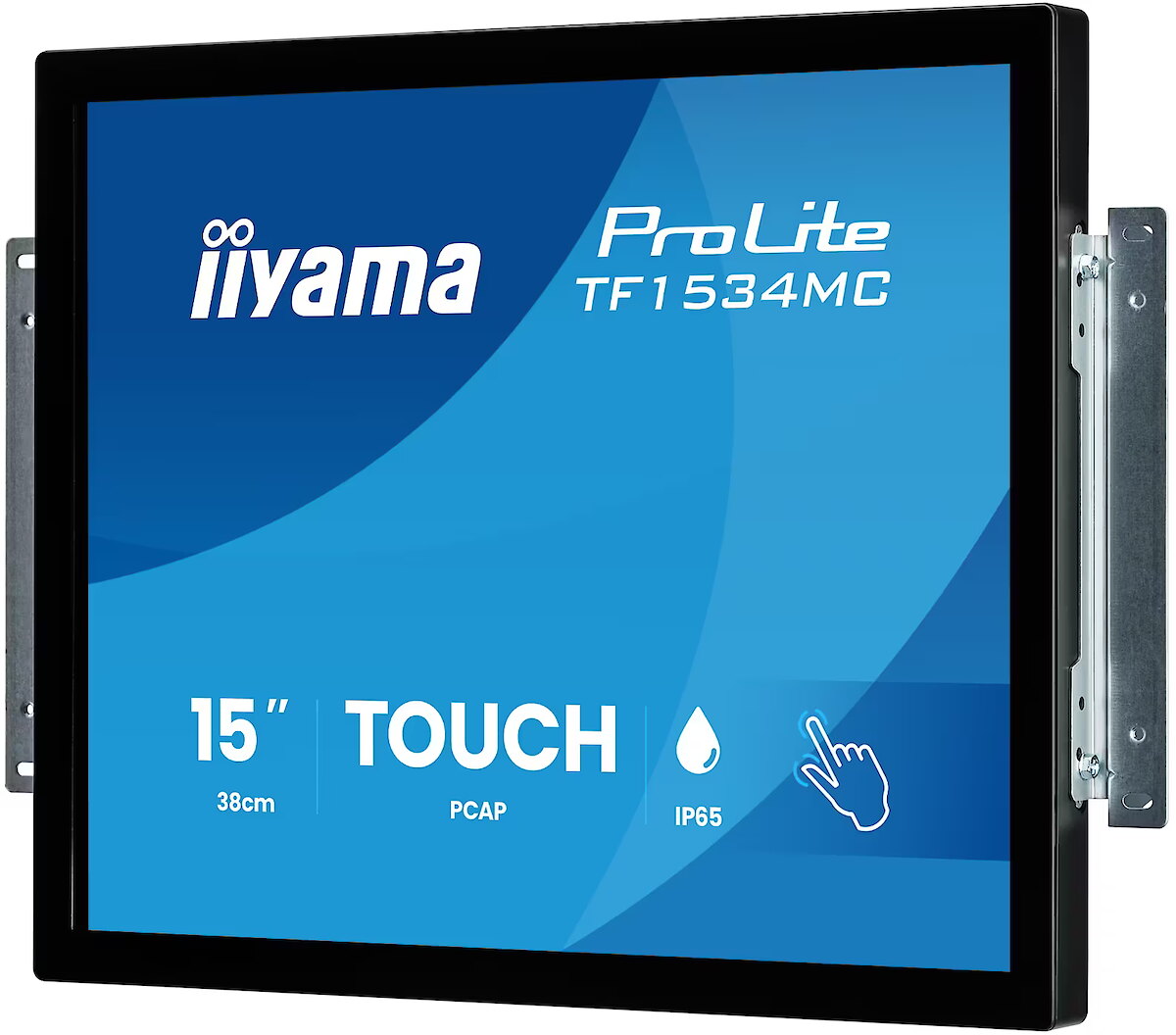

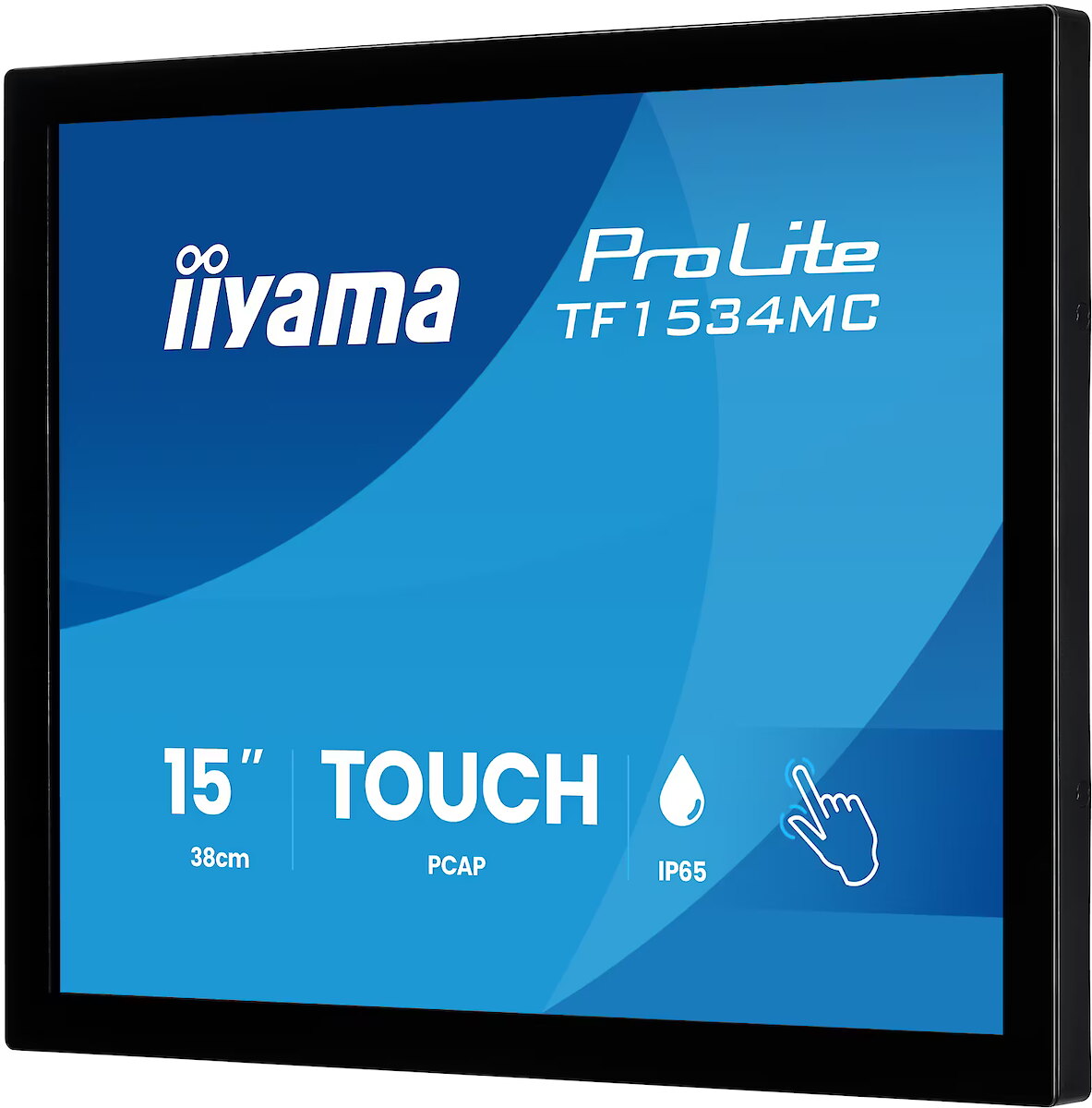

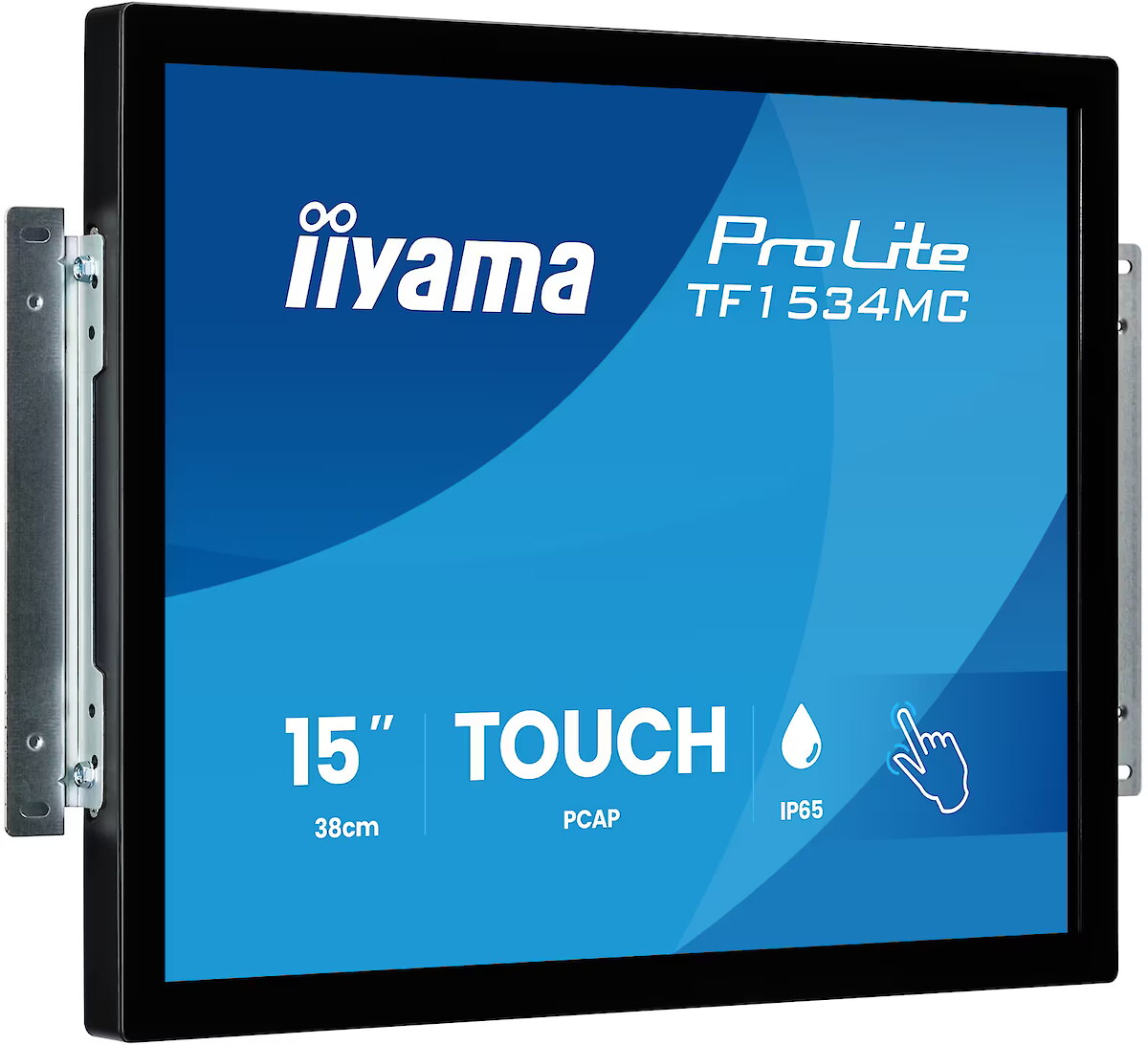

LongDesc - The ProLite TF1534MC-B8X is a 15” Open Frame touchscreen monitor designed for integration into kiosks, retail systems, interactive displays and custom installations. Its 10-point PCAP touch technology provides accurate multi-touch operation, while the edge-to-edge glass surface offers durability, scratch resistance and a clean, professional appearance. With IP65-rated front protection, the screen is resistant to dust and splashing water from the front, making it suitable for demanding public and commercial environments. The anti-fingerprint coating helps keep the display clear and easy to use, even with frequent interaction. For applications requiring additional protection, the Touch Through-Glass function allows reliable touch operation through a glass overlay up to 6 mm. The monitor can be installed in landscape, portrait or face-up orientation, while optional Open Frame mounting brackets support easy and secure integration into different installation designs. For ease of integration, the monitor can be equipped with optional external mounting brackets ( OMK1-1 ).
LongProductName - 15” Open Frame touchscreen monitor with edge-to-edge glass and Touch Through-Glass function for flexible integration
LongSummaryDescription - iiyama ProLite TF1534MC-B8X. Display diagonal: 38.1 cm (15"), Display resolution: 1024 x 768 pixels, HD type: XGA, Display technology: LED, Response time: 8 ms, Native aspect ratio: 4:3, Viewing angle, horizontal: 170°, Viewing angle, vertical: 160°. VESA mounting. Product colour: Black
Multimedia - Built-in camera - No
Multimedia - Built-in speaker(s) - No
Other features - AC adapter included - Yes
Other features - Active display area (W x H) - 304 x 228 mm
Other features - Brightness - 300 cd/m²
Other features - Compatible operating systems - All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Other features - Compliance certificates - CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Other features - Control panel - Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Other features - Depth - 45 mm
Other features - Height - 267 mm
Other features - International Protection (IP) code - IP65
Other features - Mean time between failures (MTBF) - 50000 h
Other features - Packaging content - AC adapter
Other features - Positional accuracy - 2 mm
Other features - Touch method - stylus, finger, glove (latex)
Other features - User controls - picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
Other features - Weight - 2.7 kg
Other features - Width - 338 mm

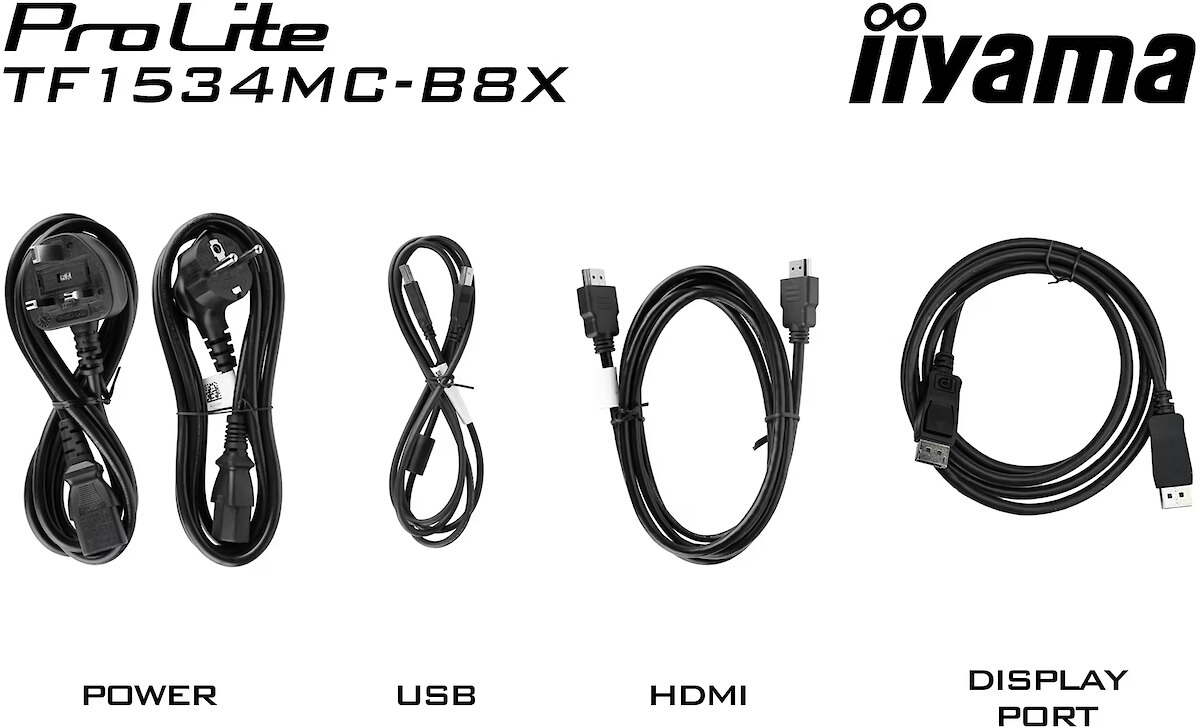

Packaging content - Cables included - AC, USB, HDMI, DisplayPort
Packaging content - DisplayPort cable length - 1.8 m
Packaging content - HDMI cable length - 1.8 m
Packaging content - Power cable length - 1.8 m
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 435 mm
Packaging data - Package height - 165 mm
Packaging data - Package weight - 4 kg
Packaging data - Package width - 355 mm
Packaging data - USB cable length - 1.8 m
Performance - AMD FreeSync - No
Performance - NVIDIA G-SYNC - No
Performance - Palm rejection - Yes
Ports & interfaces - Built-in USB hub - No
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Headphone out - No
Ports & interfaces - USB Touch port - Yes
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - AC adapter output voltage - 12 V
Power - Energy consumption (SDR) per 1000 hours - 9 kWh
Power - Energy efficiency class (HDR) - Not available
Power - Energy efficiency class (SDR) - D
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.8 W
Power - Power consumption (typical) - 9 W
Power - Power supply type - External
ProductName - TF1534MC-B8X
ShortSummaryDescription - iiyama ProLite TF1534MC-B8X, 38.1 cm (15"), 1024 x 768 pixels, XGA, LED, 8 ms, Black
Stck_Kart - 1
Stck_Pal - 7
Storno - Y
Sustainability - Sustainability certificates - ErP
Technical details - Native refresh rate - 60 Hz
Title - iiyama ProLite TF1534MC-B8X computer monitor 38.1 cm (15") 1024 x 768 pixels XGA LED Touchscreen Black
URL - https://iiyama.com/
WarrantyInfo -
Weight & dimensions - Depth (with stand) - 45 mm
Weight & dimensions - Height (with stand) - 267 mm
Weight & dimensions - Weight (with stand) - 2.7 kg
Weight & dimensions - Width (with stand) - 338 mm
