Brand - Viewsonic
BrandPartCode - TD2223
Category - Computer Monitors
Category 1 - Displays
Category 2 - Monitore
Design - Glass thickness - 2 mm
Design - Product colour - Black
Display - Contrast ratio (dynamic) - 20000000:1
Display - Contrast ratio (typical) - 1000:1
Display - Display brightness - 250 cd/m²
Display - Display diagonal - 54.6 cm (21.5")
Display - Display number of colours - 16.78 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LED
Display - HD type - Full HD
Display - Horizontal scan range - 24 - 82 kHz
Display - Maximum refresh rate - 75 Hz
Display - Native aspect ratio - 16:9
Display - Number of simultaneous touchpoints - 10
Display - Panel type - TN
Display - Pixel pitch - 0.248 x 0.248 mm
Display - Response time - 5 ms
Display - Screen shape - Flat
Display - Touchscreen - Yes
Display - Touchscreen technology - Infrared
Display - Touchscreen type - Multi-user
Display - Touch technology - Multi-touch
Display - Vertical scan range - 50 - 75 Hz
Display - Viewing angle, horizontal - 170°
Display - Viewing angle, vertical - 160°
EAN - 0766907008647
Ergonomics - Cable lock slot - Yes
Ergonomics - Cable lock slot type - Kensington
Ergonomics - Panel mounting interface - 100 x 100 mm

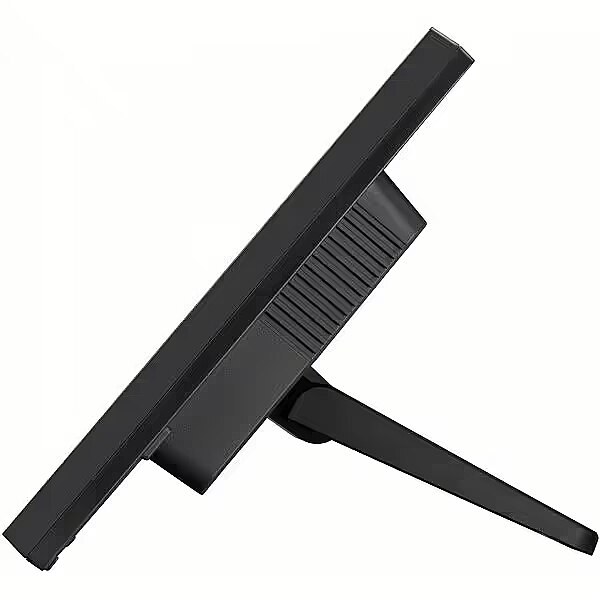

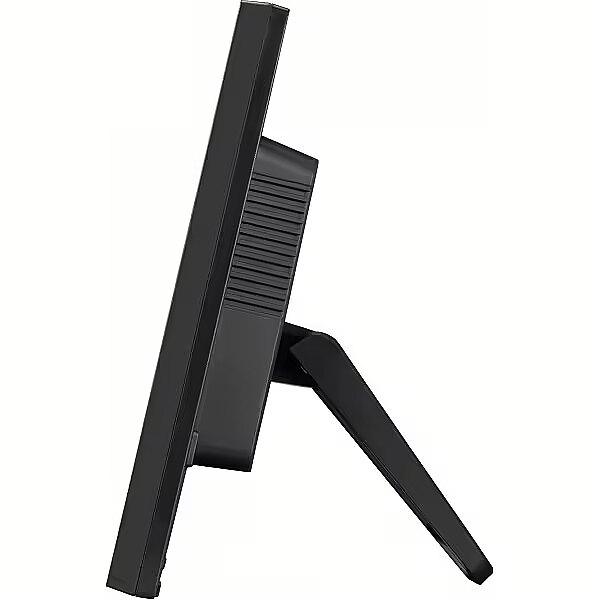

Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - 22 - 38°
Ergonomics - Wall mountable - Yes
GTIN - 0766907008647
GTIN - 766907008647
Logistics data - Harmonized System (HS) code - 85285210

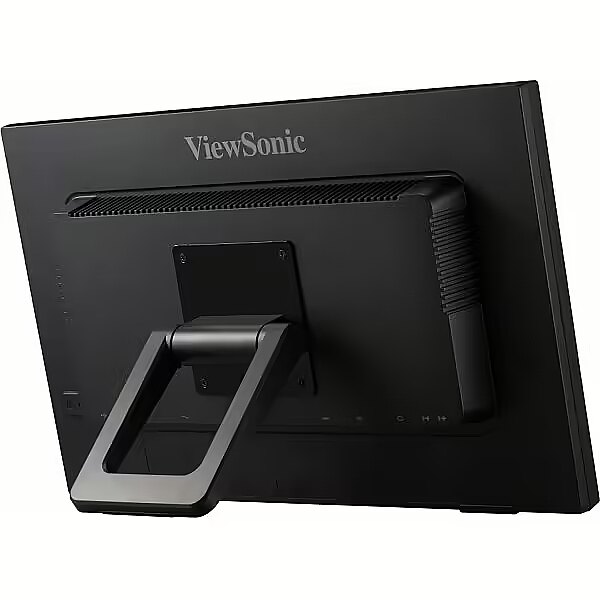

LongDesc - The ViewSonic TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.Intuitive Multi-touch ExperienceAn infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.Operating System SupportThis monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.Simple and Safer Way to InteractThis monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.Anti-scratch TouchscreenWith a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.Adjustable TiltThis monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.Clear ImagesThis monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.Dual Integrated SpeakersWith built-in 2-watt speakers, this monitor provides you a better audiovisual experience.Enhanced Viewing ComfortThis monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.
LongProductName - 21.5", 1920x1080, 16:9, TN, VGA, USB, HDMI, DVI-D, 521x334x101 mm
LongSummaryDescription - Viewsonic TD2223. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 170°, Viewing angle, vertical: 160°. Built-in speaker(s). Built-in USB hub. Product colour: Black
Manufacturer - Viewsonic
MPN - TD2223
Multimedia - Built-in camera - No
Multimedia - Built-in microphone - No
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of speakers - 2
Multimedia - RMS rated power - 4 W
Name - Viewsonic 54.6cm TD2223 Touch 16:9 HDMI/VGA/DVI FHD
Operational conditions - Operating relative humidity (H-H) - 20 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Certification - cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP
Other features - Compliance certificates - REACH, RoHS
Packaging content - Cables included - AC, Audio (3.5mm), HDMI, USB Type-A to USB Type-B
Packaging content - Stand included - Yes
Packaging data - Package depth - 164 mm
Packaging data - Package height - 405 mm
Packaging data - Package weight - 6 kg
Packaging data - Package width - 580 mm
Performance - AMD FreeSync - No
Performance - NVIDIA G-SYNC - No

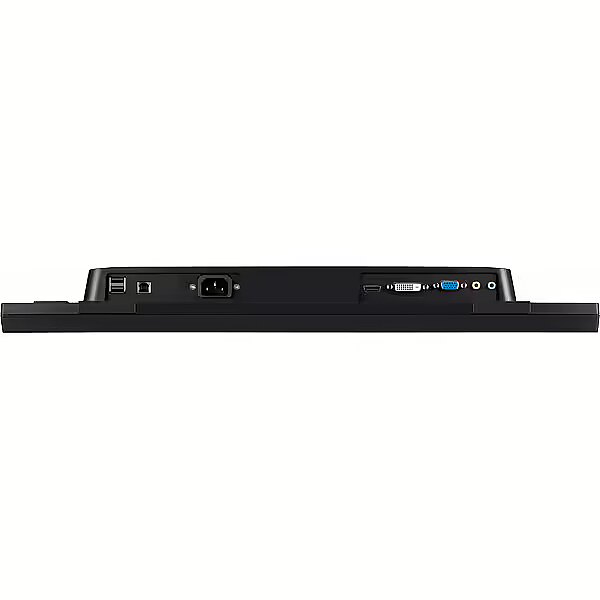

Ports & interfaces - Built-in USB hub - Yes
Ports & interfaces - DVI-D ports quantity - 1
Ports & interfaces - DVI port - Yes
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - Headphone out - Yes
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Microphone in - Yes
Ports & interfaces - Number of upstream ports - 1
Ports & interfaces - USB Type-A downstream ports quantity - 2
Ports & interfaces - USB upstream port type - USB Type-B
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100-240 V
Power - Energy consumption (SDR) per 1000 hours - 14 kWh
Power - Energy efficiency class (SDR) - E
Power - European Product Registry for Energy Labelling (EPREL) code - 368718
Power - Power consumption (max) - 14 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 12.5 W
Power - Power supply type - AC
ProductName - TD2223
ShortSummaryDescription - Viewsonic TD2223, 54.6 cm (21.5"), 1920 x 1080 pixels, Full HD, LED, 5 ms, Black
Sustainability - Sustainability certificates - ENERGY STAR
Title - Viewsonic TD2223 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
URL - https://www.viewsonic.com/id/products/lcd/TD2223.php
WarrantyInfo -
Weight & dimensions - Depth (without stand) - 61 mm
Weight & dimensions - Depth (with stand) - 101 mm
Weight & dimensions - Height (without stand) - 318 mm
Weight & dimensions - Height (with stand) - 334 mm
Weight & dimensions - Weight (without stand) - 3.9 kg
Weight & dimensions - Weight (with stand) - 4.5 kg
Weight & dimensions - Width (without stand) - 521 mm
Weight & dimensions - Width (with stand) - 521 mm
