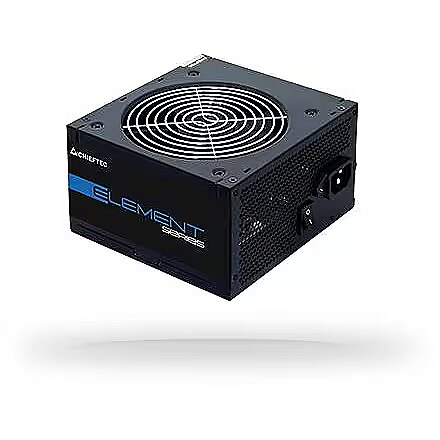

Chieftec Element Series, 700W, 80 PLUS Bronze

80 PLUS certification Performance - 80 PLUS Bronze
AC input frequency Power - 47 - 63 Hz
AC input voltage Power - 200 - 240 V
ATX version Performance - 2.3
Brand - Chieftec
BrandPartCode - ELP-700S
Cabling type Ports & interfaces - Non-Modular
Category - Power Supply Units
Category Code - PSU
Certificates - Compliance certificates - CB, CE, EAC, RoHS
Combined power (+3.3V) Power - 130 W
Combined power (+5V) Power - 130 W
Combined power (+5Vsb) Power - 12.5 W
Combined power (+12V) Power - 648 W
Combined power (-12V) Power - 3.6 W
Compliance certificates Certificates - CB/CE/EAC/RoHS
Cooling type Design - Active
Depth Weight & dimensions - 150 mm
Description - The brand new ELEMENT series combines innovation, high quality, great design and efficiency. With a silent running 12cm fan, the PSU is held in decent black, equipped with long native cables, a power cord, and a solid and eye catching retail box. With an efficiency of over 85% (BRONZE) @230V, the ELEMENT series fulfills the requirement of GREEN IT at an attractive price.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Efficiency Power - 85 %
EPS power connector (4+4 pin) Ports & interfaces - Yes
Fan diameter Design - 120 mm
Floppy disk drive connector Ports & interfaces - Yes
GTIN - 4710713230972
Height Weight & dimensions - 86 mm
Input current Power - 5 A
LongDesc - The brand new ELEMENT series combines innovation, high quality, great design and efficiency. With a silent running 12cm fan, the PSU is held in decent black, equipped with long native cables, a power cord, and a solid and eye catching retail box. With an efficiency of over 85% (BRONZE) @230V, the ELEMENT series fulfills the requirement of GREEN IT at an attractive price.
LongProductName - 700 W, 120 mm, ATX 12V 2.3, >85%, Active PFC (0.9), 1.65 kg
LongSummaryDescription - Chieftec ELP-700S. Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC, RoHS
Max output current (+3.3V) Power - 22 A
Max output current (+5V) Power - 22 A
Max output current (+5Vsb) Power - 2.5 A
Max output current (+12V) Power - 54 A
Motherboard power cable length Ports & interfaces - 650 mm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 6
On/off switch Design - Yes
Package type Packaging data - Box
Package weight Packaging data - 1900 g
Packaging data - Package type - Box
Packaging data - Package weight - 1.9 kg
PCI Express connector Ports & interfaces - Yes
PCI Express power connectors (6+2 pin) Ports & interfaces - 1
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC
Performance - Supported motherboard form factors - ATX
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Motherboard power cable length - 65 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - SATA power cable length - 150,500 mm
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 130 W
Power - Combined power (+5V) - 130 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 648 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Input current - 5 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 54 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over power, Over voltage, Short circuit, Under voltage
Power - Total power - 700 W
Power Factor Correction (PFC) type Power - Active
Power factor Power - 0.9
Power protection features Power - Over power/Over voltage/Short circuit/Under voltage
Power supply unit (PSU) form factor Performance - PS/2
Product colour Design - Black
ProductName - ELP-700S
Purpose Performance - PC
SATA power cable length Ports & interfaces - 150/500 mm
ShortSummaryDescription - Chieftec ELP-700S, 700 W, 200 - 240 V, 47 - 63 Hz, 5 A, Active, 130 W
Summary - Chieftec ELP-700S. Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC, RoHS
Supported motherboard form factors Performance - ATX
Title - Chieftec ELP-700S power supply unit 700 W 20+4 pin ATX PS/2 Black
Total power Power - 700 W
Unit Box Height - 0.098
Unit Box Length - 0.23
Unit Box Width - 0.17
Unit Calculated Volume - 0.003832 cubm
Unit Calculated Weight - 1.83 kg
Units per Shipping Box - 1
URL - https://www.chieftec.eu/products-detail/123/ELEMENT_SERIES/128/ELP-700S
Vendor Homepage - https://www.chieftec.eu/products-detail/123/ELEMENT_SERIES/128/ELP-700S
Warranty - 24 months
WarrantyInfo - 24 Months
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.65 kg
Weight & dimensions - Width - 140 mm
Weight Weight & dimensions - 1650 g
Width Weight & dimensions - 140 mm
