80 PLUS certification Performance - 80 PLUS Gold
AC input frequency Power - 50 - 60 Hz
AC input voltage Power - 100 - 240 V
ATX power connector (20+4 pin) Ports & interfaces - Yes
ATX version Performance - 3.0
Bearing technology Performance - FDB
Cables included Packaging content - AC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
Cable tie(s) included Packaging content - Yes

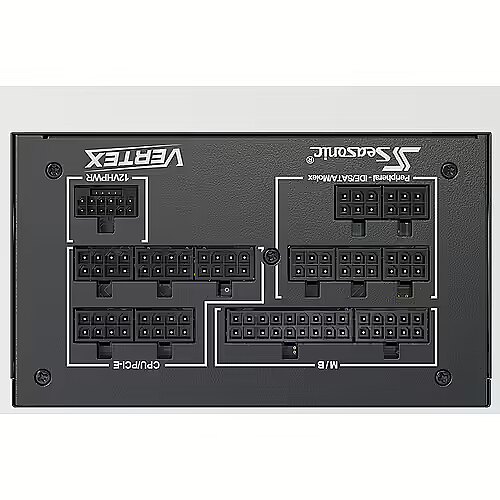

Cabling type Ports & interfaces - Fully-Modular
category - PC Components|Power Supplies|PCIe 5.0
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certification Certificates - cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH
code - VERTEX GX-1200
Combined power (+3.3V) Power - 125 W
Combined power (+5V) Power - 125 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 1200 W
Combined power (-12V) Power - 3.6 W
Cooling type Design - Active
CPU P4 connector (4-pin) Ports & interfaces - 2
CPU power cable length Ports & interfaces - 65 cm
Depth Weight & dimensions - 160 mm
Description - 80 PLUS GOLD
The Vertex GX Series achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load. ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)
Seasonic’s latest Vertex Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards. PREMIUM HYBRID FAN CONTROL
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level. FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan. HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.Super-High Efficiency, 80 PLUS Gold CertifiedFully ModularATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR)Top-Quality 135 mm Fluid Dynamic Bearing FanPremium Hybrid Fan ControlTight Voltage Regulation (12 V, 5 V and 3.3 V) [± 3 %]Gold Plated High Current Terminal (MB, CPU and PCIe)
ean - 4711173877721
EAN_code - 4711173877721
Fan diameter Design - 13.5 cm
Height Weight & dimensions - 86 mm
Input current Power - 15 - 7.5 A
Manufacturer - Seasonic
Manufacturer_code - VERTEX GX-1200
Max output current (+3.3V) Power - 25 A
Max output current (+5V) Power - 25 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 100 A
Max output current (-12V) Power - 0.3 A
Mean time between failures (MTBF) Performance - 150000 h
Model name - VERTEX GX
Motherboard power cable length Ports & interfaces - 61 cm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
Name - CASE PSU ATX 1200W/VERTEX GX-1200 SEASONIC
Name - Seasonic VERTEX GX-1200 1200W, PC power supply (black, cable management, 1200 watts)
name - Seasonic Vertex GX 80 PLUS Gold Netzteil, modular, ATX 3.1, PCIe 5.0 - 1200 Watt
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 4
On/off switch Design - Yes
Operating temperature (T-T) Operational conditions - 0 - 50 °C
Package type Packaging data - Box
Peripheral (Molex) power cable length Ports & interfaces - 690 mm
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 1
Power protection features Power - Over current, Over power, Over voltage, Short circuit, Under voltage
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black
Product Net Weight ELKO Logistics Data - 2 kg
Purpose Performance - PC
SATA power cable length Ports & interfaces - 950 mm
Shipping Box Depth ELKO Internal Logistics Data - 35 cm
Shipping Box Height ELKO Internal Logistics Data - 19 cm
Shipping Box Weight ELKO Internal Logistics Data - 3.97 kg
Shipping Box Width ELKO Internal Logistics Data - 11.5 cm
Summary - Seasonic Vertex GX-1200. Total power: 1200 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
Total power Power - 1200 W
Unit Box Height - 0.19
Unit Box Length - 0.35
Unit Box Width - 0.115
Unit Calculated Volume ELKO Internal Logistics Data - 0.007647 cubm
Unit Calculated Weight ELKO Logistics Data - 3.97 kg
Unit Depth ELKO Logistics Data - 35 cm
Unit Height ELKO Logistics Data - 19 cm
Units per Shipping Box ELKO Logistics Data - 1
Unit Width ELKO Logistics Data - 11.5 cm
Vendor Homepage - https://seasonic.com/vertex-gx
Warranty - 144 months
Warranty period Logistics data - 10 year(s)
Weight - 3,77
Width Weight & dimensions - 150 mm
