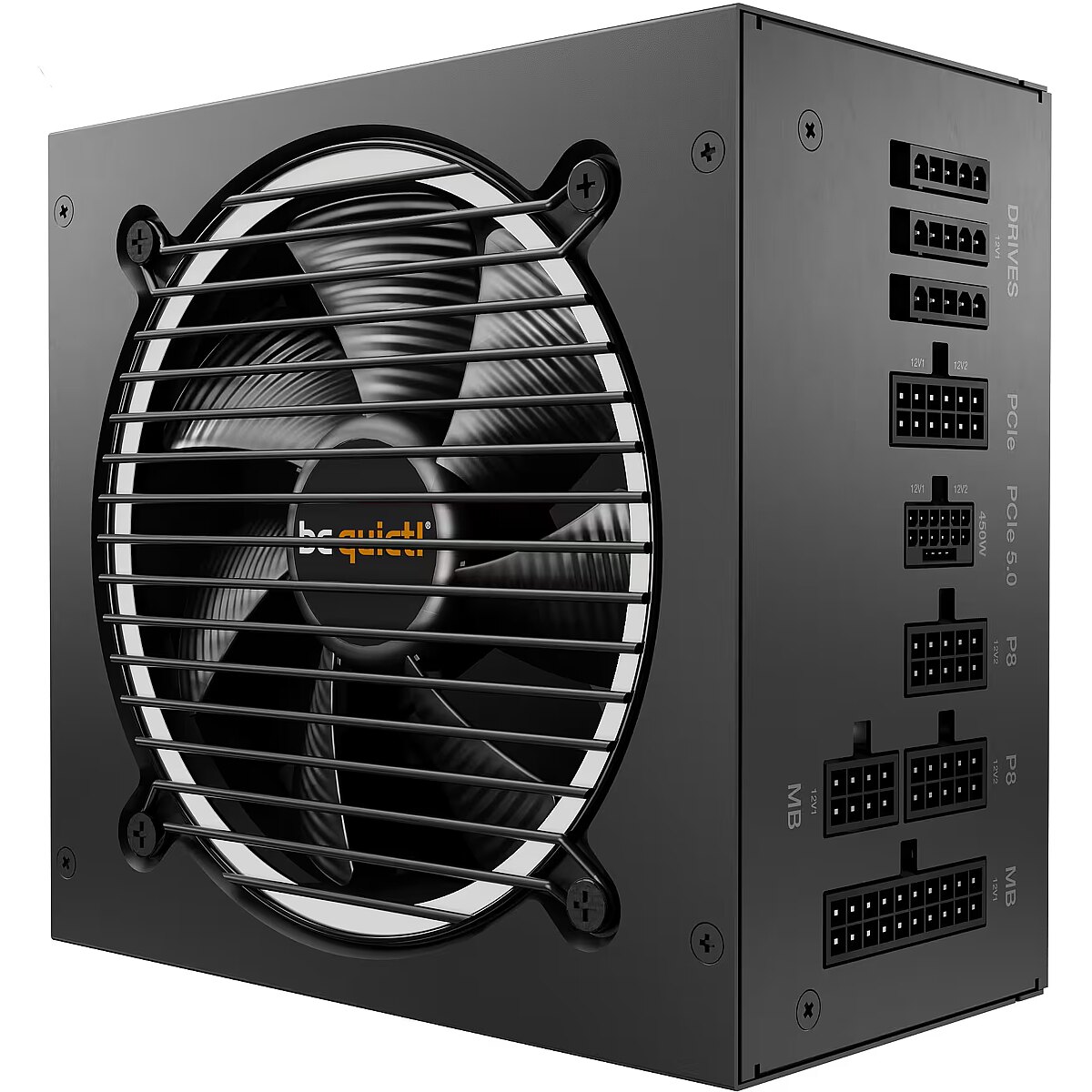

Be Quiet Pure Power 12 M, 650W, ATX 3.0, 80PLUS Gold

Brand - be quiet!
BrandPartCode - BN342
Category - Power Supply Units
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates - Compliance certificates - RoHS
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
EAN_code - 4260052189474
GTIN - 4260052189474
GTIN - 4260052189771
Logistics data - Warranty period - 10 year(s)
LongDesc - EXCEPTIONAL QUIET, SUPERIOR FEATURESPure Power 12 M 650W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 650W offers the best combination of features with outstanding compatibility.80 PLUS® GOLD CERTIFIEDVery high operating efficiencyPure Power 12 M 650W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 92.7%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 650W is always the correct choice for quiet systems and gaming PCs!FUTURE-PROOF YOUR SYSTEMFulfills all ATX 3.1 specificationsPure Power 12 M 650W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful present systems.THE NEW STANDARD OF POWERFor massive transient loadsPure Power 12 M offers 650W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 650W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.UNPRECEDENTED SILENT OPERATIONAchieved with a silence-optimized be quiet! fanThe exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-classquiet functionality. HIGH-CLASS TECHNOLOGIESRock-solid stabilityWith its LLC topology Pure Power 12 M 650W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs.MODULAR CABLESUtmost convenience and compatibilityThanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 650W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
LongProductName - 650W, ATX 3.1, 100 - 240V, 50 - 60Hz, 160 x 150 x 86mm, Black
LongSummaryDescription - be quiet! Pure Power 12 M. Total power: 650 W, AC input voltage: 100 - 240 V, Peak power: 720 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500,650,800,950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: PATA, PCIe, Peripheral (Molex), SATA
Manufacturer - Be quiet
Manufacturer_code - BN342
Name - be quiet! Pure Power 12M 650W, PC power supply (black, 3x PCIe, cable management, 650 watts)
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Cable ties included - Yes
Other features - Noise level (full-load mode, 100%) - 19.9 dB
Other features - Noise level (quiet mode, 50%) - 9.1 dB
Other features - Noise level (silent mode, Other features - Number of screws - 5
Other features - Screws included - Yes

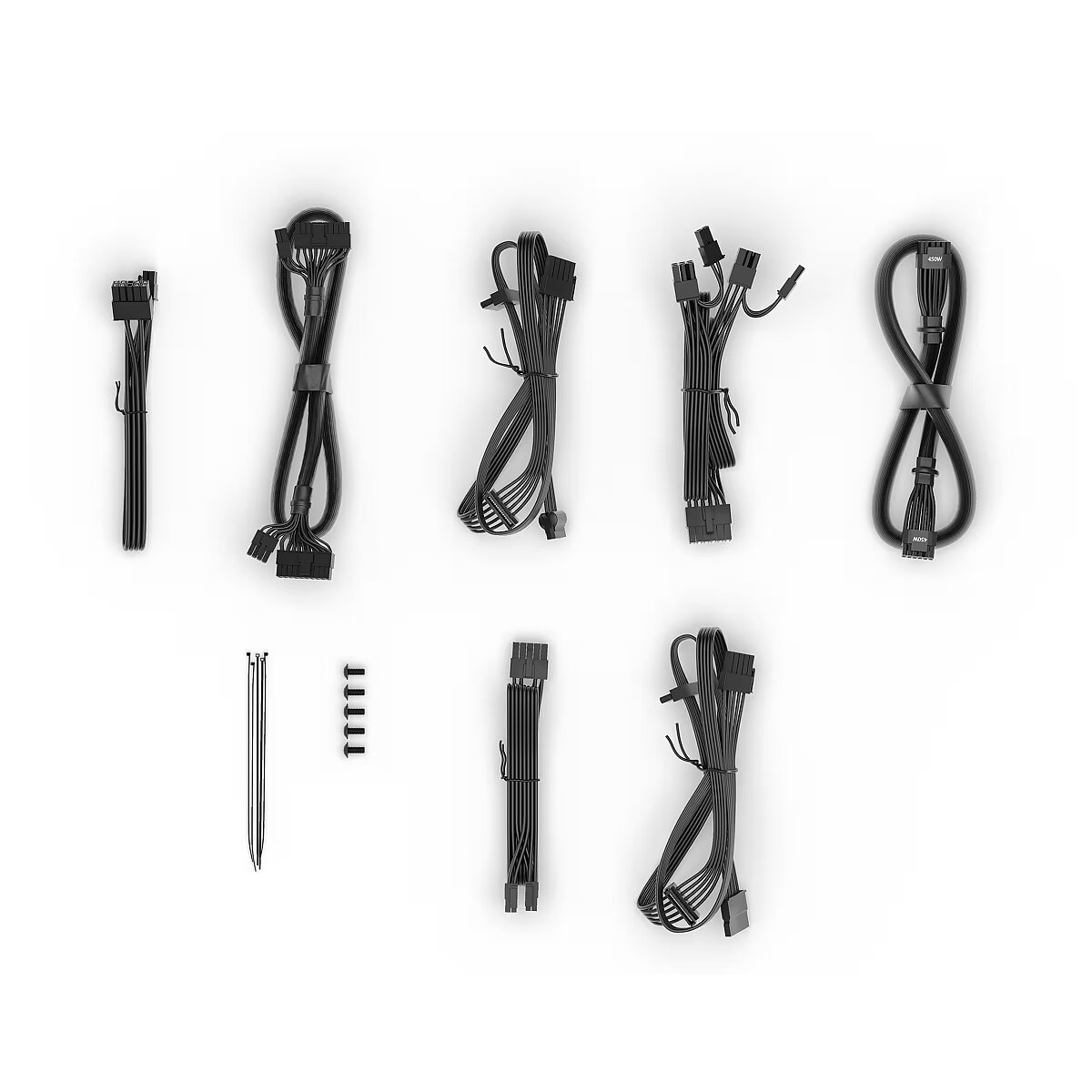

Packaging content - Cables included - PATA, PCIe, Peripheral (Molex), SATA
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 19.9 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU P4 connector (4-pin) - 1
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 2
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 550 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 500,650,800,950 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 650 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 92.7%
Power - Input current - 10/5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V1) - 32 A
Power - Max output current (+12V2) - 28 A
Power - Max output current (-12V) - 0.3 A
Power - Peak power - 720 W
Power - Power factor - 0.98
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit
Power - Total power - 650 W
ProductName - Pure Power 12 M
ShortSummaryDescription - be quiet! Pure Power 12 M, 650 W, 100 - 240 V, 720 W, 50 - 60 Hz, 10/5 A, Active
Technical details - Sustainability certificates - ENERGY STAR, ErP
Technical details - Sustainability compliance - Yes
Title - be quiet! Pure Power 12 M power supply unit 650 W 20+4 pin ATX ATX Black
URL - https://www.bequiet.com/en/powersupply/4069
WarrantyInfo -
Weight - 2,84
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 160 mm
