Be Quiet Dark Power 13, 750W, ATX 3.0, 80PLUS Titanium

Brand - be quiet!
BrandPartCode - BN333
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates - Certification - BSMI , CB, CCC, CE, cTUVus, CU, FCC, RCM, TÜV, UKCA, Triman
Certificates - Compliance certificates - RoHS, WEEE
Certificates - Waste Electrical and Electronic Equipment (WEEE) compliance - Yes
Dane techniczne: Certyfikat sprawności - 80 Plus Titanium
Dane techniczne: Dodatkowe informacje - PCIe 5.0 poprzez złącze 12VHPWR / 600W
Dane techniczne: Filtry - dodatkowa stabilizacja napięcia
Dane techniczne: Filtry - przeciwprzeciążeniowy
Dane techniczne: Filtry - przeciwprzepięciowy
Dane techniczne: Filtry - przeciwzwarciowy
Dane techniczne: Filtry - zabezpieczenie termiczne
Dane techniczne: Grupa produktowa - Zasilacze do komputera be quiet!
Dane techniczne: Gwarancja - 10 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 150 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Maks. głośność - 18.8 dB
Dane techniczne: Moc - 750 W
Dane techniczne: Model - be quiet! Dark Power 13
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: MTBF - 100000 godz.
Dane techniczne: Natężenie przy napięciu +3.3V - 22 A
Dane techniczne: Natężenie przy napięciu +5V - 22 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3 A
Dane techniczne: Natężenie przy napięciu +12V1 - 25 A
Dane techniczne: Natężenie przy napięciu +12V2 - 25 A
Dane techniczne: Natężenie przy napięciu +12V3 - 30 A
Dane techniczne: Natężenie przy napięciu +12V4 - 30 A
Dane techniczne: Natężenie przy napięciu -12V - 0.5 A
Dane techniczne: Odłączane przewody - nie
Dane techniczne: Producent - be quiet!
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 175 mm
Dane techniczne: Waga - 1.96 kg
Dane techniczne: Wersja standardu ATX - ATX 3.0
Dane techniczne: Wtyczka zasilania [pin] - 1 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 1 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 1 x EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 3 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 4 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 12 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SIP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 135 mm
Design - Built-in display - No
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Fan location - Top
Design - Fan speed - 0 - 2100 RPM
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Eans - 4260052189382
EAN_code - 4260052189382
GTIN - 4260052189382
Logistics data - Pallet gross weight (air) - 18.2 kg
Logistics data - Shipping (inner) case height - 36.8 cm
Logistics data - Shipping (inner) case length - 50.4 cm
Logistics data - Shipping (inner) case width - 30.5 cm
Logistics data - Warranty period - 10 year(s)
LongDesc - NO COMPROMISE SILENCE AND PERFORMANCEThe be quiet! Dark Power 13 750W offers 80 PLUS® Titanium efficiency, virtually inaudible operation, and ATX 3.0 compliance for next-gen GPU compatibility.80 PLUS® TITANIUM CERTIFIEDThe highest efficiency certificate availableDark Power 13 750W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 95.8%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.FUTURE-PROOF YOUR SYSTEMFulfills all ATX 3.0 specificationsDark Power 13 750W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come. THE NEW STANDARD OF POWERFor massive transient loadsDark Power 13 offers 750W of continuous power with 4 independent 12V rails. Even if the graphics card demands excessive power for a short time: Dark Power 13 750W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.FRAMELESS SILENT WINGS FANPatented fan technology for virtuallyinaudible operationThe improved tripod-mounted be quiet! Silent Wings fan enables maximum airflow and a virtually inaudible operation. This is thanks to its unique, airflow-optimized fan blade design along with an advanced fluid-dynamic bearing. A 6-pole fan motor ultimately makes for less vibration, super-long life and minimal power consumption.INNOVATIVE COOLING CONCEPTFor a longer lifespanThe split fan inlet of the Dark Power 13 750W is a custom-shaped funnel that increases airflow while reducing unwanted turbulence. The wire-free design inside allows the cool air to reach all components flawlessly which ultimately leads to a longer lifespan.READY FOR OVERCLOCKINGPushing the performance of your PSU to the maxDark Power 13 750W is particularly suitable for overclocking. The overclocking key gives you full overclocking control by manually switching between the default four 12V-rail mode and the alternative massive single-rail operation.WORLD CLASS TOPOLOGYState-of-the-art technology for extremelyhigh efficiencyWith an active rectifier and full bridge LLC technology Dark Power 13 750W offers some of the most advanced technologies available, resulting in higher efficiency, better regulation and lower ripple noise for an incomparablystable operation.JAPANESE 105° CAPACITORSA testament to high qualityOnly the best components are used in Dark Power 13 750W. That is why we have exclusively built high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C which ensures stability, reliability, and a long operating life.HIGHEST CONVENIENCE AND BEST CONNECTIVITYModular cablesModular, sleeved cables of up to 120cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling in even the largest PC cases.
LongProductName - Dark Power 13 750W, Peak 850W, Active Rectifier + Full bridge + LLC + SR + DC/DC, 100-240V, 50-60Hz, 9/4.5A, 0.13W stanby
LongSummaryDescription - be quiet! Dark Power 13. Total power: 750 W, AC input voltage: 100 - 240 V, Peak power: 850 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 1050 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: RoHS, WEEE, Certification: BSMI , CB, CCC, CE, cTUVus, CU, FCC, RCM, TÜV, UKCA, Triman
Manufacturer - Be quiet
Manufacturer_code - BN333
Name - be quiet! Dark Power 13 750W
Name - be quiet! Dark Power 13 750W, PC power supply (black, 5x PCIe, cable management, 750 watts)
Packaging content - Cable tie(s) included - Yes
Packaging data - Package depth - 350 mm
Packaging data - Package height - 270 mm
Packaging data - Package type - Box
Packaging data - Package weight - 4.23 kg
Packaging data - Package width - 120 mm
Performance - 80 PLUS certification - 80 PLUS Titanium
Performance - ATX version - 3.0
Performance - Bearing technology - FDB
Performance - ECC - Yes
Performance - EPS version - 2.92
Performance - Noise level - 18.8 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Silent mode - Yes
Performance - Supported motherboard form factors - ATX
Ports & interfaces - ATX power connector (20+4 pin) - Yes

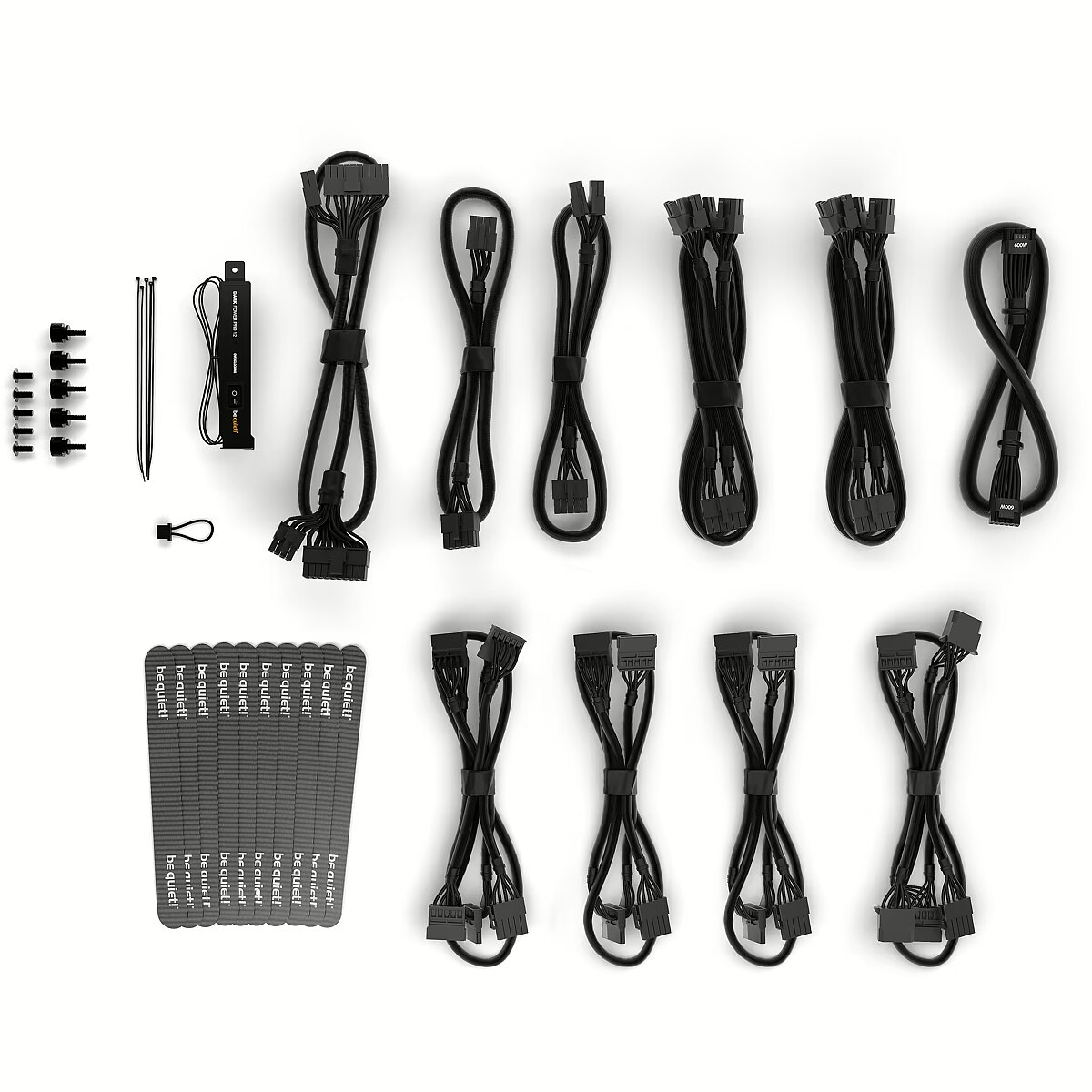

Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - No
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 3
Ports & interfaces - Number of SATA power connectors - 12
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (8-pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 1050 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 744 W
Power - Combined power (-12V) - 6 W
Power - Efficiency - 93.8%
Power - Hold time - 22.6 ms
Power - Input current - 9 A
Power - Maximum input current (@110V) - 4.5 A
Power - Maximum input current (@220V) - 9 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V1) - 25 A
Power - Max output current (+12V2) - 25 A
Power - Max output current (+12V3) - 30 A
Power - Max output current (+12V4) - 30 A
Power - Max output current (-12V) - 0.5 A
Power - Peak power - 850 W
Power - Power factor - 0.98
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 750 W
Producent: Nazwa producenta / importera - be quiet!Listan GmbHWilhelm-Bergner-Str 11C21509 Glinde / HamburgNiemcyEmail: bequietcee@bequiet.com
Producer - be quiet!
ProducerCode - BN333
ProductName - Dark Power 13
ShortDescription - 750 | ATX | 135 mm | 20 + 4 pin | 150mm x 86mm x 175mm | 80 PLUS Titanium | modularny |
ShortSummaryDescription - be quiet! Dark Power 13, 750 W, 100 - 240 V, 850 W, 50 - 60 Hz, 9 A, 4.5 A
Technical details - Sustainability certificates - ENERGY STAR, ErP
Title - be quiet! Dark Power 13 power supply unit 750 W 20+4 pin ATX ATX Black
URL - https://www.bequiet.com/en/powersupply/4044
WarrantyInfo - 10 years
Weight - 4,05
Weight & dimensions - Depth - 86 mm
Weight & dimensions - Height - 175 mm
Weight & dimensions - Weight - 1.96 kg
Weight & dimensions - Width - 150 mm
