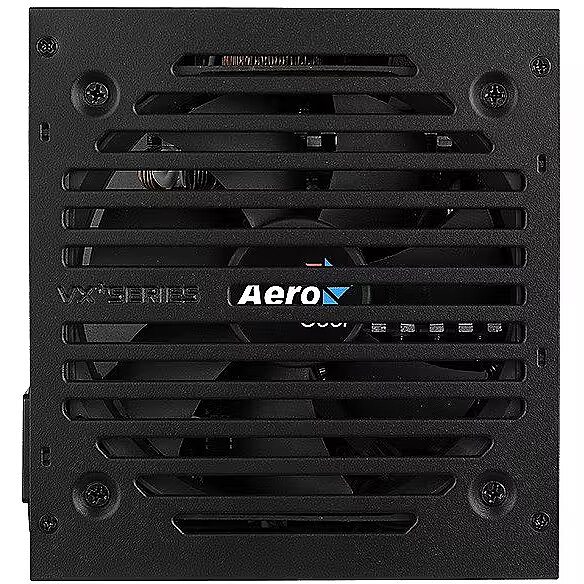

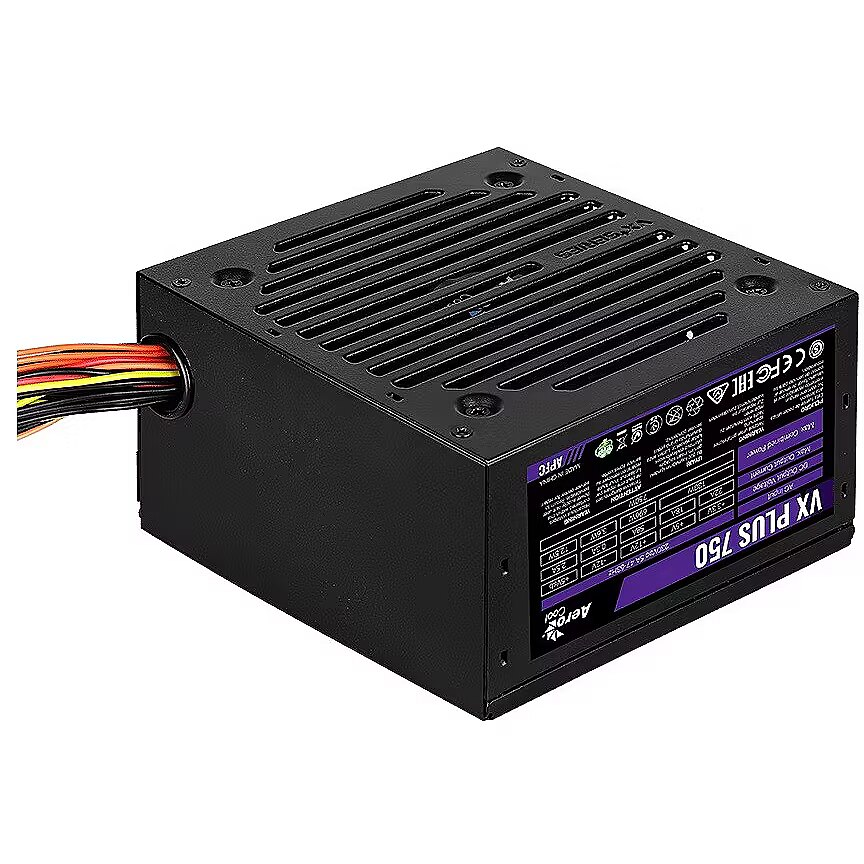

Aerocool VX PLUS 750, 750W

Accessories included -
Brand - Aerocool
BrandPartCode - VX-PLUS-750W
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - 80 PLUS
Description - VX PLUS 750 Koncentrując się na dostarczaniu najbardziej opłacalnego zasilacza, VX PLUS pozwala na łatwą instalację, zapewniając jednocześnie niezawodną jakość i doskonałą wydajność, co czyni ten zasilacz idealnym dla początkujących konstruktorów systemów. Jest wyposażony w ulepszony transformator i 12 cm wentylator ze zoptymalizowaną kontrolą prędkości.
Design - 80 PLUS certification - 80 PLUS
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 874
dimension depth - 95 mm
dimension height - 200 mm
Dimensions -
dimension weight - 1555 g
dimension width - 235 mm
ean - 4713105962802
Eans - 4713105962802
Fan - 12 cm
Floppy power connectors - 1
GTIN - 4718009151932
guarantee - 24
guarantee_type - normal
Logistics data - Master (outer) case height - 250 mm
Logistics data - Master (outer) case length - 410 mm
Logistics data - Master (outer) case width - 500 mm
Logistics data - Products per master (outer) case - 10 pc(s)
LongDesc - Unbeatable ValueVX PLUS offers the best value you could ask for in a power supply with easy installation and top-notch performance, making this the perfect starting PSU for entry-level system builders.Improved DesignEquipped with a unique, top cover design, the VX PLUS looks better than ever and enhances the entire look and feel of any proper gaming setup.Upgraded TransformerUpgraded transformer improves balance between 12V, 3.3V, and 5V voltage regulations and enhances the stability, allowing for heavy 12V loading system support.Optimized Fan RPMSilent 12cm fan with optimized smart fan speed control. Fan runs in startup speed before reaching 50% load at 25℃ ambient temperatures.
LongProductName - 750 W, 1x 20+4 Pin, 1x 4+4 Pin, 2x PCIe 6+2 Pin, 6x SATA, 3x PATA, 230 V, 5 A, 47-63 Hz, Black
LongSummaryDescription - Aerocool VX PLUS 750. Total power: 750 W, AC input voltage: 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, SATA power cable length: 150,300 mm, PCI Express power cable length: 40 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Package type: Box
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 3
Name - AEROCOOL PGS VX-750plus 750W 80+ BOX PSU
name - AeroCool VX PLUS 750W N.MODULAR ATX 12V BOX
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features - Zabezpieczenia: Przeciwprzeciążeniowe (OPP) Przeciwprzepięciowe (OVP) Przeciwzwarciowe (SCP) Przed zbyt niskim napięciem (UVP)
Packaging data - Cables included - AC
Packaging data - Manual - Yes
Packaging data - Package type - Box
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 3
Ports & interfaces - Number of SATA power connectors - 4
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power cable length - 40 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 150,300 mm
Power - AC input frequency - 47 - 63 Hz
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 220 - 240 V
Power - AC input voltage - 230 V
Power - Combined power (+3.3V) - 130 W
Power - Combined power (+5V) - 130 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 696 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 5 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 18 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 58 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Over power, Over voltage, Short circuit, Under voltage
Power - Total power - 750 W
Power supply - 750 W
producer - AeroCool
Producer - AeroCool
producerCode - AEROPGSVX-750PLUS-80
ProducerCode - AEROPGSVX-750PLUS-80
productName - POWER SUPPLY AEROCOOL PGS VX-750PLUS 750W 80+ BOX
ProductName - VX PLUS 750
productSize - Normal
SATA power connectors - 4
ShortDescription - 750 | ATX | 120mm | 20 + 4 pin | 150 x 86 x 140 mm |
ShortSummaryDescription - Aerocool VX PLUS 750, 750 W, 230 V, 47 - 63 Hz, 5 A, 130 W, 696 W
sizeX - 230
sizeY - 95
sizeZ - 200
Title - Aerocool VX PLUS 750 power supply unit 750 W 20+4 pin ATX ATX Black
URL - https://www.aerocool.com.tw/en/psu/value-series/vx-plus-750w
vendpn - AEROPGSVX-750PLUS-80
WarrantyInfo -
warrantyLength - 24
warrantyType - G
weight - 1540
