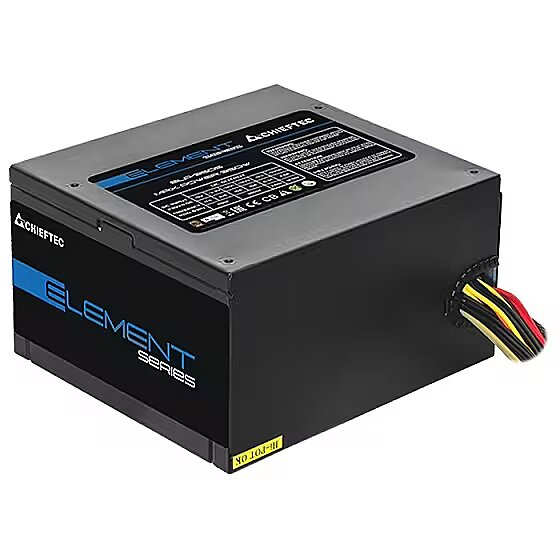

Chieftec Element series, 600W

80 PLUS certification Performance - 80 PLUS Bronze
AC input frequency Power - 47 - 63 Hz
AC input voltage Power - 200 - 240 V
ATX power connector (20+4 pin) Ports & interfaces - Yes
ATX version Performance - 2.3
Brand - Chieftec
BrandPartCode - ELP-600S
Cabling type Ports & interfaces - Non-Modular
Category - Power Supply Units
Category Code - PSU
Combined power (+3.3V) Power - 120 W
Combined power (+5V) Power - 120 W
Combined power (+5Vsb) Power - 12.5 W
Combined power (+12V) Power - 552 W
Combined power (-12V) Power - 3.6 W
Depth Weight & dimensions - 150 mm
Description - The brand new ELEMENT series combines innovation, high quality, great design and efficiency. With a silent running 12cm fan, the PSU is held in decent black, equipped with long native cables, a power cord, and a solid and eye catching retail box. With an efficiency of over 85% (BRONZE) @230V, the ELEMENT series fulfills the requirement of GREEN IT at an attractive price.
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Efficiency Power - 85 %
Fan diameter Design - 120 mm
Floppy disk drive connector Ports & interfaces - Yes
Floppy drive power connector Ports & interfaces - 1
GTIN - 4710713231061
Height Weight & dimensions - 87 mm
Input current Power - 4.5 A
LongDesc - The brand new ELEMENT series combines innovation, high quality, great design and efficiency. With a silent running 12cm fan, the PSU is held in decent black, equipped with long native cables, a power cord, and a solid and eye catching retail box. With an efficiency of over 85% (BRONZE) @230V, the ELEMENT series fulfills the requirement of GREEN IT at an attractive price.
LongProductName - 600W, ATX 12V 2.3, PS II, 120mm fan
LongSummaryDescription - Chieftec ELP-600S. Total power: 600 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC/Server, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Width: 140 mm, Depth: 150 mm, Height: 87 mm
Max output current (+3.3V) Power - 20 A
Max output current (+5V) Power - 20 A
Max output current (+5Vsb) Power - 2.5 A
Max output current (+12V) Power - 46 A
Max output current (-12V) Power - 0.3 A
Motherboard power connector Ports & interfaces - 20+4 pin ATX
Number of fans Design - 1 fan(s)
Number of PATA power connectors Ports & interfaces - 1
Number of SATA power connectors Ports & interfaces - 4
PCI Express power connectors (6+2 pin) Ports & interfaces - 2
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC/Server
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 2
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 1
Ports & interfaces - Number of SATA power connectors - 4
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 552 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Input current - 4.5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 46 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over voltage, Overload, Short circuit, Under voltage
Power - Total power - 600 W
Power Factor Correction (PFC) type Power - Active
Power factor Power - 0.9
Power protection features Power - Over voltage/Overload/Short circuit/Under voltage
Power supply unit (PSU) form factor Performance - PS/2
Product colour Design - Black
ProductName - ELP-600S
Purpose Performance - PC/Server
ShortSummaryDescription - Chieftec ELP-600S, 600 W, 200 - 240 V, 47 - 63 Hz, 4.5 A, Active, 120 W
Summary - Chieftec ELP-600S. Total power: 600 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC/Server, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Width: 140 mm, Depth: 150 mm, Height: 87 mm
Title - Chieftec ELP-600S power supply unit 600 W 20+4 pin ATX PS/2 Black
Total power Power - 600 W
Unit Box Height - 0.095
Unit Box Length - 0.235
Unit Box Width - 0.17
Unit Calculated Volume - 0.003795 cubm
Unit Calculated Weight - 1.82 kg
Units per Shipping Box - 1
URL - https://www.chieftec.eu/en/psus/ps-2/element-series/elp-600s.html
Vendor Homepage - https://www.chieftec.eu/en/psus/ps-2/element-series/elp-600s.html
Warranty - 24 months
WarrantyInfo - 2 years
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Width - 140 mm
Width Weight & dimensions - 140 mm
