Brand - XPG
BrandPartCode - 15260412
Category - Power Supply Units
Design - Fan diameter - 13.5 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
GTIN - 0842243036909
GTIN - 842243036909
GTIN - 4711658153920

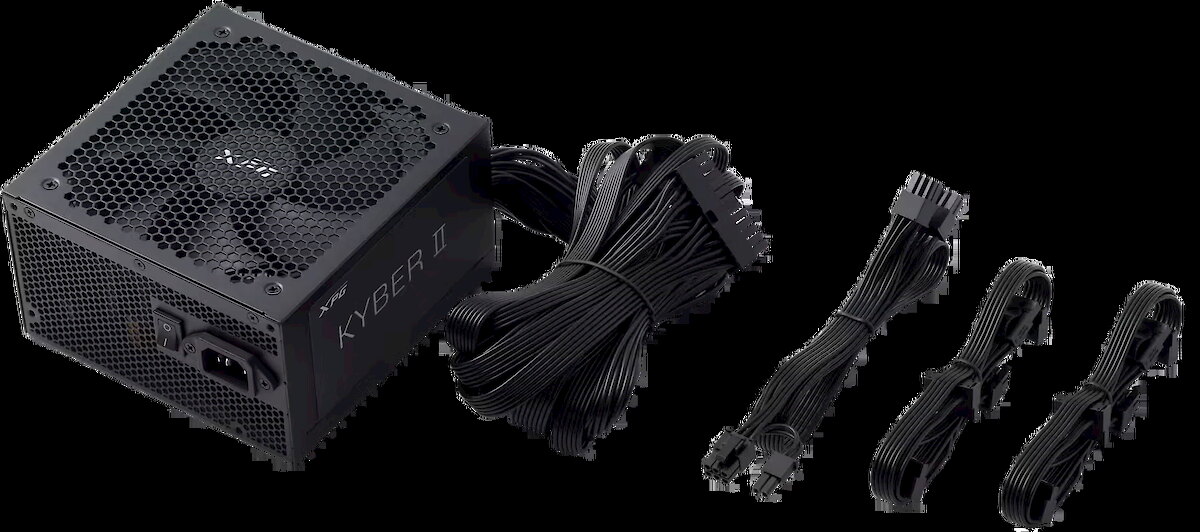

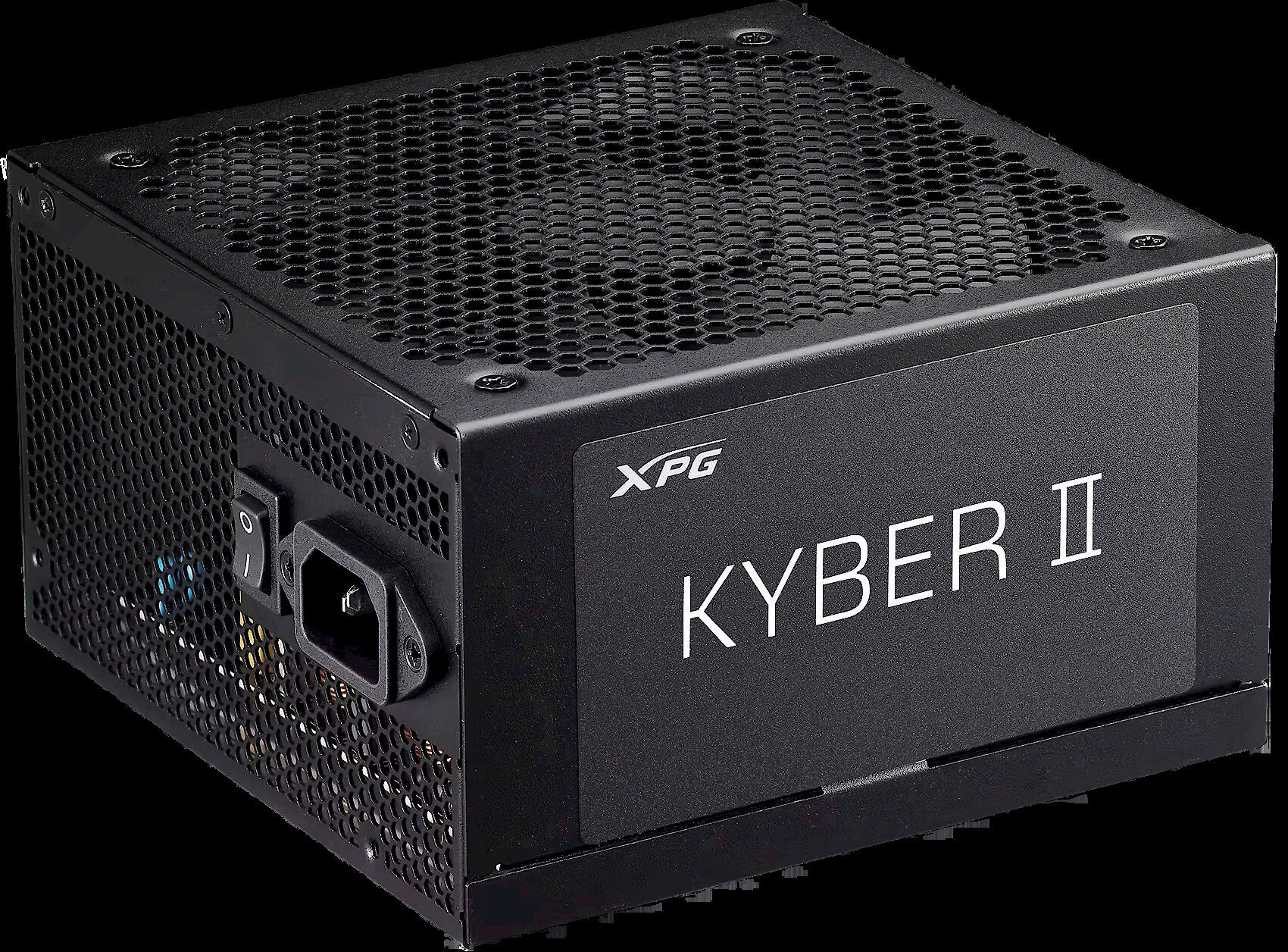

LongDesc - KYBER IIFORGE THE POWERKYBER II is a semi-modular ATX 3.1 PSU that provides native 12V-2x6 connector for the RTX 50 series graphics cards. It boasts the Japanese 105°C main capacitor for proven reliability, and Gold rating by 80 PLUS and Cybenetics for certified efficiency. Thanks to the 135mm FDB fan and 8 industrial-grade protections, the interior components are so cool and safe in silence. Easier cable management. Best-in-class power excursion. KYBER II is ready to forge the power for your build.Gold-rating EfficiencyKYBER II is certified as GOLD rating by both 80 PLUS and Cybenetics to ensure superior power efficiency and proven stability for your system.Futureproof: ATX 3.1 & PCIe 5.1 CompliantKYBER II is ATX 3.1 compliant and provides a native 12V-2x6 PCIe 5.1 power cable to support the RTX 50 series graphics cards and the next-gen platforms.Beyond The CapKYBER II boasts the Japanese 105°C capacitor for main board to provide top-tier durability even under heavy workloads. In alignment of XPG’s commitment in quality, KYBER II also delivers above par efficiency and best-in-class 235% excursion.Larger Fan. Higher Airflow.KYBER II adopts a 135mm FDB fan, which is 26% larger than regular 120mm fan, to ensure higher airflow for better cooling performance at lower noise level.Easy Cable ManagementKYBER II features semi-modular design and includes native power cables for the core components, while maintaining flexible for your extra peripherals or future upgrade.Safeguarding Your BuildKYBER II offers 5-year warranty with 8 industrial-grade protections to safeguard your system.
LongProductName - KYBER II, 750W
LongSummaryDescription - XPG KYBERII750G-BKCGB. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 450,550,650,750 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 13.5 cm, Number of fans: 1 fan(s). Width: 86 mm, Depth: 150 mm, Height: 150 mm
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - FDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 65 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of EPS connectors - 2
Ports & interfaces - Number of SATA power cables - 2
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - PCI Express power connectors (12+4 pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 450,550,650,750 mm
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Input current - 10 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.99
Power - Power protection features - Over voltage, Over power, Short circuit, Over current, Under voltage, Overheating, Surge & inrush protection (SIP), No load operation
Power - Total power - 750 W
ProductName - KYBERII750G-BKCGB
ShortSummaryDescription - XPG KYBERII750G-BKCGB, 750 W, 100 - 240 V, 47 - 63 Hz, 10 A, 20 A, 62.5 A
Title - XPG KYBERII750G-BKCGB power supply unit 750 W 20+4 pin ATX ATX Black
URL - https://www.xpg.com/en/xpg/pc-components-kyberll?tab=desc
WarrantyInfo -
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 150 mm
Weight & dimensions - Weight - 1.94 kg
Weight & dimensions - Width - 86 mm
