Brand - ASUS
BrandPartCode - 90YE0102-B0NA00
Category - Power Supply Units
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates - Compliance certificates - RoHS
Design - Cooling type - Active

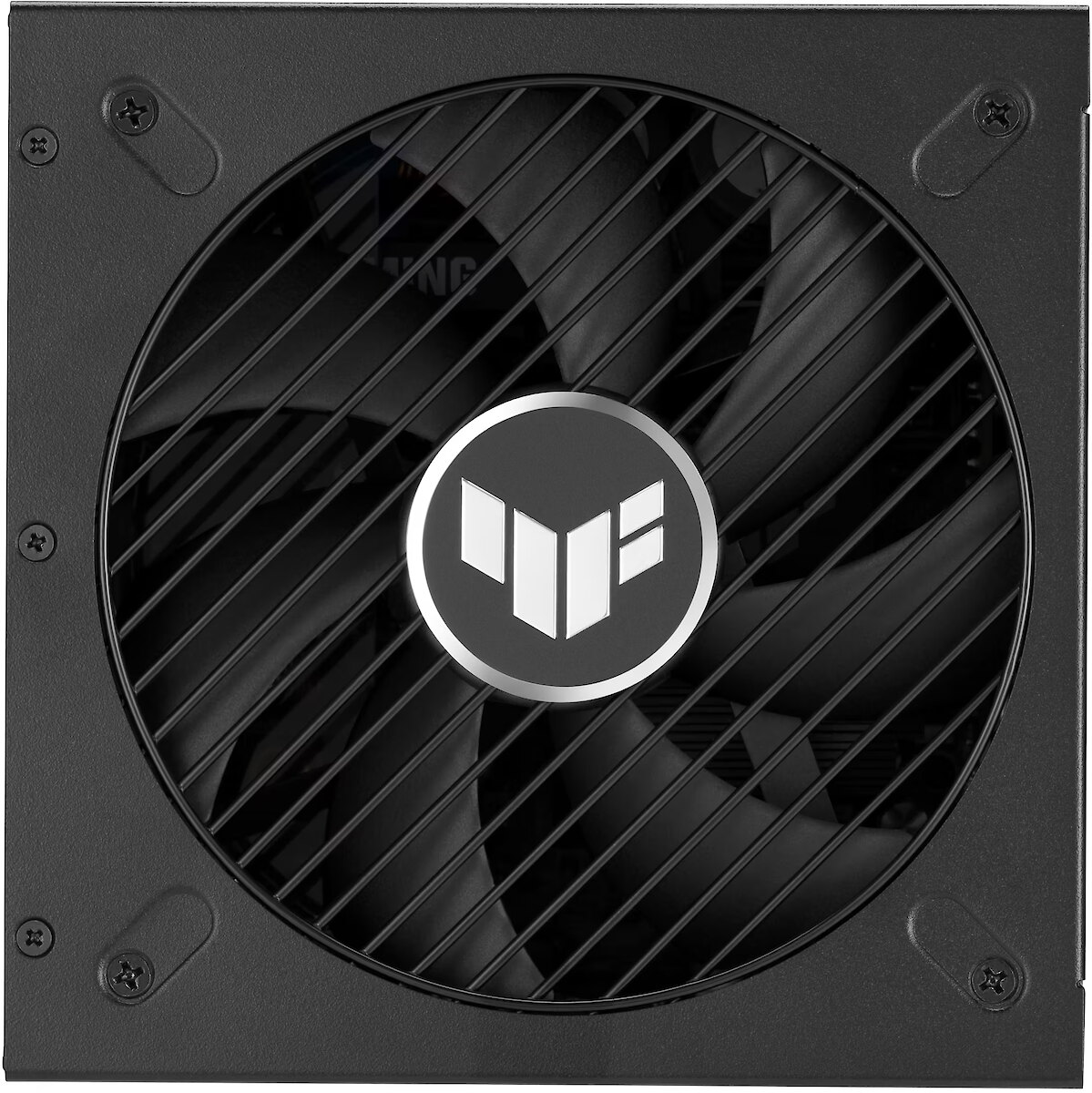

Design - Fan diameter - 13.5 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1571
EAN_code - 4711636489911
GTIN - 0199291489912
GTIN - 199291489912
GTIN - 4711636489911
Logistics data - Warranty period - 8 year(s)
LongDesc - Built For The Long HaulThe ASUS TUF Gaming 850W Platinum packs a next gen GaN MOSFET, military-grade strength, flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come.EXCLUSIVE FEATUREGaN MOSFETThe TUF Gaming Platinum PSU boasts an innovative GaN MOSFET that delivers superior energy efficiency, faster switching speeds, lower heat generation, and higher voltage resistance position it as a server-grade material for demanding applications such as AI development, high-end gaming, and video editing.This MOSFET’s compact size also enables a streamlined layout with larger heatsinks and enhanced airflow for superior heat dissipation.Premium DurabilityMilitary-Grade CapacitorsEngineered for exceptional durability, the TUF Gaming Platinum series features TUF 5K black metallic capacitors, offering a 52% wider temperature tolerance and up to a 2.5X longer lifespan than standard capacitors.Latest StandardsATX 3.1 & PCIe 5.1 CompatibleThe TUF Gaming Platinum series meets the stringent requirements of the ATX 3.1 standard and supports PCIe 5.1 graphics cards. It supports total power excursions up to twice the rated power and graphics card power excursions up to three times the rated power, helping to ensure rock-solid stability for your PC.EFFICIENCY CERTIFICATION80 PLUS Platinum EfficiencyThe TUF Gaming Platinum series achieves 80 PLUS Platinum certification by leveraging low-ESR Japanese capacitors that deliver stability and efficiency, leading to improved power consumption, heat generation, acoustics and reliability.PREMIUM ETCHED CABLESMade from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management.PROTECTIONTo make sure the entire system can operate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.

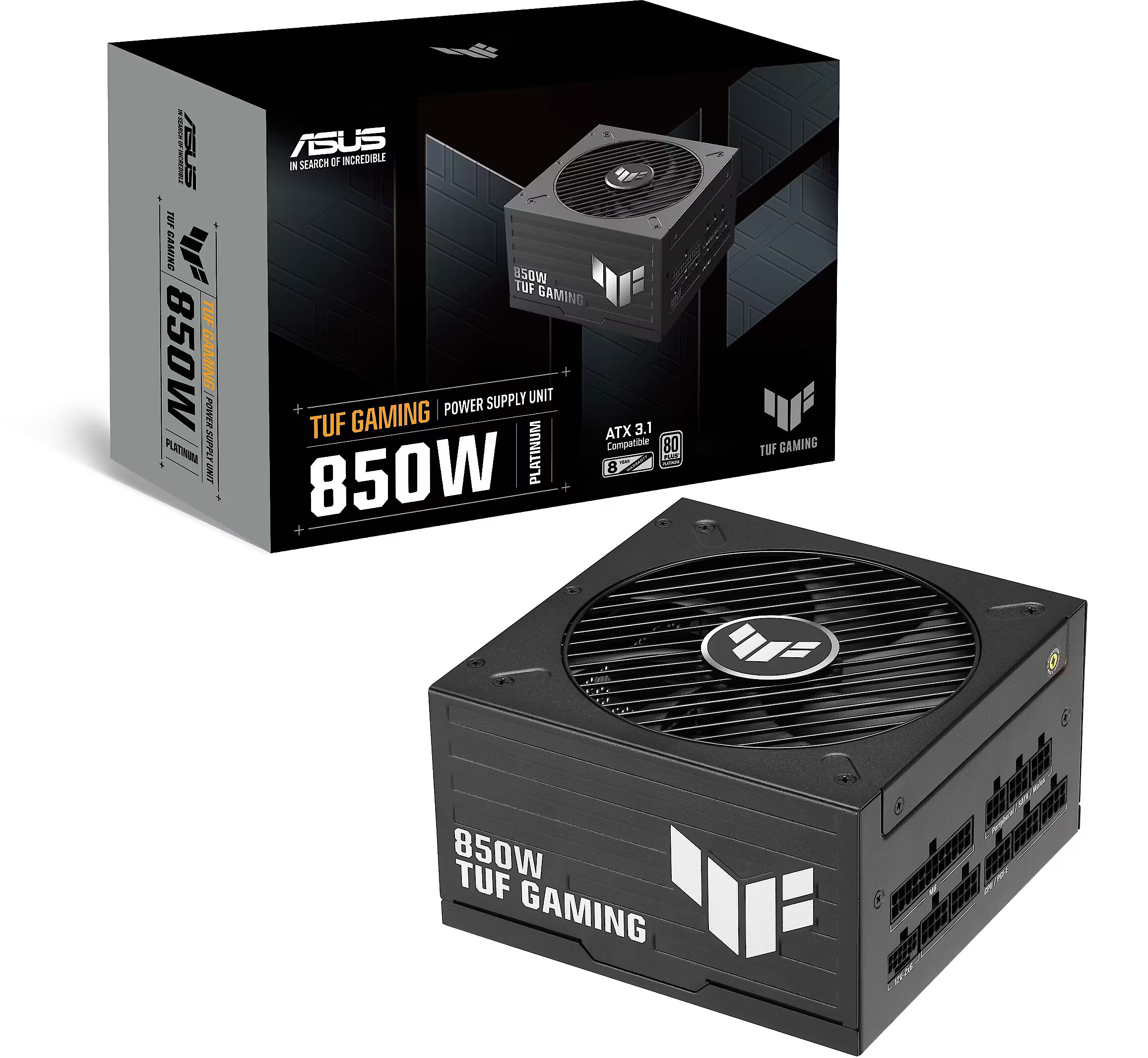

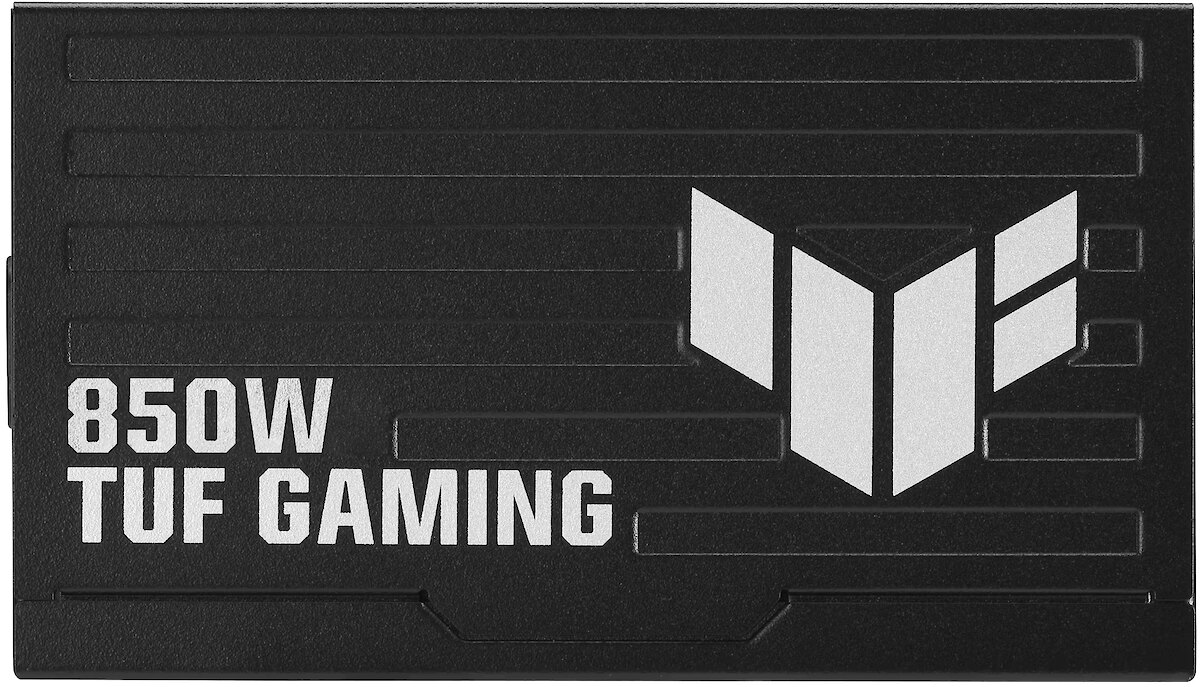

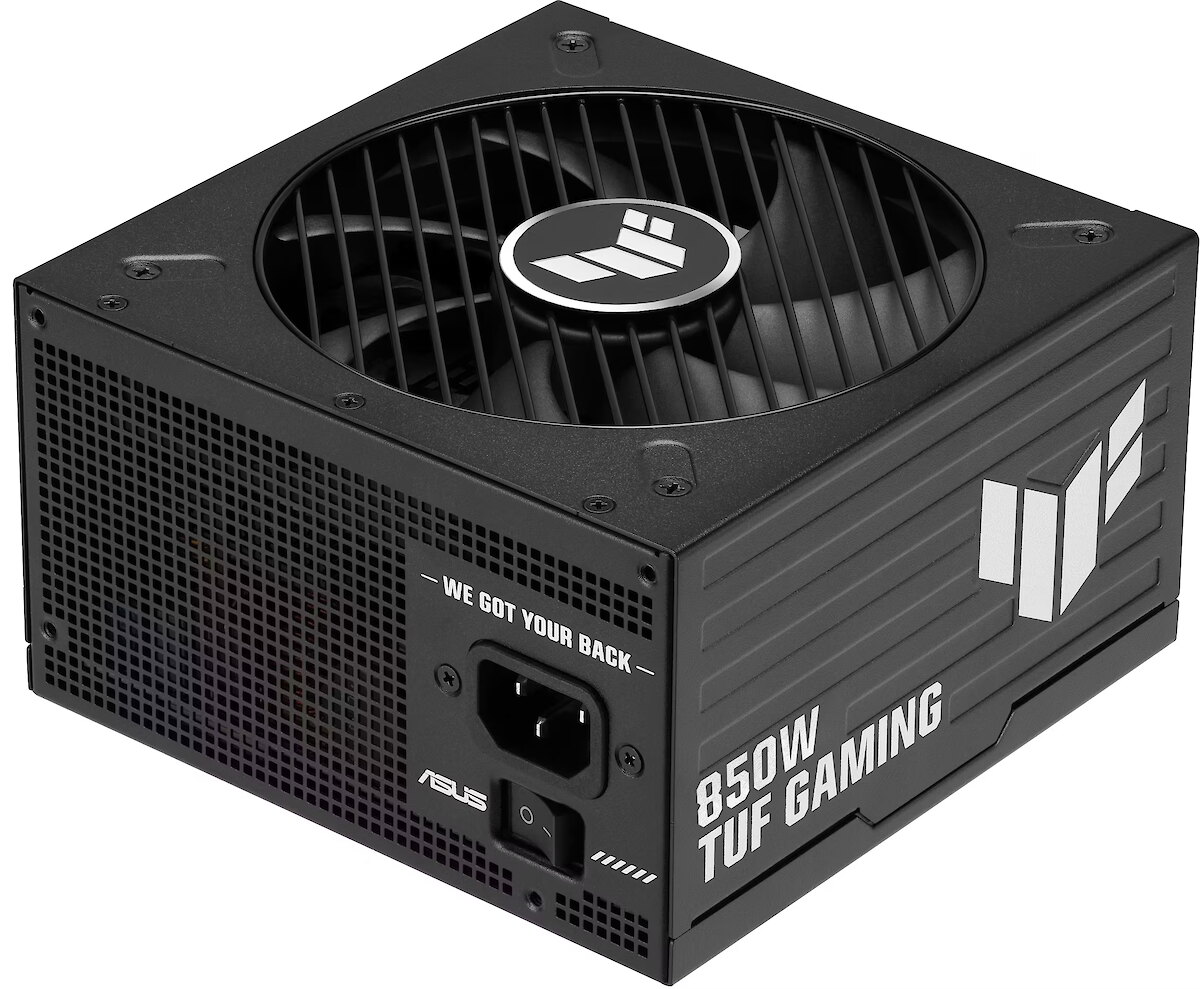

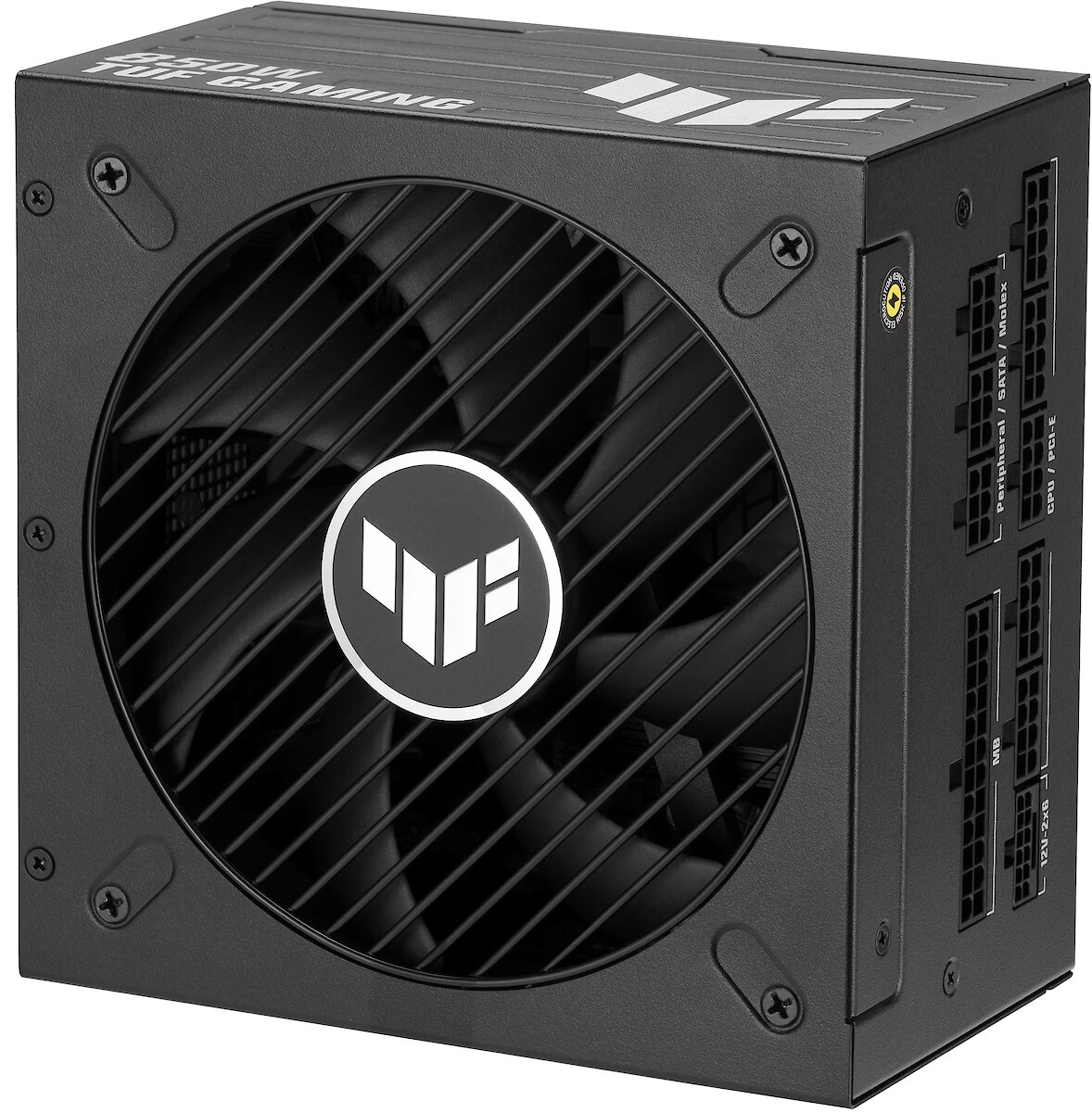

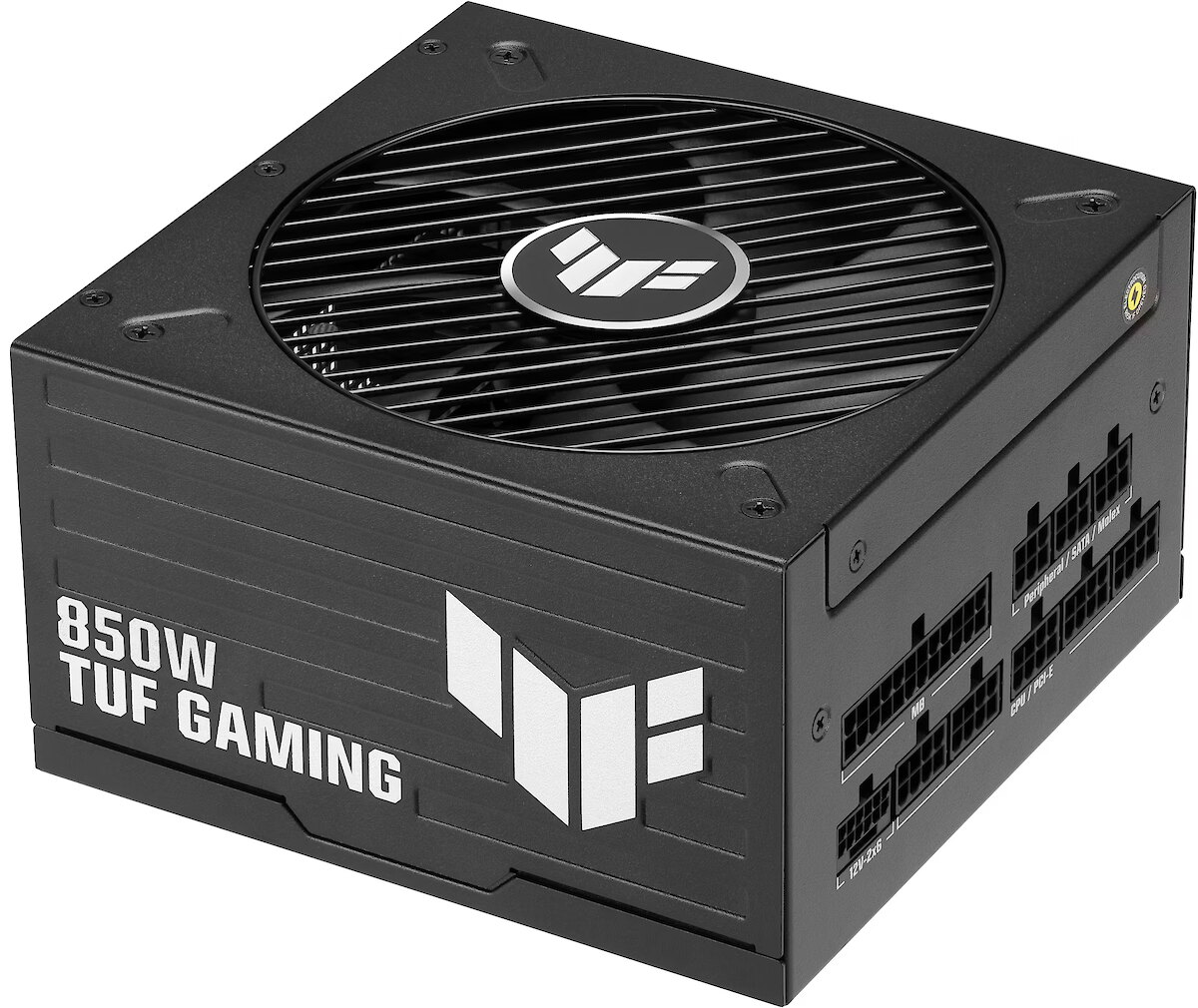

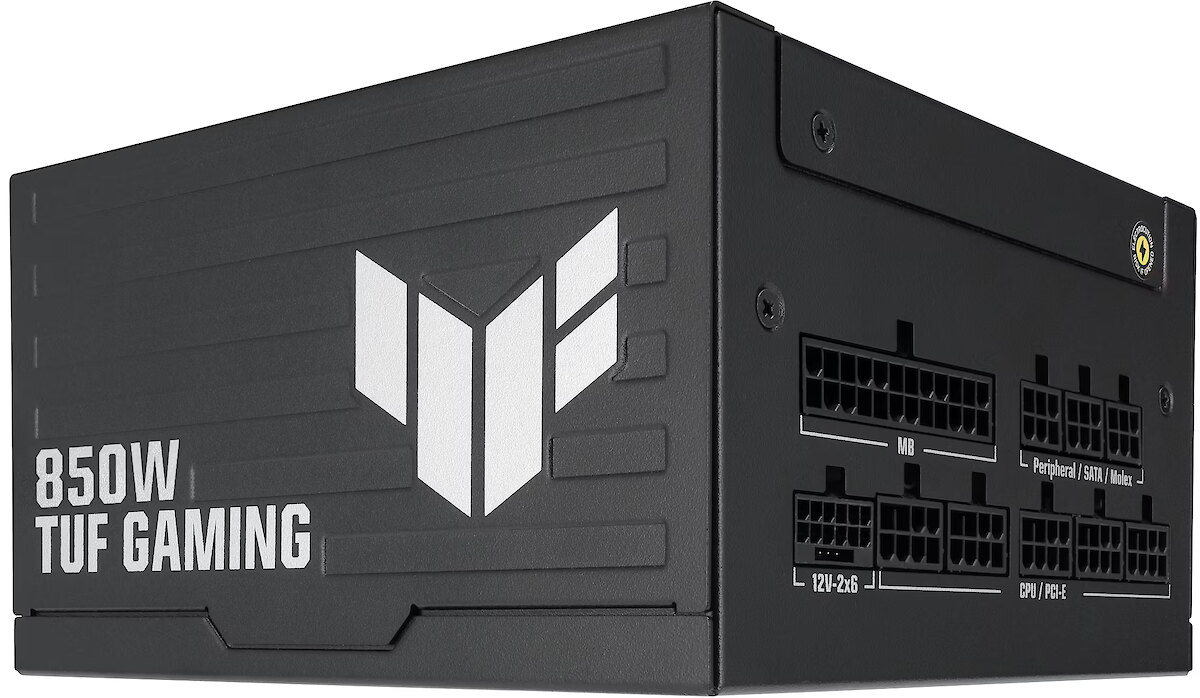

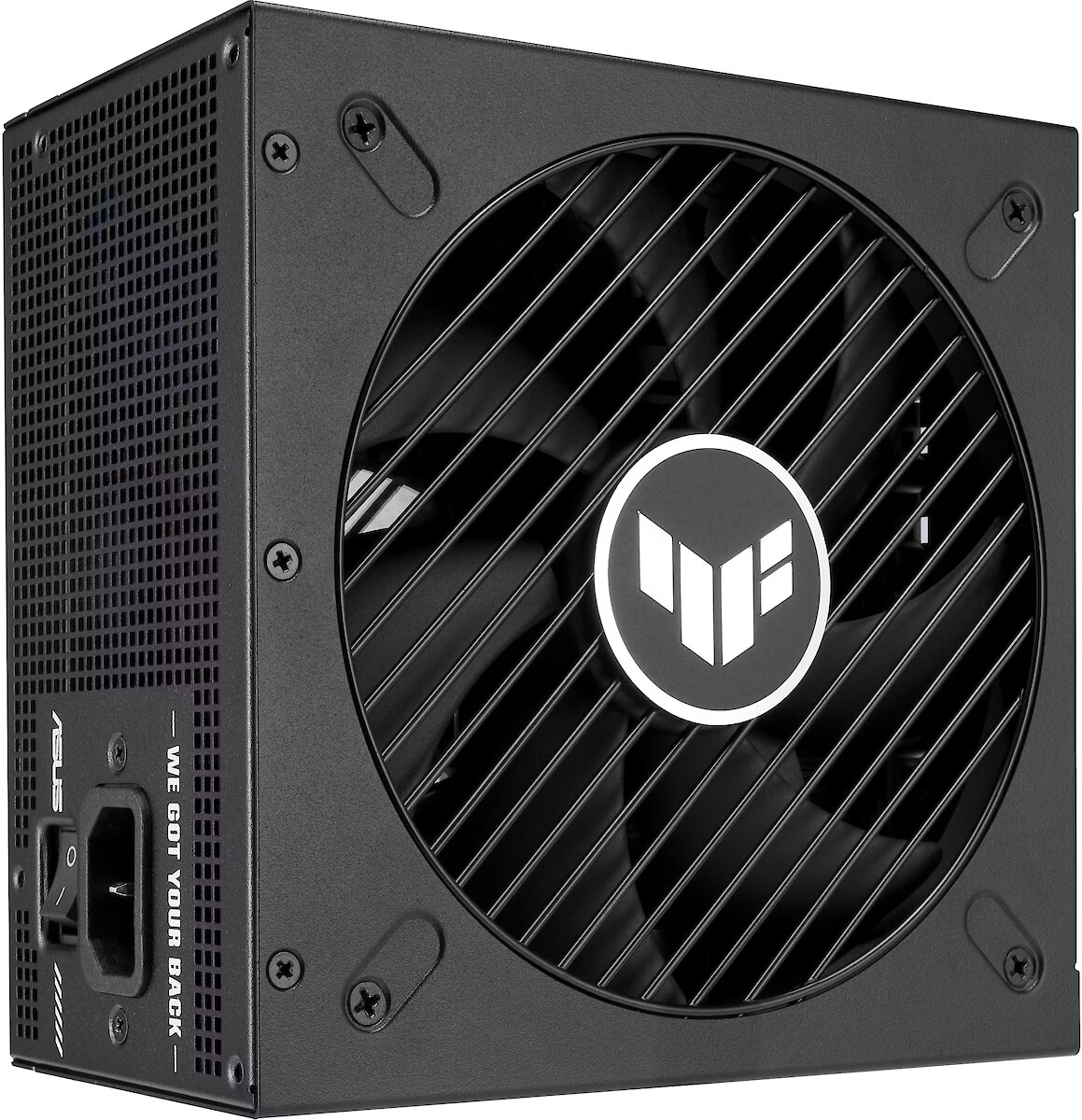

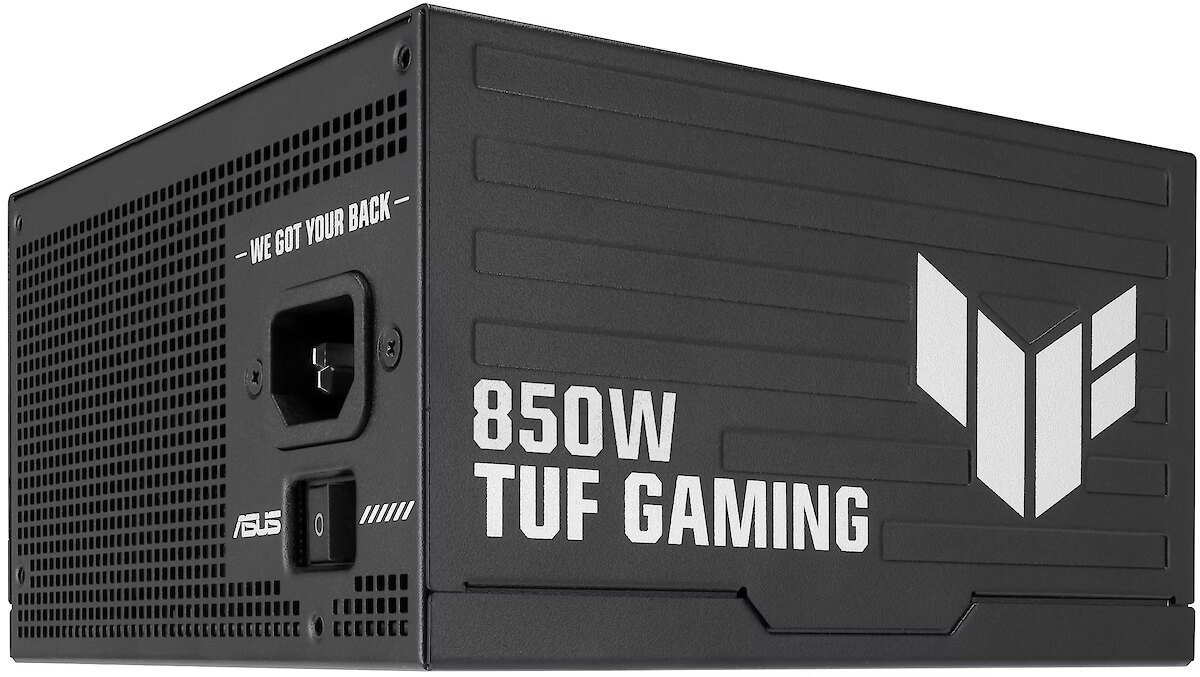

LongProductName - TUF Gaming 850W Platinum Gaming Power Supply (850 Watt, Dual Ball Bearing Fan, ATX 3.1 & PCIe 5.1 Compatible, 80 Plus Platinum Certified, Etched Cables, Black)
LongSummaryDescription - ASUS TUF Gaming 850W Platinum. Total power: 850 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Manufacturer - Asus
Manufacturer_code - 90YE0102-B0NA00
Name - Asus TUF-GAMING-850P (black, 1x 12-pin high power GPU, 3x PCIe, cable management, 850 watts)
Packaging content - Cables included - AC, CPU, PCIe, Peripheral (Molex), SATA
Packaging data - Package depth - 188 mm
Packaging data - Package height - 127 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3.29 kg
Packaging data - Package width - 304 mm
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Performance - Bearing technology - Ball bearing
Performance - Mean time between failures (MTBF) - 120000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC

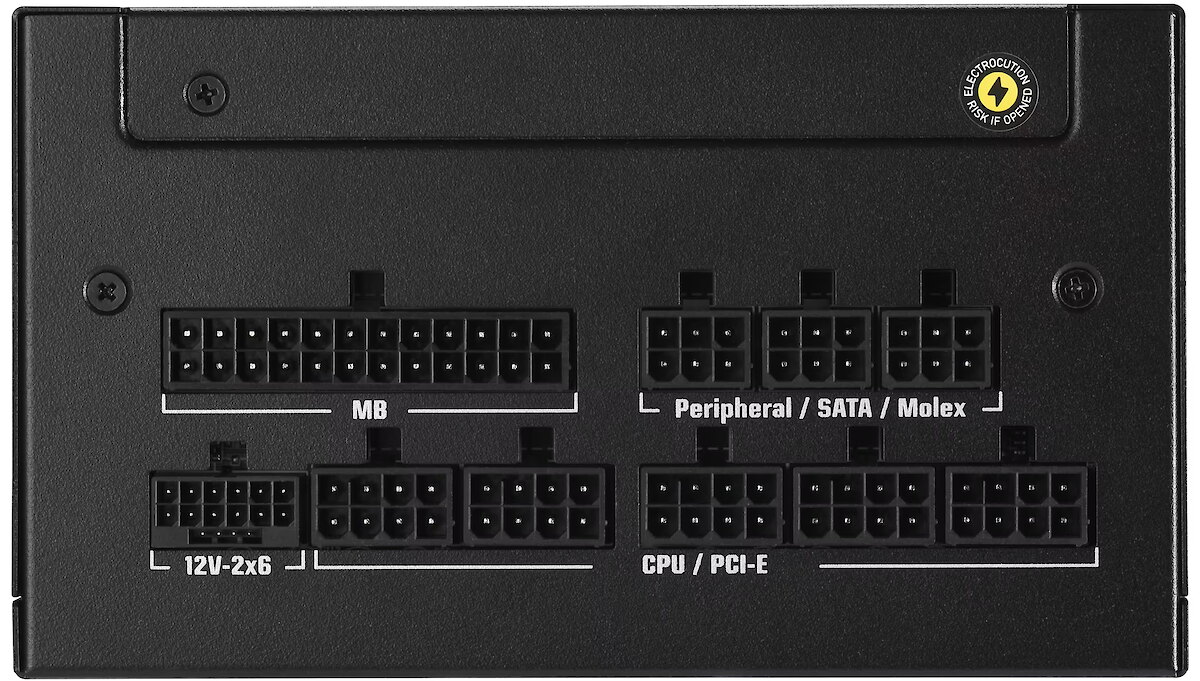

Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 125 W
Power - Combined power (+5V) - 125 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 850 W
Power - Combined power (-12V) - 3.6 W
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 70.83 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Short circuit, Under voltage, Overheating
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 850 W
producerCode - 90YE0102-B0NA00
ProductName - 850W Platinum
productName - ASUS TUF Gaming 850W Platinum power supply unit 20+4 pin ATX ATX Black
productSize - Normal
ShortSummaryDescription - ASUS TUF Gaming 850W Platinum, 850 W, 100 - 240 V, Active, 125 W, 850 W, 125 W
sizeX - 130
sizeY - 310
sizeZ - 195
Title - ASUS TUF Gaming 850W Platinum power supply unit 20+4 pin ATX ATX Black
URL - https://www.asus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-850p/
WarrantyInfo -
warrantyLength - 96
warrantyType - G
Weight - 3,15
weight - 3155
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.48 kg
Weight & dimensions - Width - 150 mm
