8-pin 12V power connectors - 1
ARTIKEL1 - DARK POWER PRO 14 IO 1600W
ARTIKEL2 - 80PLUS TITANIUM POWER
ATX version - 3.1
Brand - be quiet!
BrandPartCode - BP023EU
Breite - 0
category - PC Components|Power Supplies|Modular Power Supplies
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates - Compliance certificates - CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus, BSMI, CCC, CE, RCM
Certificates 80+ - 80 PLUS Titanium
code - BP023EU
Cybenetics Efficiency (ETA) - Titanium
Dane techniczne: Certyfikat sprawności - 80 Plus Titanium
Dane techniczne: Filtry - dodatkowa stabilizacja napięcia
Dane techniczne: Filtry - przeciwprzeciążeniowy
Dane techniczne: Filtry - przeciwprzepięciowy
Dane techniczne: Filtry - przeciwzwarciowy
Dane techniczne: Filtry - zabezpieczenie termiczne
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Grupa produktowa - Zasilacze do komputera be quiet!
Dane techniczne: Gwarancja - 10 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 200 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Kolor - czarny
Dane techniczne: Maks. głośność - 29.1 dB
Dane techniczne: Moc - 1600 W
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: Monitoring obrotów wentylatorów - tak
Dane techniczne: MTBF - 100000 godz.
Dane techniczne: Natężenie przy napięciu +3.3V - 25 A
Dane techniczne: Natężenie przy napięciu +5V - 25 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3.5 A
Dane techniczne: Natężenie przy napięciu +12V1 - 40 A
Dane techniczne: Natężenie przy napięciu +12V2 - 40 A
Dane techniczne: Natężenie przy napięciu +12V3 - 45 A
Dane techniczne: Natężenie przy napięciu +12V4 - 45 A
Dane techniczne: Natężenie przy napięciu +12V5 - 55 A
Dane techniczne: Natężenie przy napięciu +12V6 - 55 A
Dane techniczne: Natężenie przy napięciu -12V - 0.5 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - be quiet!
Dane techniczne: Regulacja obrotów wentylatorów - z programu IO Center
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Typ PFC - active
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Wersja standardu ATX - ATX 3.1
Dane techniczne: Wtyczka zasilania [pin] - 1 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 1 x 8-pin EPS
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 2 x 6 - 12V
Dane techniczne: Wtyczka zasilania [pin] - 6 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 16 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - AFC
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OLP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - PFC
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - SIP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 135 mm

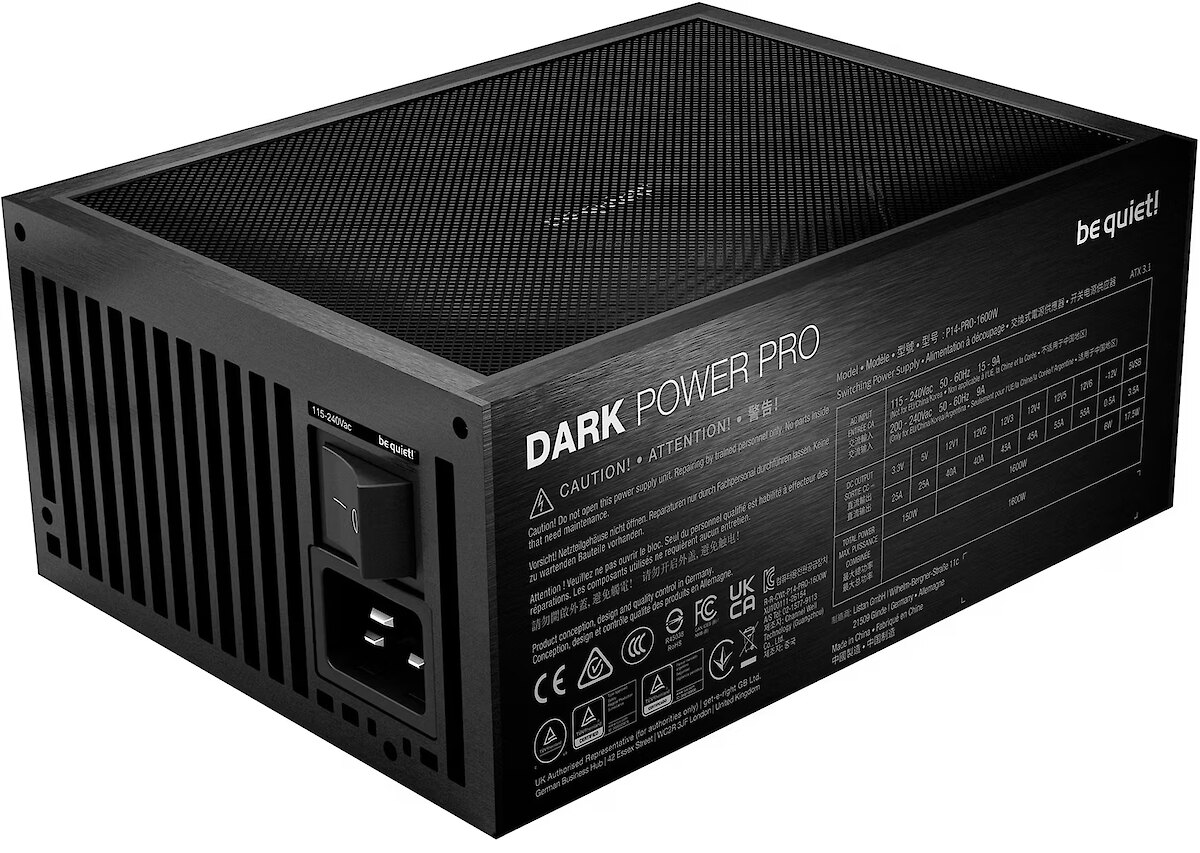

Description - QUIET AND PERFORMANCE UNDER CONTROL
The Dark Power Pro 14 IO 1600W features a high-performance heatsink design with a built-in fan, configurable in the IO Center software. Using the be quiet IO Center software, you can choose between active and semi-passive cooling. The aluminum heatsink supports the semi-passive cooling concept and improves component durability. 80 PLUS(R) Titanium and Cybenetics Titanium efficiency (up to 94.9%) ATX 3.1 power supply with full support for PCIe 5.1 graphics cards and 6+2-pin graphics cards. Fully digital control and Active Rectifier + full-bridge LLC technology ensure unparalleled signal stability. Modular, single-sleeved cabling for maximum convenience.
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Fan speed - 0 - 2600 RPM
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - On/off fan switch - Yes
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 150 mm
dimension height - 260 mm
Dimensions - 200 x 150 x 86 mm
dimension weight - 5900 g
dimension width - 420 mm
ean - 4260052192115
EAN - 4260052192115
EANCode - 4260052192115
Eans - 4260052192115
EAN_code - 4260052192115
Fan - 13.5 cm
Fan speed (max) - 2600 rpm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Protection against surges and surges
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
Form Factor - ATX
GRUPPE1 - Computer Systems
GRUPPE2 - Power Supplies
GTIN - 4260052192115
guarantee - 120
guarantee_type - normal
HERSTELLER - BE QUIET
Hoehe - 0
HSTNUMMER - BP023EU
Laenge - 0
Logistics data - Products per shipping (inner) case - 2 pc(s)
Logistics data - Shipping (inner) case height - 28.3 cm
Logistics data - Shipping (inner) case length - 44 cm
Logistics data - Shipping (inner) case net weight - 15.2 kg
Logistics data - Shipping (inner) case width - 32.5 cm
Logistics data - Warranty period - 10 year(s)
LongDesc - CONTROL SILENCE AND PERFORMANCEDark Power Pro 14 IO 1600W features a high-performance heat sink design with an integrated fan that can be configured in the be quiet! IO Center software.
LongProductName - 1600W, 80 PLUS Titanium, ATX 3.1, EPS 12V 2.92, 200 x 150 x 86 mm
LongSummaryDescription - be quiet! Dark Power Pro 14 IO. Total power: 1600 W, AC input voltage: 100 - 240 V, Peak power: 1700 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 600,750,900,1050 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. USB cable length: 0.8 m
Manufacturer - Be quiet
Manufacturer - Be Quiet!
Manufacturer_code - BP023EU
MB power connector - 20 + 4 pin
Modular power supply - Yes
MOLEX power connectors - 0
MPN - BP023EU
Name - be quiet! Dark Power Pro 14 IO 1600 Watt ATX 3.1 PCIe 5.1 80+ Titanium Netzteil
name - be quiet! Dark Power Pro 14 IO 1600W
Name - be quiet! Dark Power Pro 14 IO 1600W
Name - Be quiet Dark Power Pro 14 IO 1600W (black, 1600 watts)
name - Power Supply Dark Power Pro 14 IO 1600W
Number of connectors PATA - 2
Number of power connectors 12VHPWR - 2
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 6
Number of USB 10p connectors - 0
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Cable ties included - Yes
Other features - Screws included - Yes
Packaging content - Cable tie(s) included - Yes
Packaging content - USB cable length - 0.8 m
Packaging data - Manual - Yes
Packaging data - Manual languages - Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai
Packaging data - Package depth - 417 mm
Packaging data - Package height - 152 mm
Packaging data - Package weight - 6.68 kg
Packaging data - Package width - 253 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Titanium
Performance - ATX version - 3.1
Performance - Bearing technology - FDB
Performance - Cybenetics certification - Titanium
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 29.1 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - None
PMBus 5 Pin - 0
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power cables - 5
Ports & interfaces - Number of SATA power connectors - 16
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 6
Ports & interfaces - PCI Express power connectors (12-pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 900,1050 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 600,750,900,1050 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 150 W
Power - Combined power (+5V) - 150 W
Power - Combined power (+5Vsb) - 17.5 W
Power - Combined power (+12V) - 1600 W
Power - Combined power (-12V) - 6 W
Power - Efficiency - 93.4%
Power - Hold time - 14.5 ms
Power - Maximum input current (@110V) - 15 A
Power - Maximum input current (@220V) - 9 A
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3.5 A
Power - Max output current (+12V1) - 40 A
Power - Max output current (+12V2) - 40 A
Power - Max output current (+12V3) - 45 A
Power - Max output current (+12V4) - 45 A
Power - Max output current (-12V) - 0.5 A
Power - Number of +12V rail(s) - 6
Power - Peak power - 1700 W
Power - Power factor - 0.98
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage, Over power
Power - Total power - 1600 W
Power supply - 1600 W
Producent: Nazwa producenta / importera - be quiet!
Listan GmbH
Wilhelm-Bergner-Str 11C
21509 Glinde / Hamburg
producer - Be quiet!
Producer - be quiet!
ProducerCode - BP023EU
ProductName - Dark Power Pro 14 IO
SATA power connectors - 16
ShortDescription - 1600 | ATX | 135 mm | 20 + 4 pin | 150mm x 86mm x 200mm | 80 PLUS Titanium | modularny |
ShortSummaryDescription - be quiet! Dark Power Pro 14 IO, 1600 W, 100 - 240 V, 1700 W, 50/60 Hz, 15 A, 9 A
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
Title - be quiet! Dark Power Pro 14 IO power supply unit 1600 W 20+4 pin ATX ATX Black
URL - https://www.bequiet.com/en/powersupply/6004
vendpn - BP023EU
WarrantyInfo -
Weight - 2.63 kg
Weight - 6,60
Weight - 6.645
Weight & dimensions - Depth - 200 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.63 kg
Weight & dimensions - Width - 150 mm
