MSI MAG A1200PLS PCIE5, 1000W, 80PLUS Platinum, ATX 3.1, PCIe 5.1
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
-
Postin pakettiautomaatti1-2 työpäivän kuluessa6,99 € -
Postitoimisto1-2 työpäivän kuluessa6,99 €
-
Postin kuriiritoimitus1-2 työpäivän kuluessa10,99 €
Tärkeimmät tuoteparametrit Kaikki parametrit
- Tuottaja: MSI
- Teho: 1200W
- 80 PLUS -sertifiointi: 80 PLUS Platinum
- Puhaltimen koko: 135 mm
- Modulaariset kaapelit: Fully-Modular
- Prosessori-liitännäinen: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Kuvaus
Tässä MSI-merkkisessä virtalähteessä on 80 PLUS Platinum -energiatehokkuussertifikaatti ja 1200W tehoutput.
120 mm tuulettimet, joilla tämä virtalähde on varustettu, takaavat teollisuusstandardin mukaisen hiljaisen toiminnan. Erityisen hiljaista virtalähteen toimintaa varten suosittelemme hankkimaan 135 mm tai 145 mm halkaisijan tuulettimen.
Virtalähde on saanut 80 PLUS Platinum energiatehokkuussertifikaatin, joka takaa vähintään 92% tehokkuuden 50% kuormituksella. Tämä tarkoittaa, että jokaisesta sähköverkosta vastaanotetusta 100W:sta virtalähde toimittaa vähintään 92W tietokonekomponenteillesi, kun taas loput 8W menee hukkaan lämpönä.
Virtalähteen väri on Melna. Se on varustettu litteillä kaapeleilla, joiden väri on Melna.
Tässä virtalähteessä on täysin modulaariset kaapelit (Fully-modular) – voit liittää ja irrottaa kaikki mukana tulevat kaapelit tarpeen mukaan, vähentäen
Virtalähteen valmistaja on MSI. Kaikki MSI-valmistamat virtalähteet voidaan katsoa täältä.
Perustiedot
Cybenetics Melutason sertifiointi
: Ei ole
Cybeneticsin tehokkuuden sertifiointi
: Cybenetics Platinum
Virtalähteen tyyppi
: ATX
Teho
1200W
Virtalähteen kapasiteetti watteina. Suurempi kapasiteetti tarkoittaa tietokoneen toiminnan vakaampaa toimintaa. Nykyaikaisen keskiverto tietokoneen virtalähteen suositeltu kapasiteetti on vähintään 500 W. Jos käytät useita kiintolevyjä, tehokasta näytönohjainta ja prosessoria, on suositeltavaa ostaa virtalähde, jonka kapasiteetti on vähintään 600 W.
80 PLUS -sertifiointi
: 80 PLUS Platinum
Kokonaisvirta (+12V)
: 100A

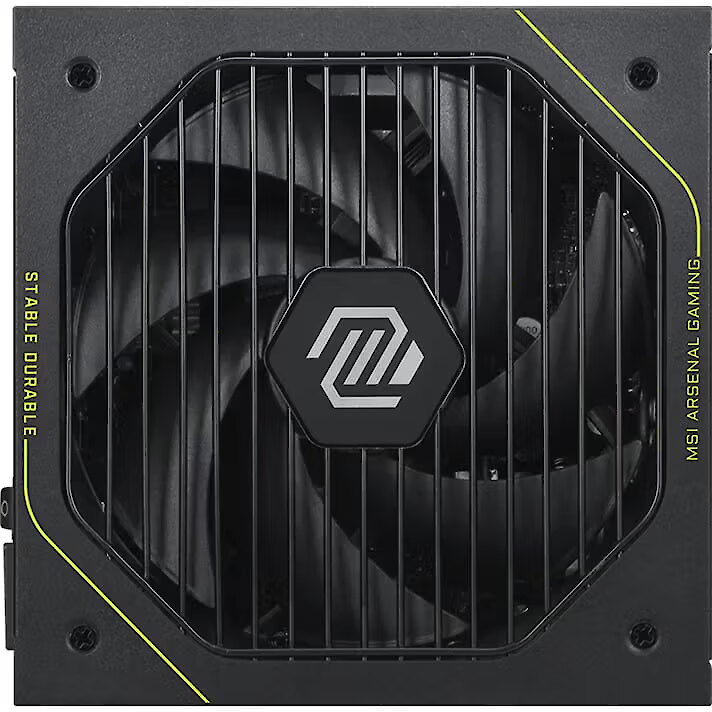

Puhaltimen koko
: 135 mm
Toiminnallisuus
Kaapelin väri
: Musta
Valaistus
: Ei mitään
Väri
: Musta
Modulaariset kaapelit
: Fully-Modular
Satamat ja laitteet

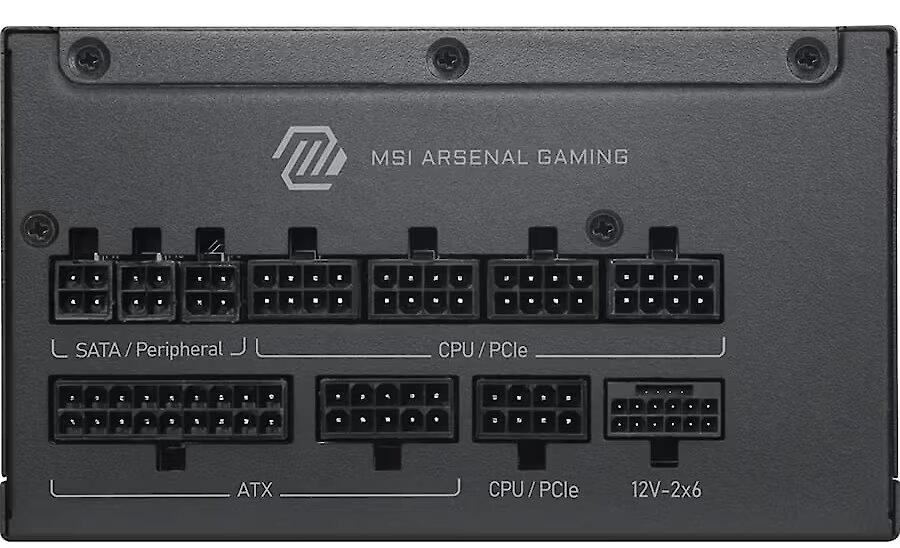

PCI-E 5.0/5.1
: 1 x 600W 12V-2X6 (5.1)
Prosessori-liitännäinen
: 2 x 8-pin(4+4) EPS
Emolevyn virta
: 24-pin
PCI-E
: 4 X 6+2pin
SATA-liittimet
: 6
4pin Molex
: 3
Tietokonekotelo
Yksityiskohtaisempi erittely
80 PLUS certification Performance - 80 PLUS Platinum
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
ATX power connector (20+4 pin) Ports & interfaces - Yes
ATX Power connector (24-pin) Ports & interfaces - No
Cabling type Ports & interfaces - Fully-Modular
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Combined power (+3.3V) Power - 100 W
Combined power (+5V) Power - 100 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 1200 W
Cooling type Design - Active
CPU power connector (4+4 pin) Ports & interfaces - Yes
Depth Weight & dimensions - 150 mm
Description - Featuring ATX 3.1 and PCIe 5.1 support with native 12V-2x6 connectors, these PSUs are built to handle NVIDIA’s 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks. MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components. OPTIMIZED SOUND LEVEL
This power supply is designed for quiet operation, delivering low noise levels like in the night, ensuring a serene computing experience free from disturbances.Premium protection, GPU Safeguard and Fan SafeguardSupports Nvidia® GeForce RTXTM 50 series graphics cardsNative 12V-2x6 connectorDual-color 12V-2x6 cable80 PLUS Platinum certifiedOptimized the sound levelMain 105oC capacitorEmbossed Jacket Cables, the cables are more bending and routingIndustrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
EAN_code - 4711377397919
EPS power connector (4+4 pin) Ports & interfaces - Yes
Fan diameter Design - 13.5 cm
Floppy disk drive connector Ports & interfaces - No
Height Weight & dimensions - 86 mm
Illumination Design - No
Manufacturer - MSI
Manufacturer_code - 306-7ZPNX11-CE0
Max output current (+3.3V) Power - 20 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 100 A
Model name - MAG A1200PLS PCIE5
Motherboard power cable length Ports & interfaces - 60 cm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
Name - MSI MAG A1200PLS PCIE5 1200W (black, 1200 watts)
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 6
On/off switch Design - Yes
PCI Express power connectors (6+2 pin) Ports & interfaces - 3
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 2
Power Factor Correction (PFC) type Power - Active
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black
Purpose Performance - PC
Summary - MSI MAG A1200PLS PCIE5. Total power: 1200 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm
Total power Power - 1200 W
Unit Box Height - 0.13
Unit Box Length - 0.3
Unit Box Width - 0.23
Unit Calculated Volume - 0.01117 cubm
Unit Calculated Weight - 3.55 kg
Units per Pallet - 0
Units per Shipping Box - 4
Vendor Homepage - https://www.msi.com/Power-Supply/MAG-A1200PLS-PCIE5
Warranty - 24 months
Weight - 0,00
Width Weight & dimensions - 150 mm
