Brand - ASUS
BrandPartCode - 90YE00SA-B0NA00
Category - Power Supply Units
Design - Cooling type - Active
Design - Fan location - Top
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1370
GTIN - 4711636287715
LongDesc - TUF Gaming Gold EVO SeriesBuilt For The Long HaulThe ASUS TUF Gaming 850W Gold EVO packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come.
LongProductName - The TUF Gaming 850W Gold EVO is an efficient, resilient and dependable PSU that’s engineered for the long haul
LongSummaryDescription - ASUS TUF-GAMING-850G-EVO. Total power: 850 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, SATA power cable length: 400,120 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Number of fans: 1 fan(s). Cables included: CPU, PCIe, Peripheral (Molex), SATA
Packaging content - Cables included - CPU, PCIe, Peripheral (Molex), SATA
Packaging data - Package depth - 182 mm
Packaging data - Package height - 127 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.1 kg
Packaging data - Package width - 282 mm
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - DBB
Performance - Mean time between failures (MTBF) - 120000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 50 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 4
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 50 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 120
Ports & interfaces - Peripheral (Molex) power cable length - 400 mm
Ports & interfaces - Peripheral (Molex) power cable length - 400,120 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 120
Ports & interfaces - SATA power cable length - 400 mm
Ports & interfaces - SATA power cable length - 400,120 mm
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 850 W
Power - Combined power (-12V) - 3.6 W
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 70.83 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Overheating
Power - Power protection features - Overheating, Over current, Over power, Under voltage, Over voltage, Short circuit
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 850 W
producerCode - 90YE00SA-B0NA00

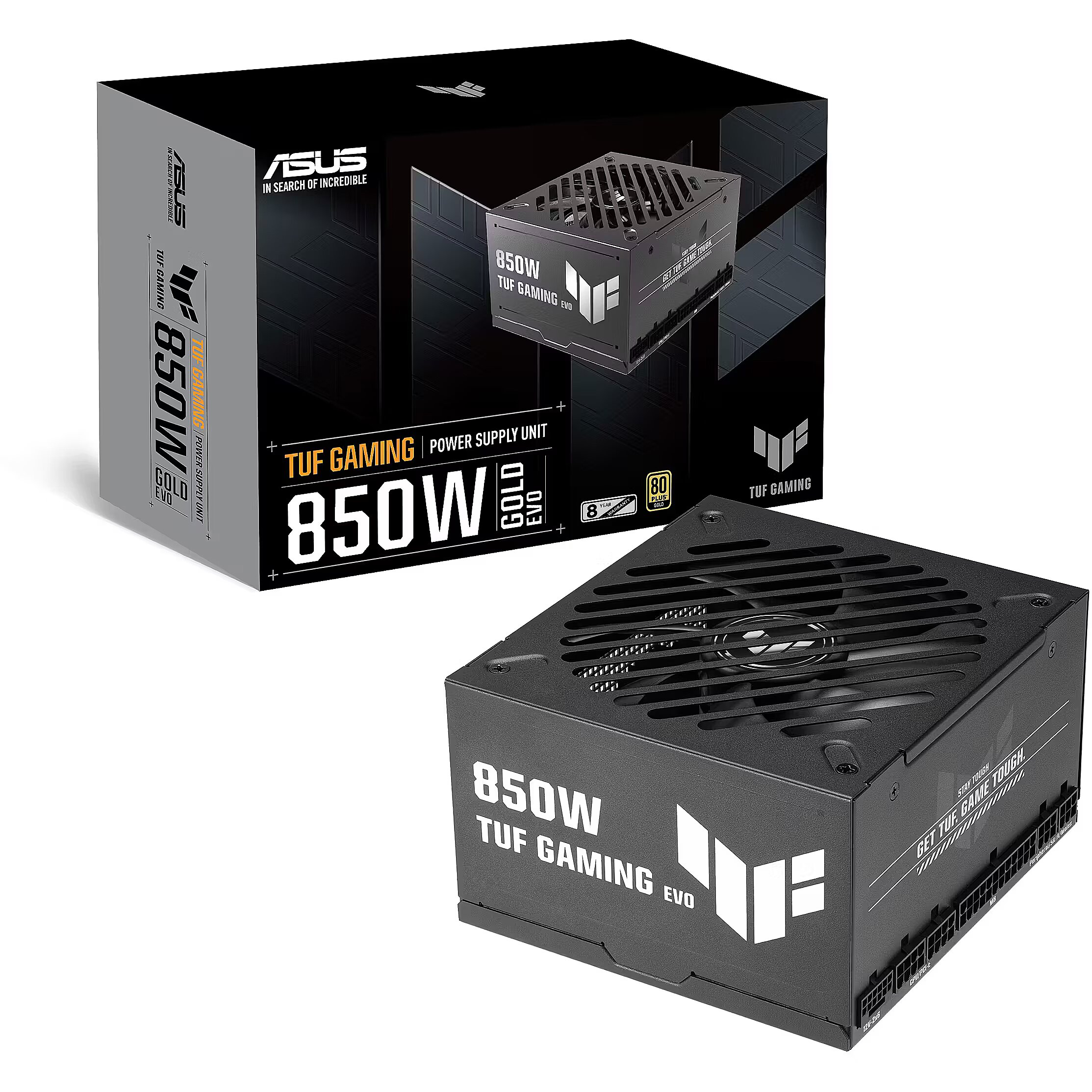

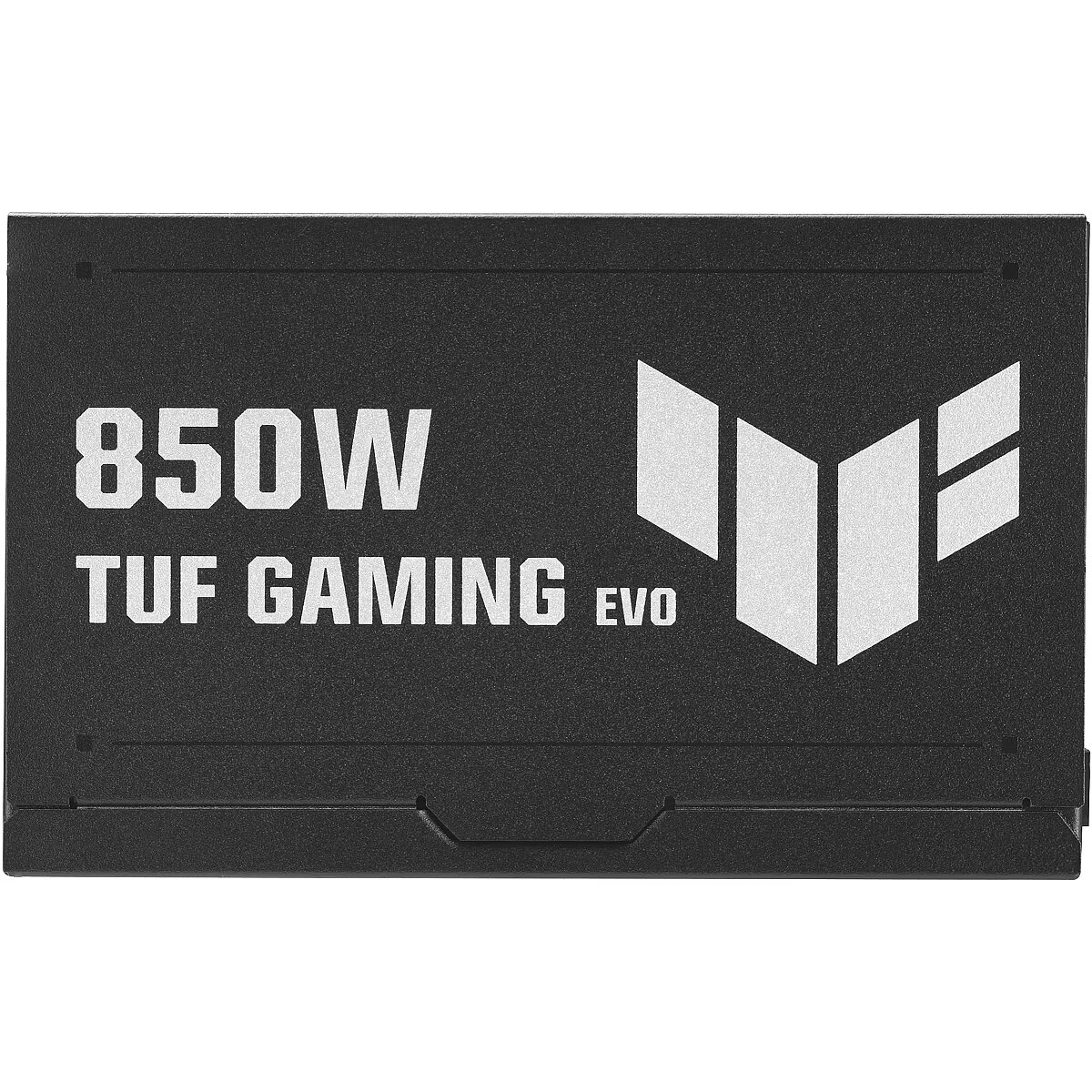

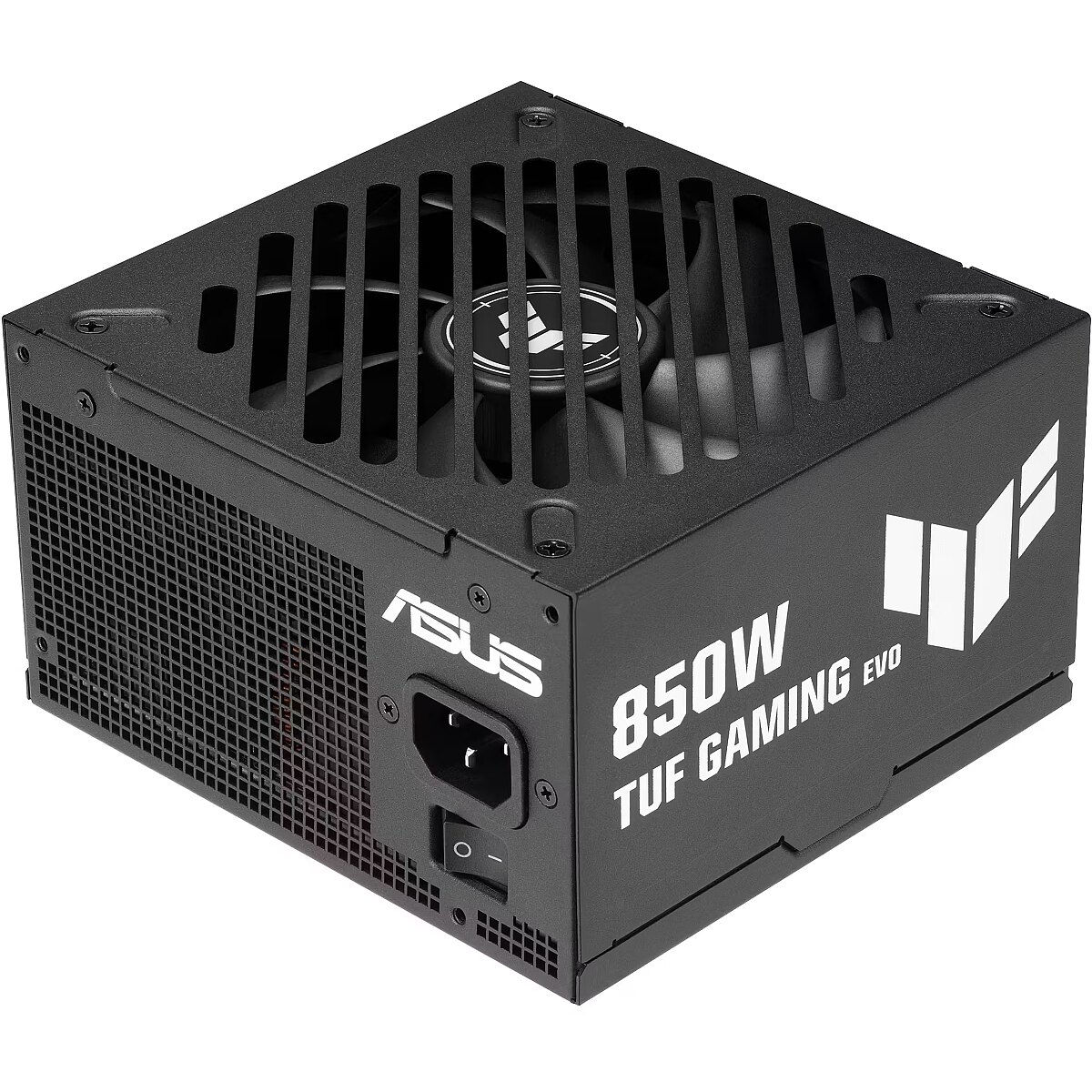

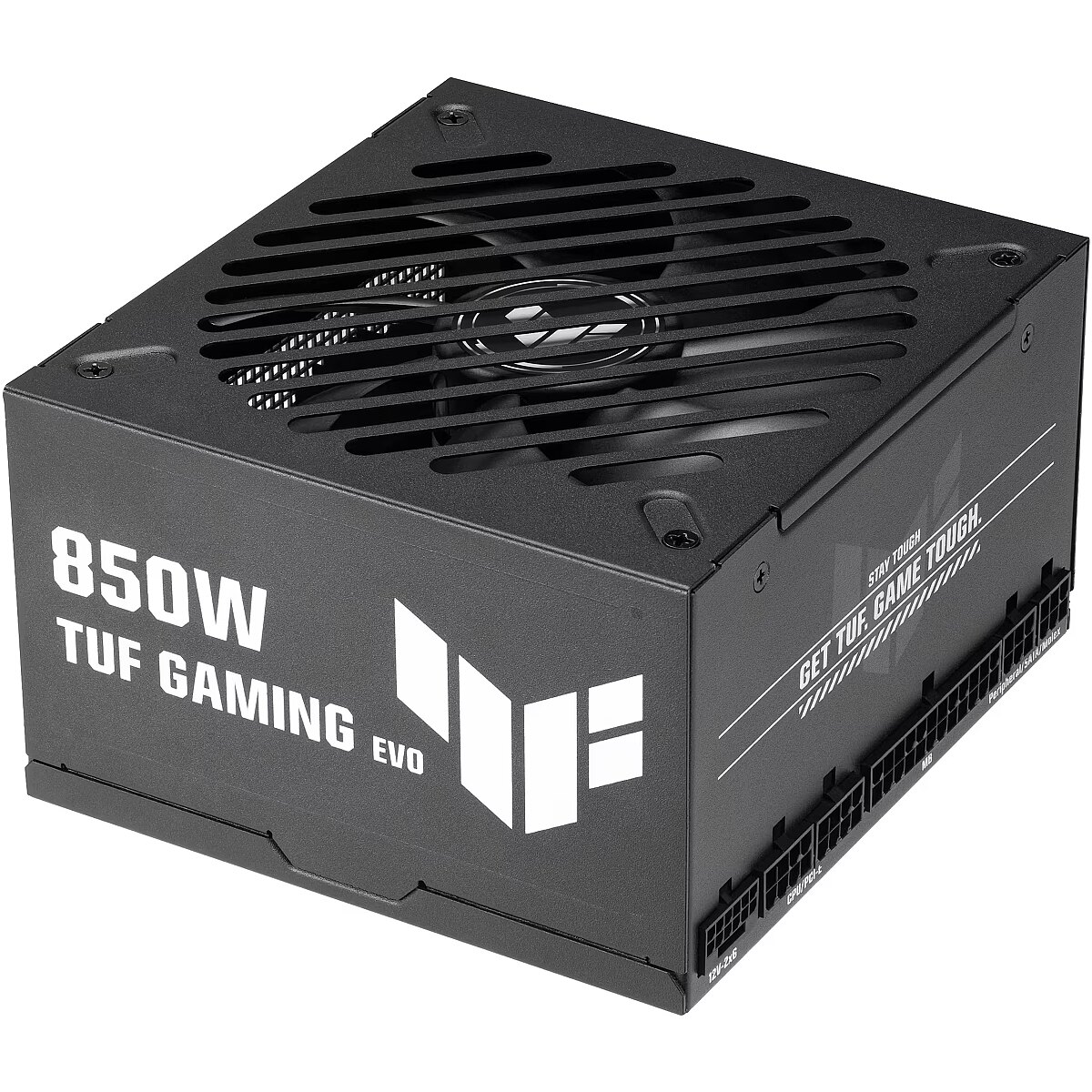

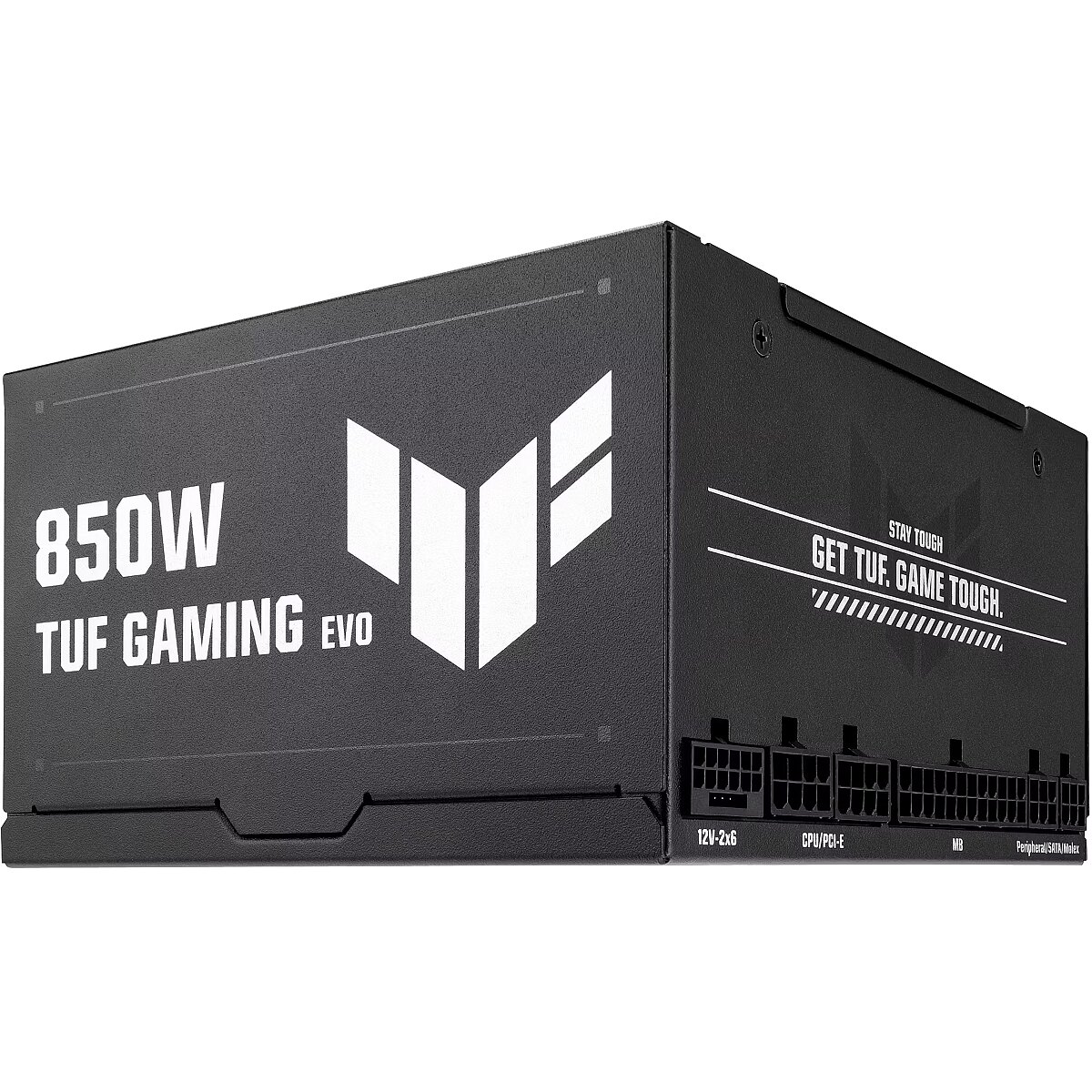

productName - ASUS TUF-GAMING-850G-EVO power supply unit 850 W 20+4 pin ATX ATX Black
ProductName - TUF-GAMING-850G-EVO
productSize - Normal
ShortSummaryDescription - ASUS TUF-GAMING-850G-EVO, 850 W, 100 - 240 V, Active, 110 W, 850 W, 110 W
sizeX - 285
sizeY - 130
sizeZ - 185
Title - ASUS TUF-GAMING-850G-EVO power supply unit 850 W 20+4 pin ATX ATX Black
URL - https://www.asus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-850g-evo/
WarrantyInfo - 8-year warranty is included.
warrantyLength - 84
warrantyType - G
weight - 2550
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.35 kg
Weight & dimensions - Width - 140 mm
