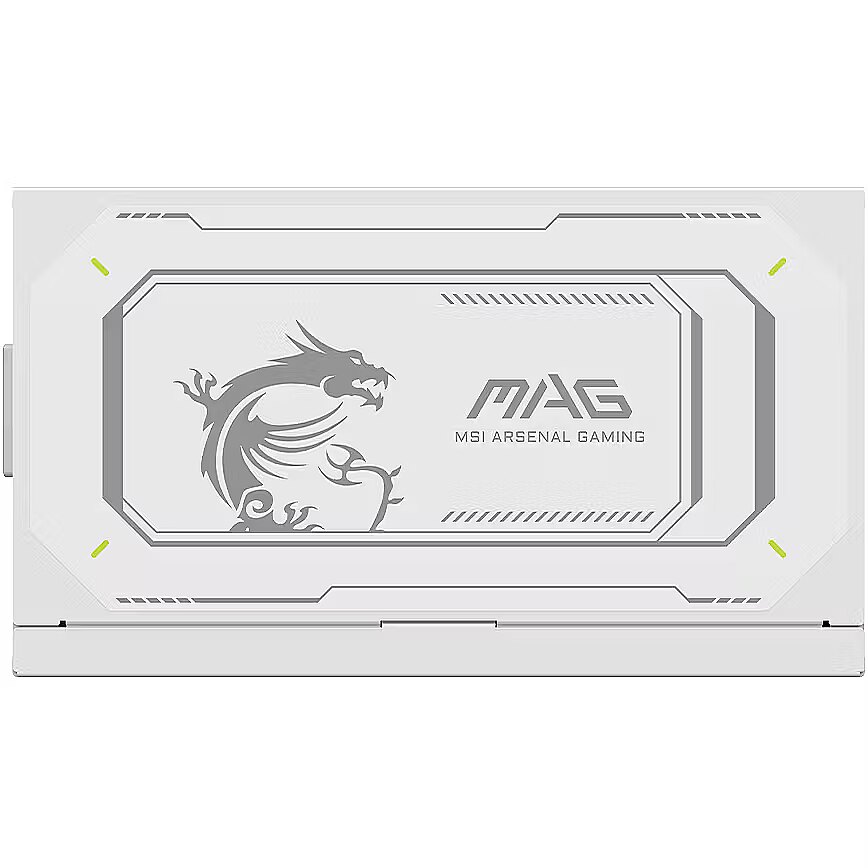

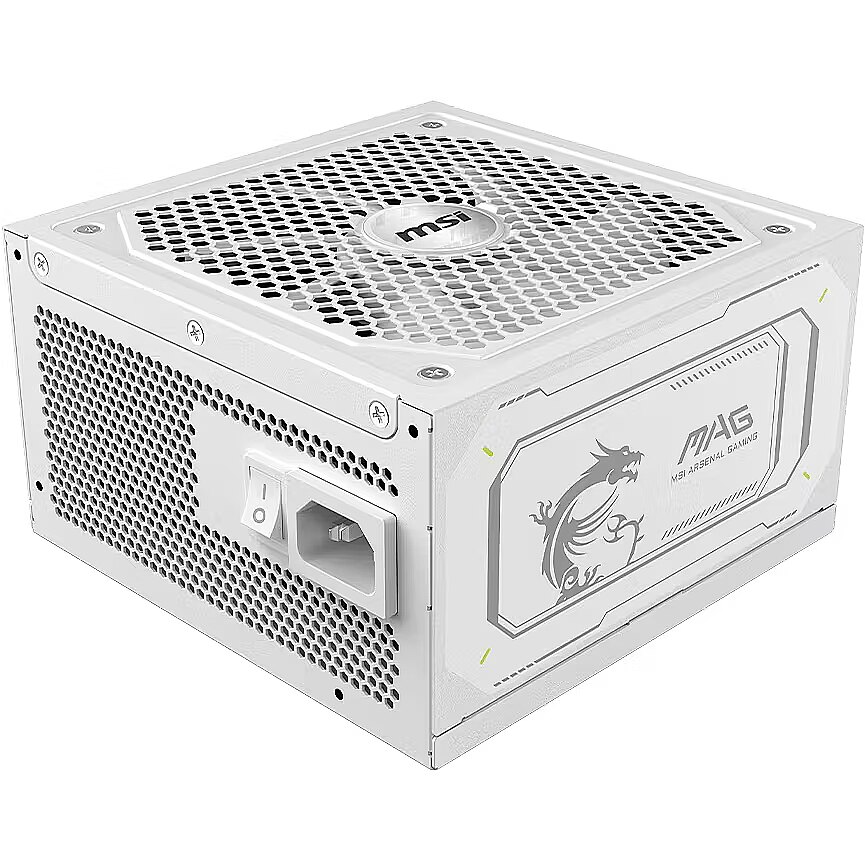

Brand - MSI
BrandPartCode - MAG A1000GL PCIE5 WHITE
Category - Power Supply Units
Category_1 - Power
Category_2 - Computer Power Supplies

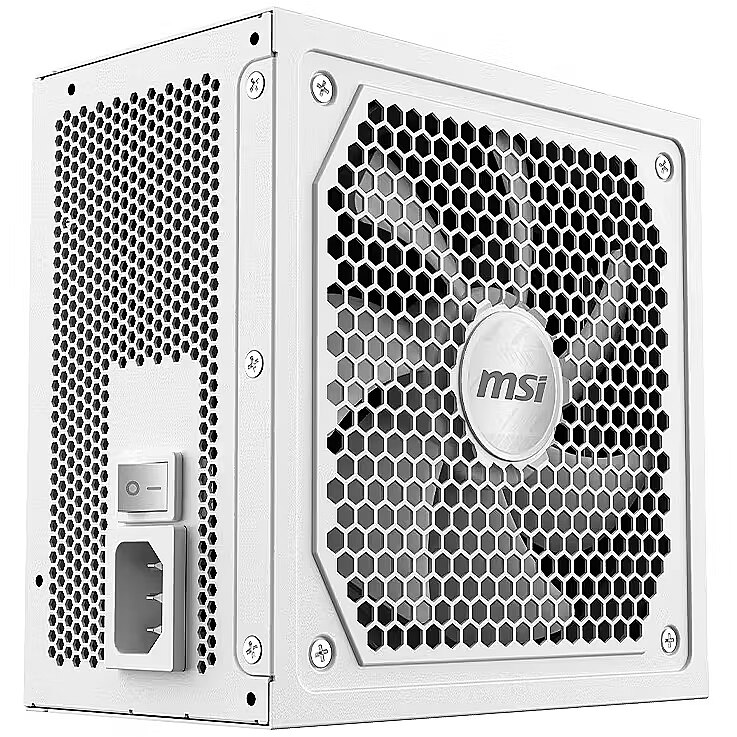

Design - Cooling type - Active

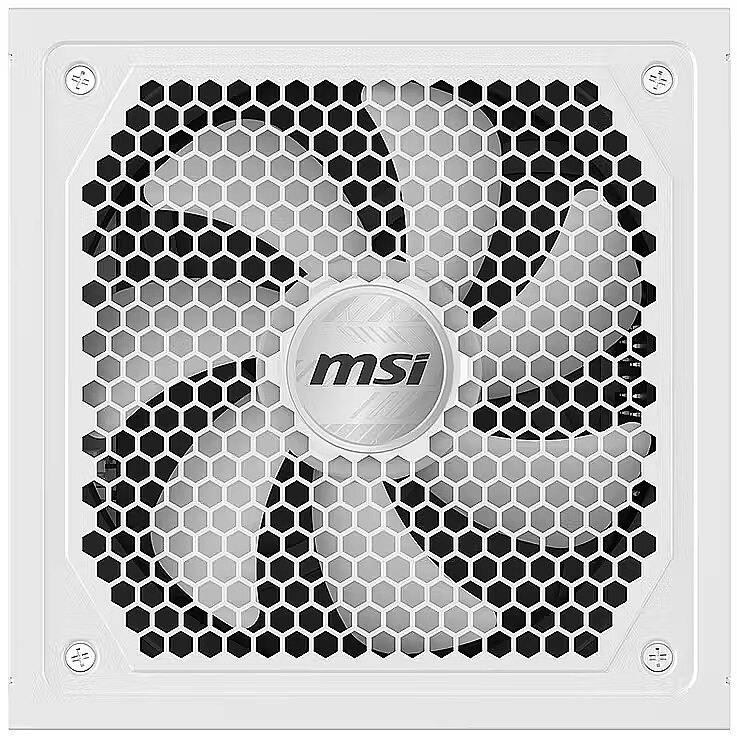

Design - Fan diameter - 13.5 cm
Design - Fan speed - 500 - 1800 RPM
Design - Illumination - No
Design - Number of fans - 1 fan(s)

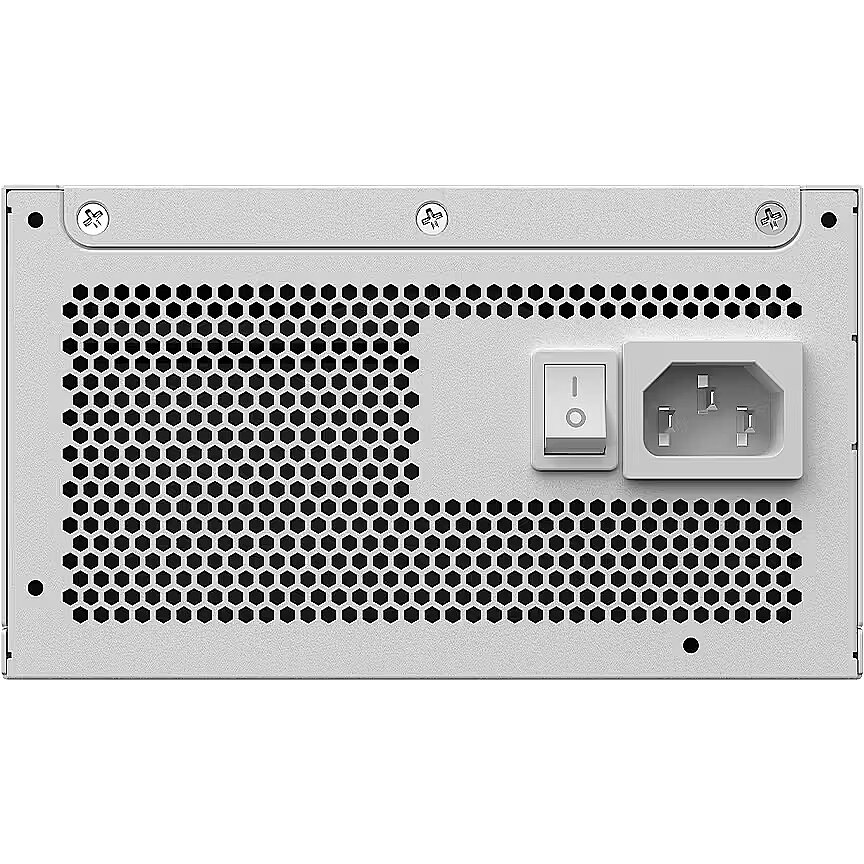

Design - On/off switch - Yes
Design - Product colour - White
EAN_code - 4711377357104
GTIN - 4711377357104

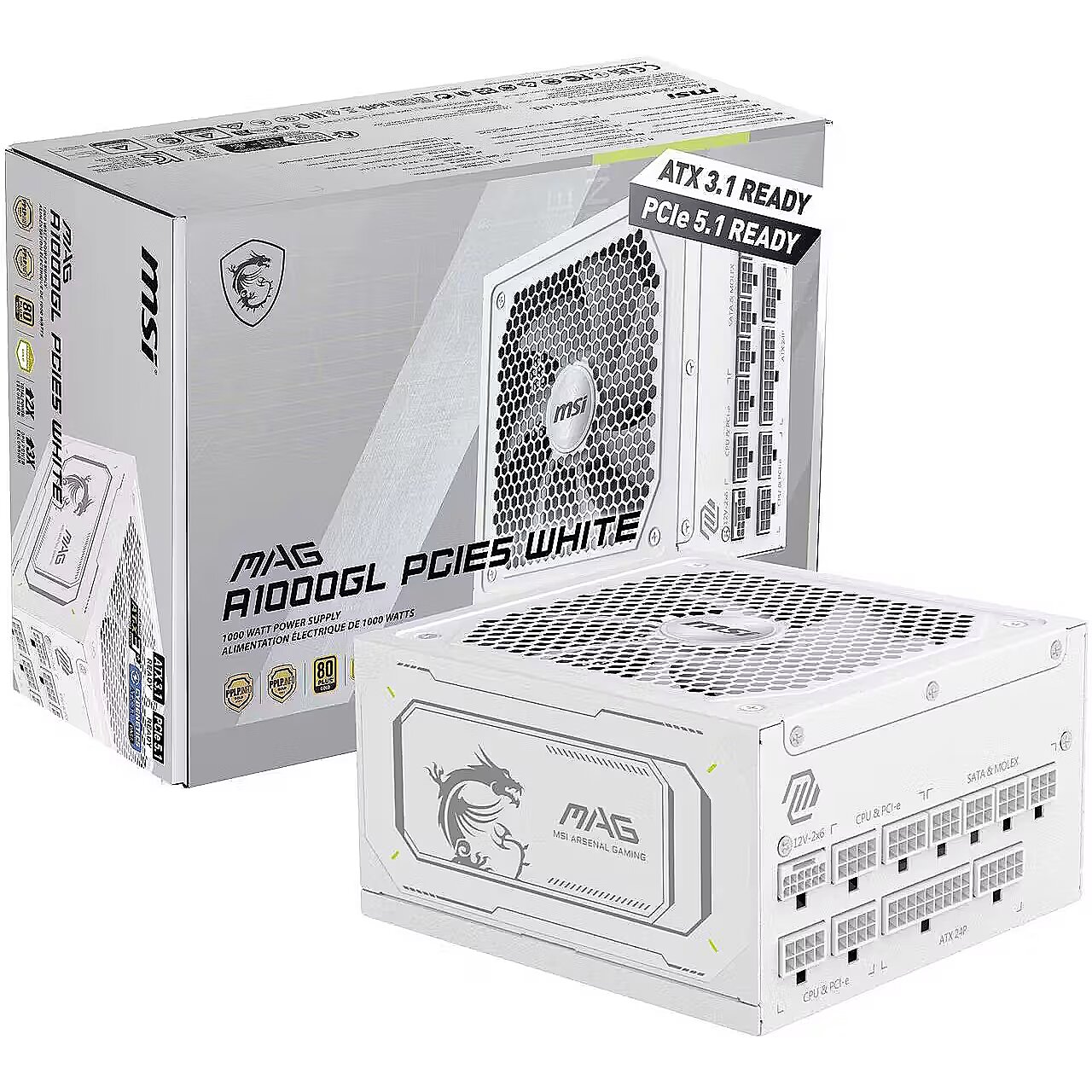

LongDesc - ATX 3.1 ReadyThe gaming power supply can hold up to 2x total power excursion and 3x GPU power excursion, remaining stable when paired with high performing graphics cards.THE POWER YOU HAVEThe single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's CPU & PCIe connectors are more than plenty.PROTECTION MECHANISMSTo make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
LongProductName - 1000W, 100-240V, 50-60 Hz, 135 mm, 80 PLUS Gold
LongSummaryDescription - MSI MAG A1000GL PCIE5 WHITE. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm
Manufacturer - MSI
Manufacturer_code - 306-7ZP9B51-CE0
Name - MSI MAG A1000GL PCIE5 WHITE (white, 1x 12-pin high power GPU, 4x PCIe, cable management, 1000 watts)
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - FDB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC

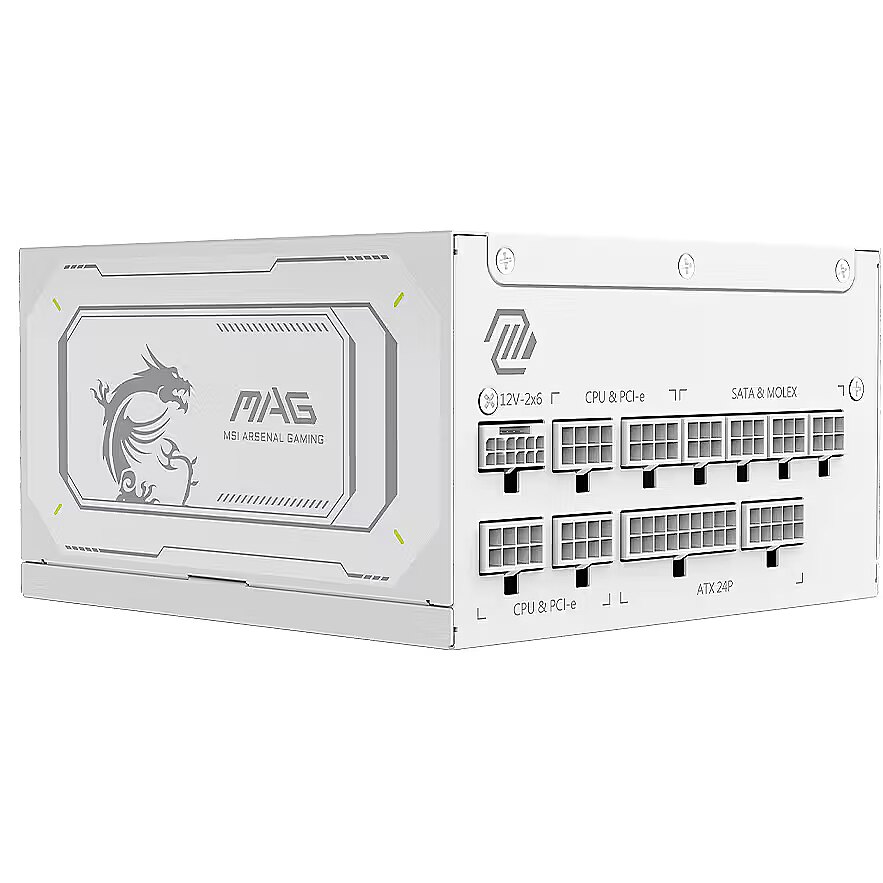

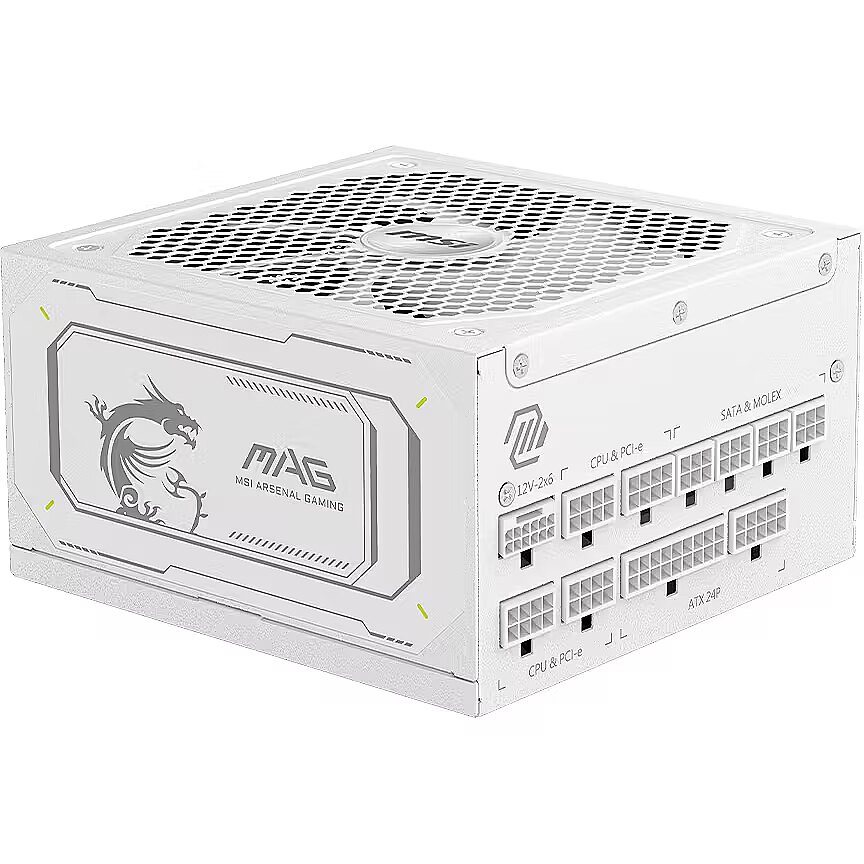

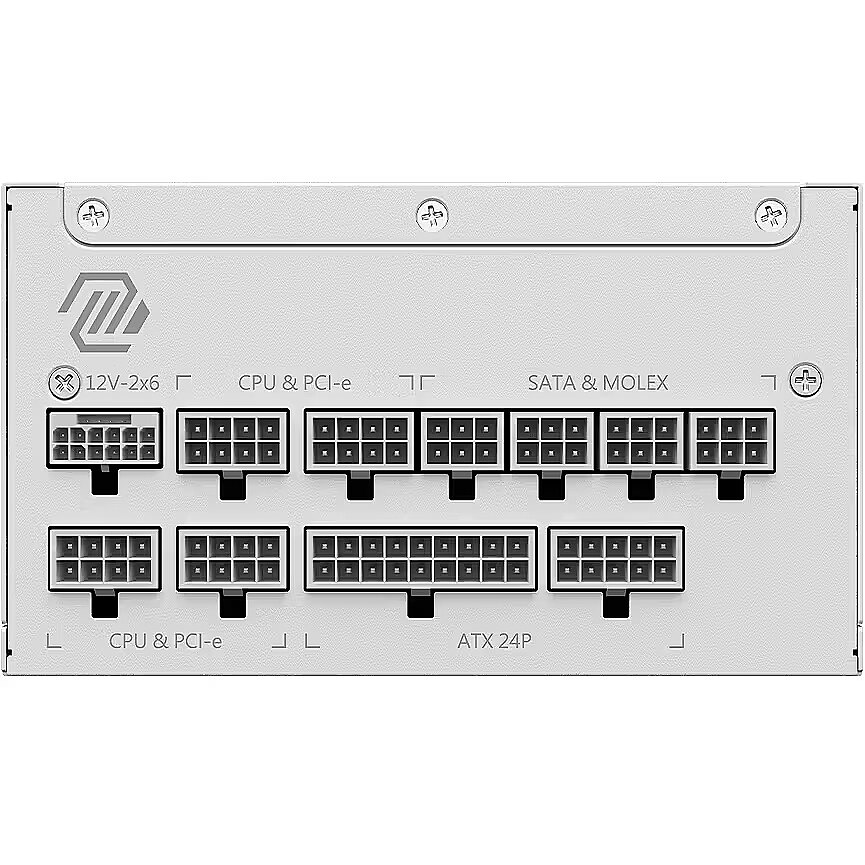

Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - No
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 12
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 450,500 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 150,500 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 999.6 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 83.3 A
Power - Max output current (-12V) - 0.3 A
Power - Number of +12V rail(s) - 1
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 1000 W
ProductName - MAG A1000GL PCIE5 WHITE
ShortSummaryDescription - MSI MAG A1000GL PCIE5 WHITE, 1000 W, 100 - 240 V, 50/60 Hz, Active, 120 W, 999.6 W
Title - MSI MAG A1000GL PCIE5 WHITE power supply unit 1000 W 24-pin ATX ATX
URL - https://www.msi.com/Power-Supply/MAG-A1000GL-PCIE5/Overview
WarrantyInfo -
Weight - 0,00
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 169 g
Weight & dimensions - Width - 150 mm
