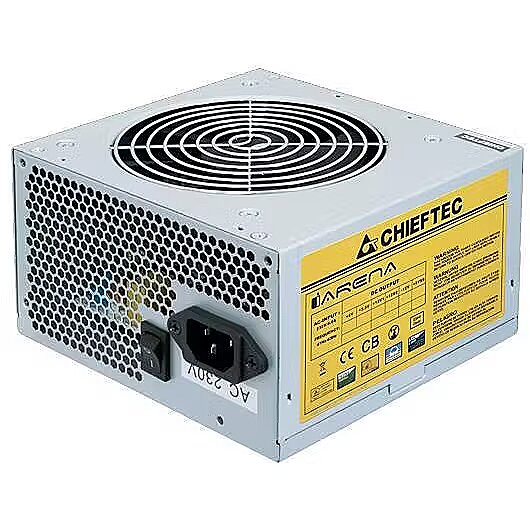

Chieftec iArena Series, 650W

AC input frequency Power - 47 - 63 Hz
AC input voltage Power - 200 - 240 V
ATX power connector (20+4 pin) Ports & interfaces - Yes
ATX version Performance - 2.3
Brand - Chieftec
BrandPartCode - GPA-650S
Cabling type Ports & interfaces - Non-Modular
Category - Power Supply Units
Category Code - PSU
Certificates - Compliance certificates - CB, CE, EAC
CnCode - 85044095
Combined power (+3.3V) Power - 120 W
Combined power (+5V) Power - 120 W
Combined power (+5Vsb) Power - 12.5 W
Combined power (+12V) Power - 600 W
Combined power (-12V) Power - 3.6 W
Compliance certificates Certificates - CB/CE/EAC
Cooling type Design - Active
CPU power cable length Ports & interfaces - 55 cm
CPU power connector (4+4 pin) Ports & interfaces - Yes
Depth Weight & dimensions - 150 mm
Description - Chieftec iArena GPA-650S The GPA-650S and like all other models in the iARENA Series have a fixed voltage of 230V and are specifically made for Europe. They are the optimal and cost-effective solution for quality-demanding system builders.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - Product colour - Silver
Efficiency Power - 80%
Fan diameter Design - 12 cm
Fan location Design - Top
Floppy disk drive connector Ports & interfaces - Yes
Floppy drive power connector Ports & interfaces - 1
GTIN - 4710713233218
Height Weight & dimensions - 87 mm
Input current Power - 4.5 A
LongDesc - The GPA-650S and like all other models in the iARENA Series have a fixed voltage of 230V and are specifically made for Europe. They are the optimal and cost-effective solution for quality-demanding system builders.
LongProductName - 650 W, ATX 12 V 2.3, PS II, 120 mm, 200 - 240 V, 47 - 63 Hz
LongSummaryDescription - Chieftec iArena GPA-650S. Total power: 650 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, Peripheral (Molex) power cable length: 500,650,800 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC
Max output current (+3.3V) Power - 20 A
Max output current (+5V) Power - 20 A
Max output current (+5Vsb) Power - 2.5 A
Max output current (+12V) Power - 50 A
Max output current (-12V) Power - 0.3 A
Model name - GPA-650S
Motherboard power cable length Ports & interfaces - 50 cm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 6
Package type Packaging data - Box
Package weight Packaging data - 1.55 kg
Packaging data - Package type - Box
Packaging data - Package weight - 1.55 kg
PCI Express power connectors (6+2 pin) Ports & interfaces - 2
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC/Server
Peripheral (Molex) power cable length Ports & interfaces - 500/650/800 mm
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 2
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power cable length - 55 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 50 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 500,650,800 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 600 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 80%
Power - Input current - 4.5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 50 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over voltage, Overload, Short circuit, Under voltage
Power - Total power - 650 W
Power Factor Correction (PFC) type Power - Active
Power factor Power - 0.9
Power protection features Power - Over voltage/Overload/Short circuit/Under voltage
Power supply unit (PSU) form factor Performance - PS/2
Product colour Design - Silver
ProductName - GPA-650S
Purpose Performance - PC/Server
ShortSummaryDescription - Chieftec iArena GPA-650S, 650 W, 200 - 240 V, 47 - 63 Hz, 4.5 A, Active, 120 W
Summary - Chieftec iArena GPA-650S. Total power: 650 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, Peripheral (Molex) power cable length: 500,650,800 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC
Title - Chieftec iArena GPA-650S power supply unit 650 W 20+4 pin ATX PS/2 Silver
Total power Power - 650 W
Unit Box Height - 0.09
Unit Box Length - 0.22
Unit Box Width - 0.15
Unit Calculated Volume - 0.004275 cubm
Unit Calculated Weight - 1.55 kg
Units per Pallet - 0
Units per Shipping Box - 10
URL - https://www.chieftec.eu/products-detail/140/IARENA_SERIES/145/GPA-650S
Vendor Homepage - https://www.chieftec.eu/products-detail/140/IARENA_SERIES/145/GPA-650S
Warranty - 24 months
WarrantyInfo - 2 years
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Weight - 1.42 kg
Weight & dimensions - Width - 140 mm
Weight Weight & dimensions - 1.42 kg
Width Weight & dimensions - 140 mm
