Brand - MSI
BrandPartCode - MAG A650GLS PCIE5
Category - Power Supply Units
Category_1 - Zasilanie
Category_2 - Zasilacze komputerowe
Design - Cooling type - Active

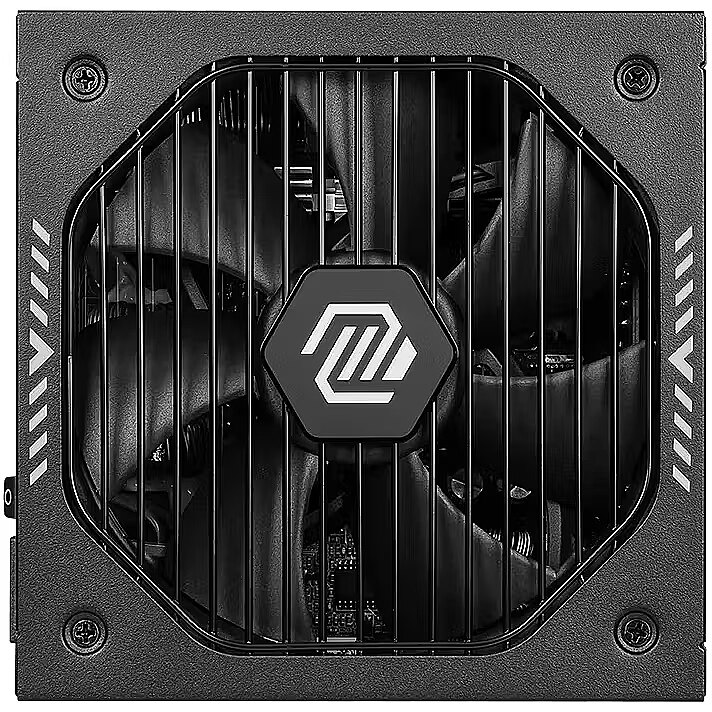

Design - Fan diameter - 13.5 cm
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
EAN_code - 4711377292290
GTIN - 4711377292290
GTIN - 4711377292306
LongDesc - Featuring ATX 3.1 and PCIe 5.1 support with native 12V-2x6 connectors, these PSUs are built to handle NVIDIA’s 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks.MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
LongProductName - 80 PLUS Gold, 90%, Full Modular, 135 mm, 24-pin ATX, Fluid Dynamic Bearing, Active PFC, 650 W, 100-240 V, 50-60 Hz, OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO, 1 x ATX 24 pin, 2 x EPS 4+4 pin, 1 x PCI-E, 2 x PCI-E 6+2 pin, 5 x SATA, 2 x Peripheral 4 pin, Black, 150 x 150 x 86 mm
LongSummaryDescription - MSI MAG A650GLS PCIE5. Total power: 650 W, AC input voltage: 100 - 240 V, Peak power: 1430 W. Motherboard power connector: 24-pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm
Manufacturer - MSI
Manufacturer_code - 306-7ZPHY11-HD8
Name - MSI MAG A650GLS PCIE5 (black, 1x 12-pin high power GPU, 2x PCIe, cable management, 650 watts)
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - FDB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC

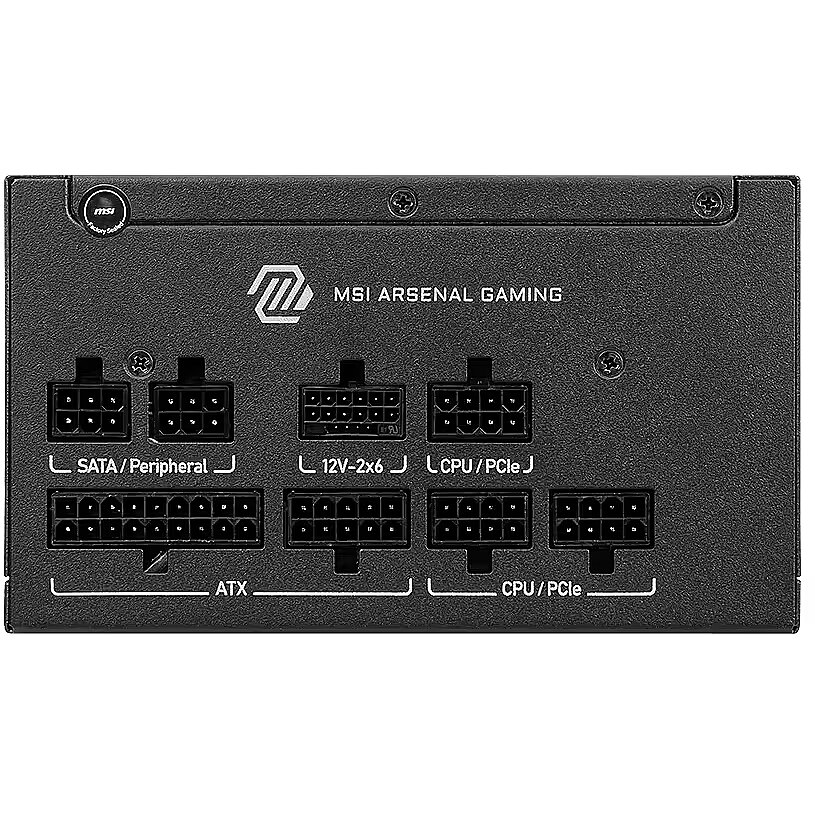

Ports & interfaces - ATX Power connector (24-pin) - Yes

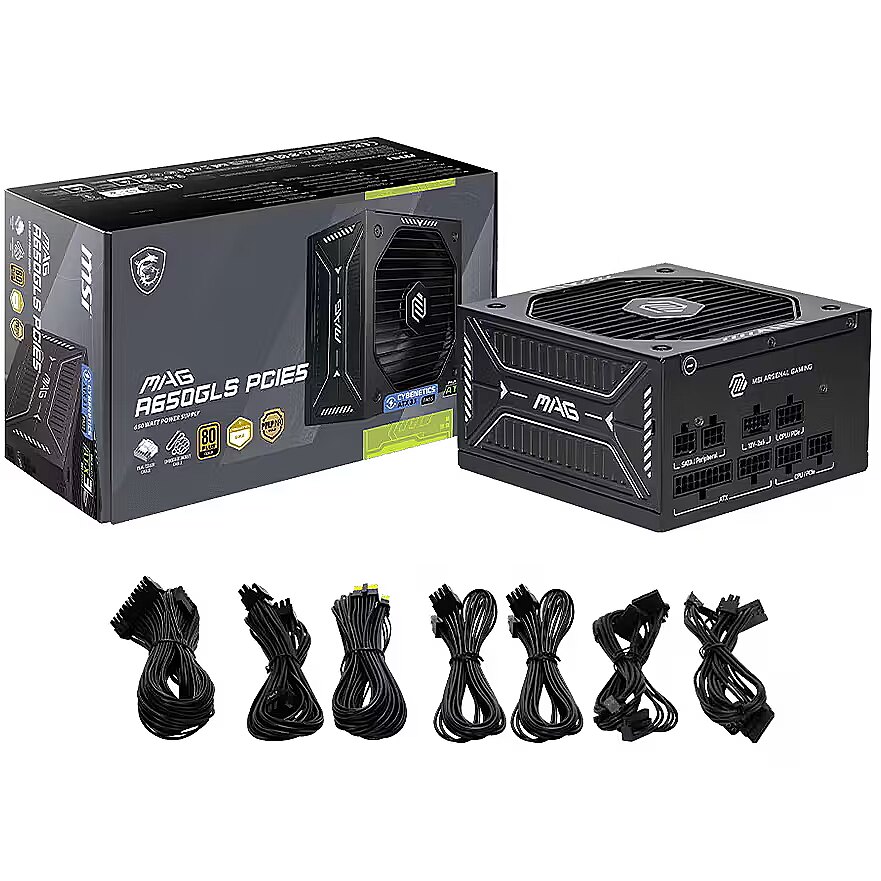

Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - No
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of EPS connectors - 2
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 648 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Max output current (+3.3V) - 18 A
Power - Peak power - 1430 W
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - No load operation, Over power, Over total voltage, Over voltage, Overcharge, Short circuit, Surge & inrush protection (SIP), Under voltage
Power - Total power - 650 W
ProductName - MAG A650GLS PCIE5
ShortSummaryDescription - MSI MAG A650GLS PCIE5, 650 W, 100 - 240 V, 1430 W, 50/60 Hz, Active, 100 W

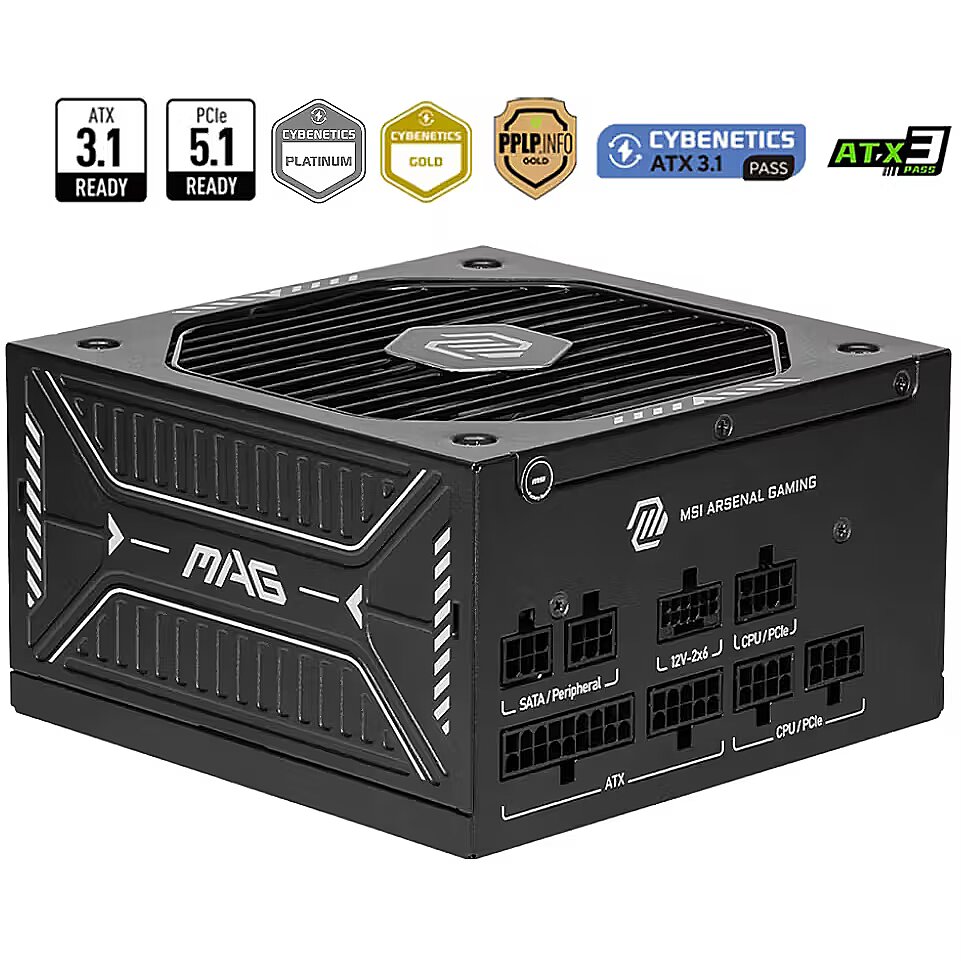

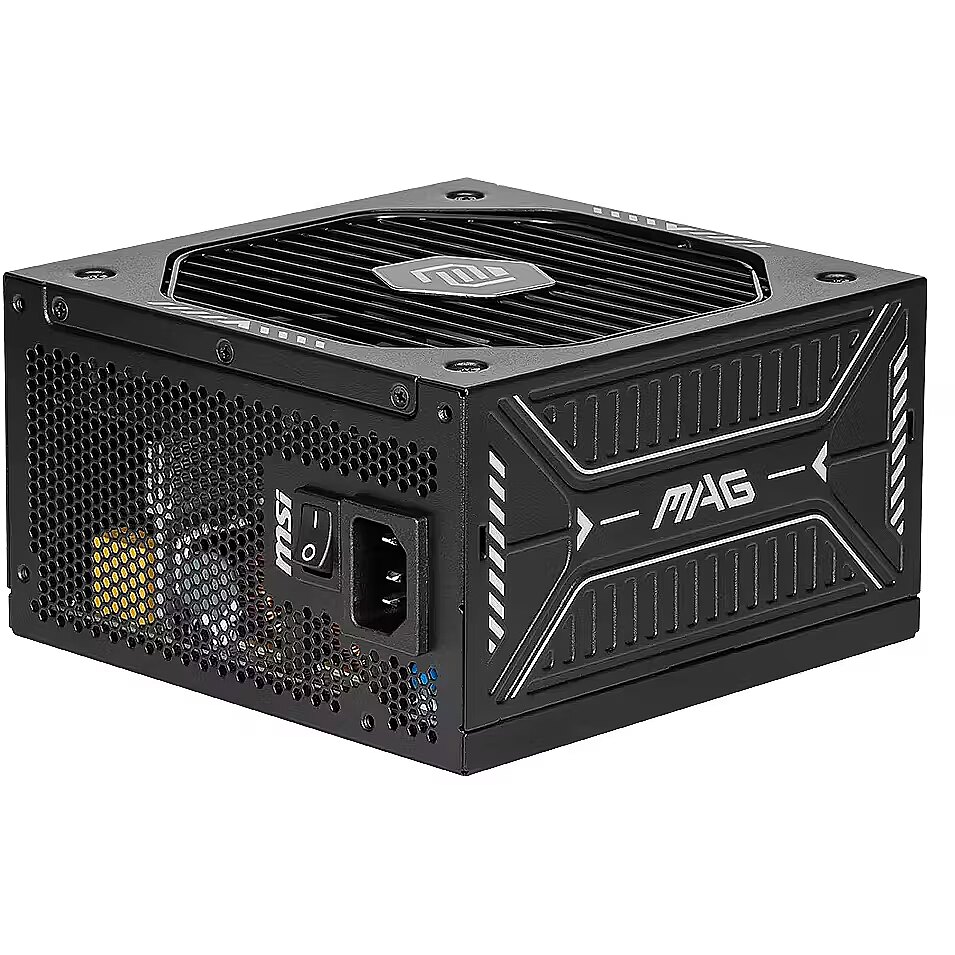

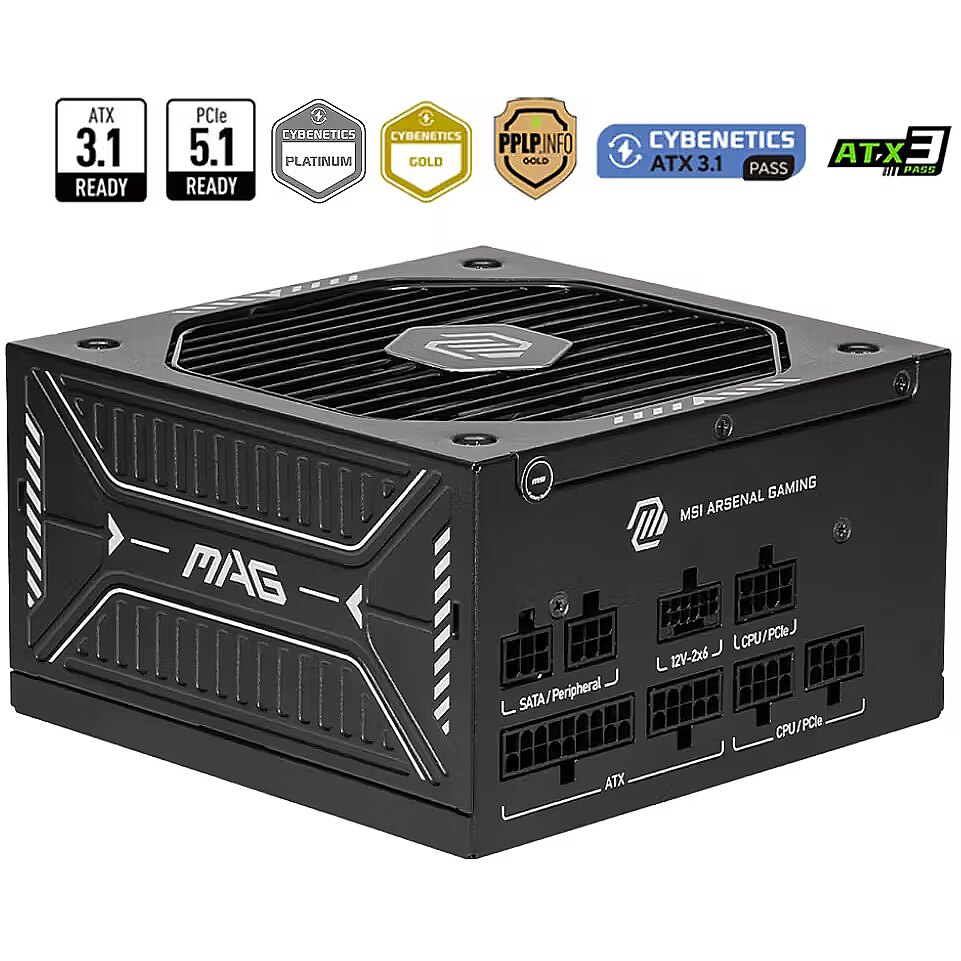

Title - MSI MAG A650GLS PCIE5 power supply unit 650 W 24-pin ATX ATX Black
URL - https://www.msi.com/Power-Supply/MAG-A650GLS-PCIE5/Overview
WarrantyInfo -
Weight - 2,40
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
