Chieftec Stealth, 1000W, 80PLUS PLatinum, ATX 3.1, PCIe 5.1
-
Postin pakettiautomaatti1-2 työpäivän kuluessa6,99 €
-
Toimitus Posti-kuriirin postin välityksellä1-2 työpäivän kuluessa10,99 €
- Tuottaja: Chieftec
- Teho: 1000W
- 80 PLUS -sertifiointi: 80 PLUS Platinum
- Puhaltimen koko: 135 mm
- Modulaariset kaapelit: Fully-Modular
- Prosessori-liitännäinen: 1 x 8-pin(4+4) EPS
- PCI-E: 3 x 6+2pin
Ostettavissa on Chieftec-valmistajan virtalähde, jonka 1000W teho. Tuotteelle on myönnetty 80 PLUS Platinum -energiatehokkuussertifikaatti.
Tämä 1000W virtalähde pystyy pyörittämään parasta pelitietokonetta. Siinä on tarpeeksi tehoa usean huippuluokan näytönohjaimen, suuren vesijäähdytysjärjestelmän, ylikellotetun huippuprosessorin ja useiden kovalevyjen käyttöön.

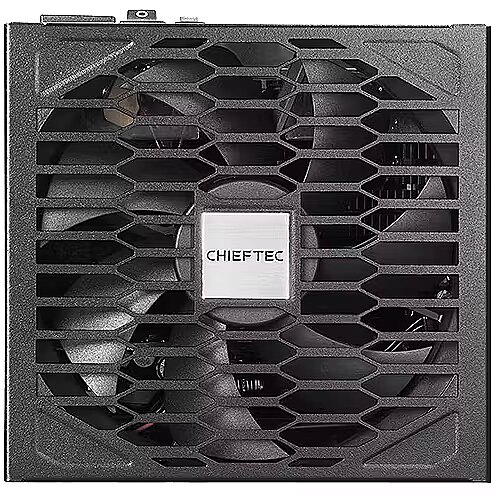

Tämän virtalähteen 135 mm jäähdytyksen tuuletin halkaisijan ansiosta tämä virtalähde on paljon hiljaisempi kuin keskimääräinen. Tuuletin on suurempi lapakoko, mikä tarjoaa tarvittavan ilmavirran alemmilla tuuletinnopeuksilla, vähentäen siten kokonaismelua ja tärinätasoja minimiin.
Virtalähteelle on myönnetty 80 PLUS Platinum -energiatehokkuussertifikaatti, joka takaa vähintään 92 %:n tehokkuuden 50 %:n kuormituksella. Tämä tarkoittaa, että vähintään 92 W 100 W:sta, jonka virtalähde saa sähköverkosta, toimitetaan tietokoneen komponenteille, kun taas jäljelle jäävä 8 W menee hukkaan lämpönä.
Virtalähteen väri on Melna. Se on varustettu litteillä kaapeleilla, joiden väri on Melna.

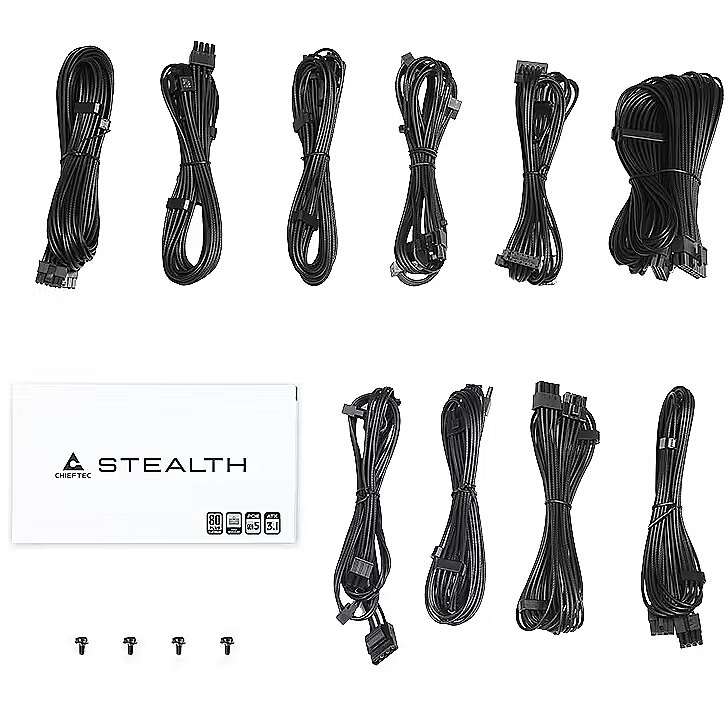

Koska tässä virtalähteessä on modulaariset kaapelit, voit lisätä kiintolevyjä, näytönohjaimia ja muita komponentteja tarpeen mukaan, käyttämällä pakkaukseen sisältyviä eri kaapeleita. Näin tietokoneessa on vähemmän johtoja, mikä parantaa ilmanvaihtoa ja ulkonäköä (erityisen hyödyllistä niille, jotka valitsevat osittain läpinäkyvän kotelon).
Brand - Chieftec
BrandPartCode - SPX-1000-FC
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - 80 PLUS Platinum
Dane techniczne: Certyfikat sprawności - 80 Plus Platinium
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Grupa produktowa - Zasilacze do komputera Chieftec
Dane techniczne: Gwarancja - 6 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 140 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 1000 W
Dane techniczne: Model - Chieftec SPX
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: Natężenie przy napięciu +3.3V - 20 A
Dane techniczne: Natężenie przy napięciu +5V - 20 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3 A
Dane techniczne: Natężenie przy napięciu +12V1 - 83.3 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - Chieftec
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Waga - 2 kg
Dane techniczne: Wersja standardu ATX - ATX 3.1
Dane techniczne: Wtyczka zasilania [pin] - 1 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 1 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 1 x EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 3 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 10 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - AFC
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - SIP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 135 mm
Description - CHIEFTEC Stealth Zasilacze serii CHIEFTEC Stealth są zgodne ze standardem Intel ATX 12V 3.1 i wspierają PCIe GEN5, oferując certyfikowaną efektywność 80PLUS Platinum. Zapewniają wydajność i stabilność klasy premium, niezbędną dla systemów najwyższej klasy. Seria skupia się na konkurencyjnym stosunku ceny do wydajności do 1200 W, zachowując przy tym sprawdzoną jakość CHIEFTEC. Seria Stealth wyposażona jest w konwerter LLC Half-Bridge z technologią DC-to-DC, który zapewnia lepszą efektywność energetyczną i stabilność. Wykorzystuje japońskie kondensatory najwyższej jakości dla większej trwałości i niezawodności. W pełni modułowa konstrukcja z długimi, ultra miękkimi kablami z tłoczeniem upraszcza układanie przewodów, zmniejsza chaos i ułatwia instalację. Dodatkowo, cichy wentylator 135 mm z łożyskiem FDB (fluid dynamic bearing) optymalizuje równowagę pomiędzy wydajnością chłodzenia a poziomem hałasu. Seria Stealth to Twoje niezawodne rozwiązanie dla wszystkich potrzeb komputerowych, wyposażone we wszystkie nowoczesne funkcje ochrony i bezpieczeństwa.
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 135 mm
dimension height - 210 mm
Dimensions - 86 x 150 x 140 mm
dimension weight - 3320 g
dimension width - 335 mm
ean - 753263079251
Eans - 753263079251
Fan - 13.5 cm
Filters / protection - Automatic fan speed control
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Protection against surges and surges
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
Form Factor - ATX
GTIN - 0753263079251
GTIN - 753263079251
guarantee - 60
guarantee_type - normal
LongSummaryDescription - Chieftec Stealth 1000W Vega M Series SPX-1000-FC 80+ Platin. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
MB power connector - 20 + 4 pin
Modular power supply - Yes
MOLEX power connectors - 2
Name - Chieftec SPX-1000-FC
name - Power supply SPX-1000-FC STEALTH 80+ Platinum
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 3
Packaging data - Package type - Box
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Performance - Bearing technology - FDB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of EPS connectors - 1
Ports & interfaces - Number of SATA power cables - 3
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 65 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - Peripheral (Molex) power cable length - 150,500 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 150,500 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1000 W
Power - Input current - 13.0-6.5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 83.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over voltage, Overload, Short circuit, Surge and inrush, Under voltage
Power - Total power - 1000 W
Power supply - 1000 W
Producent: Nazwa producenta / importera - Chieftec
Arena Electronic GmbH
Koppersstr. 18
40549 Duesseldorf
producer - Chieftec
Producer - Chieftec
ProducerCode - SPX-1000-FC
ProductName - 1000W Vega M Series SPX-1000-FC 80+ Platin
SATA power connectors - 10
ShortDescription - 1000 | ATX | 135 mm | 20 + 4 pin | 140mm x 150mm x 86mm | 80PLUS Platinum
ShortSummaryDescription - Chieftec Stealth 1000W Vega M Series SPX-1000-FC 80+ Platin, 1000 W, 100 - 240 V, 50/60 Hz, 13.0-6.5 A, Active, 100 W
Title - Chieftec Stealth 1000W Vega M Series SPX-1000-FC 80+ Platin power supply unit 24-pin ATX ATX Black
vendpn - SPX-1000-FC
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
