ID: 1291581
Tuotekoodi: FAL751FSP12
Varastossa 22 yksiköt
Takuu: 2 vuotta

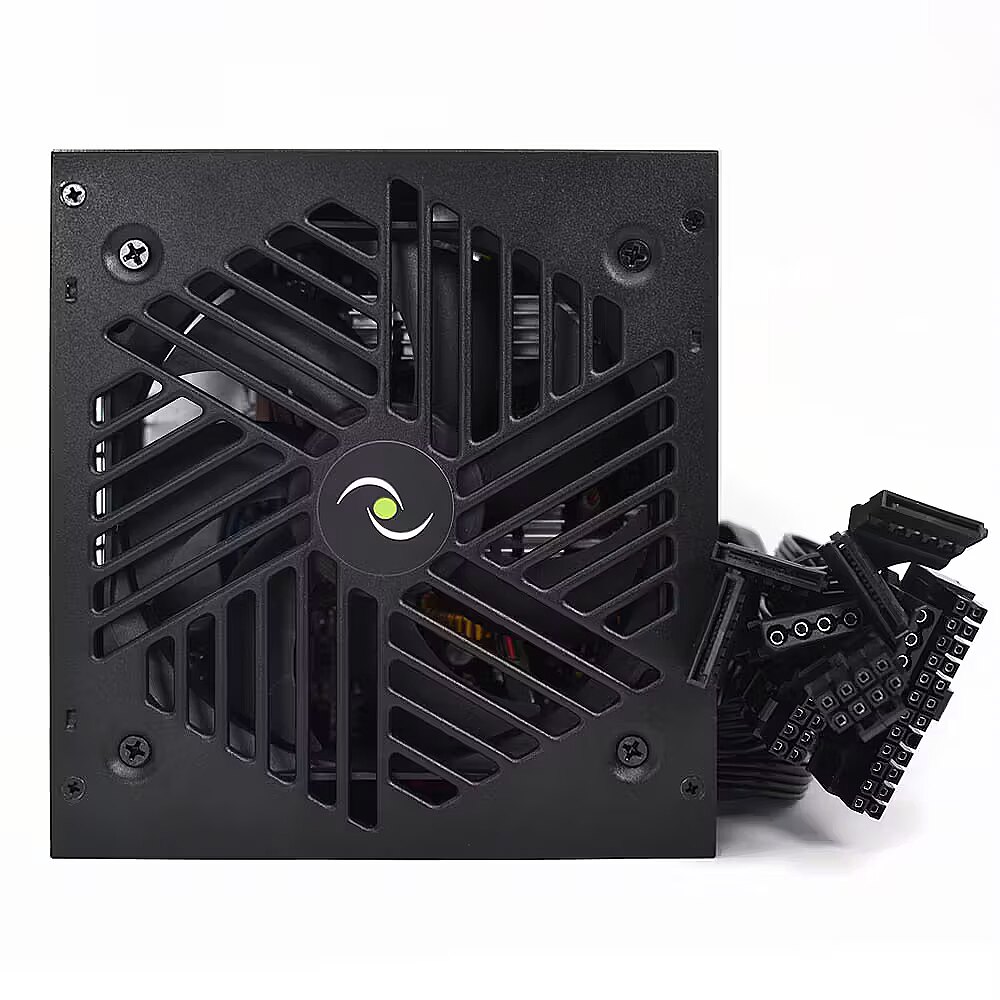

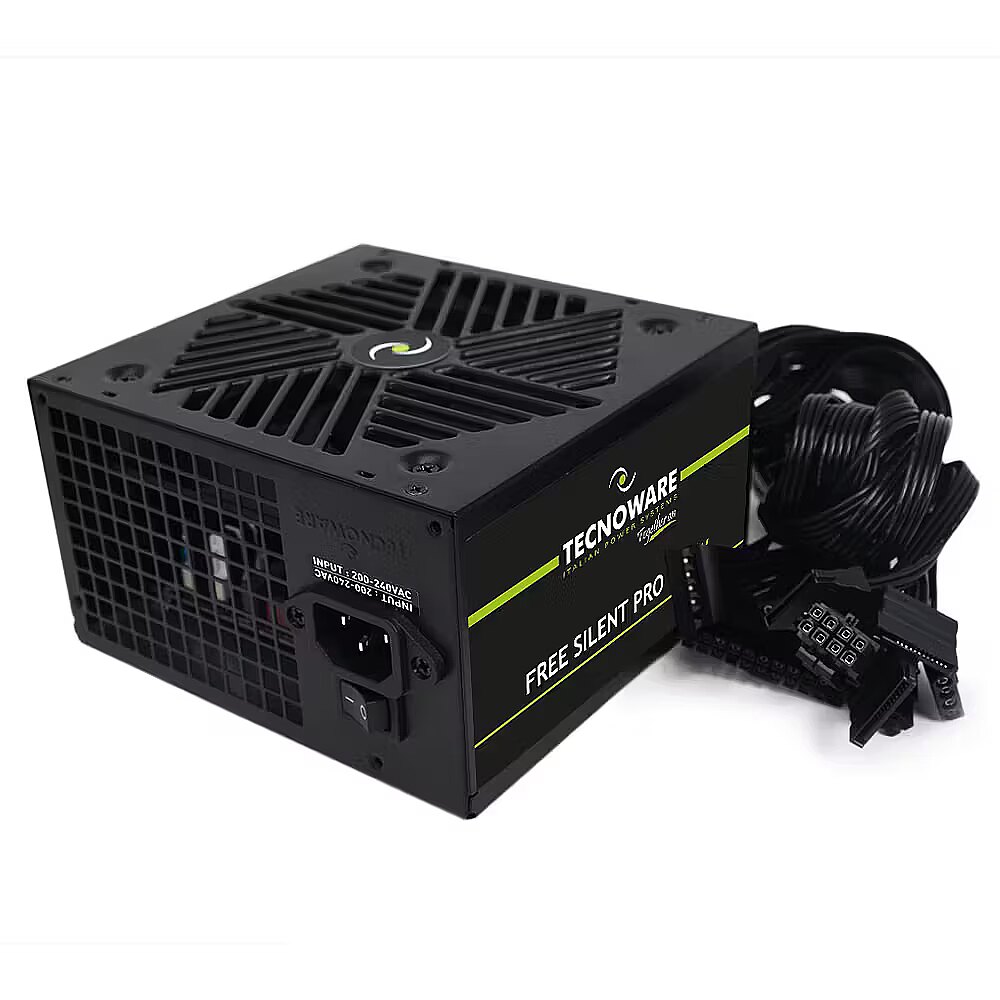

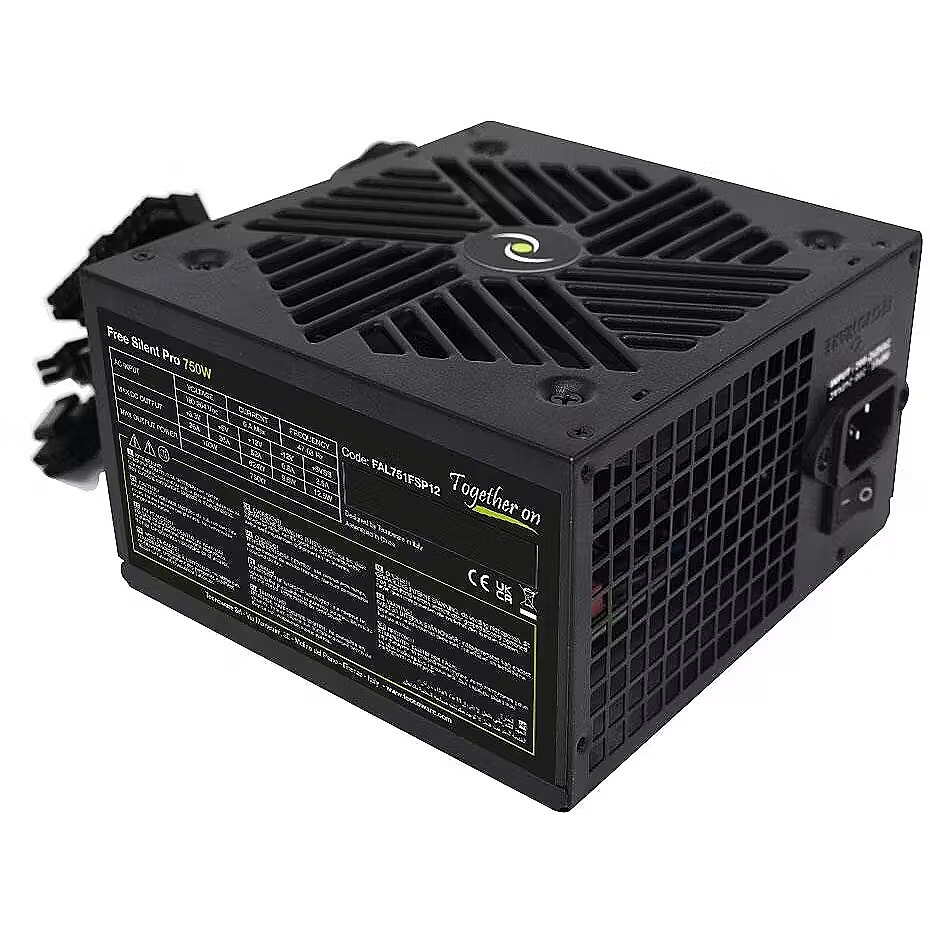

Tecnoware Free Silent PRO, 750W
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
-
Postin pakettiautomaatti1-2 työpäivän kuluessa6,99 € -
Postitoimisto1-2 työpäivän kuluessa6,99 €
-
Toimitus Posti-kuriirin postin välityksellä1-2 työpäivän kuluessa10,99 €
Tärkeimmät tuoteparametrit Kaikki parametrit
- Tuottaja: Tecnoware
- Teho: 750W
- 80 PLUS -sertifiointi: Ei mitään
- Puhaltimen koko: 120 mm
- Modulaariset kaapelit: Ei mitään
- Prosessori-liitännäinen: 1 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Kuvaus
Tämä virtalähde on varustettu 120 mm tuulettimella, joka on teollisuuden standardi keskivertotietokoneiden hiljaisen toiminnan varmistamiseksi. Jos haluat erityisen hiljaisen yksikön, etsi sellainen, jonka tuulettimen halkaisija on 135 mm tai 140 mm.
Lohkon väri on Melna. Lohkossa on tasaiset kaapelit, joiden väri on Melna.
ATX 2.0 -standardi, joka on määritetty tälle
Tämä virtalähde
Perustiedot
Cybenetics Melutason sertifiointi
: Ei ole
Cybeneticsin tehokkuuden sertifiointi
: Ei ole
Virtalähteen tyyppi
: ATX
Teho
750W
Virtalähteen kapasiteetti watteina. Suurempi kapasiteetti tarkoittaa tietokoneen toiminnan vakaampaa toimintaa. Nykyaikaisen keskiverto tietokoneen virtalähteen suositeltu kapasiteetti on vähintään 500 W. Jos käytät useita kiintolevyjä, tehokasta näytönohjainta ja prosessoria, on suositeltavaa ostaa virtalähde, jonka kapasiteetti on vähintään 600 W.
80 PLUS -sertifiointi
: Ei mitään
Kokonaisvirta (+12V)
: 52A
Puhaltimen koko
: 120 mm
Toiminnallisuus
Kaapelin väri
: Musta
Valaistus
: Ei mitään
Väri
: Musta
Modulaariset kaapelit
: Ei mitään
Satamat ja laitteet
PCI-E 5.0/5.1
: Ei ole
Prosessori-liitännäinen
: 1 x 8-pin(4+4) EPS
Emolevyn virta
: 20+4-pin
PCI-E
: 2 X 6+2pin
SATA-liittimet
: 4
4pin Molex
: 2
Tietokonekotelo
Yksityiskohtaisempi erittely
80 PLUS certification Performance - No
AC input frequency Power - 47 - 63 Hz
AC input voltage Power - 180 - 264 V
ATX version Performance - 2.31
Category - Datoru komponentes :: Barošanas bloki (PSU)
Category Code - PSU
CnCode - 85044095
Code - FAL751FSP12
Cooling type Design - Active
CPU power connector (4+4 pin) Ports & interfaces - Yes
Depth Weight & dimensions - 140 mm
Desc - Jauda: 750W, Energoefektivitāte: Nav, PFC: Aktīvs, Ventilators: 120mm, Modulārs:: Nav zināms, SATA pieslēgumi: 4, MOLEX PATA pieslēgumi: 2, PCI-E: 2 x 6 + 2 PIN, Garantija: 2 gadi

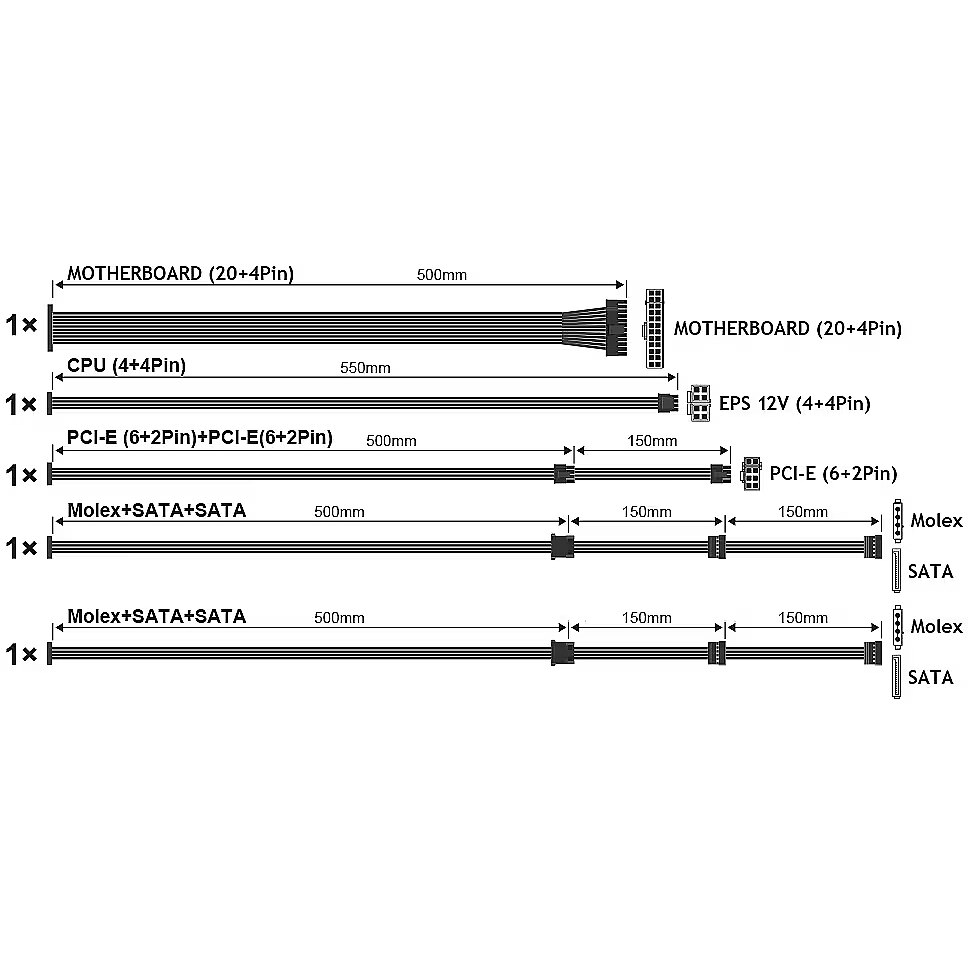

Description - Internal power supply for personal computer, 750W power, input voltage 230 Vac, 50/60 Hz, conforms to ATX 12V v.2.31 specifications, main switch, surge protection, overload protection, short circuit protection, high MTBF, high reliability, quiet operation, 12 cm silent fan, temperature control of the fan speed, Flat type connection cables from 500mm to 800mm, 1 x 20+4-pin connector, 1 x 12V 4+4-pin connector, 2 x 6+2 PCI-E connector, 2 x molex connectors, 4 x Sata connector, dimensions 150x140x86 mm, weight 1.0 Kg, black color, CE certification, Rohs. Internal Power Supply for Computers High Efficiency (>85%) and High Operation Noise Active PFC >0.9 Dimensions: 140x86x150 mm (WxHxD) Input voltage 230 Vac 50Hz Temperature control of the fan speed Flat connection cables from 500mm to 800mm Surge protection Overload protection Short circuit protection
EAN - 8026475179951
Efficiency Power - 85%
Fan diameter Design - 12 cm
Height Weight & dimensions - 86 mm
LargeDescHTML -
Max output current (+3.3V) Power - 26 A
Max output current (+5V) Power - 26 A
Max output current (+5Vsb) Power - 2.5 A
Max output current (+12V) Power - 52 A
Max output current (-12V) Power - 0.8 A
Motherboard power connector Ports & interfaces - 24-pin ATX
Name - Barošanas bloks Tecnoware Free Silent Pro 750W Black
Name - CASE PSU ATX 750W/FAL751FSP12 TECNOWARE
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 4
On/off switch Design - Yes
Operating temperature (T-T) Operational conditions - 0 - 40 °C
PCI Express power connectors (6+2 pin) Ports & interfaces - 2
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 2
Power Factor Correction (PFC) type Power - Active
Power protection features Power - Overload/Short circuit/Surge protection
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black
Product Net Weight ELKO Logistics Data - 1 kg
Purpose Performance - PC
Shipping Box Depth ELKO Internal Logistics Data - 45 cm
Shipping Box Height ELKO Internal Logistics Data - 18 cm
Shipping Box Weight ELKO Internal Logistics Data - 10.75 kg
Shipping Box Width ELKO Internal Logistics Data - 40 cm
Storage temperature (T-T) Operational conditions - -15 - 40 °C
Summary - Tecnoware FAL751FSP12. Total power: 750 W, AC input voltage: 180 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Total power Power - 750 W
Unit Box Height - 0.095
Unit Box Length - 0.22
Unit Box Width - 0.16
Unit Calculated Volume ELKO Internal Logistics Data - 0.00405 cubm
Unit Calculated Weight ELKO Logistics Data - 1.34 kg
Unit Depth ELKO Logistics Data - 22 cm
Unit Height ELKO Logistics Data - 9.5 cm
Units per Pallet ELKO Logistics Data - 0
Units per Shipping Box ELKO Logistics Data - 8
Unit Width ELKO Logistics Data - 16 cm
Vendor Homepage - https://www.tecnoware.com/en-US/Dettaglio/Articolo/850
Warranty - 24 months
Weight Weight & dimensions - 1 kg
Width Weight & dimensions - 150 mm
