ID: 1279510
Tuotekoodi: CGR GEX-750
Voidaan tilata 4 yksiköt Saatavuus: 14 päivää tilauksen hyväksymisestä
Takuu: 3 vuotta

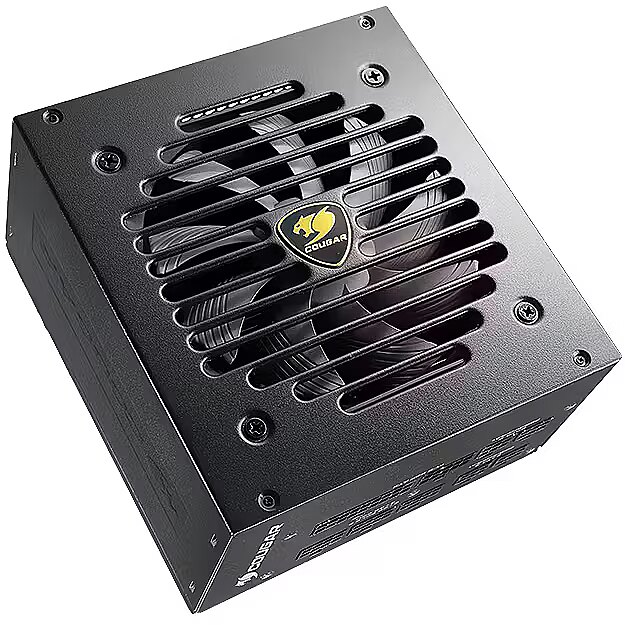

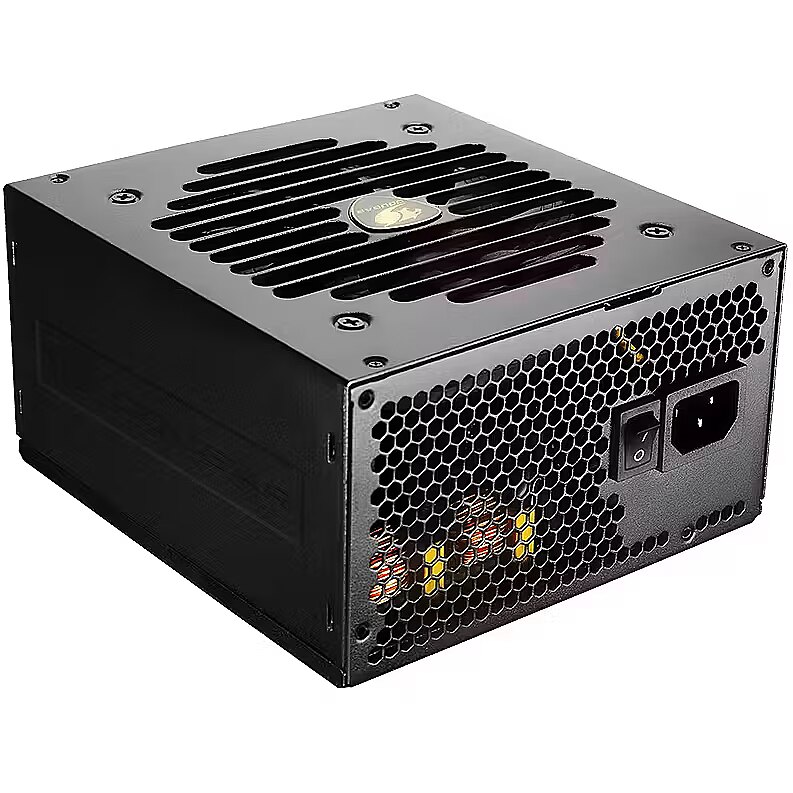

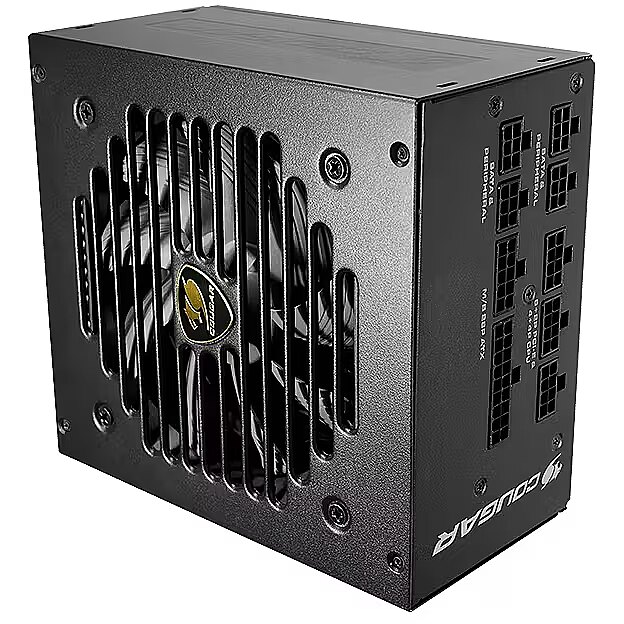

Cougar GEX750, 750W, 80PLUS Gold
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
-
Postin pakettiautomaatti1-2 työpäivän kuluessa6,99 € -
Toimitus Posti-kuriirin postin välityksellä1-2 työpäivän kuluessa10,99 €
Tärkeimmät tuoteparametrit Kaikki parametrit
- Tuottaja: Cougar
- Teho: 750W
- 80 PLUS -sertifiointi: 80 PLUS Gold
- Puhaltimen koko: 120 mm
- Modulaariset kaapelit: Fully-Modular
- Prosessori-liitännäinen: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Kuvaus
Tässä Cougar-merkkisessä virtalähteessä on 80 PLUS Gold -energiatehokkuussertifikaatti ja 750W tehoutput.
Tämän virtalähteen tuuletin halkaisija on 120 mm, mikä takaa hiljaisen toiminnan keskitason tietokoneissa. Erityisen hiljaista virtalähdetoimintaa varten suosittelemme valitsemaan tuulettimen, jonka halkaisija on 135 mm tai 140 mm.
Virtalähteelle on myönnetty 80 PLUS Gold -energiankäyttösertifikaatti, joka tarjoaa vähintään 90% hyötysuhteen 50% kuormalla. Tämä tarkoittaa, että vähintään 90 W 100 W:sta virtalähteen sähköverkosta ottamasta tehosta toimitetaan tietokoneen komponenteille, ja loput 10 W menee hukkaan lämpönä.
Virtalähteen väri on Melna. Se on varustettu litteillä kaapeleilla, joiden väri on Melna.
Tämän virtalähteen standardiksi on määritetty ATX 2.0. Tämä tarkoittaa, että yksikkö on varustettu vain 6- ja 8-pinnisillä liittimillä, jotka tarjoavat vastaavasti 75W ja 150W tehoa. On tärkeää huomata, että tämä yksikkö on yhteensopiva RTX 4070:n ja tehokkaampien korttien kanssa, mutta sinun on käytettävä näytönohjaimen mukana tulevaa 2x8-pin - 16-pin 12VHPWR-adapteria. ATX 2.0 -virtaliittimet eivät ole suunniteltu käsittelemään modernien näytönohjainten suuria tehovaihteluita; tämän vuoksi, jos rakennat järjestelmää tehokkaalla GPU:lla, kuten RTX 4070:llä, suosittelemme valitsemaan virtalähteen, jossa on ATX 3.* -standardi ja 12VHPWR (PCIe 5.0) liitin.
Tällä virtalähteellä on modulaariset kaapelit, mikä mahdollistaa
Perustiedot
Cybenetics Melutason sertifiointi
: Nav
Cybeneticsin tehokkuuden sertifiointi
: Nav
Virtalähteen tyyppi
: ATX
Teho
750W
Virtalähteen kapasiteetti watteina. Suurempi kapasiteetti tarkoittaa tietokoneen toiminnan vakaampaa toimintaa. Nykyaikaisen keskiverto tietokoneen virtalähteen suositeltu kapasiteetti on vähintään 500 W. Jos käytät useita kiintolevyjä, tehokasta näytönohjainta ja prosessoria, on suositeltavaa ostaa virtalähde, jonka kapasiteetti on vähintään 600 W.
80 PLUS -sertifiointi
: 80 PLUS Gold
Kokonaisvirta (+12V)
: 62.5A
Puhaltimen koko
: 120 mm
Toiminnallisuus
Kaapelin väri
: Musta
Valaistus
: Ei ole
Väri
: Musta
Modulaariset kaapelit
: Fully-Modular
Satamat ja laitteet
PCI-E 5.0/5.1
: Nav
Prosessori-liitännäinen
: 2 x 8-pin(4+4) EPS
Emolevyn virta
: 20+4-pin
PCI-E
: 4 X 6+2pin
SATA-liittimet
: 6
4pin Molex
: 6
Tietokonekotelo
Yksityiskohtaisempi erittely
Brand - COUGAR
BrandPartCode - 31GX075001P01
Category - Power Supply Units
Category 1 - Netzteile
Certificates - Compliance certificates - RoHS
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
EAN - 4710483770227
GTIN - 4710483770227
Logistics data - Warranty period - 5 year(s)
LongDesc - COUGAR GEX is a high-quality 80Plus Gold certified PSU with flawless power delivery at 40°C environments. Efficient, silent and durable, GEX is the best answer for those looking for the best value in PSUs.Extreme Cooling SystemUsing COUGAR’s exclusive 120 mm silent fan, the advanced frame increase the concentration of air-flow and its fan curvature has been fine-tuned to reduce vibration at any loads.DurabilityFirstly, GEX has been designed and thoroughly tested to perform optimally in 40ºC working temperature environments.Second, it includes 105°C Japanese capacitors for main and standby power to ensure keep providing computer with stable electrical supply.StabilityGEX’s LLC, DC-DC and Tri-Sense(3.3V, 5V, and 12V) design has been created to provide high-quality outputs, with an extremely tight 3% voltage regulation to deliver a stabler operation.Compact- Flat and long modular cables for better airflow and a tidier case- 100% external cable management: get less cable clutter and a cleaner build!
LongProductName - 750W, 120 mm, 80Plus Gold, Black
LongSummaryDescription - COUGAR GEX750. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 120,450 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Manufacturer - Cougar
MPN - CGR GEX-750
Name - 750W COUGAR Netzteil GEX 750W ATX3.0 / 80 Plus Gold / Modular
Operational conditions - Operating relative humidity (H-H) - 20 - 85%
Operational conditions - Operating temperature (T-T) - 10 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging content - Cables included - AC, CPU, PCIe, Peripheral (Molex), SATA
Packaging data - Package depth - 331 mm
Packaging data - Package height - 107 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.58 kg
Packaging data - Package width - 229 mm
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - Bearing technology - HDB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 3
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power cable length - 120,450 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 6
Ports & interfaces - SATA power cable length - 120,450 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 3 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 0.3 W
Power - Input current - 10 - 5 A
Power - Maximum input current (@110V) - 10 A
Power - Maximum input current (@220V) - 5 A
Power - Max output current (+3.3V) - 18 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 750 W
ProductName - GEX750
ShortSummaryDescription - COUGAR GEX750, 750 W, 100 - 240 V, 50 - 60 Hz, 10 - 5 A, 10 A, 5 A
Technical details - Sustainability certificates - ENERGY STAR
Title - COUGAR GEX750 power supply unit 750 W 20+4 pin ATX ATX Black
URL - https://cougargaming.com/products/psus/gex/
WarrantyInfo - 5 years
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.46 kg
Weight & dimensions - Width - 150 mm
