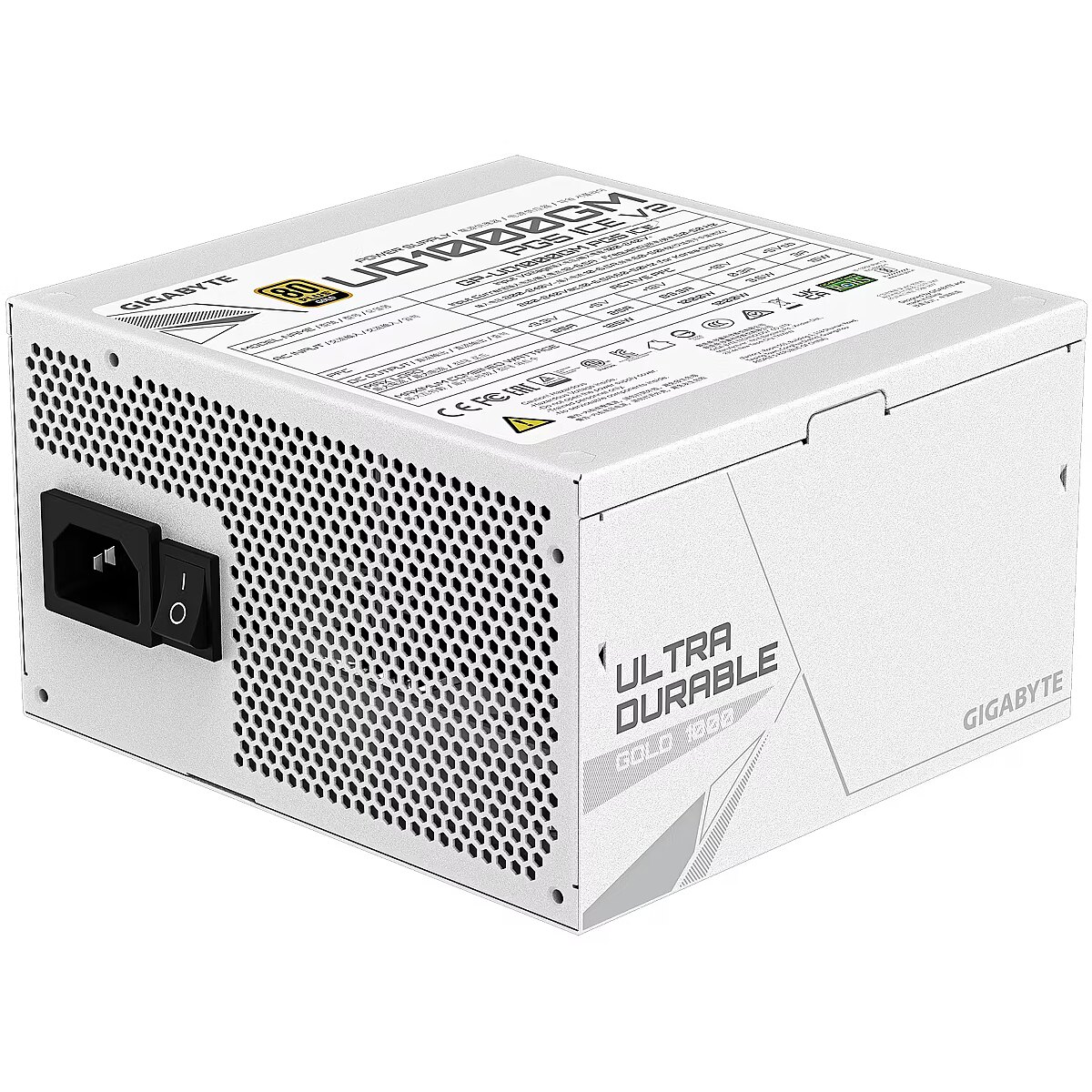

Gigabyte UD1000GM PG5 V2 ICE, 1000W, 80PLUS Gold, ATX 3.1, PCIe 5.1

80 PLUS certification Performance - 80 PLUS Gold
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
ATX version Performance - 3.1
Bearing technology Performance - HYB
Brand - GIGABYTE
BrandPartCode - GP-UD1000GM PG5 ICE EU

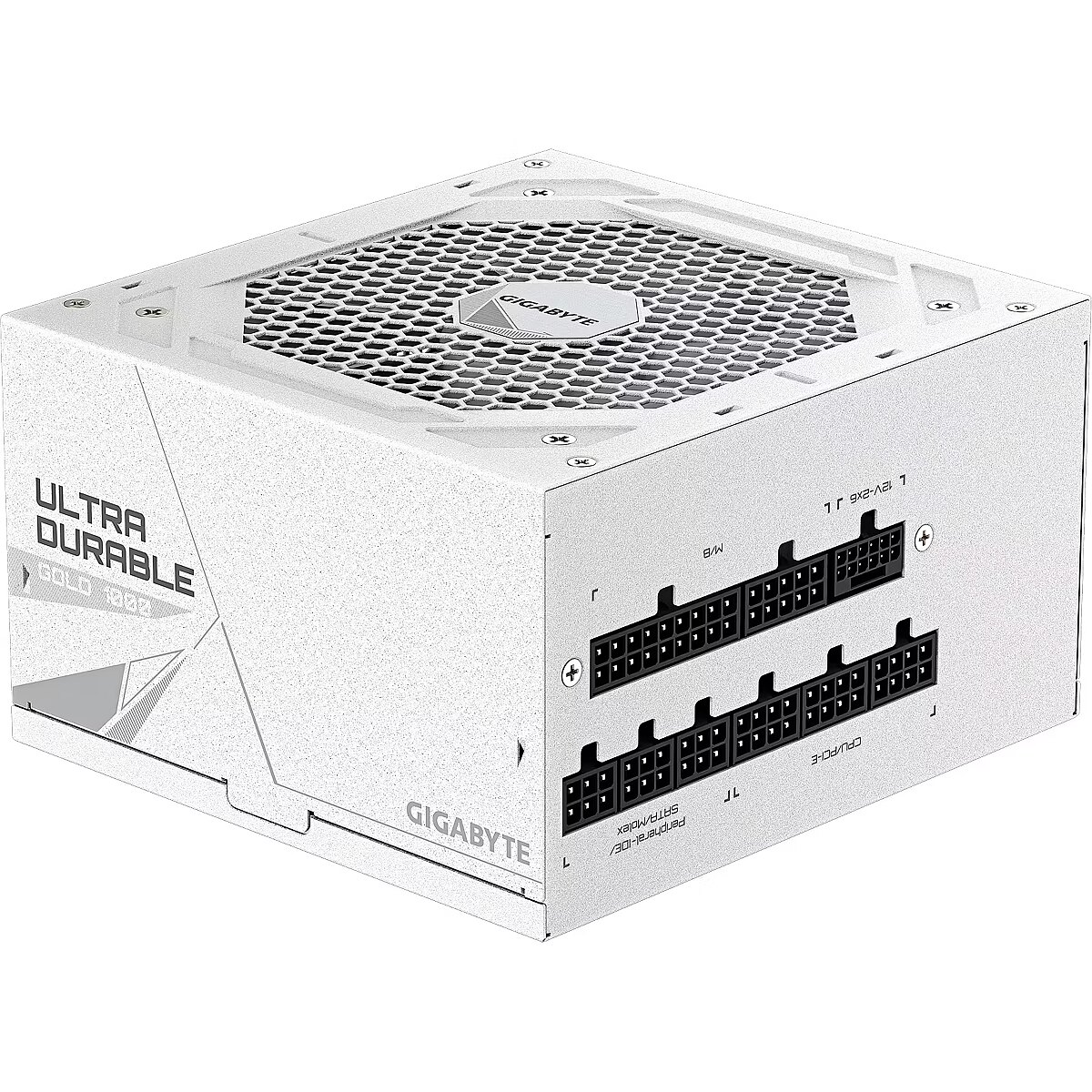

Cabling type Ports & interfaces - Fully-Modular
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
category_en - Computers & Components > Computer components > Universal power supplies PSU
category_lv - Datortehnika > Datoru komponentes > Barošanas bloki PSU
category_ru - Datortehnika > Datoru komponentes > Barošanas bloki PSU
Code - GP-UD1000GM PG5 ICE
Combined power (+3.3V) Power - 125 W
Combined power (+5V) Power - 125 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 1000 W
Combined power (-12V) Power - 3.6 W
Cooling type Design - Active
CPU power cable length Ports & interfaces - 650 mm
CPU power connector (4+4 pin) Ports & interfaces - Yes
Dane techniczne: Certyfikat sprawności - 80 Plus Gold
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Gwarancja - 10 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 140 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 1000 W
Dane techniczne: Model - Gigabyte GP-UD
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: MTBF - 100000 godz.
Dane techniczne: Natężenie przy napięciu +3.3V - 25 A
Dane techniczne: Natężenie przy napięciu +5V - 25 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3 A
Dane techniczne: Natężenie przy napięciu +12V1 - 83.3 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - Gigabyte
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Wersja standardu ATX - ATX 3.1
Dane techniczne: Wtyczka zasilania [pin] - 1 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 1 x Floppy
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 3 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 4 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 8 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 120 mm
Depth Weight & dimensions - 140 mm
Desc - Jauda: 1000 W, Energoefektivitāte: 80 Plus Gold, PFC: Aktīvs, Ventilators: 120mm, Modulārs:: Ir, SATA pieslēgumi: 2, MOLEX PATA pieslēgumi: 1, PCI-E: 2 x 6 + 2 PIN, Garantija: 2 gadi
Description - Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.Intel ATX 3.1 and PCIe Gen 5.1 ready80 PLUS Gold certifiedFully modular designPowerful single +12V railCompact size100% Japanese capacitors120mm smart hydraulic bearing (HYB) fanOptimized thermal solutionOVP/OPP/SCP/UVP/OCP/OTP protection
description_en - Manufacturer:Gigabyte
Model Name:UD1000GM PG5 V2 ICE
Type:Power Supply Unit (PSU)
Wattage:1000W
Efficiency Certification:80 PLUS Gold
Color:White/ICE
Form Factor:ATX
Modularity:Full Modular
PCIe 5.0 Support:Yes (Native 16-pin 12VHPWR connector)1
ATX Version:ATX 3.0 Ready
Cooling:120mm Hydraulic Bearing (HYB) Fan2
Capacitors:100% Japanese Capacitors3
Safety Protections:OVP, OPP, SCP, UVP, OCP, OTP4
description_lv - Ražotājs: Gigabyte
Modeļa nosaukums: UD1000GM PG5 V2 ICE
Tips: Barošanas bloks (PSU)
Jauda: 1000W
Efektivitātes sertifikācija: 80 PLUS Gold
Krāsa: Balta/ICE
Forma: ATX
Modularitāte: Pilnībā modulāra
PCIe 5.0 atbalsts: Jā (vietējais 16 kontaktu 12 VHPWR savienotājs)1
ATX versija: ATX 3.0 gatavība
Dzesēšana: 120 mm hidrauliskā gultņa (HYB) ventilators2
Kondensatori: 100 % japāņu kondensatori3
Drošības aizsardzība: OVP, OPP, SCP, UVP, OCP, OTP4
description_ru - Производитель: Gigabyte
Название модели: UD1000GM PG5 V2 ICE
Тип: Блок питания (БП)
Мощность: 1000W
Сертификация эффективности: 80 PLUS Gold
Цвет: Белый/ICE
Форм-фактор: ATX
Модульность: Полностью модульный
Поддержка PCIe 5.0: Да (встроенный 16-контактный разъём HPWR 12 В)
Версия ATX: ATX 3.0 Ready
Охлаждение: 120-мм вентилятор с гидроподшипником (HYB) 2
Конденсаторы: 100% японские конденсаторы 3
Защита: OVP, OPP, SCP, UVP, OCP, OTP4
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - White
dimensionalWeight - 1486
EAN - 4719331556594
Eans - 4719331556594
Efficiency Power - 90 %
Fan diameter Design - 120 mm
Floppy drive power connector Ports & interfaces - 1
gross_weight - 3 kg
GTIN - 4719331556594
Height Weight & dimensions - 86 mm
Hold time Power - 16 ms
Input current Power - 15 - 6.5 A
LargeDescHTML -
Link - https://www.gigabyte.com/Power-Supply/GP-UD1000GM-PG5-ICE
Logistics data - Warranty period - 10 year(s)
LongDesc - Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
LongProductName - UD1000GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
LongSummaryDescription - GIGABYTE UD1000GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, PCI Express power connectors (12+4 pin) cable length: 700 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

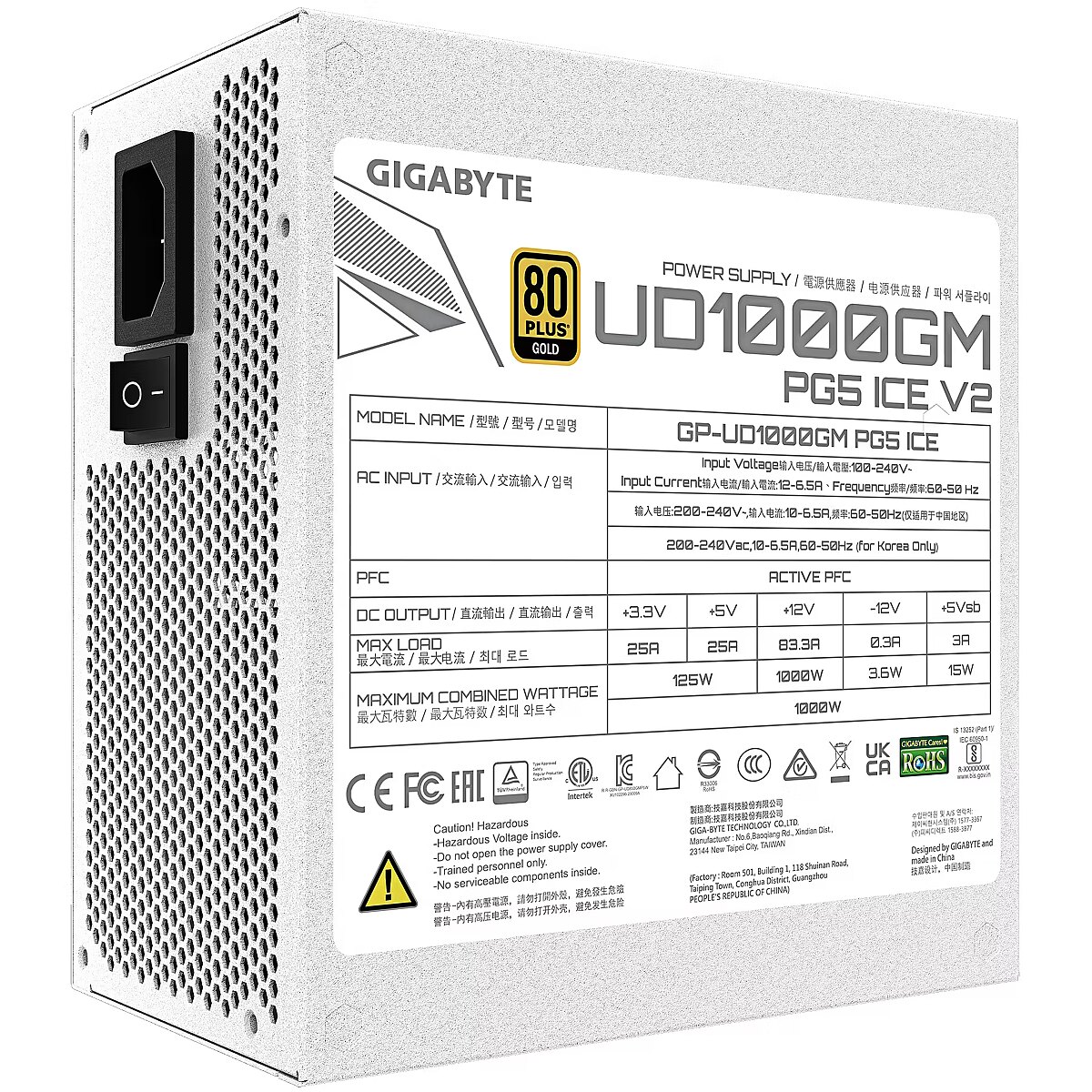

Max output current (+3.3V) Power - 25 A
Max output current (+5V) Power - 25 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 83.3 A
Max output current (-12V) Power - 0.3 A
Mean time between failures (MTBF) Performance - 100000 h
Model -
Model name - UD1000GM PG5 ICE
Motherboard power cable length Ports & interfaces - 610 mm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
Name - Barošanas bloks Gigabyte UD1000GM V2 ICE 1000W
Name - Gigabyte GP-UD1000GM PG5 V2 ICE
Name - Gigabyte Power Supply | UD1000GM PG5 V2 ICE | 1000 W
Number of EPS connectors Ports & interfaces - 2
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 8
On/off switch Design - Yes
Package depth Packaging data - 269 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 150.00 mm
Package features > Gross height (mm) - 86.00 mm
Package features > Gross width (mm) - 140.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 350 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 211 mm

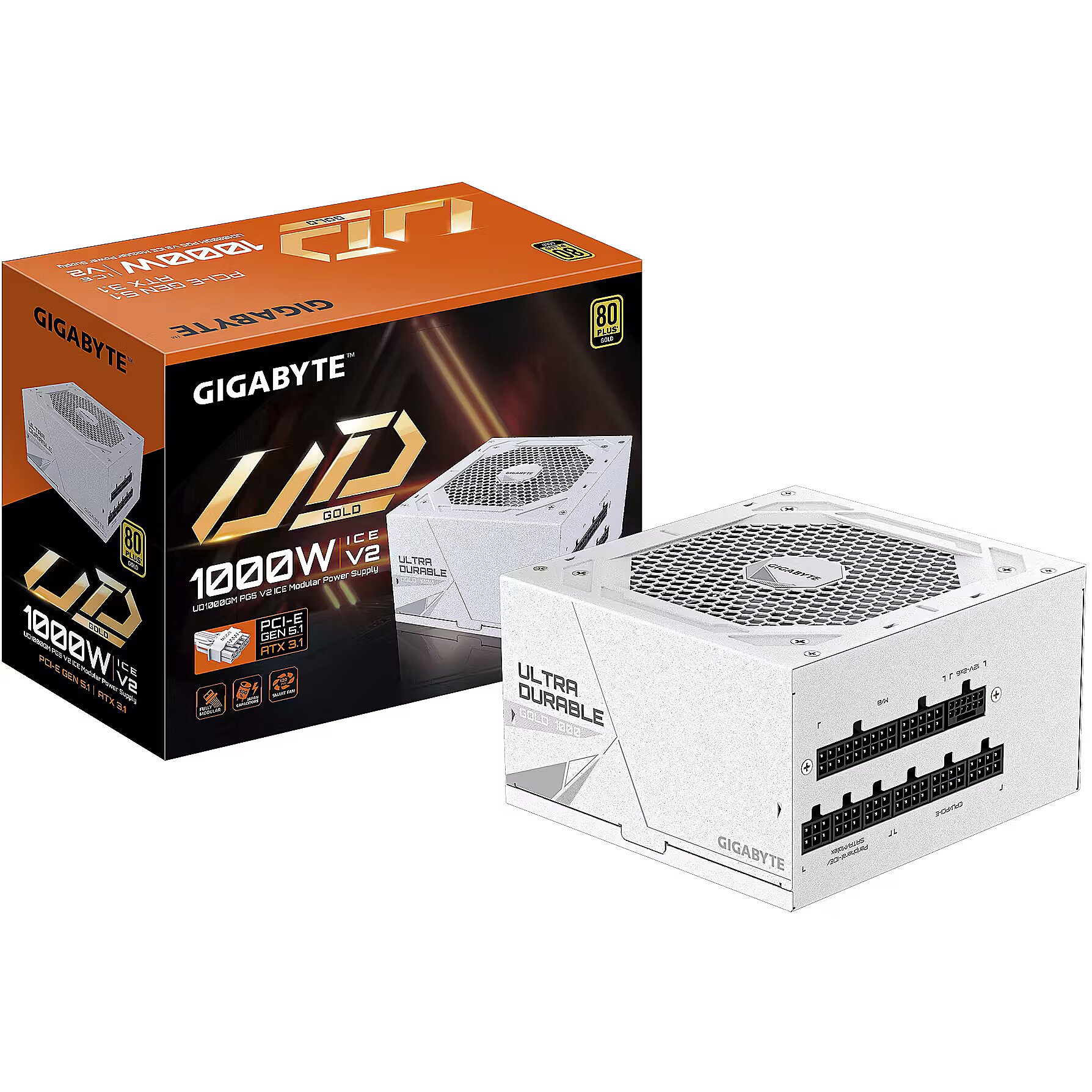

Package type Packaging data - Box
Package weight Packaging data - 2640 g
Package width Packaging data - 618 mm
Packaging data - Package depth - 269 mm
Packaging data - Package height - 211 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.64 kg
Packaging data - Package width - 618 mm
PCI Express connector Ports & interfaces - Yes
PCI Express power cable length Ports & interfaces - 600 mm
PCI Express power connectors (6+2 pin) Ports & interfaces - 4
PCI Express power connectors (12+4 pin) cable length Ports & interfaces - 700 mm
PCI Express power connectors (12+4 pin) Ports & interfaces - 1
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - HYB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 3
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of EPS connectors - 2
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (12+4 pin) - 1
Ports & interfaces - PCI Express power connectors (12+4 pin) cable length - 700 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 125 W
Power - Combined power (+5V) - 125 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1000 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Input current - 15 - 6.5 A
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 83.3 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - OCP
Power - Power protection features - OPP
Power - Power protection features - OTP
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - OVP
Power - Power protection features - SCP
Power - Power protection features - UVP
Power - Total power - 1000 W
Power > Nominal power - 1000 W
Power Factor Correction (PFC) type Power - Active
Power factor Power - 0.9
Power protection features Power - Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power supply unit (PSU) form factor Performance - ATX
Producent: Nazwa producenta / importera - GigabyteGiga-Byte Technology BVSteenoven 245626 EindhovenHolandiaEmail: EU.grp@gigabyte.com
Producer - Gigabyte
producerCode - GP-UD1000GM PG5 ICE
ProducerCode - GP-UD1000GM PG5 V2 ICE
Product colour Design - White
productName - Gigabyte UD1000GM 1000W PG5 ICE Power Supply (GP-UD1000GM PG5 ICE)
ProductName - UD1000GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
productSize - Normal
Purpose Performance - PC
ShortDescription - 1000 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 140mm | modularny | 80 PLUS Gold
ShortSummaryDescription - GIGABYTE UD1000GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug, 1000 W, 100 - 240 V, 50/60 Hz, 15 - 6.5 A, Active, 125 W
sizeX - 130
sizeY - 219
sizeZ - 261
Summary - GIGABYTE UD1000GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, PCI Express power connectors (12+4 pin) cable length: 700 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Technical details > Gross weight - 2.85 kg
Technical details > Net weight - 2.65 kg
Technical details > Producer - Gigabyte
Technical details > Producer product family - Power Supply
Technical details > Producer product name - UD1000GM PG5 V2 ICE
Title - GIGABYTE UD1000GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
title_en - Gigabyte UD1000GM PG5 V2 Power Supply 1000W
title_lv - Gigabyte UD1000GM PG5 V2 Barošanas bloks 1000W
title_ru - Gigabyte UD1000GM PG5 V2 Блок питания 1000W
Total power Power - 1000 W
Unit Box Height - 0.215
Unit Box Length - 0.12
Unit Box Width - 0.26
Unit Calculated Volume - 0.007812 cubm
Unit Calculated Weight - 2.72 kg
Units per Pallet - 0
Units per Shipping Box - 5
URL - https://www.gigabyte.com/Power-Supply/GP-UD1000GM-PG5-ICE#kf
Vendor Homepage - https://www.gigabyte.com/Power-Supply/GP-UD1000GM-PG5-ICE#kf
Warranty - 36 months
Warranty - 120
Warranty - 120 month(s)
WarrantyInfo - 10 years
warrantyLength - 36
Warranty period Logistics data - 10 year(s)
warrantyType - G
weight - 1.8 kg
weight - 2568
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.48 kg
Weight & dimensions - Width - 150 mm
Weight Weight & dimensions - 2480 g
Width Weight & dimensions - 150 mm
