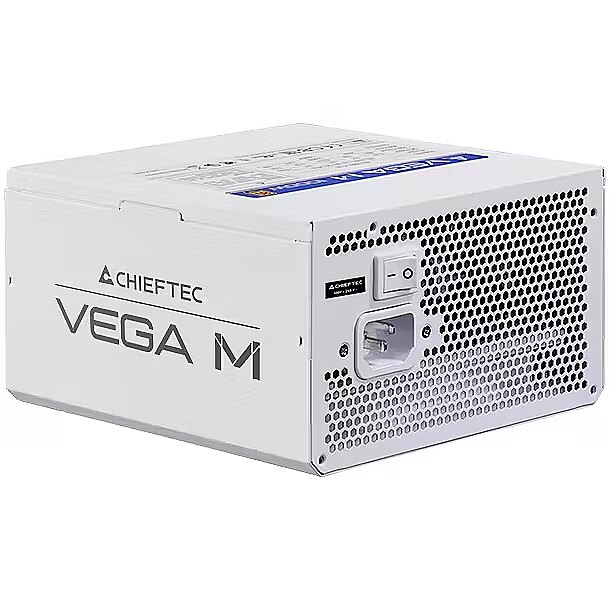

Chieftec VEGA M White, 1000W, 80PLUS Gold, ATX 3.1, PCIe 5.1

Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
ID: 1273360 Tuotekoodi: PPG-1000-CW
Voidaan tilata 88 yksiköt Saatavuus: 14 päivää tilauksen hyväksymisestä
Takuu: 2 vuotta (Yritysten takuu 1 vuosi)
113,67 €
Valmiina lähetettäväksi
16.03.2026
alkaen 6.99 €
Toimitusvaihtoehdot
  • Postin pakettiautomaatti
    1-2 työpäivän kuluessa
    6,99 €
  • Postitoimisto
    1-2 työpäivän kuluessa
    6,99 €
  • Toimitus Posti-kuriirin postin välityksellä
    1-2 työpäivän kuluessa
    10,99 €
Tärkeimmät tuoteparametrit Kaikki parametrit
  • Tuottaja: Chieftec
  • Teho: 1000W
  • 80 PLUS -sertifiointi: 80 PLUS Gold
  • Puhaltimen koko: 135 mm
  • Modulaariset kaapelit: Fully-Modular
  • Prosessori-liitännäinen: 2 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Kuvaus

Ostettavissa on Chieftec-valmistajan virtalähde, jonka 1000W teho. Tuotteelle on myönnetty 80 PLUS Gold -energiatehokkuussertifikaatti.

Tämä 1000W virtalähde pystyy pyörittämään parasta pelitietokonetta. Siinä on tarpeeksi tehoa usean huippuluokan näytönohjaimen, suuren vesijäähdytysjärjestelmän, ylikellotetun huippuprosessorin ja useiden kovalevyjen käyttöön.

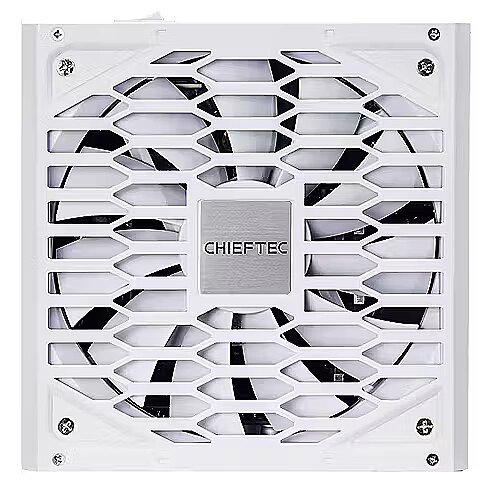

Suurikokoinen 135 mm jäähdytystuuletin halkaisija tekee tästä virtalähteestä huomattavasti keskimääräistä hiljaisemman. Koska tuulettimen lapa-alue on suurempi, tuuletin tuottaa tarvittavan ilmavirran pienemmillä tuulettimen nopeuksilla, mikä vähentää melu- ja värinätasoja.

Virtalähteelle on myönnetty 80 PLUS Gold -energiankäyttösertifikaatti, joka tarjoaa vähintään 90% hyötysuhteen 50% kuormalla. Tämä tarkoittaa, että vähintään 90 W 100 W:sta virtalähteen sähköverkosta ottamasta tehosta toimitetaan tietokoneen komponenteille, ja loput 10 W menee hukkaan lämpönä.

Lohkon väri on Balta. Lohkossa on tasaiset kaapelit, joiden väri on Balta.

Koska tässä virtalähteessä on modulaariset kaapelit, voit lisätä kiintolevyjä, näytönohjaimia ja muita komponentteja tarpeen mukaan, käyttämällä pakkaukseen sisältyviä eri kaapeleita. Näin tietokoneessa on vähemmän johtoja, mikä parantaa ilmanvaihtoa ja ulkonäköä (erityisen hyödyllistä niille, jotka valitsevat osittain läpinäkyvän kotelon).

Perustiedot
Cybenetics Melutason sertifiointi : Nav
Cybeneticsin tehokkuuden sertifiointi : Nav
Virtalähteen tyyppi : ATX
Teho 1000W
Virtalähteen kapasiteetti watteina. Suurempi kapasiteetti tarkoittaa tietokoneen toiminnan vakaampaa toimintaa. Nykyaikaisen keskiverto tietokoneen virtalähteen suositeltu kapasiteetti on vähintään 500 W. Jos käytät useita kiintolevyjä, tehokasta näytönohjainta ja prosessoria, on suositeltavaa ostaa virtalähde, jonka kapasiteetti on vähintään 600 W.
80 PLUS -sertifiointi : 80 PLUS Gold
Kokonaisvirta (+12V) : 83.33A
Puhaltimen koko : 135 mm
Toiminnallisuus
Kaapelin väri : Valkoinen
Valaistus : Ei ole
Väri : Valkoinen
Modulaariset kaapelit : Fully-Modular
Satamat ja laitteet
PCI-E 5.0/5.1 : 1 x 600W 12V-2X6 (5.1)
Prosessori-liitännäinen : 2 x 8-pin(4+4) EPS
Emolevyn virta : 20+4-pin
PCI-E : 4 X 6+2pin
SATA-liittimet : 6
4pin Molex : 3
Tietokonekotelo
Yksityiskohtaisempi erittely
8-pin 12V power connectors - 0
ATX version - 3.1
Brand - Chieftec
BrandPartCode - PPG-1000-CW
Category - Power Supply Units
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates - Certification - 80PLUS Gold
Certificates 80+ - 80 PLUS Gold
Description - PPG-1000-CW VEGA M White Compliant with ATX 12V 3.1 Support PCIe GEN5 80PLUS Gold certified efficiency LLC Half-Bridge converter with DC to DC technology Fully modular cable management The CHIEFTEC Vega M Series power supply is built to Intels ATX 12V 3.1 standard and supports PCIe GEN5 with 80PLUS Gold certified efficiency. It prioritizes a competitive price-to-performance ratio of up to 1000W while maintaining the trusted Chieftec quality. The Vega M Series features LLC Half-Bridge converter with DC-to-DC technology to provide enhanced power efficiency and stability. The fully modular design with extra long White cables makes it suitable for mainstream gamers to build their system, even in larger PC cases. Additionally, its 135mm fluid dynamic bearing (FDB) silent fan optimizes the balance between cooling performance and noise levels. The Vega M Series is your trusted and reliable choice for all computing needs incorporating all necessary modern protection and safety features.
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Illumination - No
Design - Product colour - White
Designation - CE+WEEE
dimension depth - 110 mm
dimension height - 215 mm
Dimensions - 85 x 150 x 150 mm
dimension weight - 2801 g
dimension width - 280 mm
ean - 753263079121
EAN - 0753263079121
EAN_code - 0753263079121
Fan - 13.5 cm
Filters / protection - Automatic fan speed control
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Protection against surges and surges
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
Form Factor - ATX
GTIN - 0753263079121
GTIN - 753263079121
guarantee - 60
guarantee_type - normal
LongSummaryDescription - Chieftec Vega PPG-1000-CW. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 13.5 cm. Certification: 80PLUS Gold
Manufacturer - Chieftec
Manufacturer_code - PPG-1000-CW
MB power connector - 20 + 4 pin
Modular power supply - Yes
MOLEX power connectors - 3
MPN - PPG-1000-CW
Name - 1000W Chieftec VEGA M White 80Plus Gold
Name - Chieftec Vega M 1000W White, PC power supply white, 1x 12 pin high power GPU, 4x PCIe, cable management, 1000 watts
name - Power supply PPG-1000-CW VEGA M 1000W 80+ GOLD white
Number of connectors PATA - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Number of USB 10p connectors - 0
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - FDB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of EPS connectors - 2
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (12+4 pin) - 1
Ports & interfaces - PCI Express power connectors (12+4 pin) cable length - 600 mm
Ports & interfaces - Peripheral (Molex) power cable length - 150,400 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 150,400 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1000 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 12 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 83.33 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Over current, Over voltage, Overload, Short circuit, Surge and inrush, Under voltage
Power - Total power - 1000 W
Power supply - 1000 W
producer - Chieftec
ProductName - PPG-1000-CW
SATA power connectors - 6
ShortSummaryDescription - Chieftec Vega PPG-1000-CW, 1000 W, 100 - 240 V, 50/60 Hz, 12 A, 100 W, 1000 W
Title - Chieftec Vega PPG-1000-CW power supply unit 1000 W 24-pin ATX ATX White
vendpn - PPG-1000-CW
Weight - 2,81
Weight - 2.3 kg
Weight - 2.807
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Width - 150 mm
