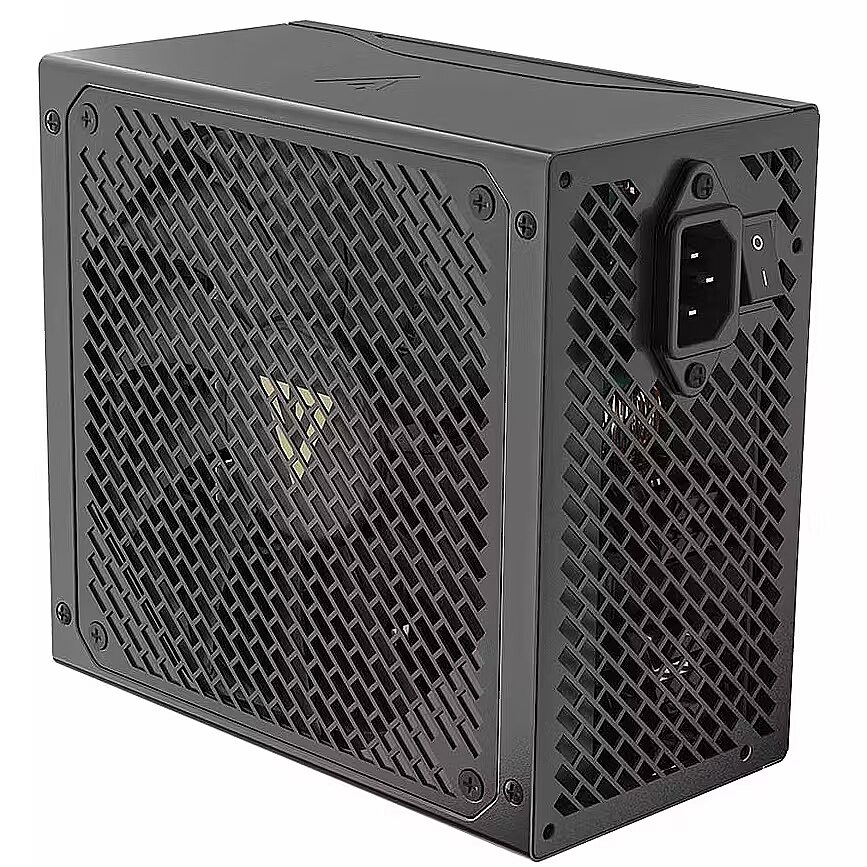

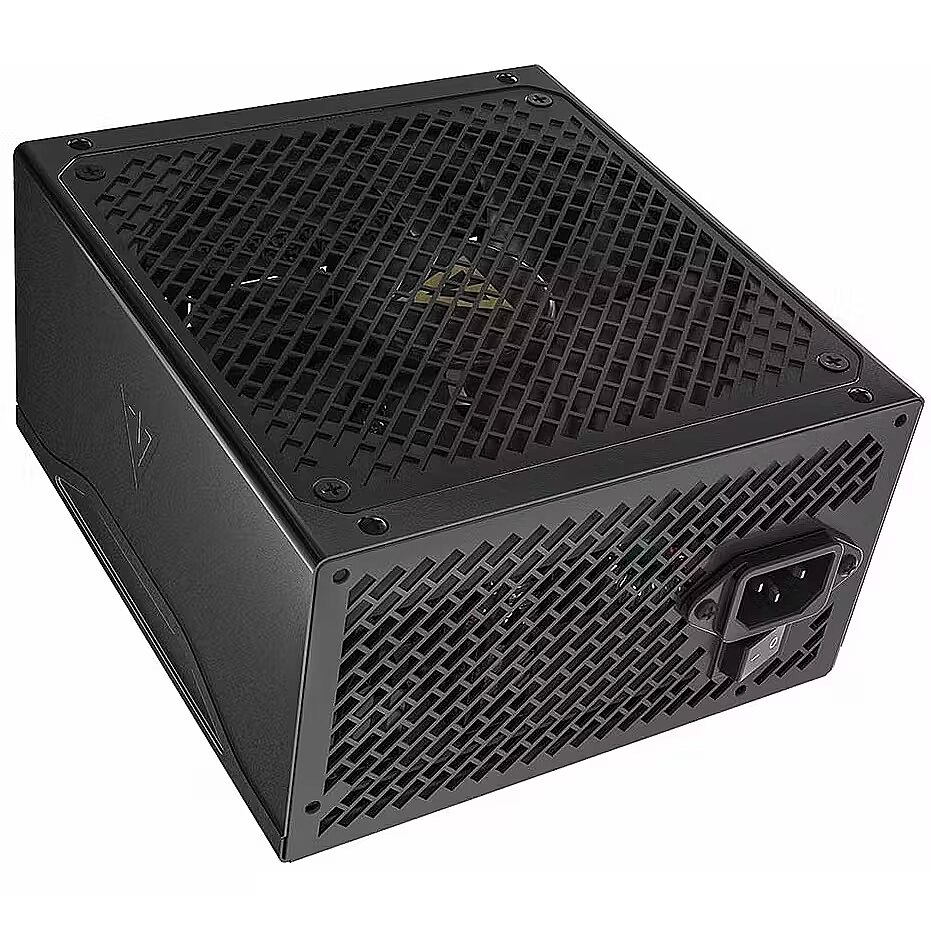

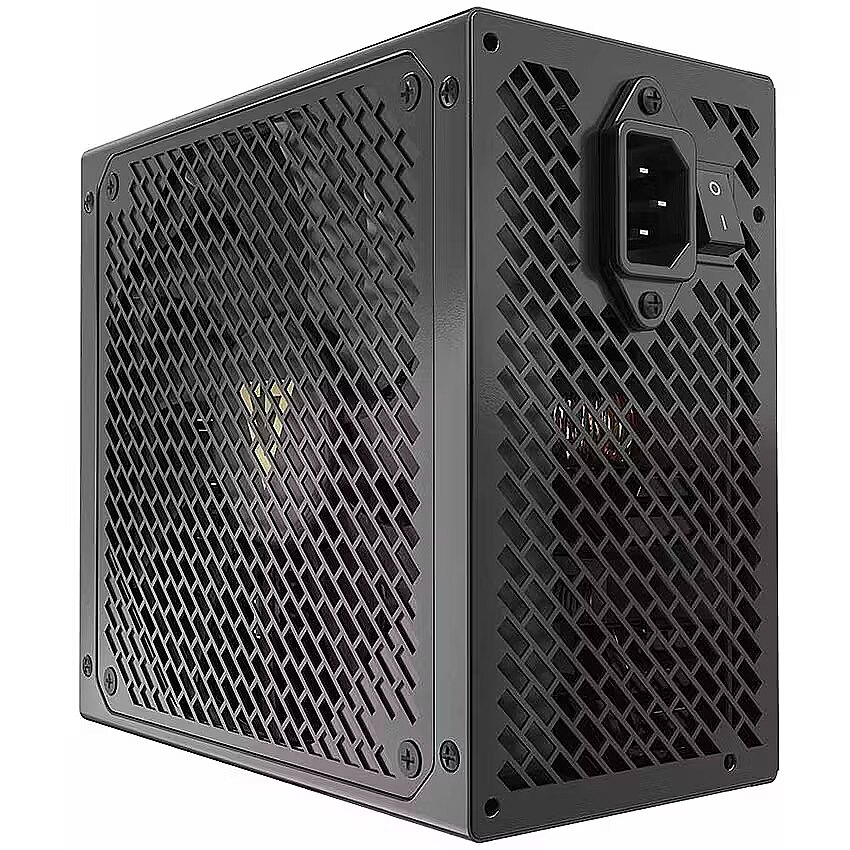

Modecom Volcano Hex Gold, 750W, 80PLUS Gold, ATX 3.1, PCIe 5.1

8-pin 12V power connectors - 0
ATX version - 3.1
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - 80 PLUS Gold
Dane techniczne: Certyfikat sprawności - 80 Plus Gold
Dane techniczne: Gwarancja - 5 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 160 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 750 W
Dane techniczne: Model - Modecom Volcano Hex
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - Modecom
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Wersja standardu ATX - ATX 3.1
Dane techniczne: Wtyczka zasilania [pin] - 1 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 1 x Floppy
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 3 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 4 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 6 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 85 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - SIP
Dane techniczne: Średnica wentylatorów - 140 mm
Description - MODECOM Volcano HEX 750W Power Supply
The Volcano Hex series of Volcano power supplies is designed based on the ATX 3.1 and PCI Express 5.1 standards, ensuring support for advanced and demanding hardware solutions on the market. The ATX 3.1/PCIe 5.1 standards meet the requirements of the highest-end graphics cards and pose significant challenges for computer power supplies, as they require support for peak loads up to twice the rated power of the power supply. The Volcano Hex is a power supply platform built using the Half-bridge LLC Resonant Converter topology, with a DC-DC circuit for the 3.3V and 5V lines, ensuring stable voltages regardless of the power supply's load.
Supports demanding computers and those yet to be developed.
Computers with powerful graphics cards and processors require a power supply that can handle high power demands. The MODECOM Volcano Hex is built according to ATX 3.1 and PCIe 5.1 standards, ensuring stable operation even in the most demanding scenarios, such as gaming and advanced programs. It delivers 750 watts, which should easily handle new computer systems.
Certified Efficiency
The Volcano Hex supports input voltages ranging from 100V to 240V and ensures high energy efficiency, meeting the requirements of the 80Plus Gold standard. Certification was granted by Cybenetics, which tests power supplies over a much wider range than the 80Plus standard.
A Quieter and Cooler Computer Thanks to Clever Design

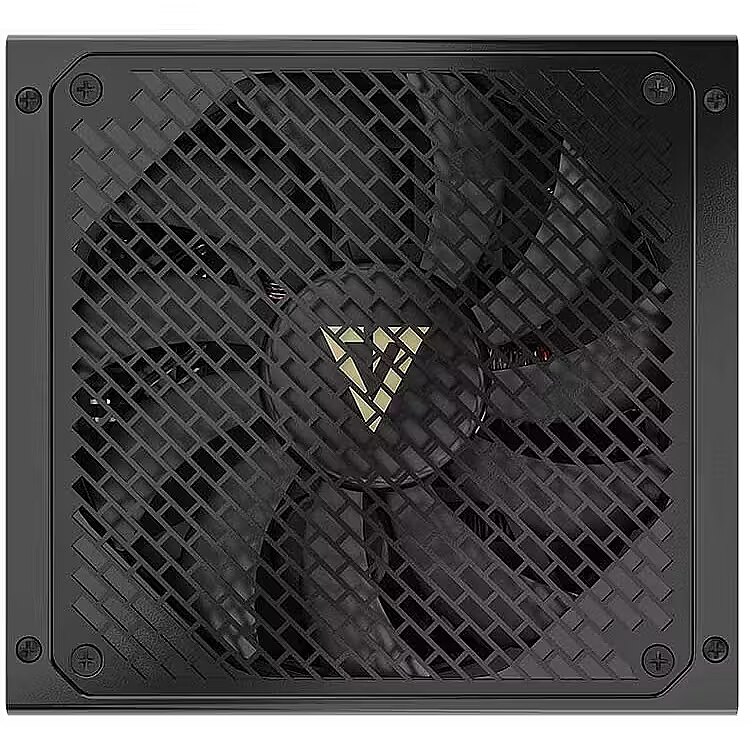

The Volcano Hex power supply is designed to avoid overheating and noise. It features a large, quiet fan (14 cm) that effectively cools the system, and thanks to a special bearing, it operates very quietly even when playing demanding games. Additionally, the use of flat cables and the ability to detach them allow for improved airflow within the case. What does this mean for you? Lower computer temperatures Convenient and tidy cable management You gain the ability to build your computer in the most aesthetically pleasing way possible. Japanese capacitors
We use only the highest quality components. The MODECOM Volcano Hex power supply features exclusively Japanese capacitors, ensuring stability, reliability, and long life.
Strong 12V rail
Modern computer systems require power supplies to deliver the highest possible power, primarily through the 12V rail. Our power supplies are no exception, and the maximum load on this rail corresponds to almost 100% of the rated power that can be delivered to devices using 12V (i.e., the computer's CPU and GPU).
Stable operation is a pleasure
The MODECOM Volcano Hex power supply is designed to ensure your computer runs smoothly and restarts without interruptions, even if you're gaming, streaming, or editing videos. Voltages are stable and predictable, which means: Your computer won't freeze. Your components are protected to the highest possible standard. You can play or work without constantly clicking quick saves. The kit includes cables that you can, but don't have to, connect to the power supply. If you don't have multiple SSDs/HDDs, you can leave some of the power cables in the box and use them only after you buy additional drives. The same applies to cables for an additional graphics card or other components. Modular Power Supply Cables: 1 x MB: 20+4P (Length: 600 mm) 1 x SATA+SATA+SATA (Length: 500+150+150 mm) 1 x SATA+SATA+SATA (Length: 500+150+150 mm) 1 x IDE+IDE+IDE+FDD (Length: 500+150+150+150 mm) 1 x CPU: P8 (4+4) (Length: 700 mm) 1 x CPU: P8 (4+4) (Length: 700 mm) 1 x PCI-E: P(6+2)+P(6+2) (Length: 550+120 mm) 1 x PCI-E: P(6+2)+P(6+2) (Length: 550+120 mm) 1 x 12V-2x6 600W (Length: 550mm) Flat cables and modular cabling provide flexibility and improved airflow.

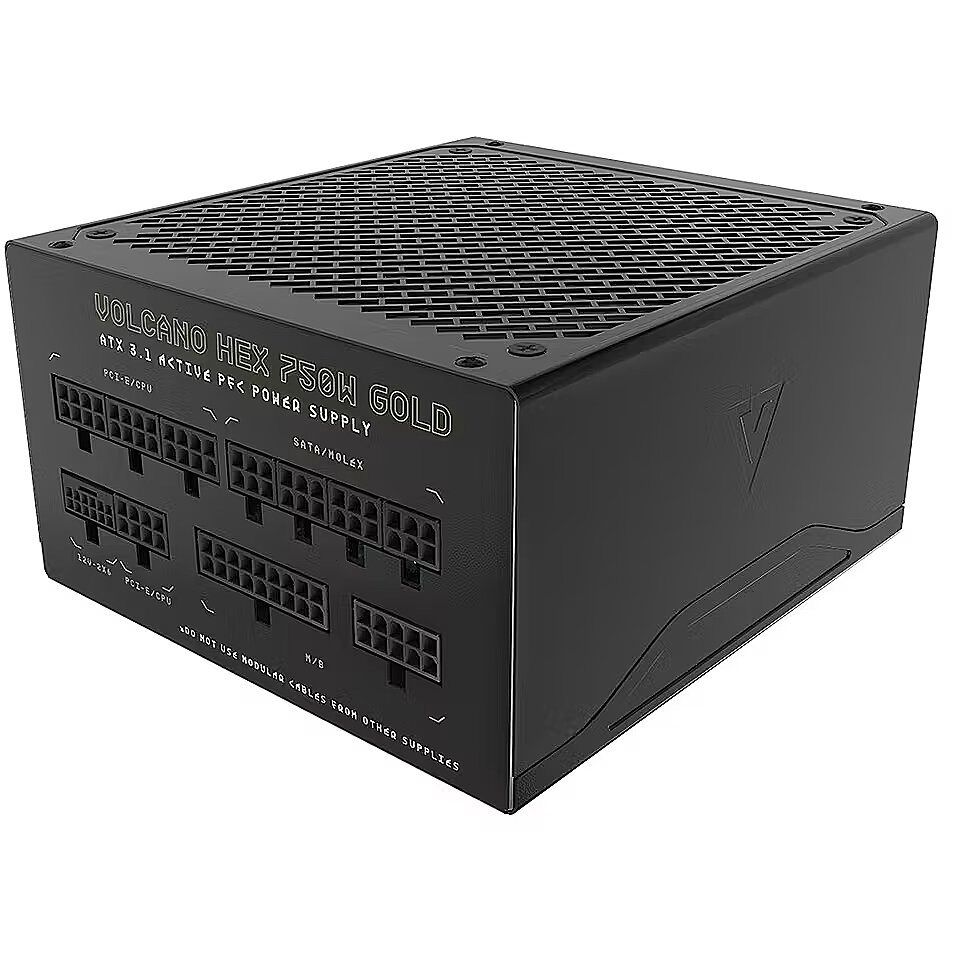

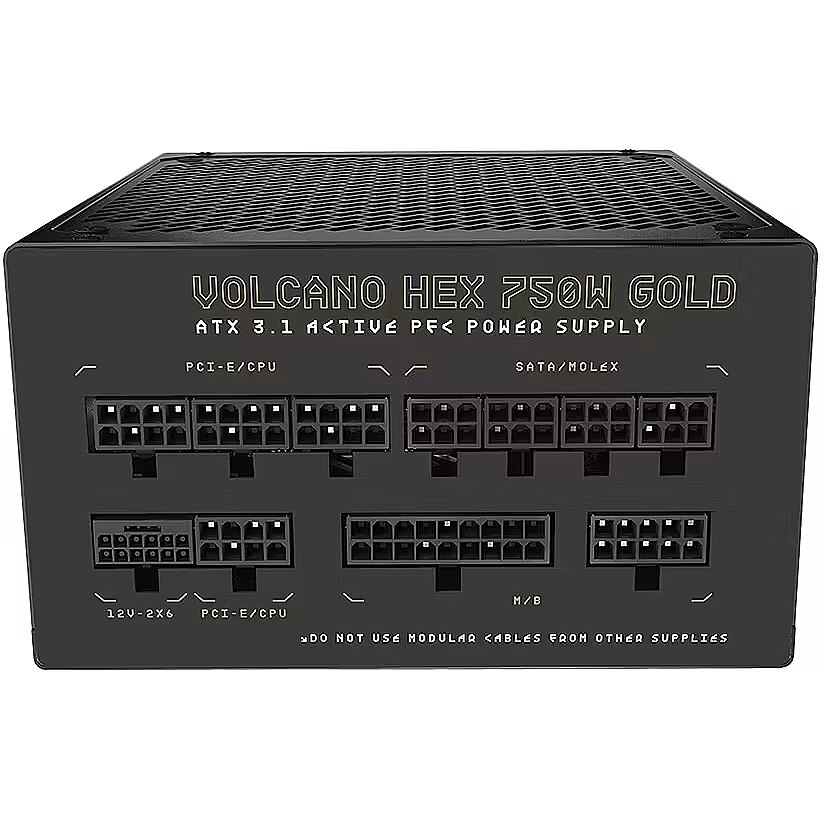

Volcano Hex power supplies feature fully modular cabling, reducing the amount of cabling inside the computer case. This improves airflow and facilitates neat cable management. The cable harnesses used to connect the power supply are flat, further enhancing the overall appearance of the assembled computer system. Besides convenience and aesthetics, they provide all the connectors required for ATX 3.1 and PCIe 5.1 computer systems, and the diameter of the cables used safely delivers power to the components being powered.
Design - Fan diameter - 14 cm
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1989
dimension depth - 135 mm
dimension height - 220 mm
Dimensions - 160 x 150 x 85 mm
dimension weight - 3100 g
dimension width - 335 mm
ean - 5907544120056
Eans - 5907544120056
Fan - 14 cm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Protection against surges and surges
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
Form Factor - ATX
guarantee - 60
guarantee_type - statutory
MB power connector - 20 + 4 pin
Modular power supply - Yes
MOLEX power connectors - 0
name - MODECOM PSU Volcano HEX 750W Gold ATX 3.1
Name - Modecom Volcano Hex 750 Gold
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 1
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 0
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 0
Number of USB 10p connectors - 0
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 3
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Purpose - PC
Performance - Supported motherboard form factors - ATX
PFC - None
Ports & interfaces - 12V power connector - Yes
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - PCI Express power connectors (12+4 pin) - 2
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Power - AC input voltage - 100 - 240 V
Power - Power Factor Correction (PFC) type - Active
Power - Total power - 750 W
Power supply - 750 W
Producent: Nazwa producenta / importera - Modecom
MODECOM POLSKA
Puławska 145
02-715 Warszawa
<
producer - MODECOM
Producer - Modecom
producerCode - ZAS-MC-HEX-0750-GOLD
ProducerCode - ZAS-MC-HEX-0750-GOLD
productName - MODECOM Power Supply VOLCANO HEX GOLD 750W ATX3.1
productSize - Normal
Safety warning - Warnings - Avoid contact of the product with water or other liquids.
Safety warning - Warnings - Do not open the case - risk of electric shock.
Safety warning - Warnings - The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
SATA power connectors - 4
ShortDescription - 750 | ATX | 140 mm | 20 + 4 pin | 150mm x 85mm x 160mm | 80 PLUS Gold |
sizeX - 335
sizeY - 220
sizeZ - 135
vendpn - ZAS-MC-HEX-0750-GOLD
warrantyLength - 36
warrantyType - G
weight - 3070
