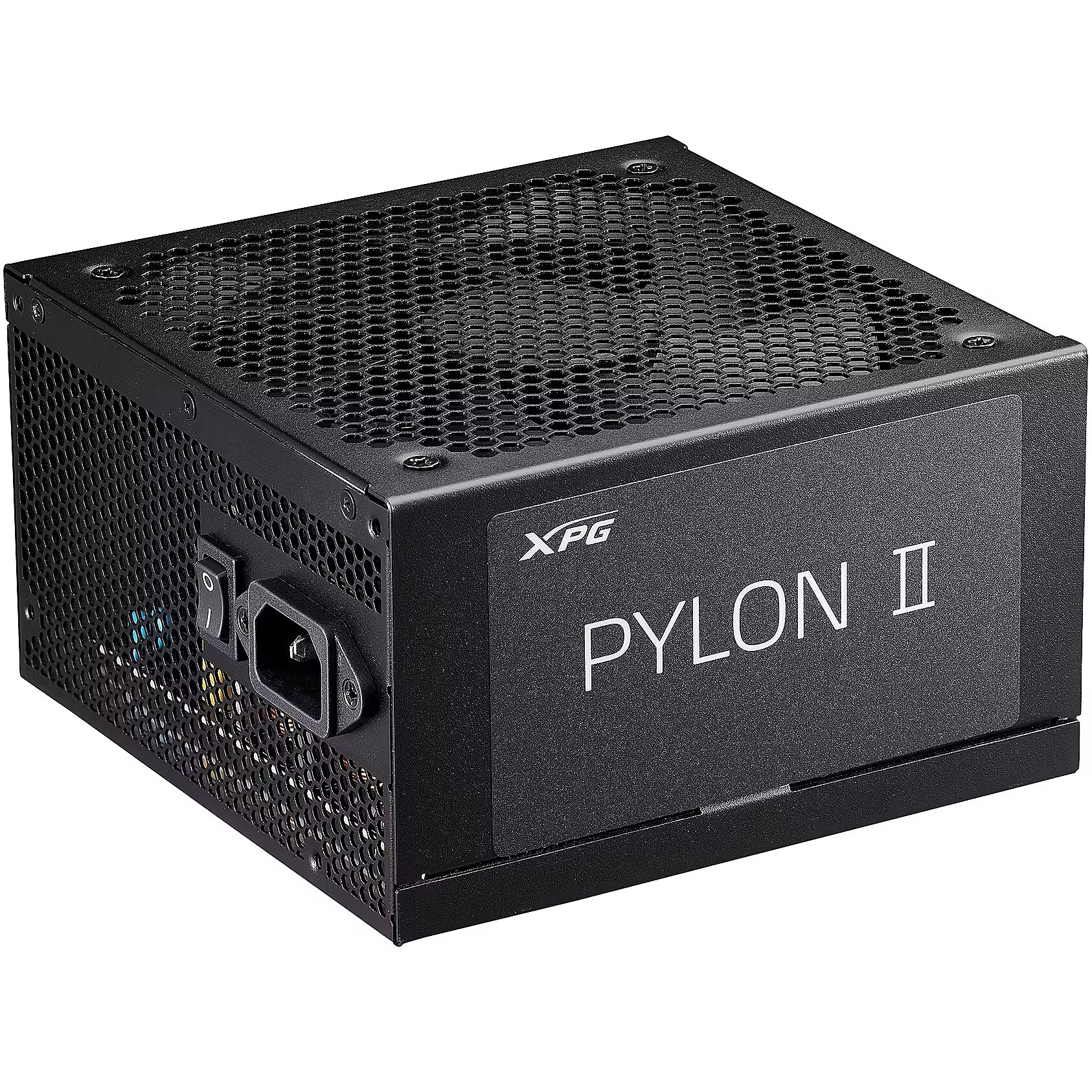

ADATA PYLON II, 750W, 80PLUS Bronze, ATX 3.1, PCIe 5.1

Brand - XPG
BrandPartCode - 75261642
Category - Power Supply Units
Category Code - PSU
CnCode - 85044095
Colour - Black

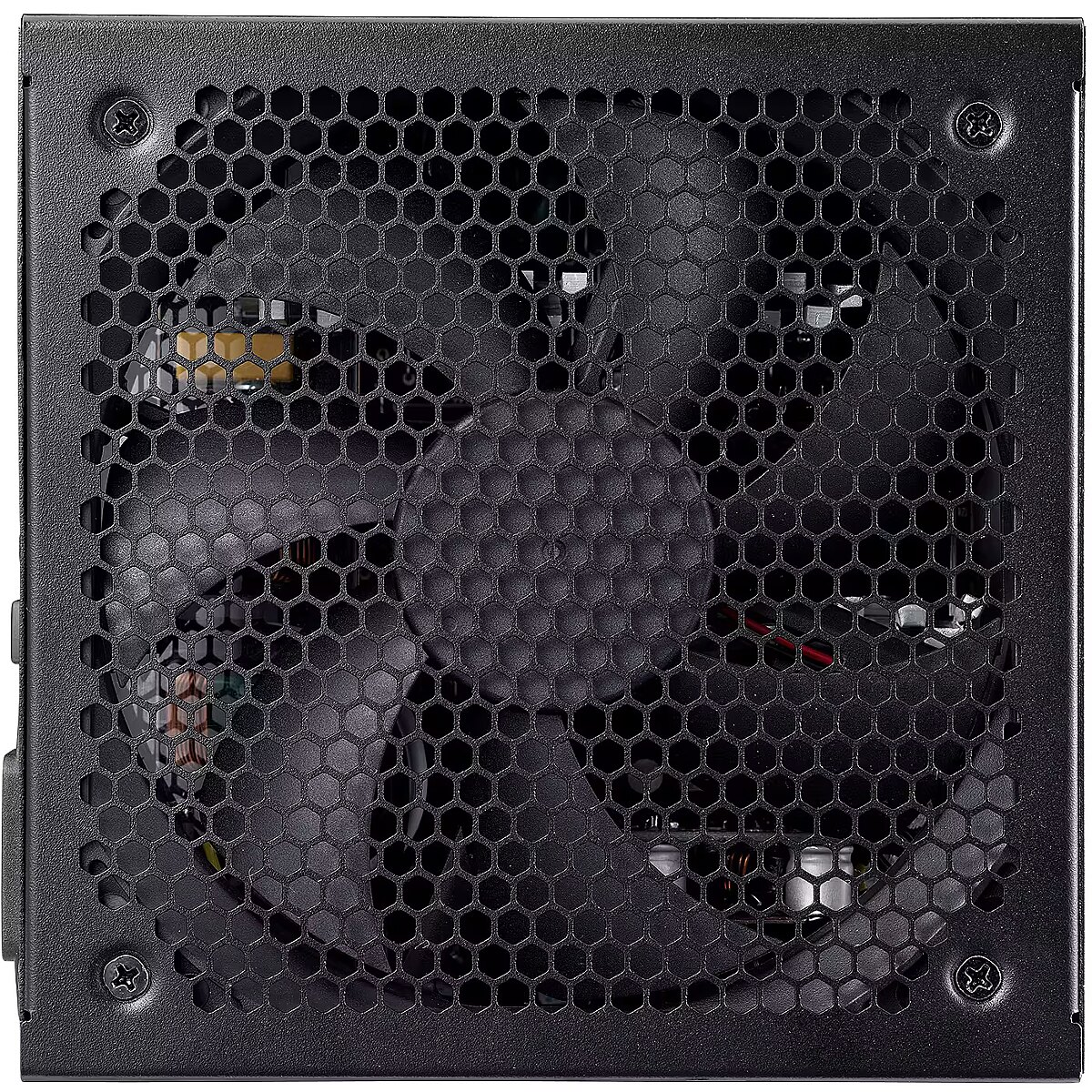

Cooling System - 13.5cm fan
Description - XPG PYLON offers more than just a Bronze-certified Power Supply. Highly efficient DC-to-DC converters and continuous power in 4 different wattage options are making it an ideal PSU pick for all usages. XPG PYLON is a 80 Plus Bronze certified power supply unit that guarantees energy efficiency at 20%, 50% and 100% of rated loads. XPG PYLON also complies with ErP 2014 Lot 3 Regulation, and it is designed for steady 24/7 Continuous Power system operation. XPG PYLON SERIES is certified by Cybenetics for its efficiency and noise level, scoring at the top of its category in both ETA and LAMBDA standards. The fan control of the built-in 120mm Fluid Dynamic Bearing (FDB) Fan starts at around 700 rpm (25°C ambient) and maintains its low fan speed until around 70% power load. The operating environment is kept quiet and efficient, and prolongs its life expectancy.
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Fan speed - 2290 - 2310 RPM
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Dimensions - 140 x 150 x 86mm
Efficiency - 80 PLUS BRONZE
GTIN - 0842243035704
GTIN - 842243035704
GTIN - 4711658150875
LongDesc - PYLON IIUNLEASH THE SURGEThe PYLON II Bronze PSU delivers 80 PLUS Bronze efficiency, cutting energy costs without sacrificing performance. Designed to meet Intel ATX 3.1 standards, it offers a future-ready solution for high-demand components. Equipped with a quiet and durable FDB fan, it ensures efficient cooling for a stable and noise-free experience. Backed by 8 industrial-grade protections and a 5-year warranty, the PYLON II guarantees long-term reliability and peace of mind for your build.Intel ATX 3.1 Compliant, Future-Ready DesignDesigned with the latest Intel ATX 3.1 standards, the PYLON II is equipped with 12V-2x6 connector*, ensuring compatibility with high-performance components. It’s engineered to meet the evolving needs of modern systems.Quiet, Efficient Cooling with FDB FanEquipped with a 135mm FDB fan, the PYLON II ensures quiet operation and long-lasting durability. It keeps your system cool even under demanding workloads, delivering optimal cooling without compromising on noise levels.Comprehensive Protection for Peace of MindWith 8 industrial-grade protections, the PYLON II shields your system from power surges, short circuits, and other potential risks. This protection, combined with a 5-year warranty, offers long-term peace of mind.
LongProductName - 750W, 80 Plus Rating BRONZE, Intel ATX v3.1, 135 mm, FDB
LongSummaryDescription - XPG PYLON II 750w BROZNZE Power Supply. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm
Model - PYLON750IIB-BKCEU
Model name - XPG PYLON II
MTBF - 100000 hours
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 3.1
Performance - Bearing technology - FDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of PATA power connectors - 2
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Input current - 10 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.99
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage
Power - Total power - 750 W
ProductName - PYLON II 750w BROZNZE Power Supply
Product Net Weight - 1.8 kg
PSU - ATX 3.1
PSU features - For gaming
PSU Output Power - 750 Watts
ShortSummaryDescription - XPG PYLON II 750w BROZNZE Power Supply, 750 W, 100 - 240 V, 50/60 Hz, 10 A, Active, 22 A
Title - XPG PYLON II 750w BROZNZE Power Supply
Unit Box Height - 0.21
Unit Box Length - 0.35
Unit Box Width - 0.13
Unit Calculated Volume - 0.009555 cubm
Unit Calculated Weight - 2.42 kg
Units per Shipping Box - 1
URL - https://www.xpg.com/us/xpg/pc-components-pylonll
Vendor Homepage - www.xpg.com/us/xpg/670
Warranty - 60L months
WarrantyInfo - 5 Years
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.8 kg
Weight & dimensions - Width - 150 mm
