FSP Cannon Pro, 2500W, 80PLUS Platinium, ATX 3.1, PCIe 5.1

Brand - FSP
BrandPartCode - PPA25A0102
Category - Power Supply Units
Category 1 - Netzteile

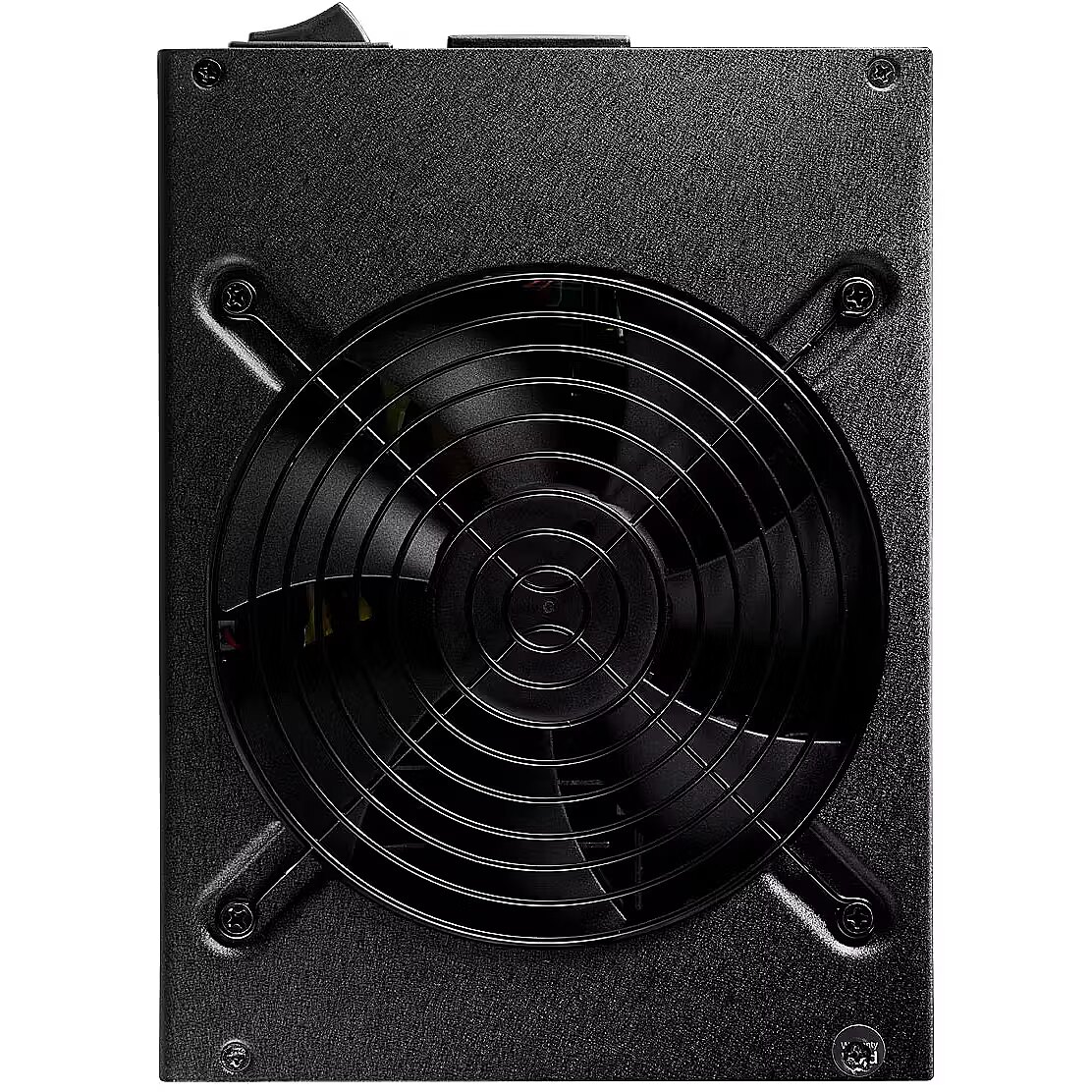

Design - Fan diameter - 13.5 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
EAN - 4711498480286
GTIN - 4711498480286
GTIN - 4711498480446
LongDesc - The Future is Now：ATX 3.1 & PCIe Gen 5.1 ReadyFollowing the latest ATX 3.1 & PCIe Gen 5.1 regulation, this series supports 2 x total power excursion and 3 x GPU excursion to provide peak performance with modern hardware or future upgrades.High efficiency in Platinum-certifiedCertified by world-class organizations 80 PLUS® 230 EU platinum certification for lower power loss, less heat, and quieter operation.Ready to Build Your Own AI PC Station4 x PCIe 12V-2x6 and 3x PCIe 8 pin connectorsSupports four 12V-2x6 connectors and three 6+2 pin connectors, providing the power needed for high-end gaming, rendering, and multi-GPU setups.Fully Modular Cabling DesignTo make power supply installation easy and allows users to use only the needed cables, improving airflow and reducing system clutter.+5V & 3.3V DC to DC Circuit DesignBoth of +3.3V and +5V DC – DC module combined +12V SR circuit offers supreme efficiency, voltage stability and high system compatibility especially in cross regulation(unbalance load) mode.105℃ Japanese Bulk CapacitorThe bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.Powerhouse Yet Energy-savingHigh energy conversion up to 94% and 70% efficiency at 2% loading, with less than 0.5W consumption in standby mode, ensures an energy-efficient, cost-effective system that is also eco-friendly.The Premium Quality FDB FanBuilt with optimized thermal solution and an advanced 135mm fluid dynamic bearing fan for cooler components and quieter operation.Industrial – design: Conformal Coating for Rigorous Computing EnvironmentsProvide power stably under rigorous, high-speed computing environments that need to operate 24 hours a day without interruptions.Fortress-level ProtectionOur comprehensive circuit shields your valuable components from harm.
LongProductName - 2500W, ATX12V V3.1, 200-240V, 50/60Hz, 200 x 150 x 86 mm
LongSummaryDescription - FSP CANNON PRO(ATX3.1) 2500W. Total power: 2500 W, AC input voltage: 200 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, SATA power cable length: 965 mm, Peripheral (Molex) power cable length: 965 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Fan diameter: 13.5 cm, Number of fans: 1 fan(s). Width: 150 mm, Depth: 200 mm, Height: 86 mm
Manufacturer - FSP
Manufacturer Code - PPA25A0102
Manufacturer Name - Fortron
MPN - PPA25A0102
Name - 2500W FSP CANNON PRO 2500 80+ Platin ATX 3.1
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Performance - Bearing technology - FDB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC

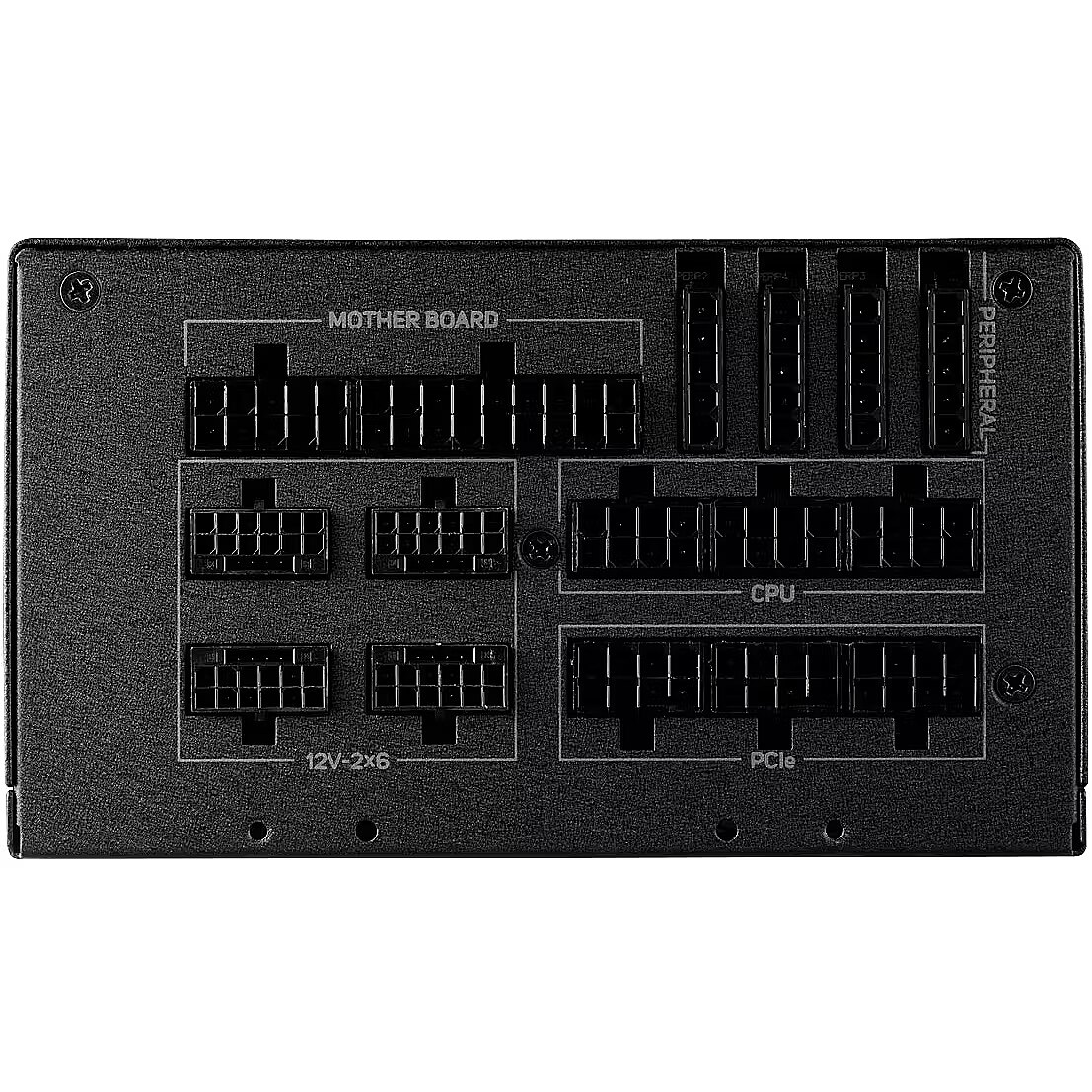

Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power cables - 2
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - PCI Express power connectors (8-pin) - 8
Ports & interfaces - Peripheral (Molex) power cable length - 965 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 965 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 125 W
Power - Combined power (+5V) - 125 W
Power - Combined power (+5Vsb) - 20 W
Power - Combined power (+12V) - 2499.6 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 94%
Power - Input current - 15 - 12 A
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 4 A
Power - Max output current (+12V) - 208.3 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - No load operation, Over current, Over power, Over voltage, Short circuit, Surge and inrush, Under temperature, Under voltage
Power - Total power - 2500 W
ProductName - CANNON PRO(ATX3.1) 2500W
Short description - Netzteil FSP ATX 3.1 2500W 80+ Platinum FSP2500-57APB CANNON PRO 2500
ShortSummaryDescription - FSP CANNON PRO(ATX3.1) 2500W, 2500 W, 200 - 240 V, 50/60 Hz, 15 - 12 A, Active, 125 W
Title - FSP CANNON PRO(ATX3.1) 2500W power supply unit 20+4 pin ATX ATX Black
URL - https://www.fsplifestyle.com/en/product/CANNONPRO2500W_12V2X6.html
WarrantyInfo - 3 Years
Weight - 5.64
Weight & dimensions - Depth - 200 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
