8-pin 12V power connectors - 0
ATX version - 3.1
Brand - ASUS
BrandPartCode - 90YE00V2-B0NA00
category - PC Components|Power Supplies|PSUs above 800 Watts
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Platinum
code - 90YE00V2-B0NA00
Dane techniczne: Certyfikat sprawności - 80 Plus Platinium
Dane techniczne: Dodatkowe informacje - AURA SYNC ARGB | wyświetlacz OLED
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Gwarancja - 10 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 190 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 1200 W
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: Monitoring obrotów wentylatorów - tak
Dane techniczne: Natężenie przy napięciu +3.3V - 30 A
Dane techniczne: Natężenie przy napięciu +5V - 25 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3 A
Dane techniczne: Natężenie przy napięciu +12V1 - 100 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - Asus
Dane techniczne: Regulacja obrotów wentylatorów - tak
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Waga - 2.37 kg
Dane techniczne: Wersja standardu ATX - ATX 3.1
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 2 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 4 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 6 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 7 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 135 mm

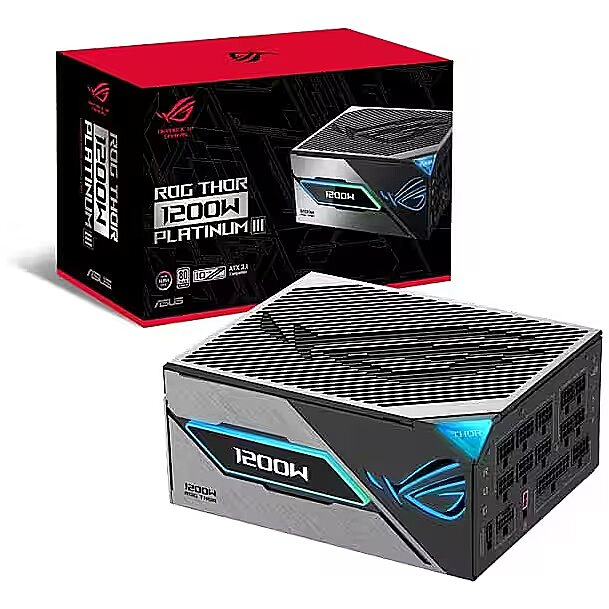

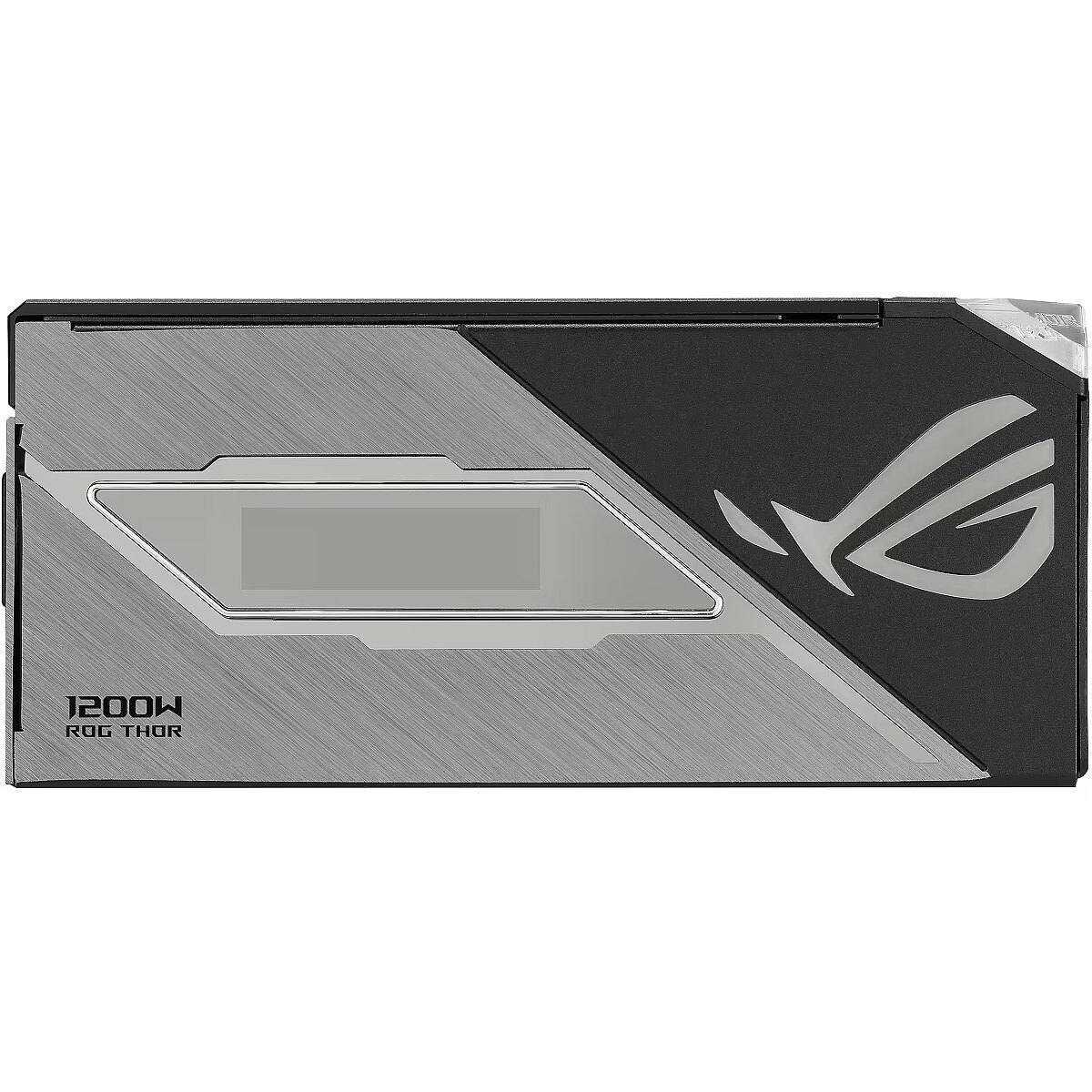

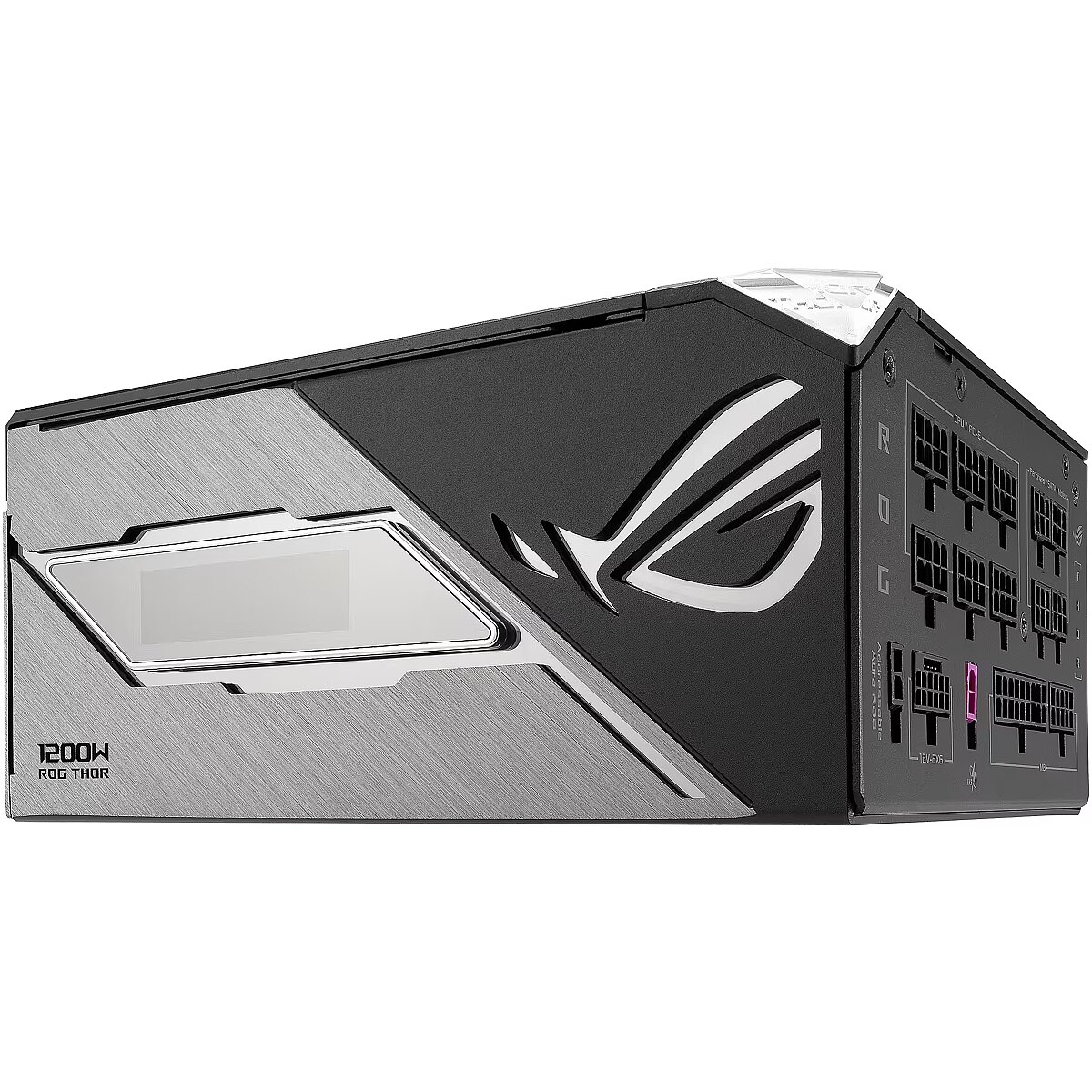

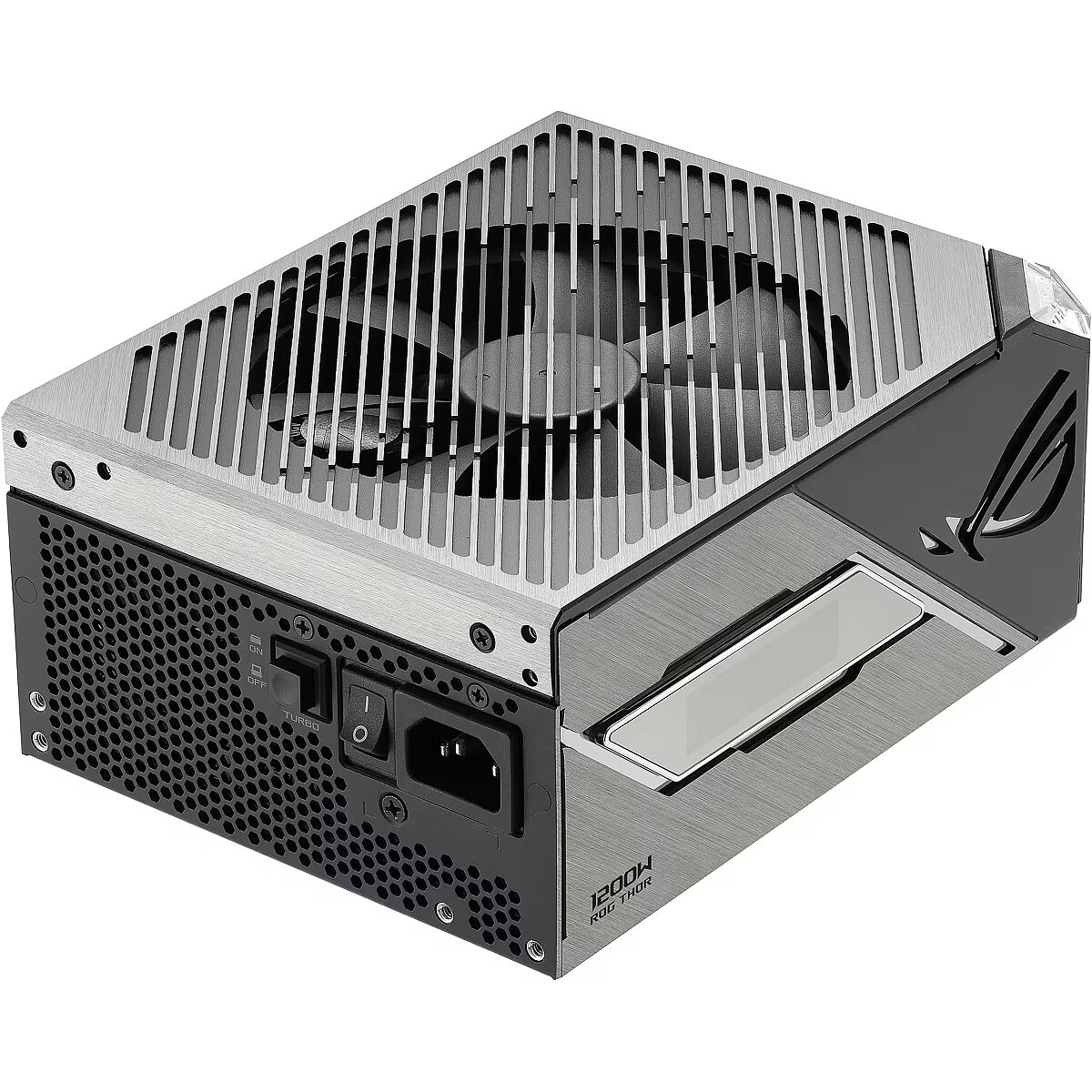

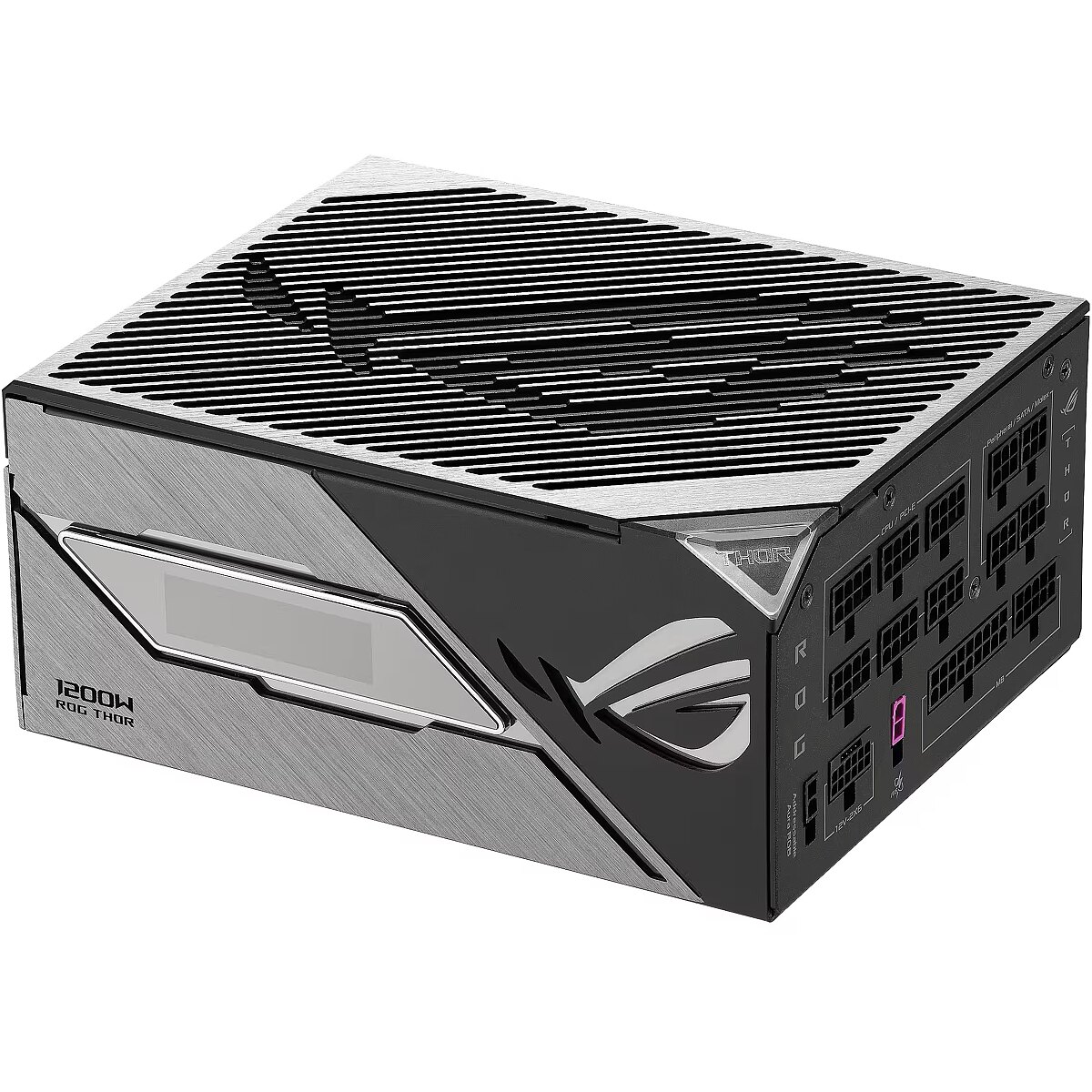

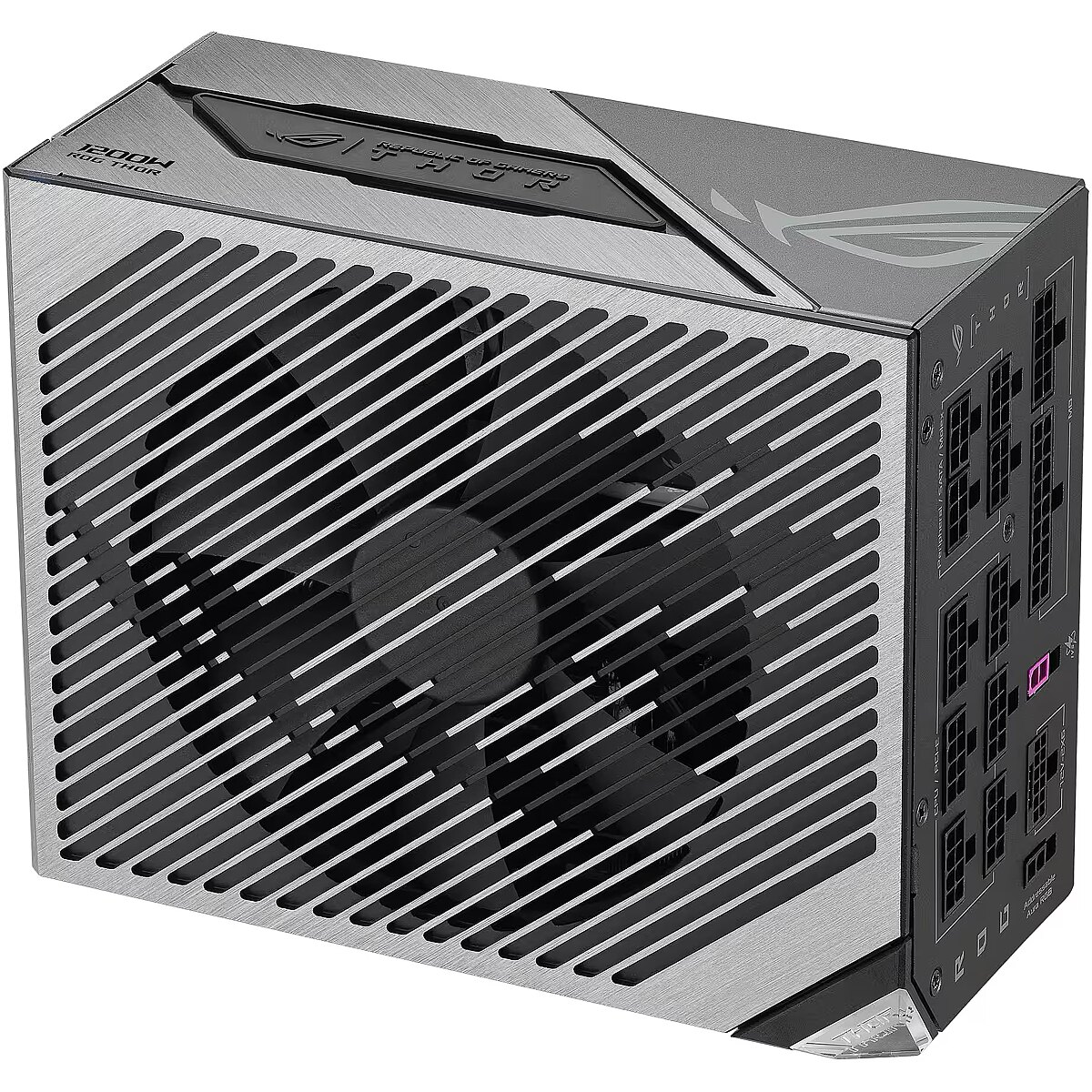

Description - Power supply ROG THOR 1200W Platinum III 80+ Platinum GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation. "GPU-First" voltage sensing with patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance. Magnetic OLED display shows a real-time power draw and can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation. Turbo Mode: Premium components and a fine-tuned fan curve unlock support for extended power excursions. ROG heatsinks and a fully aluminum enclosure synergize for superior cooling, keeping your system thermals under control. Dual-ball-fan bearings can last up to twice as long as sleeve bearing designs. ATX 3.1 compatible: ROG Thor Platinum III is compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation for the latest hardware. Etched modular cables with a pliable premium material ensure effortless cable management and exceptional safety. 80 PLUS Platinum certified: ROG Thor III utilizes low-ESR capacitors and premium components for industry-leading power efficiency.
Design - Cooling type - Active
Design - Fan location - Top
Design - Illumination - Yes
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 13 mm
dimension height - 240 mm
Dimensions - 86 x 150 x 190 mm
dimension weight - 5100 g
dimension width - 380 mm
ean - 4711387610442
Eans - 4711387610442
EAN_code - 4711387610442
Fan - 13.5 cm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
Form Factor - ATX
GTIN - 0197105610514
GTIN - 197105610514
GTIN - 4711387610442
guarantee - 120
guarantee_type - normal
LongDesc - Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1200W Platinum III delivers unmatched performance and rock-solid stability for your ultimate PC buildROG THOR 1200W PLATINUM IIIULTIMATE POWER. UNMATCHED STABILITY.The ROG Thor 1200W Platinum III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.The ROG Thor 1200W Platinum III also features the signature Thor OLED display, now upgraded for easy magnetic attachment – it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
LongProductName - ROG Thor 1200W Platinum III
LongSummaryDescription - ASUS ROG -THOR-1200P3-GAMING. Total power: 1200 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 400,120 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Number of fans: 1 fan(s). Cables included: CPU, PCIe, SATA, Peripheral (Molex)
Manufacturer - Asus
Manufacturer_code - 90YE00V2-B0NA00
MB power connector - 20 + 4 pin
Modular power supply - Yes
MOLEX power connectors - 6
Name - ASUS ROG-THOR-1200P3-GAMING
Name - ASUS ROG Thor 1200W Platinum III, PC power supply black, 1x 12 pin high power GPU, 4x PCIe, cable management, 1200 watts
name - ASUS ROG Thor Platinum III, 80 PLUS Platinum Netzteil, modular, ATX 3.1, PCIe 5.1 - 1.200 Watt
name - Power supply ROG THOR 1200W Platinum III 80+ Platinum
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 1
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Number of USB 10p connectors - 0
Packaging content - Cables included - CPU, PCIe, SATA, Peripheral (Molex)
Packaging data - Package depth - 241 mm
Packaging data - Package height - 127 mm
Packaging data - Package type - Box
Packaging data - Package weight - 5.14 kg
Packaging data - Package width - 379 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Performance - Bearing technology - DBB
Performance - Mean time between failures (MTBF) - 120000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
PMBus 5 Pin - 0
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 100 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 7
Ports & interfaces - PCI Express power cable length - 75 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 400,150 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 6
Ports & interfaces - SATA power cable length - 400,120 mm
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 125 W
Power - Combined power (+5V) - 125 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1200 W
Power - Combined power (-12V) - 3.6 W
Power - Max output current (+3.3V) - 30 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 100 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Overheating, Over current, Over power, Over voltage, Short circuit, Under power
Power - Total power - 1200 W
Power supply - 1200 W
Producent: Nazwa producenta / importera - Asus
ASUS COMPUTER GmBH
HARKORT STR. 21-23
40880 RATINGEN
producer - Asus
Producer - Asus
ProducerCode - 90YE00V2-B0NA00
ProductName - ROG-THOR-1200P3-GAMING
SATA power connectors - 7
ShortDescription - 1200 | ATX | 135mm | 20 + 4 pin | 80Plus Platinum| 190 x 150 x 86 mm |
ShortSummaryDescription - ASUS ROG -THOR-1200P3-GAMING, 1200 W, 100 - 240 V, Active, 125 W, 1200 W, 125 W
Title - ASUS ROG -THOR-1200P3-GAMING power supply unit 1200 W 20+4 pin ATX ATX Black
URL - https://rog.asus.com/power-supply-units/rog-thor/rog-thor-1200p3-gaming/
vendpn - 90YE00V2-B0NA00
WarrantyInfo - 10-year warranty included.
Weight - 5,14
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.37 kg
Weight & dimensions - Width - 190 mm
