ID: 1229393
Tuotekoodi: ELP-500S
Varastossa 50 yksiköt
Takuu: 2 vuotta

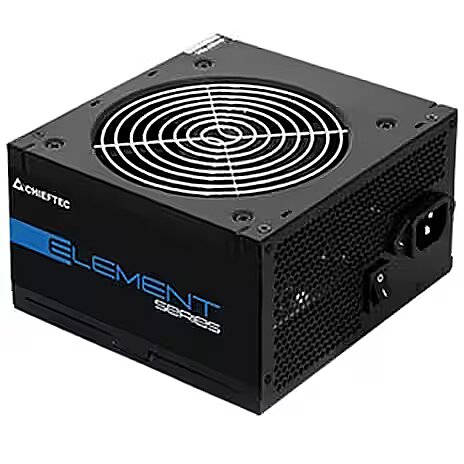

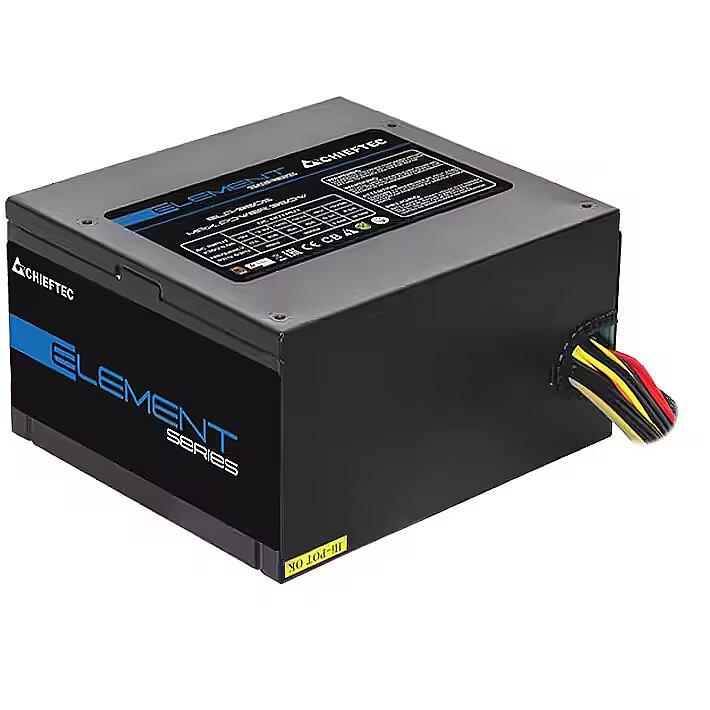

Chieftec Element Series ELP-500S, 500W, 80PLUS Bronze
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
-
Postin pakettiautomaatti1-2 työpäivän kuluessa6,99 € -
Toimitus Posti-kuriirin postin välityksellä1-2 työpäivän kuluessa10,99 €
Tärkeimmät tuoteparametrit Kaikki parametrit
- Tuottaja: Chieftec
- Teho: 500W
- 80 PLUS -sertifiointi: 80 PLUS Bronze
- Puhaltimen koko: 120 mm
- Modulaariset kaapelit: Ei ole
- Prosessori-liitännäinen: 1 x 8-pin(4+4) EPS
- PCI-E: 1 X 6+2pin
Kuvaus
Tarjoamme ostettavaksi Chieftec virtalähteen, jonka teho on 500W ja joka on saanut 80 PLUS Bronze energiatehokkuusluokituksen.
Tämä virtalähde on varustettu 120 mm tuulettimella, joka on teollisuuden standardi keskivertotietokoneiden hiljaisen toiminnan varmistamiseksi. Jos haluat erityisen hiljaisen yksikön, etsi sellainen, jonka tuulettimen halkaisija on 135 mm tai 140 mm.
Virtalähteelle on myönnetty 80 PLUS Bronze energiatehokkuussertifikaatti, joka takaa vähintään 85% tehokkuuden 50% kuormituksella. Tämä tarkoittaa, että vähintään 85 W 100 W:sta virtalähteen sähköverkosta vastaanottamasta tehosta toimitetaan tietokoneen osille, ja jäljellä oleva 15 W menee hukkaan lämpönä.
Virtalähteen väri on Melna. Se on varustettu litteillä kaapeleilla, joiden väri on Raiba.
Tämän virtalähteen standardiksi on määritetty ATX 2.0. Tämä tarkoittaa, että yksikkö on varustettu vain 6- ja 8-pinnisillä liittimillä, jotka tarjoavat vastaavasti 75W ja 150W tehoa. On tärkeää huomata, että tämä yksikkö on yhteensopiva RTX 4070:n ja tehokkaampien korttien kanssa, mutta sinun on käytettävä näytönohjaimen mukana tulevaa 2x8-pin - 16-pin 12VHPWR-adapteria. ATX 2.0 -virtaliittimet eivät ole suunniteltu käsittelemään modernien näytönohjainten suuria tehovaihteluita; tämän vuoksi, jos rakennat järjestelmää tehokkaalla GPU:lla, kuten RTX 4070:llä, suosittelemme valitsemaan virtalähteen, jossa on ATX 3.* -standardi ja 12VHPWR (PCIe 5.0) liitin.
Virtalähdeyksikkö
Perustiedot
Cybenetics Melutason sertifiointi
: Nav
Cybeneticsin tehokkuuden sertifiointi
: Nav
Virtalähteen tyyppi
: ATX
Teho
500W
Virtalähteen kapasiteetti watteina. Suurempi kapasiteetti tarkoittaa tietokoneen toiminnan vakaampaa toimintaa. Nykyaikaisen keskiverto tietokoneen virtalähteen suositeltu kapasiteetti on vähintään 500 W. Jos käytät useita kiintolevyjä, tehokasta näytönohjainta ja prosessoria, on suositeltavaa ostaa virtalähde, jonka kapasiteetti on vähintään 600 W.
80 PLUS -sertifiointi
: 80 PLUS Bronze
Kokonaisvirta (+12V)
: 38A
Puhaltimen koko
: 120 mm
Toiminnallisuus
Kaapelin väri
: Raiba
Valaistus
: Ei ole
Väri
: Musta
Modulaariset kaapelit
: Ei ole
Satamat ja laitteet
PCI-E 5.0/5.1
: Nav
Prosessori-liitännäinen
: 1 x 8-pin(4+4) EPS
Emolevyn virta
: 20+4-pin
PCI-E
: 1 X 6+2pin
SATA-liittimet
: 3
4pin Molex
: 2
Tapaus
Yksityiskohtaisempi erittely
Brand - Chieftec
BrandPartCode - ELP-500S
Category - Power Supply Units
Category Code - PSU
Certificates - Certification - CE, CB, EAC, ErP, RoHS, interseroh, TÜV
CnCode CnCode - 85044095
Colour - Black
Cooling System - 12cm fan
Description - The brand new ELEMENT series combines innovation, high quality, great design and efficiency. With a silent running 12cm fan, the PSU is held in decent black, equipped with long native cables, a power cord, and a solid and eye catching retail box. With an efficiency of over 85% (BRONZE) @230V, the ELEMENT series fulfills the requirement of GREEN IT at an attractive price.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Dimensions - 140 mm x 150 mm x 87 mm
Efficiency - 80 PLUS BRONZE
Full Description Line - ATX 2.3|500 Watts|Cooling System 12cm fan|80 PLUS BRONZE|PFC Active|Colour Black
GTIN - 4710713230958
LongDesc - The brand new ELEMENT series combines innovation, high quality, great design and efficiency. With a silent running 12cm fan, the PSU is held in decent black, equipped with long native cables, a power cord, and a solid and eye catching retail box. With an efficiency of over 85% (BRONZE) @230V, the ELEMENT series fulfills the requirement of GREEN IT at an attractive price.
LongProductName - 500 W, 120 mm, ATX 12V 2.3, >85%, Active PFC (0.9)
LongSummaryDescription - Chieftec ELP-500S. Total power: 500 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, PCIe, Peripheral (Molex), SATA
Packaging content - Cables included - AC, PCIe, Peripheral (Molex), SATA
Packaging data - Package type - Box
Packaging data - Package weight - 1.7 kg
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC
Performance - Supported motherboard form factors - ATX
PFC - Active
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Motherboard power cable length - 50 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 3
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 50 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - SATA power cable length - 150,500 mm
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 456 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Input current - 4 A
Power - Max output current (+3.3V) - 18 A
Power - Max output current (+5V) - 17 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V1) - 38 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over power, Over voltage, Short circuit, Under voltage
Power - Total power - 500 W
ProductName - ELP-500S
Product Net Weight - 0.62 kg
PSU - ATX 2.3
PSU Output Power - 500 Watts
Shipping Box Depth Shipping/Package Box Dimensions - 23.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 9.5 cm
Shipping Box Weight Shipping/Package Box Dimensions - 0.652 kg
Shipping Box Width Shipping/Package Box Dimensions - 17 cm
ShortSummaryDescription - Chieftec ELP-500S, 500 W, 200 - 240 V, 47 - 63 Hz, 4 A, Active, 110 W
Title - Chieftec ELP-500S power supply unit 500 W 20+4 pin ATX PS/2 Black
Unit Calculated Volume - 0.003795 cubm
Unit Calculated Weight - 0.652 kg
Units per Shipping Box - 1
URL - https://www.chieftec.eu/products-detail/123/ELEMENT_SERIES/126/ELP-500S
Vendor Homepage - www.chieftec.eu/en/psus/odm-psu/element-series/elp-500s.html
Warranty - 24 months
WarrantyInfo - 24 Months
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.44 kg
Weight & dimensions - Width - 140 mm
