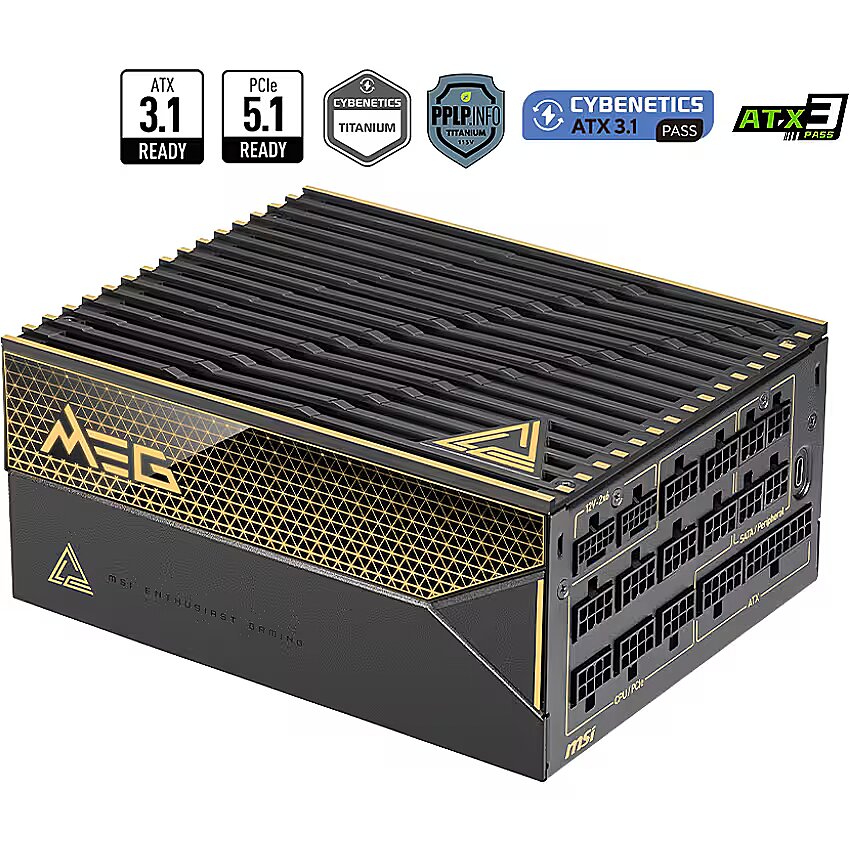

MSI MEG Ai1600T PCIE5, 1600W, 80PLUS Titanium, ATX 3.1, PCIe 5.1

80 PLUS certification Performance - 80 PLUS Titanium
AC input voltage Power - 100 - 240 V
Bearing technology Performance - DBB
Brand - MSI
BrandPartCode - MEG AI1600T PCIE5
Cabling type Ports & interfaces - Fully-Modular
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Combined power (+3.3V) Power - 120 W
Combined power (+5V) Power - 120 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 1600 W
Combined power (-12V) Power - 3.6 W
Dane techniczne: Certyfikat sprawności - 80 Plus Titanium
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Gwarancja - 10 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 190 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 1600 W
Dane techniczne: Model - MSI MEG Aixxxx PCIE5
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: Natężenie przy napięciu +3.3V - 22 A
Dane techniczne: Natężenie przy napięciu +5V - 22 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3 A
Dane techniczne: Natężenie przy napięciu +12V1 - 133.3 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - MSI
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Wersja standardu ATX - ATX 3.1

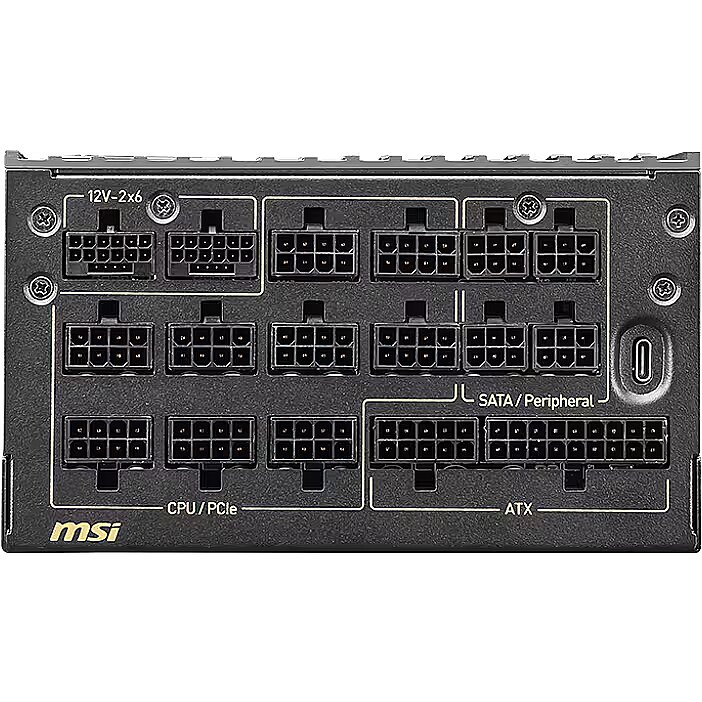

Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 2 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 8 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 8 x SATA
Dane techniczne: Wtyczka zasilania [pin] - 9 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - SIP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 135 mm
Depth Weight & dimensions - 150 mm
Description - MSI's flagship MEG series exemplifies relentless innovation, continuously setting new benchmarks in the gaming hardware space. This trailblazing series employs pioneering technology to push the boundaries of gaming, consistently leading with innovations that redefine what gamers expect.

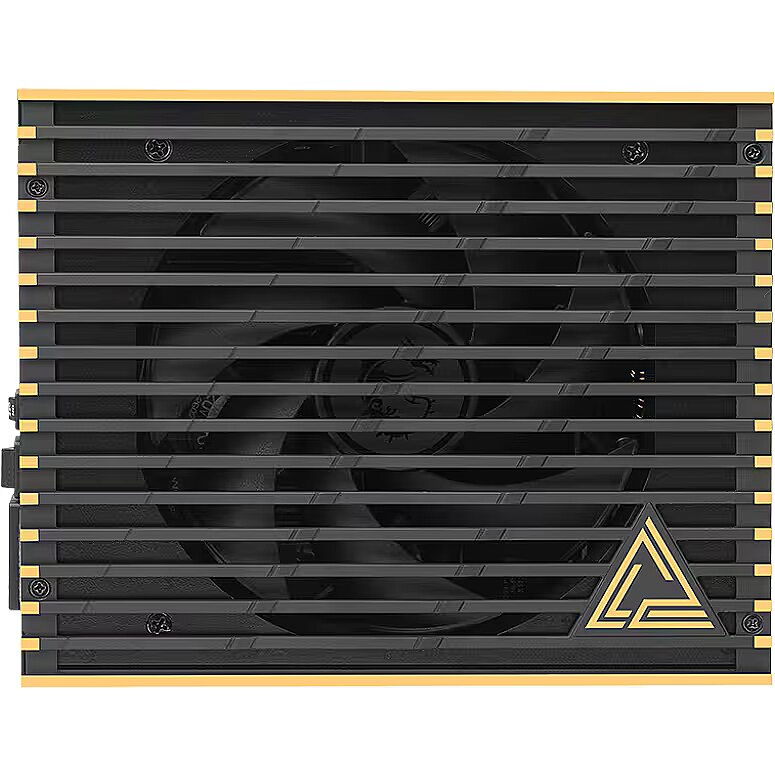

Design - Fan diameter - 13.5 cm
Design - Number of fans - 1 fan(s)

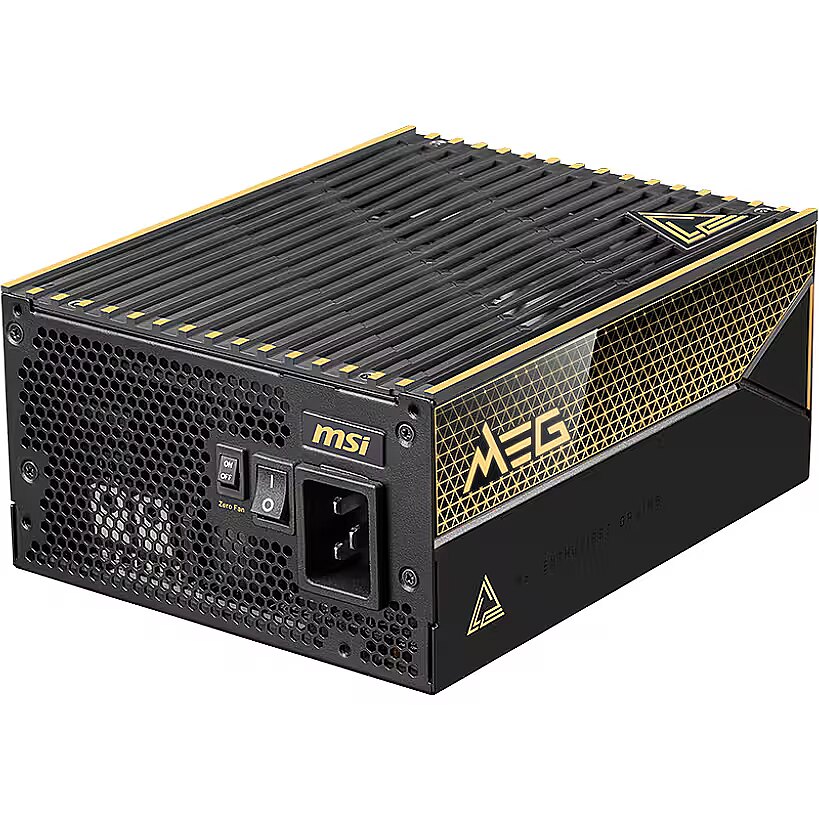

Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 2923
Eans - 4711377238830
Efficiency Power - 94 %
EPS power connector (4+4 pin) Ports & interfaces - Yes
EPS power connector (8-pin) Ports & interfaces - No
Fan diameter Design - 135 mm
GTIN - 4711377238830
GTIN - 4711377238847
Height Weight & dimensions - 86 mm
LongDesc - MSI's flagship MEG series exemplifies relentless innovation, continuously setting new benchmarks in the gaming hardware space. This trailblazing series employs pioneering technology to push the boundaries of gaming, consistently leading with innovations that redefine what gamers expect.
LongProductName - 1600W, 135 mm, 80 PLUS Titanium
LongSummaryDescription - MSI MEG Ai1600T PCIE5. Total power: 1600 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 24-pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Fan diameter: 13.5 cm. Width: 190 mm, Depth: 150 mm, Height: 86 mm
Max output current (+3.3V) Power - 22 A
Max output current (+5V) Power - 22 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 133.3 A
Max output current (-12V) Power - 0.3 A
Model name - MEG AI1600T PCIE5
Motherboard power connector Ports & interfaces - 24-pin ATX
Name - MSI MEG Ai1600T PCIE5
Number of SATA power connectors Ports & interfaces - 8
PCI Express power connectors (6+2 pin) Ports & interfaces - 9
PCI Express power connectors (16-pin) Ports & interfaces - 2
Performance - 80 PLUS certification - 80 PLUS Titanium
Performance - Bearing technology - DBB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 8
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - No
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 9
Ports & interfaces - PCI Express power connectors (16-pin) - 2
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 8
Ports & interfaces - Power connector 16 PIN PCIe GEN5 - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1600 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Efficiency - 94%
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 133.3 A
Power - Max output current (+12V) - 133.33 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 1600 W
Power Factor Correction (PFC) type Power - Active
Power supply unit (PSU) form factor Performance - ATX
Producent: Nazwa producenta / importera - MSIMSI Computer Europe BVEScience Park Eindhoven 57065692 ER Son Eindhoven HolandiaEmail: GPSR@msi.com
Producer - MSI
producerCode - 306-7ZPEX11-CE0
ProducerCode - 306-7ZPEX11-CE0
Product colour Design - Black
ProductName - Ai1600T PCIE5
productName - MSI MEG Ai1600T 1600W PCIE5 80+ Titanium power supply (306-7ZPEX11-CE0)
productSize - Normal
Purpose Performance - PC
Safety warning - Warnings - Do not open the case - risk of electric shock.
ShortDescription - 1600 | ATX | 120 mm | 20 + 4 pin | 190mm x 86mm x 150mm | 80PLUS Titanium | modularny |
ShortSummaryDescription - MSI MEG Ai1600T PCIE5, 1600 W, 100 - 240 V, Active, 120 W, 1600 W, 120 W
sizeX - 380
sizeY - 245
sizeZ - 157
Summary - MSI MEG Ai1600T PCIE5. Total power: 1600 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 24-pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Fan diameter: 13.5 cm. Width: 190 mm, Depth: 150 mm, Height: 86 mm
Title - MSI MEG Ai1600T PCIE5 power supply unit 1600 W 24-pin ATX ATX Black
Total power Power - 1600 W
Unit Box Height - 0.25
Unit Box Length - 0.385
Unit Box Width - 0.15
Unit Calculated Volume - 0.018942 cubm
Unit Calculated Weight - 6.4 kg
Units per Shipping Box - 2
URL - https://www.msi.com/Power-Supply/MEG-Ai1600T-PCIE5/Overview
Vendor Homepage - https://www.msi.com/Power-Supply/MEG-Ai1600T-PCIE5/Overview
Warranty - 120 months
WarrantyInfo -
warrantyLength - 120
warrantyType - G
weight - 5958
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Depth - 190 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
Weight & dimensions - Width - 190 mm
Width Weight & dimensions - 190 mm
